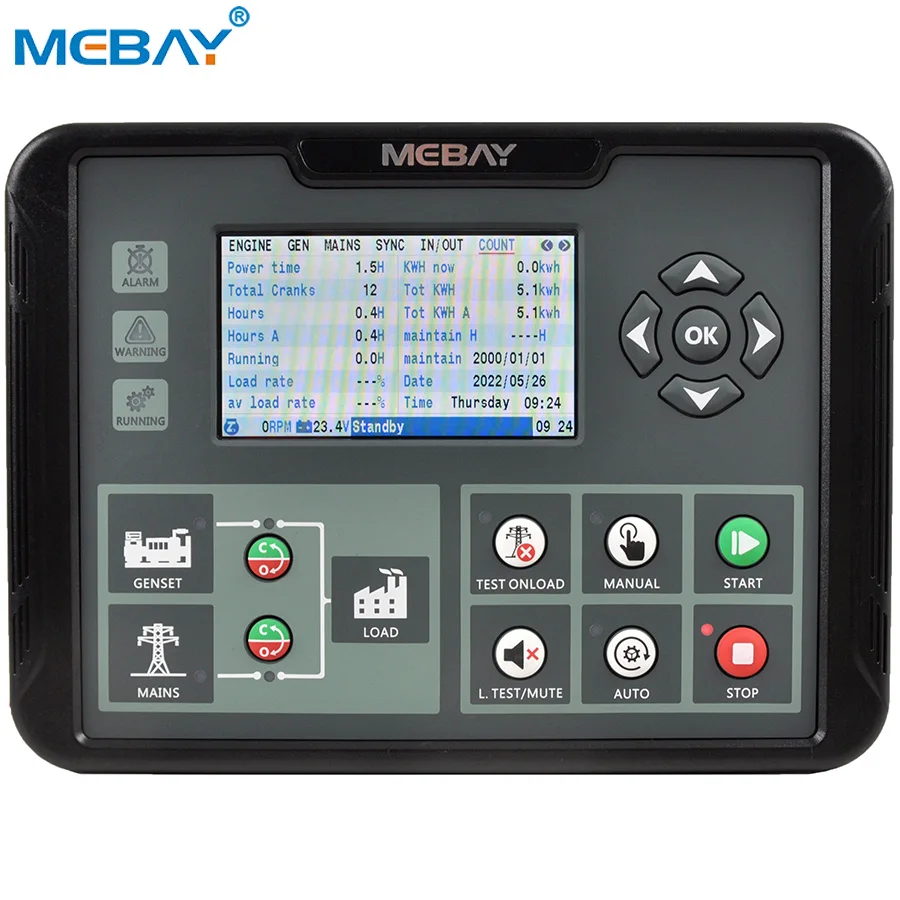

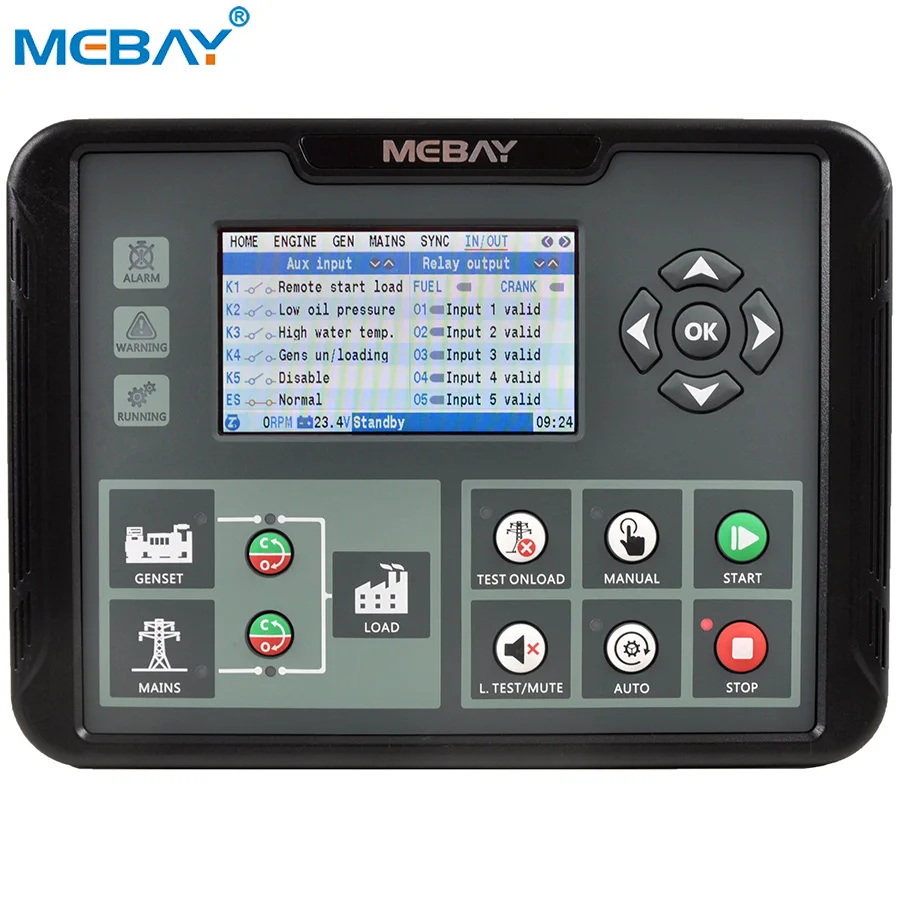

Mebay DC102D Synchronising & Load Sharing Generator Controller Parallel Control Module Replace DSE8620
- Category: Generator Parts & Accessories >>>
- Supplier: Chongqing Yokden E&M Equipment Co. Ltd.
Share on (1600543303566):
Product Overview
Description
Main Products
Product Description

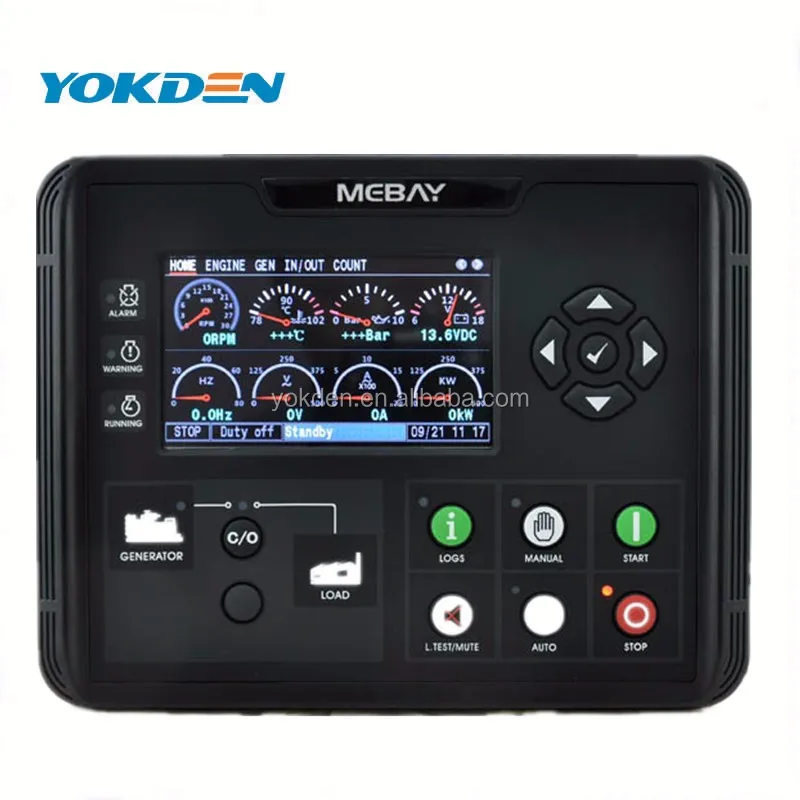

Mebay Genset Parallel Controller DC100D Synchronizing Module
DC100D is designed for manual/auto parallel system generators with similar or different capacity. The gen set parallel controller utilizing the GOV (Engine Speed Governor) and AVR (Automatic Voltage Regulator) control function. Multiple working modes can be selected, such as genset fixed active power, reactive power/power factor output, mains peak lopping and uninterruptedly restore to mains supply.
Advatanges
1. 4.3 inches screen, 5 languages available for choice.
2. USB Port, RS485 communication port and Standard CAN communication port, built-in J1939 protocol,
3. Real time clock, maintenance countdown function, fault record function and battery charging control function
4. 8 relay’s output， 8 switches input and 5 sensor simulation input connectors
Advantages

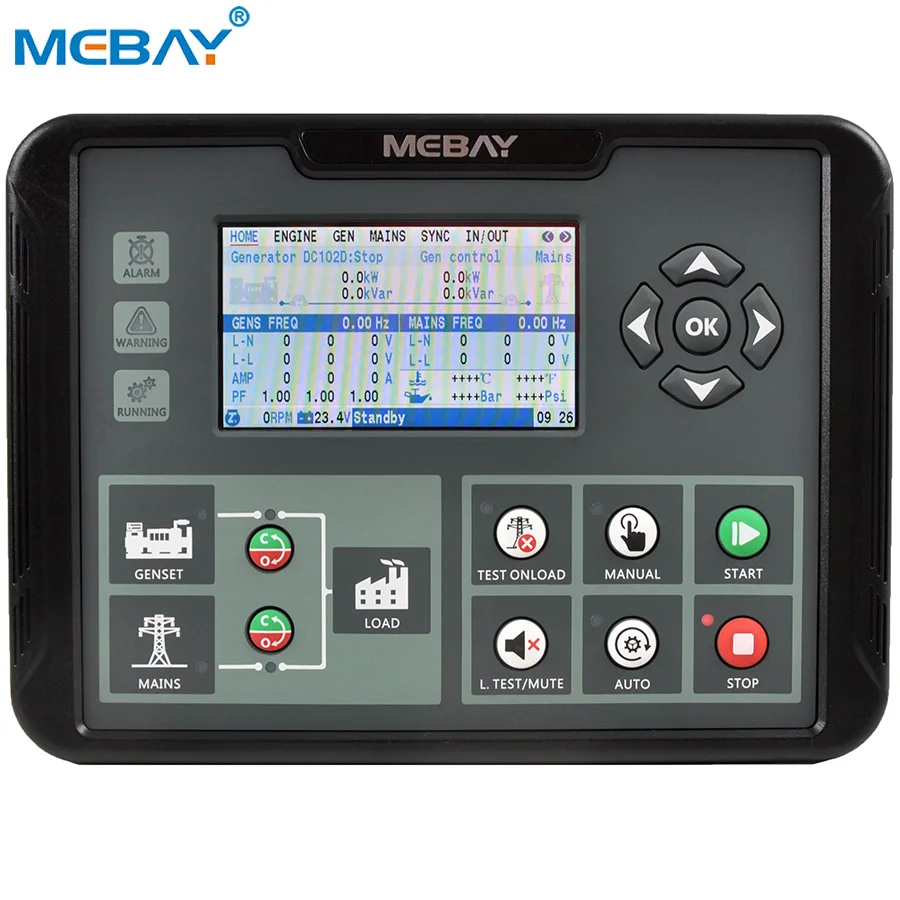

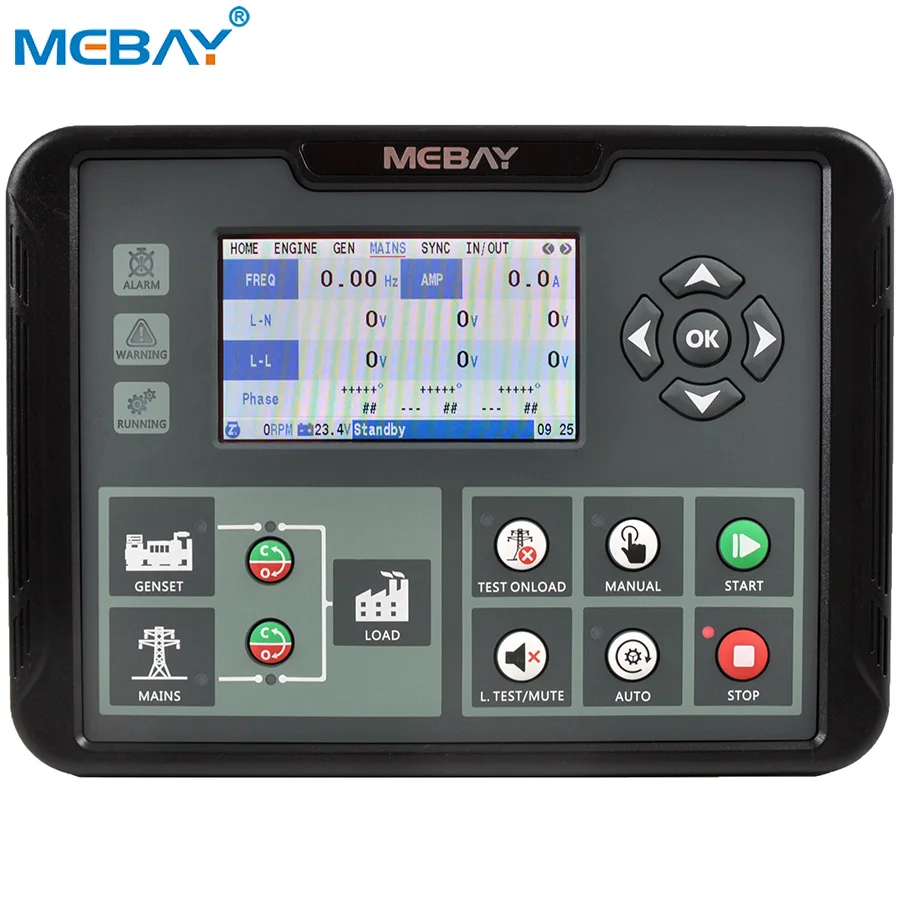

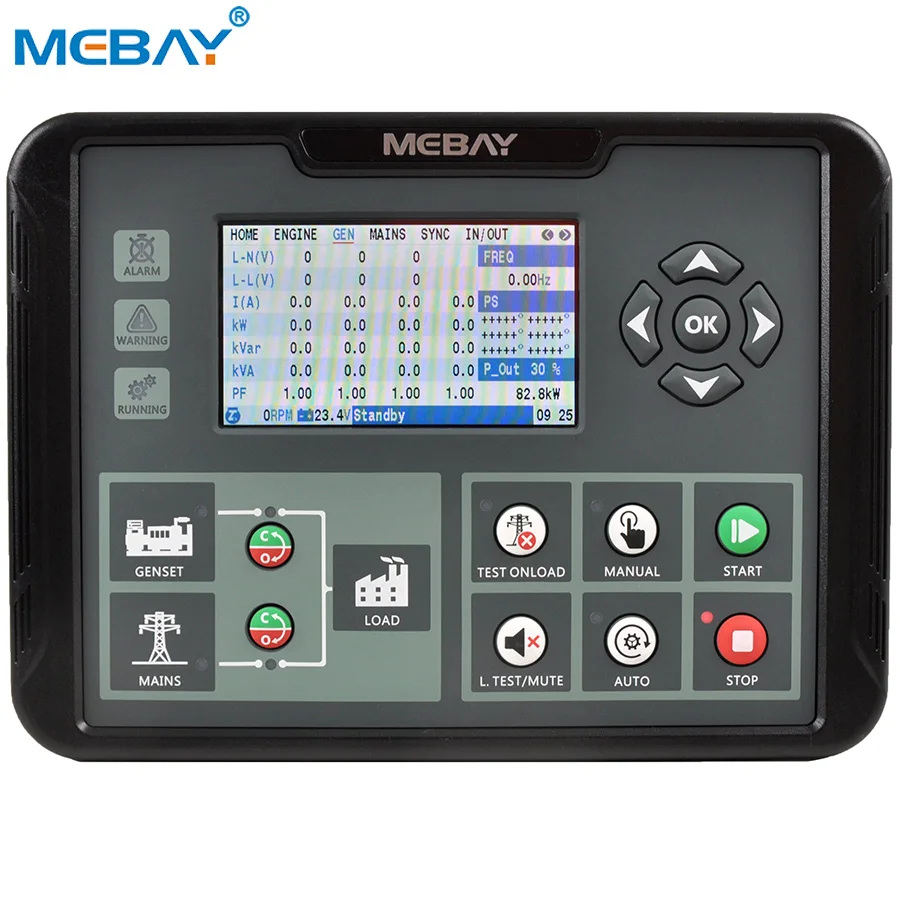

5. Collects and shows 3-phase voltage, current, power parameter and frequency of mains.
6. For mains, controller has over voltage, under voltage, over frequency, under frequency ,loss of phase and phase sequence wrong detection functions; For generator, controller has over voltage, under voltage, over frequency, under frequency, over current, over power, reverse power, loss of phase, phase sequence wrong detection functions.

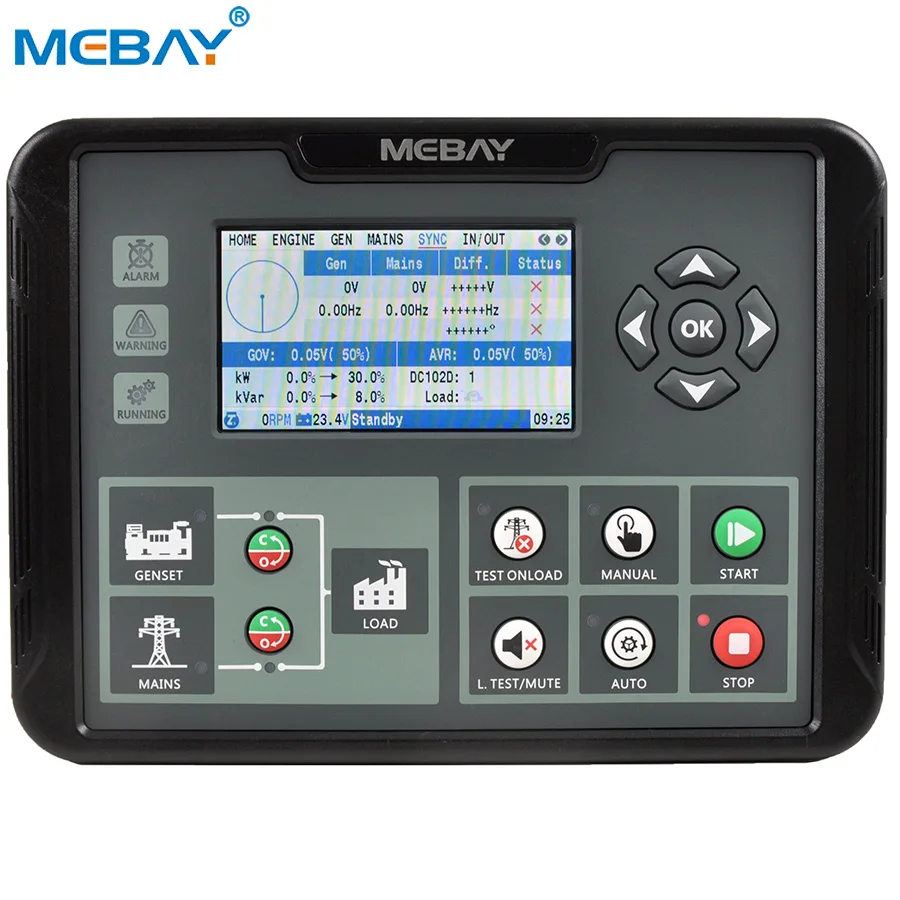

7. Synchronization parameters：Voltage Difference Between Mains, Frequency Difference Between Mains, Phase Difference Between Mains, multiple running modes in auto state: AMF (Automatic Mains Failure), Island Mode, Fixed Power, Peak Lopping Mode and Load Takeover Mode.
Options | Parameters |
Working voltage | DC8V----36V Continuous |
Power consumption | Standby：24V：MAX 1W |
Working：24V：MAX 7W | |
AC Voltage Input | 1P2W 30VAC-276VAC (ph-N) |
2P3W 30VAC-276VAC (ph-N) | |
3P4W 30VAC-276VAC (ph-N) | |
Rotate speed sensor Frequency | 200-10000Hz |
MAX Accumulating Time | 99999.9Hours（Min Store time:6min） |
Fuel Relay Output | Max 16Amp DC+VE Supply voltage |
Start Relay Output | Max 16Amp DC+VE Supply voltage |
Programmable Relay output 1 | Max 5Amp DC+VE Supply voltage |
Programmable Relay output 2 | Max 5Amp DC+VE Supply voltage |
Programmable Relay output 3 | Max 5Amp DC+VE Supply voltage |
Programmable Relay output 4 | 250v/5AMP Non-contact normal close output |
Programmable Relay output 5 | 250v/5AMP Non-contact normal open output |
Excitation output | Max 0.9AMP DC+VE supply voltage |
Switch value input | Available if connecting with Battery - |
Working condition | -25-65℃ |
Storage condition | -40-85℃ |
Protection Level | IP54：when waterproof rubber gasket is added between controller and its panel |
Insulation strength | Apply AC1.5kV voltage between high voltage terminal and low voltage terminal; The leakage current is not more than 3mA within 1min. |
Overall dimension | 241mm*177mm*45mm |
Panel cutout | 220mm*160mm |
Weight | 1Kg |
More Products

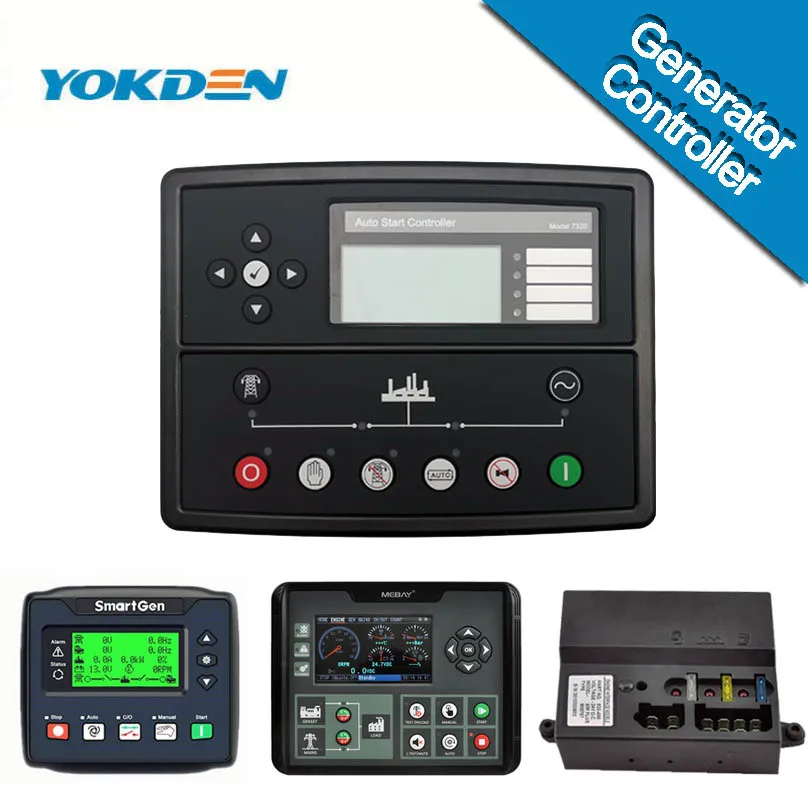

Generator Controllers for your options | ||||||||
