Product Overview

Description



Products Description



Paper Tube Making Machine
1. Suitable for paper tube diameter 20 ~150 mm. Paper tube thickness of 1-8 mm paper tube production.
2. According to different paper tubes, the winding speed is between 0-25(m/min).
3. The strength of the paper tube has been greatly improved by the two resistance-free heads.
4. The fixed-length mode of the paper tube is optically controlled, which is easy to operate and suitable for novice operators.
5. The main motor is Shanghai strong speed (7.5KW). The output power of this product is strong, and it has the function of regulating speed.


Parameter Sheet


Item#
Specification
Data Details.
01
Paper layers
2-12（layer)
02
Paper tube diameter
20-150（mm）
03
Paper Tube Thickness
1-8（mm）
04
hose speed
0-25（m/min）
05
Fixed Length Model
Light-operated(Frared)
06
Winding head
2 Heads
07
Cutting Mode
Single round cutter cutting
08
Roll Core Die Fixing Method
Flange tightening
09
Gluing Method
Double gluing
10
Control Mode
Frequency Control
11
Input Voltage
380V/220V
12
Number Of Operators
1-3
13
Host Power
7.5kw
14
Host Size:L*W*H
3300mm*1700mm*1900mm
15
Total Weight
3100KGS


Features


1. Suitable for paper tube diameter 20 ~150 mm. Paper tube thickness of 1-8 mm paper tube production.
2. According to different paper tubes, the winding speed is between 0-25(m/min).
3. The strength of the paper tube has been greatly improved by the two resistance-free heads.
4. The fixed-length of the paper tube is optically controlled, which is easy to operate and suitable for novice operators.
5. The main motor is Shanghai strong speed (7.5KW).
The output power of this product is strong, and it has the function of regulating speed.


Details Images

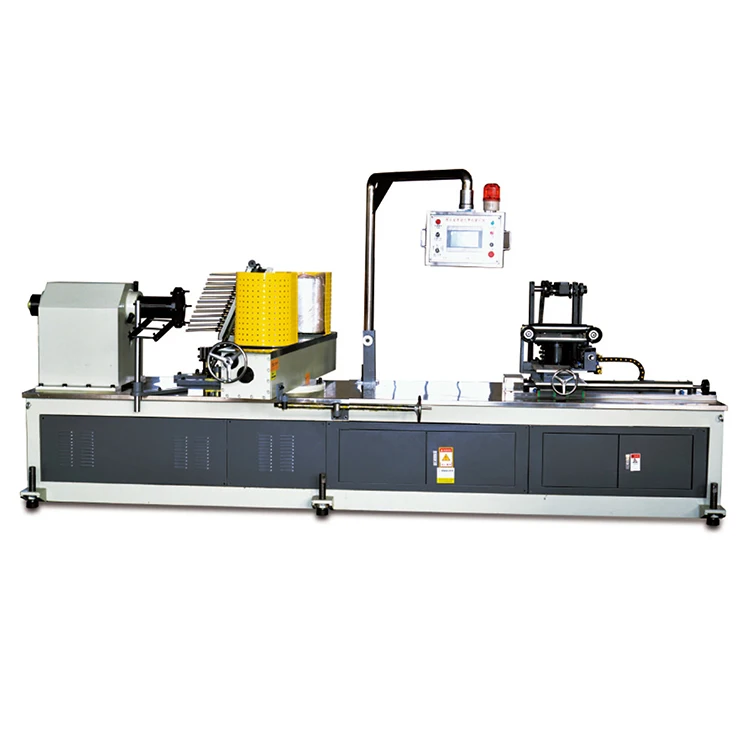

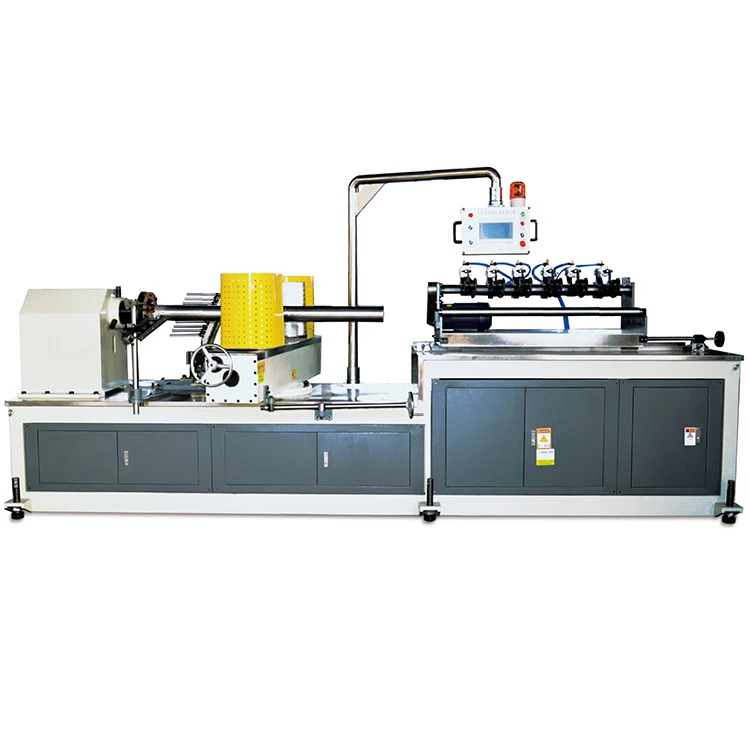

TSJG-150 Paper Tube Making Machine With CNC Control System


TSJG-150 Glue System
TSJG-150 Paper Roll Holders
TSJG-150 Paper Roll Holders


After-sales service


* All of our equipment contain ONE(1) year warranty.
* Spare parts could be replaced with fast delivery and within 3 work days.
* Online guide to installation and commission, on-site service is also available if need.
* 24 hours/day and 7 days/week for after-sales service, online guide etc.
* Any problem once you have, get in touch with us anytime.
