Product Overview


Products Description

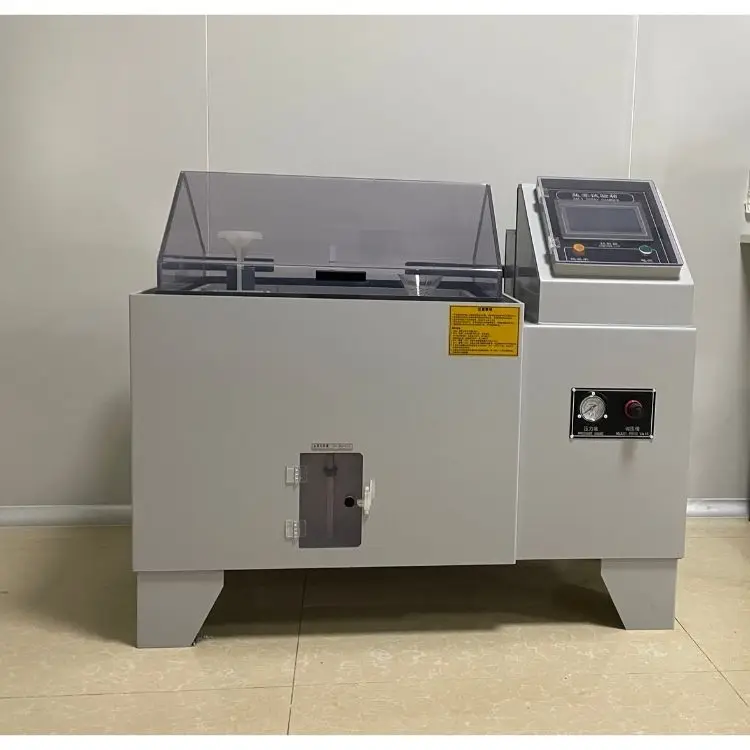

Salt Spray Test Chamber
Model: BST-YW

1. Product Introduction
Salt spray test chamber through the assessment of the material and its protective layer salt spray corrosion ability, as well as similar protection layer process quality comparison, at the same time can assess the salt spray corrosion resistance of some products; The product is suitable for parts/electronic components/metal material protection layer and industrial products salt spray corrosion test chamber

2. Function
* Salt spray, drying, wetting, soaking, constant temperature and humidity test
* Salt spray testing machine is suitable for surface treatment of various materials, including coating, electroplating, organic and inorganic skin film, anodic treatment, anti-rust oil, as if after treatment to test the corrosion resistance of their products.

3. Features
* The whole set is made of imported PVC board, with strong structure, never deformation, and acid and alkali resistance to high temperature and never change
* Automatic/manual water filling system, with automatic/manual water filling function when water level is insufficient, the test is not interrupted, the water level is insufficient warning display.
* Precision glass nozzle fog diffusion evenly, and naturally fall on the test piece, to ensure no crystal salt blocking.
* The control instrument is on the same machine board, easy to operate, and clear at a glance.
* With double overtemperature protection, water level insufficient warning, to ensure safe use.
* Imported temperature controller with manual and automatic control mode, using digital display, PID control, error ±1℃, maximum setting time up to 999hrs.
* Direct steam heating method is adopted in the laboratory, which can increase temperature quickly and evenly and shorten standby time.
* The spray tower is attached with a conical dispersion device, which can guide the fog, adjust the fog amount and evenly fall the fog.
* The pressure drum is heated and humidified according to Henry's law, and provides the humidity required by the laboratory.
* The upper cover of the test tank for large scale machine is automatically opened and closed by pneumatic cylinder, which is easy to operate and safe.
* After the test is completed, it has an automatic defogging device, which can clearly observe the samples in the test room.
* Standard of use: CNS3672、3885、4159、7669、8886/ JIS D-0201、H-8502、H-8610、K-5400、Z-2371/ ISO3768、3769 / ASTM B-117、B-268 / GB-T2423 / GJB150

Dimensions (mm)
Equipment material
Imported PVC sheet &P.P
Laboratory temperature
Salt water test (NSS ACSS)35±1℃ Corrosion resistance test (CASS)50±1℃
Saturated air barrel temperature
Salt water test (NSS ACSS)35±1℃ Corrosion resistance test (CASS)50±1℃
Spray amount
1.0-2.0ml /80cm*2/h(at least 16 hours of collection, average)
Salt water test (NSS ACSS 6.5-7.2) Corrosion resistance test (CASS) 3.0-3.2
Volume L
AC1 220V 15A

Related Products

About Us

Our Company Information:
Dongguan Best Instrument Technology Co., Ltd. established in 2018, is a private enterprise located in Dongguan, Guangdong province with convenient transportation access. The company has been specialized in physical property testing of engineering plastics for 13 years, focusing on plastic material mechanics, melt index, impact strength testing and thermal deformation vicat, moisture testing, aging, flame retardant and other plastic test machine. We are also proficient in the production, research and development, upgrading and transformation of various non-standard instruments and automated instruments in the testing of properties.
Dongguan Best Instrument Technology Co., Ltd. is a professional OEM manufacturer that covers an area of about 2000 square meters and has more than 30 staff members, including 4 R&D personnel and 5 professional technicians. Since the establishment of the company, we have accumulated more than 2 ,000 customers, 70 % of which are engaged in the production of plastic, wire and cable and other peripheral products, and the products have won unanimous praise from customers. Besides, we are making great efforts to develop new products to meet different requirements. Adhering to the business principle of mutual benefits, we have had a reliable reputation among our customers because of our professional services, quality products and competitive prices. If you have any new ideas or concepts for the products, please contact us. We are glad to cooperate with you for common success in the future.

Quality Control

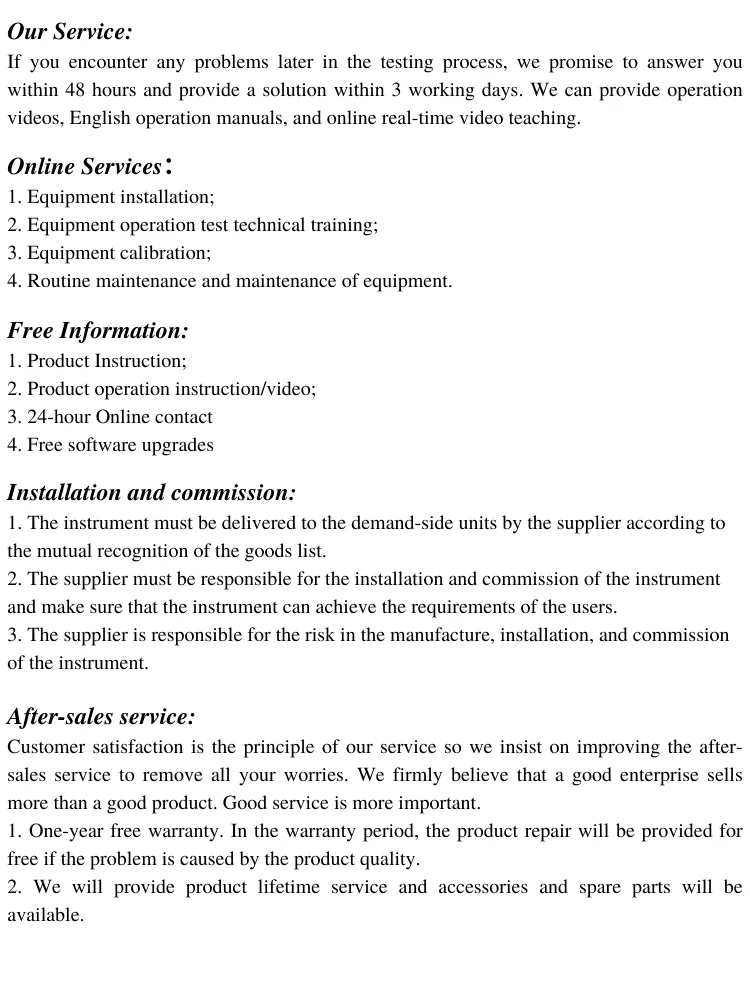

Our Services
