bout FusionSolar intelligent photovoltaicHuawei took the lead in integrating the digital information technology accumulated over more than 30 years with photovoltaic cross-border, and launched the leading smart photovoltaic solution. On the power generation side, new ICT technologies such as AI and cloud are further integrated with photovoltaics to create smart photovoltaic power plants with “efficient power generation, smart operation and maintenance, safe and reliable, and grid-friendly”, helping photovoltaics become the main energy source. On the power consumption side, based on the concept of “active safety and better cost per kilowatt-hour”, Huawei has launched green power solutions for enterprises and home users to increase the rate of spontaneous self-utilization. It is the first to realize 24-hour clean power in household scenarios, leading users Enter a new era of electricity.

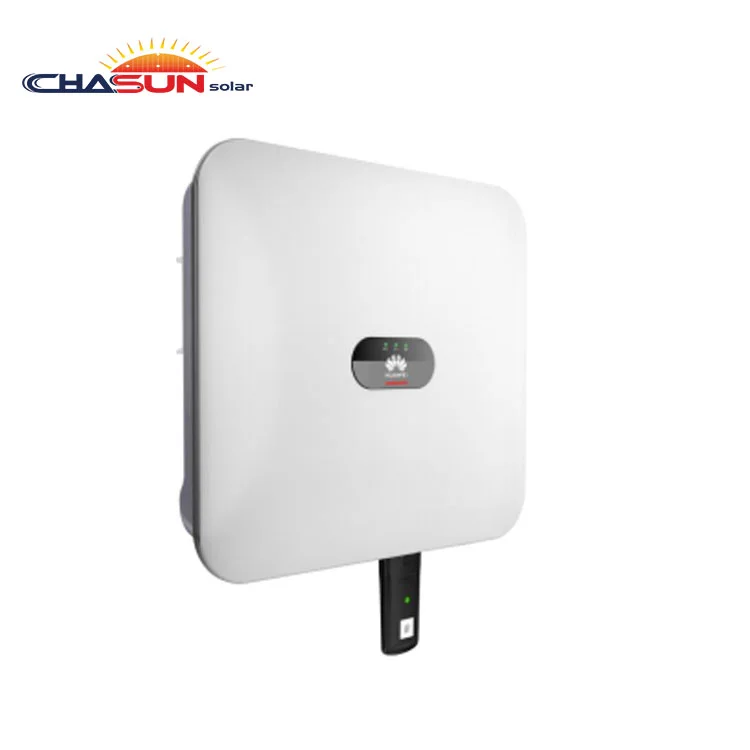

SUN2000-5KTL-M0 ----- SUN2000-12KTL-M0
Technical parameters
SUN2000-5KTL-M0
SUN2000-6KTL-M0
SUN2000-8KTL-M0
SUN2000-10KTL-M0
SUN2000-12KTL-M0
Efficiency
Maximum efficiency
98.5%
98.5%
98.65%
98.65%
98.65%
The input
Maximum DC input voltage
1100V
Start voltage
200v
Maximum input current per MPPT channel
11A
Full load MPPT voltage range
240Vdc~850Vdc
285Vdc~850Vdc
380Vdc~850Vdc
470Vdc~850Vdc
550Vdc~850Vdc
MPPT voltage range
160V~1000V
Rated input voltage
600V
Maximum input number
2
Number of MPPT
2
The output
Rated output
5,000W
6,000W
8,000W
10,000W
12,000W
Maximum apparent power
5,500VA
6,600VA
8,800VA
11,000VA
12,000VA
Maximum active power
5,000W
6,000W
8,000W
10,000W
12,000W
Rated output voltage
230Vac/400Vac,3W/N+PE
Output voltage frequency
50HZ/60HZ
Maximum output current
8.6A
10.3A
13.6A
17A
18.5A
Maximum total harmonic distortion
<3%
Protection
Input DC switch
support
Afci DC arc protection
support
Anti-islanding protection
support
Output overcurrent protection
support
Output reverse connection protection
support
String fault detection
support
DC surge protection
support
AC surge protection
support
Insulation resistance detection
support
Residual current monitoring
support
Grid monitoring
support
What is a grid-tied system?
PRODUCT SPECIFICATIONS
Company Profile
Jinhua Chasun Solar Technology Co.,Ltd is the subsidiary corporationan of Chasun Group Co.,Ltd. Which are an international high-tech and growing group company, specializing in the design, manufacture, sales, installation and maintenance of solar power products.
Chasun solar has a powerful team of specialists in photovoltaic, inverter, battery,Controller and solar generator technology, product development, and project management. Every one of them is an authority in its field and has more than a decadeof experience.
We aiming at becoming “The expert of solar power generation”.
Chasun insist on the objective of “green energy for our lives”, continuously innovating, forging ahead, willing to work together with the new and old customers to contribute to the development of solar applications, and to strive to create a beautiful green pollution-free environment for human society. Make a contribution to the green world, starting with the choice of Chasun solar.
Chase Sun Energy, Enjoy New Live!

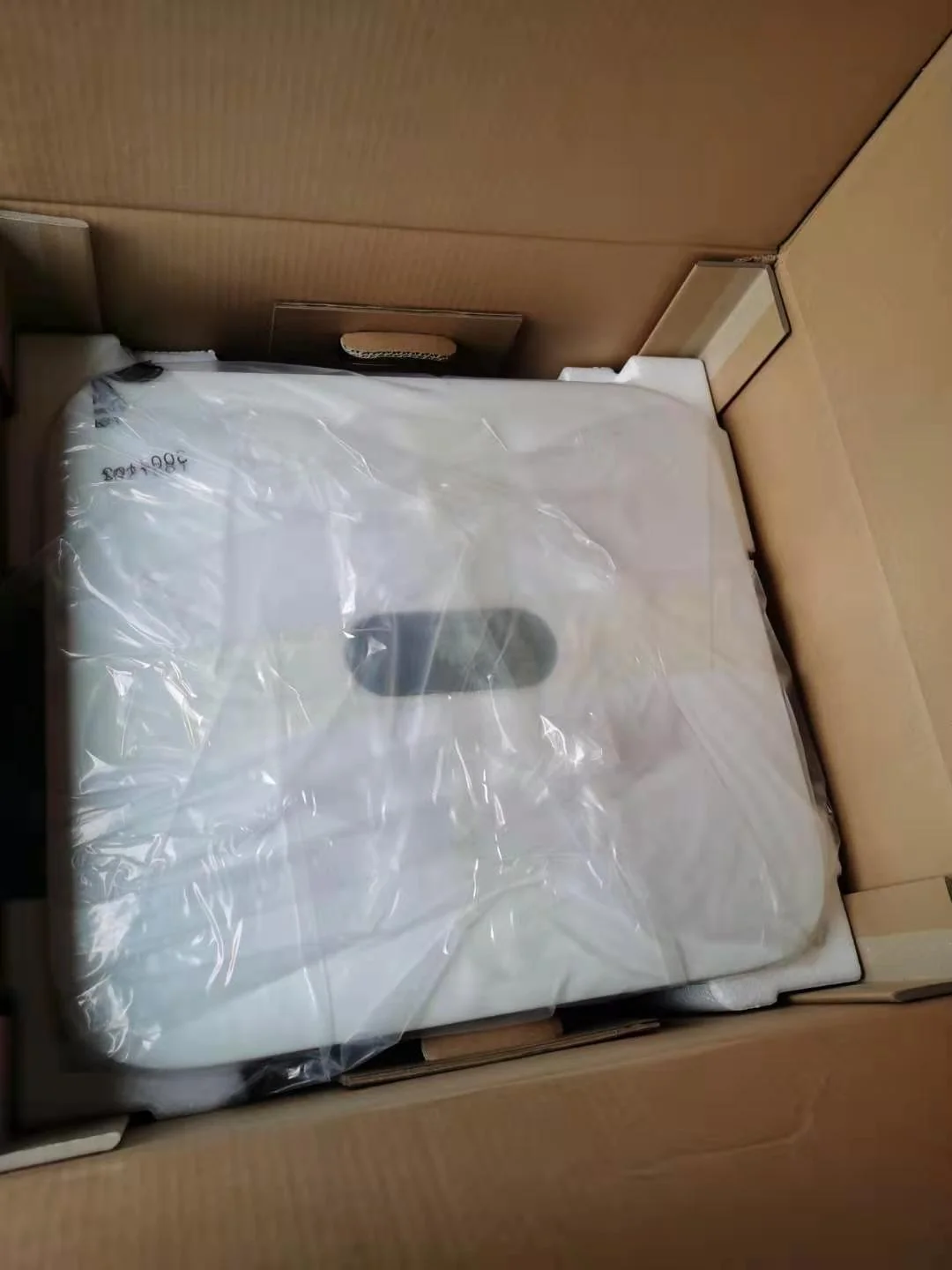

Product packaging
FAQ
Q1: Do your company a trading company or manufacturer? A1: Chasun is a Group Company which have solar panel factory, Inverter factory.solar system factory. We also do Construction Engineering. Whatproofing Engineering. Mould Making. Solar industry is our main products for exporting.
Q2: How long can you delivery my order? A2: Usually we need 15 days to prepare your order after receiving the deposit..
Q3: Can you export Huawei inverter? A3: Yes, We can, We have exported big quantity huawei inverter, we have very full experience about exporting huawei inverter
Q4: What's your payment terms ? A4: By T/T,LC AT SIGHT,30% deposit in advance, balance 70% before shipment.
Q5: What do we need to monitor the project? A5: The Smart Dongle is necessary for monitoring the project.
Q6: What is inverter warranty ? A6: 5 years warranty
