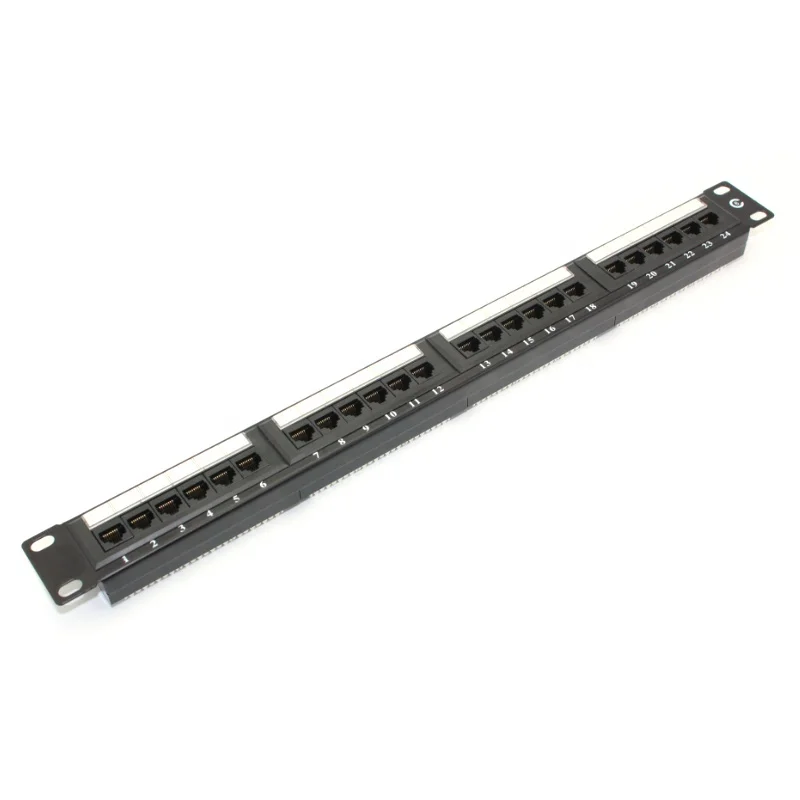

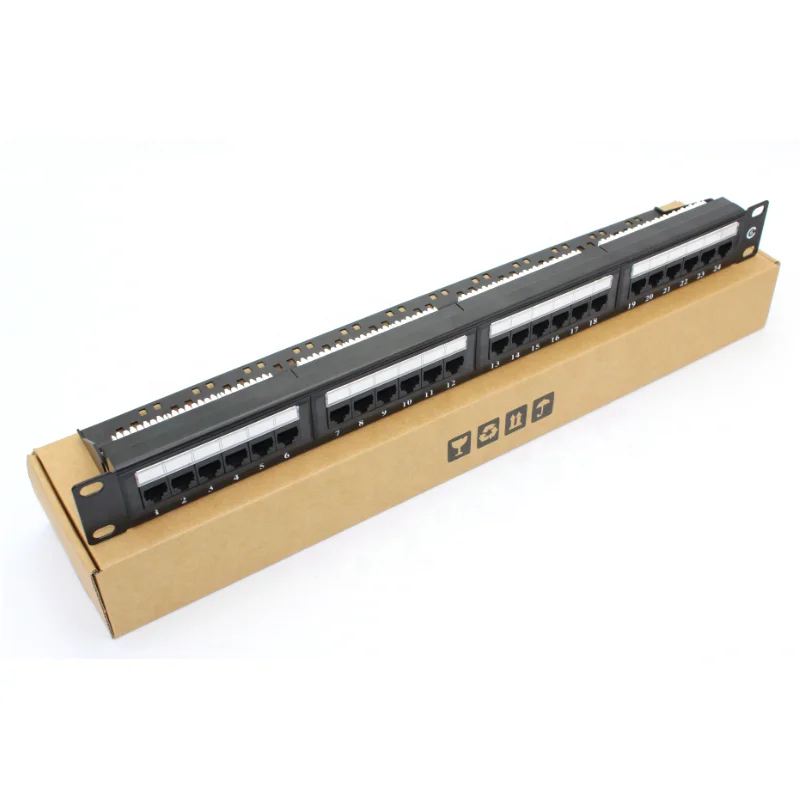

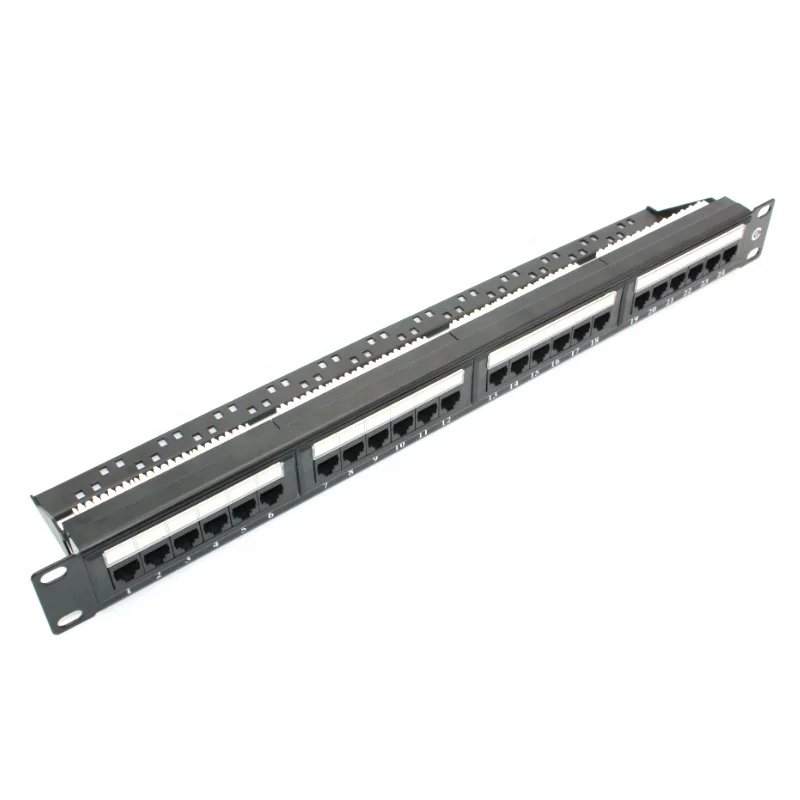

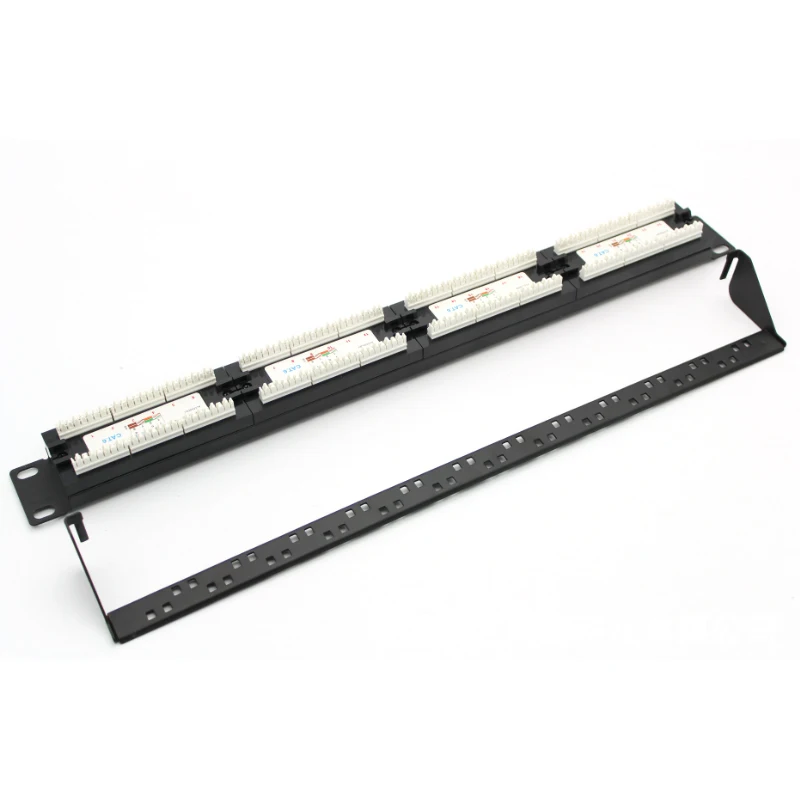

cat5 ethernet network 19' 24 cat 5e cat5e 24 ports UTP 1u rj45 patch panel with manage bar

Application

Certification:ISO9001,CE,RoHS

Standard:ISO/IEC-11801;ANSI/TIA-568-C.2; EN50173-1 ;ANSI/TIA–1096-A (FCC Part68);IEC 60603-7

Wiring Standards:T568A/T568B

Application: for home ,hotel, office and buildings network wiring

Specification

Material: *Panel:SPCC 1.5mm *Housing:PC/ABS *Spring Wire: Phosphor Bronze with Gold-plated 3u-50u" *IDC Contact:Phosphor Bronze with tinned

Working life: 750 times Min for RJ45 jack; 200times min for IDC

Current Rating:1.5 Amps

Contact Resistance:2.5mΩ max

Insulation Resistance:500mΩ minimum

Dielectric Strength:1000V RMS at 60Hz for 1 minute

Flammability rating:UL 94V-0

QC:100% broken circuit testing

Humidity:10% ~ 90%RH

Temperature:-20℃~ 60℃

OEM / ODM:Available

Feature

*Unique design is essential to manage any additions, and changes efficiently and effectively. *The front identification design can be ease to identify the port and manage the wiring.

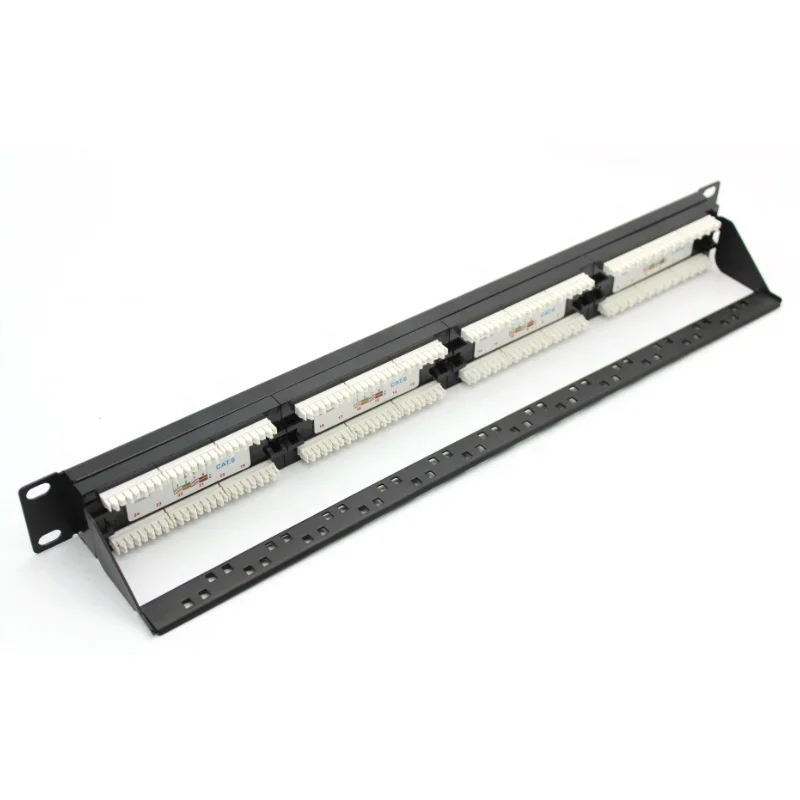

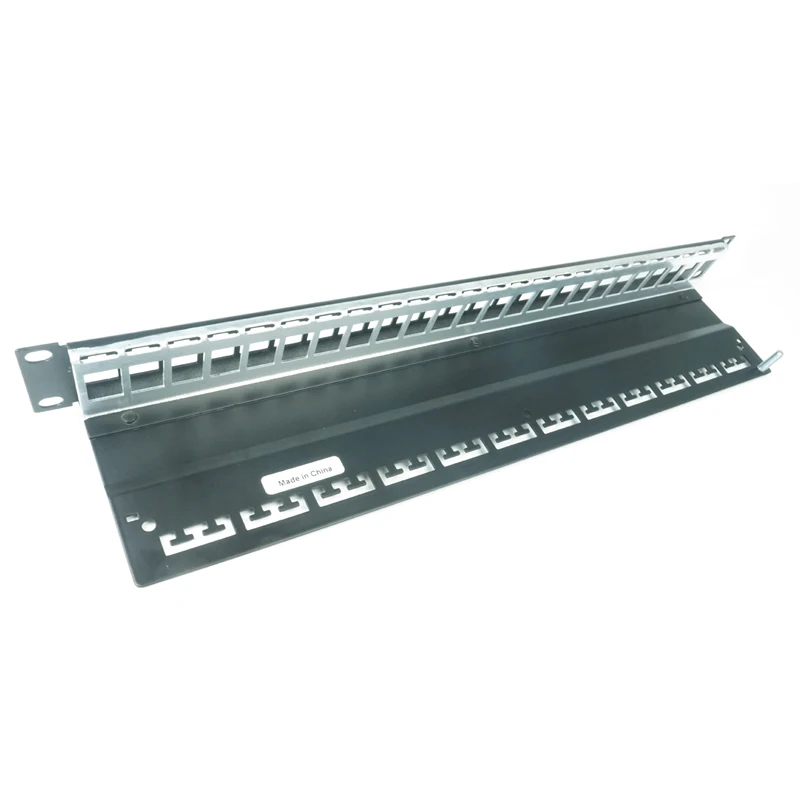

*The rear cable guider can control the bending radius of the cable, maintain the cable direction, and makes the wiring system more stable.
