Super thin 180*1.2*32mm cutting wheel for cutting piston rings

Product Overview

Description

Super thin 150-180x1.0-1.7x32MM cutting wheel for cutting piston rings



Click here>>>>To get the supplier contact details

Nanping Yi Ze Abrasives & Tools Tech Co., Ltd. is specialized in resin grinding wheel with advanced auto-produce equipment and production technology. We can provide 150-200mm diameter of the ultra thin cutting wheel, and many different specifications ultra thin cutting wheel. The product has been widely utilized in oversea and domestic enterprises, special for mould manufacturing and hardwires processing industries.

The series of products are available to be provided by depending on the advanced produce technology and continual innovation for more than ten years:



1.Ultra-thin cutting wheel

2.Piston ring cutout wheel

3.Alloy steel cutting wheel

4.Metal and stainlesss steel 2 in 1 cutting wheel

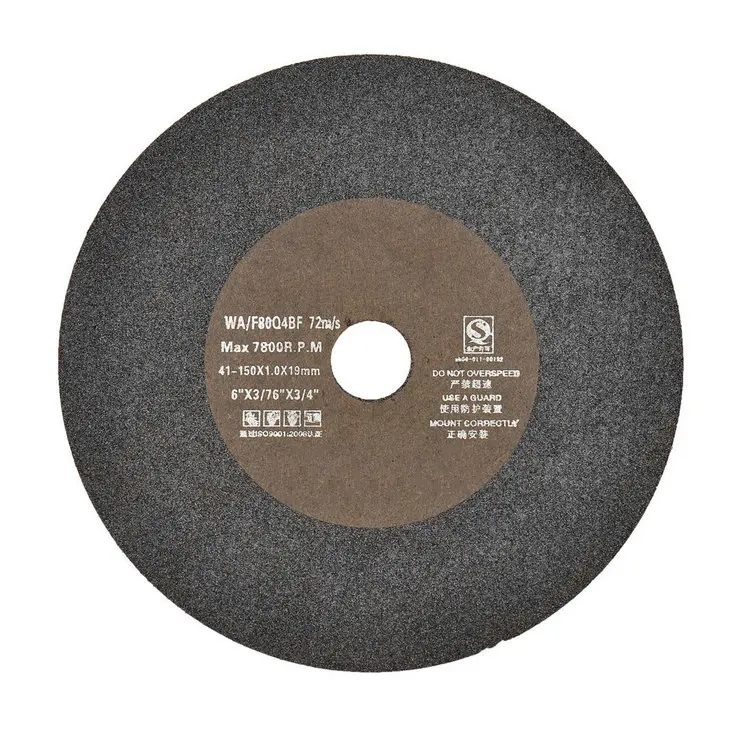

Ultra-thin with 1 net:



mm	inch	pcs/ctn	weight(kg)	volume(mm)	max r.p.m	max speed m/s
150x1.0x19	6x3/76x3/4	200	9	330x172x174	7800	72
180x1.0x32	7x3/76x1 1/4	200	13	320x200x205	7800	80
180x1.2x32	7x1/21x1 1/4	200	15	320x200x205	7800	80
200x1.0x32	8x3/76x1 1/4	200	16	320x215x225	7800	80
200x1.2x32	8x1/21x1 1/4	200	18	320x215x225	7800	80
200x1.2x25.4	8x1/21x1	200	20	375x220x225	7800	80
205x1.2x19	8x1/21x3/4	200	20	375x220x225	7800	80
255x1.2x32	10x1/21x1 1/4	144	18	275x270x275	6000	80
255x1.5x32	10x1/17x1 1/4	120	18	275x270x275	6000	80
255x2.0x32	10x5/64x1 1/4	96	18	275x270x275	6000	80
255x1.2x25.4	10x1/21x1	144	18	275x270x275	6000	80
255x1.5x25.4	10x1/16x1	120	18	275x270x275	6000	80
255x2.0x25.4	10x5/64x1	96	18	275x270x275	6000	80

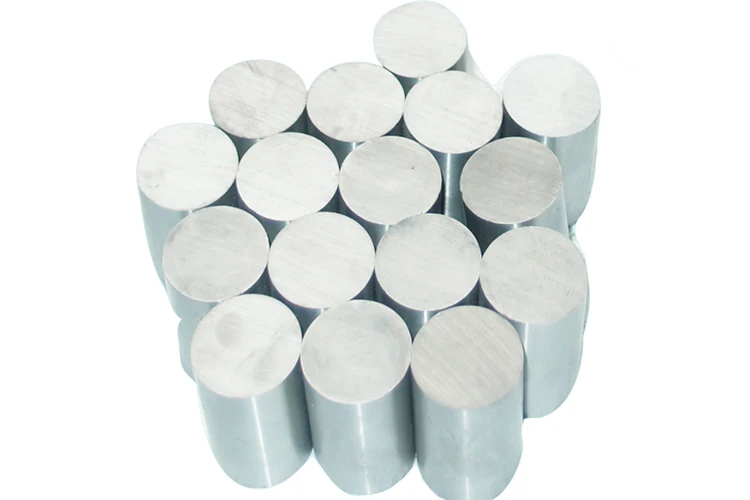

Application: cutting rare metal, die standard parts, stainless steel materials, electronic components and auto parts.

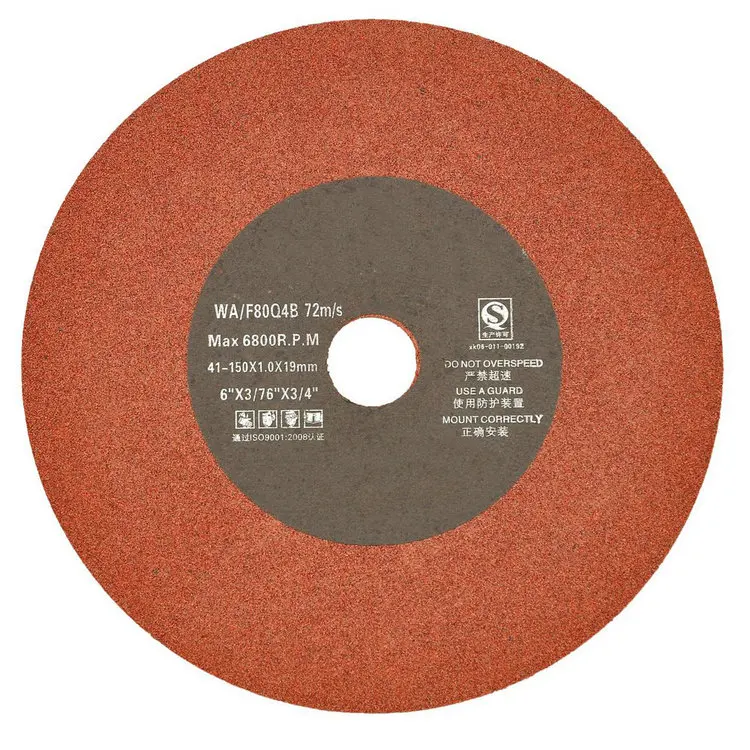

Ultra-thin without net:



mm	inch	pcs/ctn	weight(kg)	volume(mm)	max r.p.m	max speed m/s
150x1.0x19	6x3/76x3/4	200	9	310x172x174	6800	72
180x0.5x32	7x1/51x 1 1/4	200	7	315x195x205	6800	72
180x0.6x32	7x2/85x1 1/4	200	8	315x195x205	6800	72
180x0.7x32	7x2/73x1 1/4	200	9	315x195x205	6800	72
180x0.8x32	7x3/95x1 1/4	200	10	315x195x205	6800	72
180x1.0x32	7x3/76x1 1/4	200	13	315x195x205	6800	72
180x1.2x32	7x1/21x1 1/4	200	15	315x195x205	6800	72
200x0.7x32	8x2/73x1 1/4	200	10	320x215x220	6800	72
200x0.8x32	8x3/95x1 1/4	200	12	320x215x220	6800	72
200x1.0x32	8x3/76x1 1/4	200	16	320x215x220	6800	72
200x1.2x32	8x1/21x1 1/4	200	19	320x215x220	6800	72
255x1.0x32	10x3/76x 1 1/4	160	19	275x270x275	4500	60
255x1.2x32	10x1/21x1 1/4	144	21	275x270x275	4500	60
255x1.0x25.4	10x3/76x1	160	19	275x270x275	4500	60
255x1.2x25.4	10x1/21x1	144	21	275x270x275	4500	60



Application: cutting rare metal, die standard parts, stainless steel materials, electronic components and auto parts.

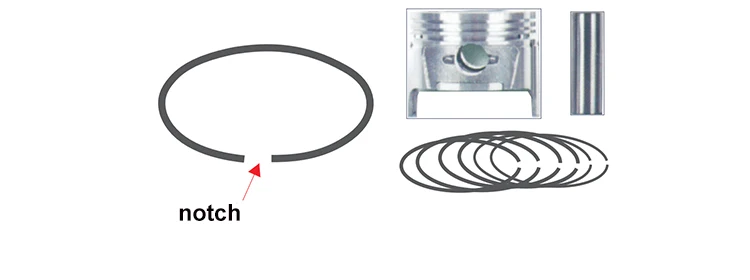

Automotive piston rings opening cutting wheel

150x1.0-1.7x32mm



180x1.0-1.7x32mm



200x1.0-1.7x32mm



Application: piston rings in automobiles and motorcycles piston rings in internal-combustion engine





Alloy steel dedicated cutting wheel



200-255x1.0-2.6x25.4(32)mm



Application: cutting alloy steel with high hardness, guide, slotting of die steel
