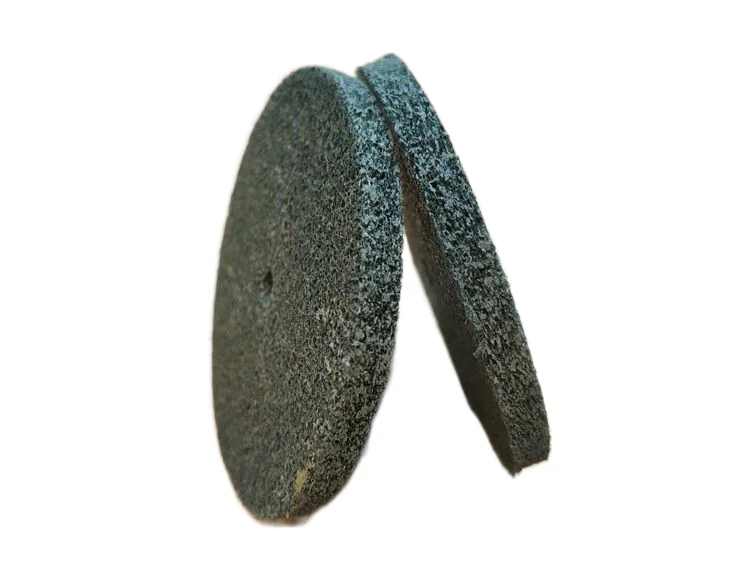

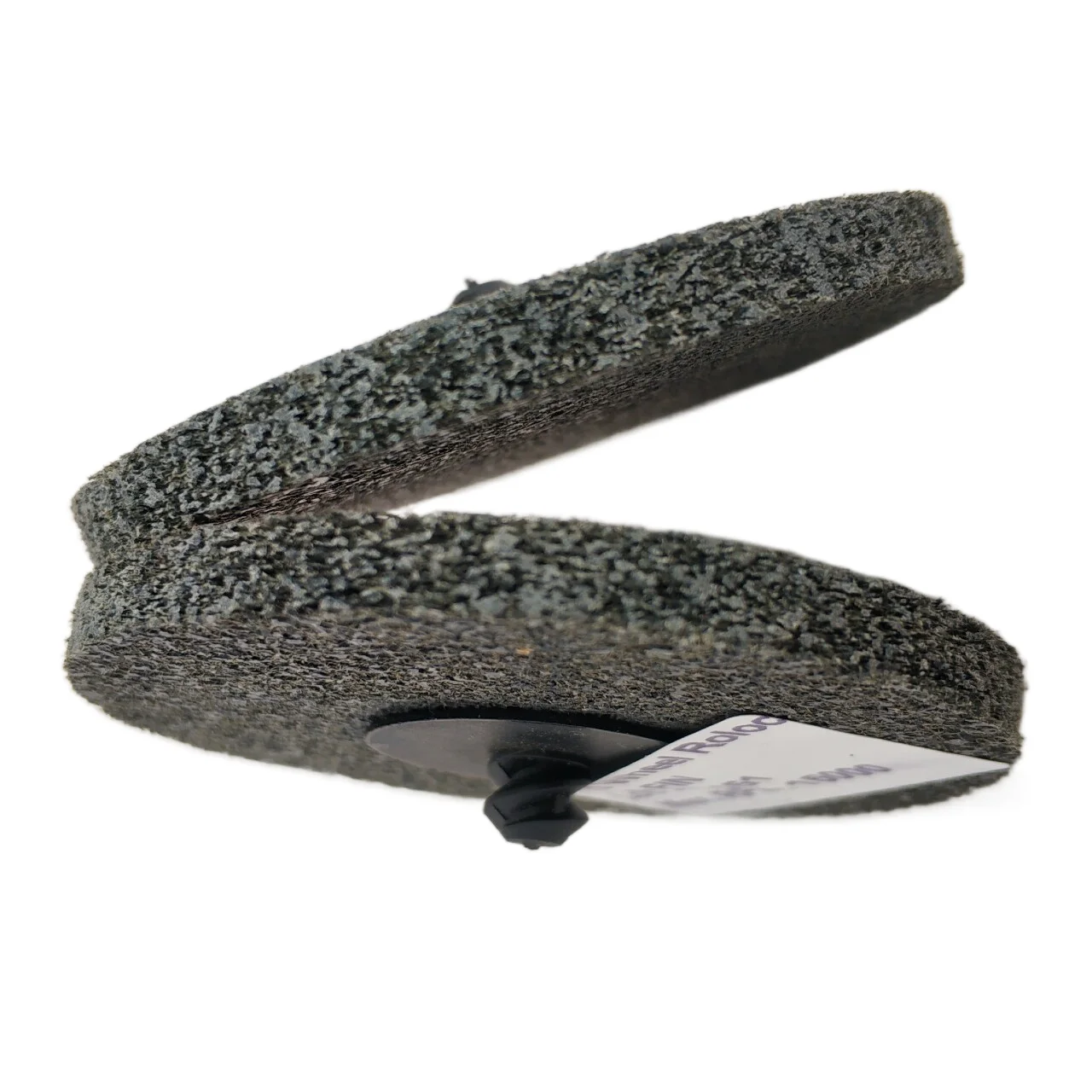

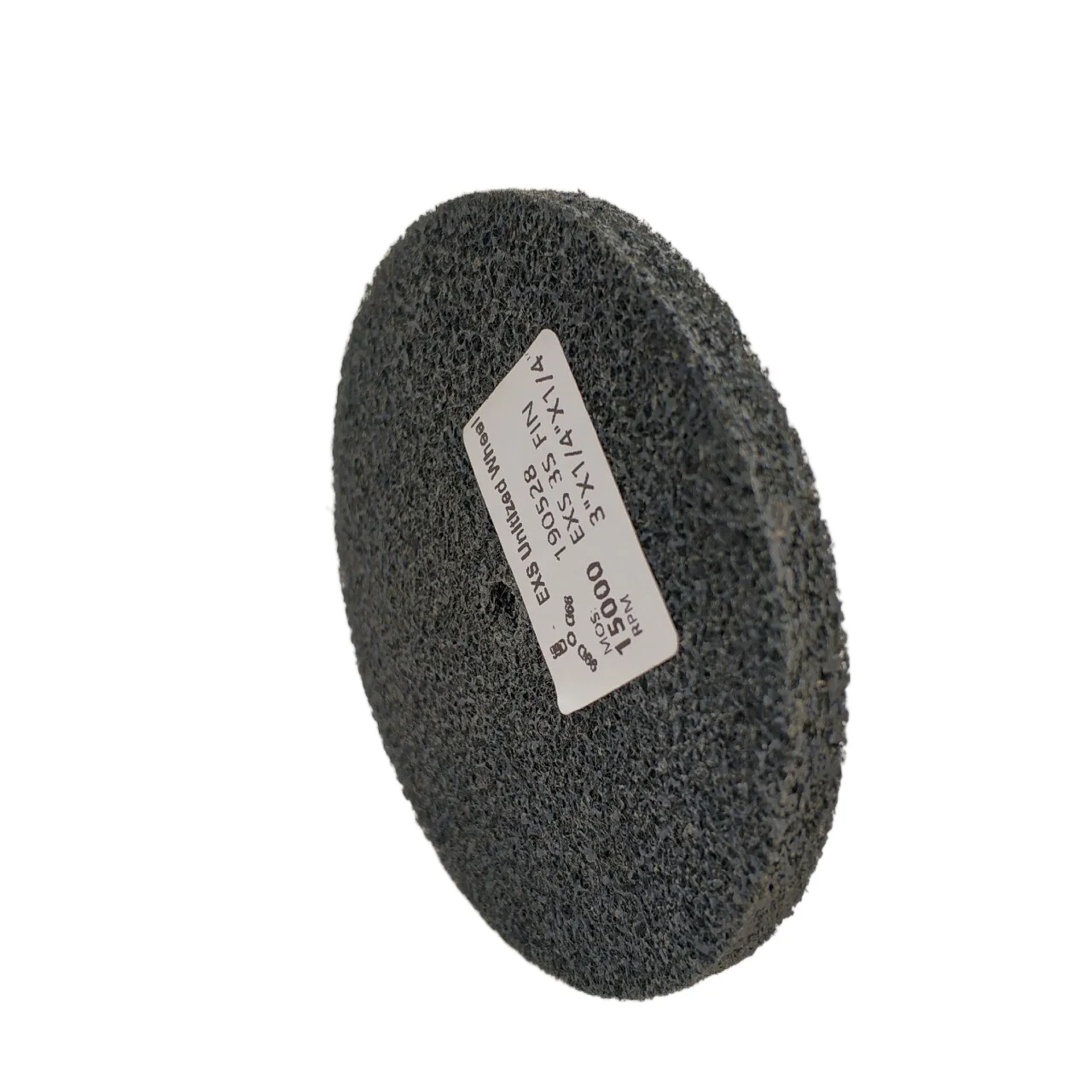

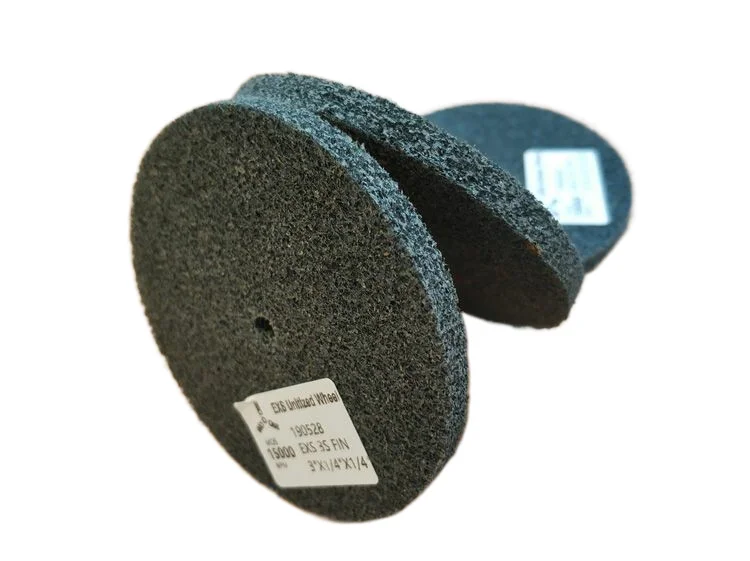

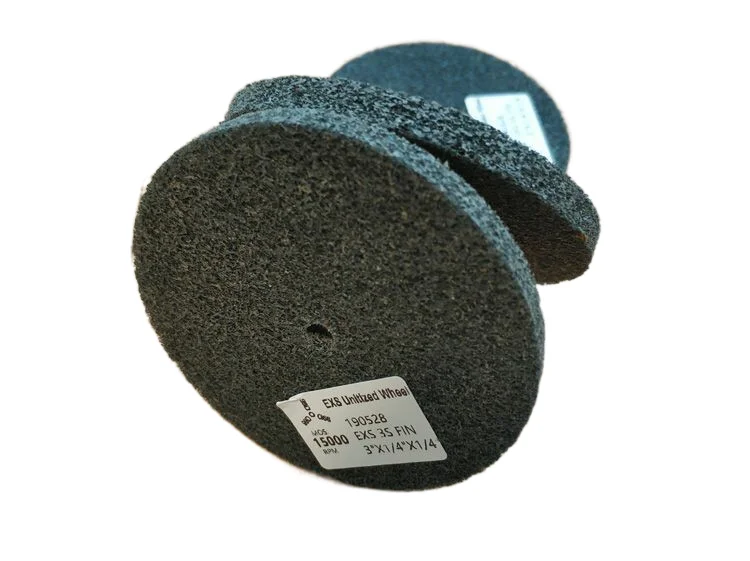

EXL Small Size Unitized Wheel (EXU)

EXLS designed for maintenance operations needing an efficient and cost-effective method of deburring, polishing, cleaning or finishing metals and composites. Easily peformed for use on a wide variety of shapes/contours. Hold shape well; less wheel dressing. Non-metallic so no contamination of workpiece. Uniform construction maintains part tolerance. It's the better choice for light weld bead and weld splatter removal, heavy deburring and finishing applications.




Features

>High performance engineered grain and improved resin bond system

>Thick nylon web

>Controlled porosity

Benefits

>Aggressive, fast, stock removal, reduced cycle times, and increased part quality

>2X longer life and faster finishing-with minimal shedding
>Cool cutting and improved cut rate

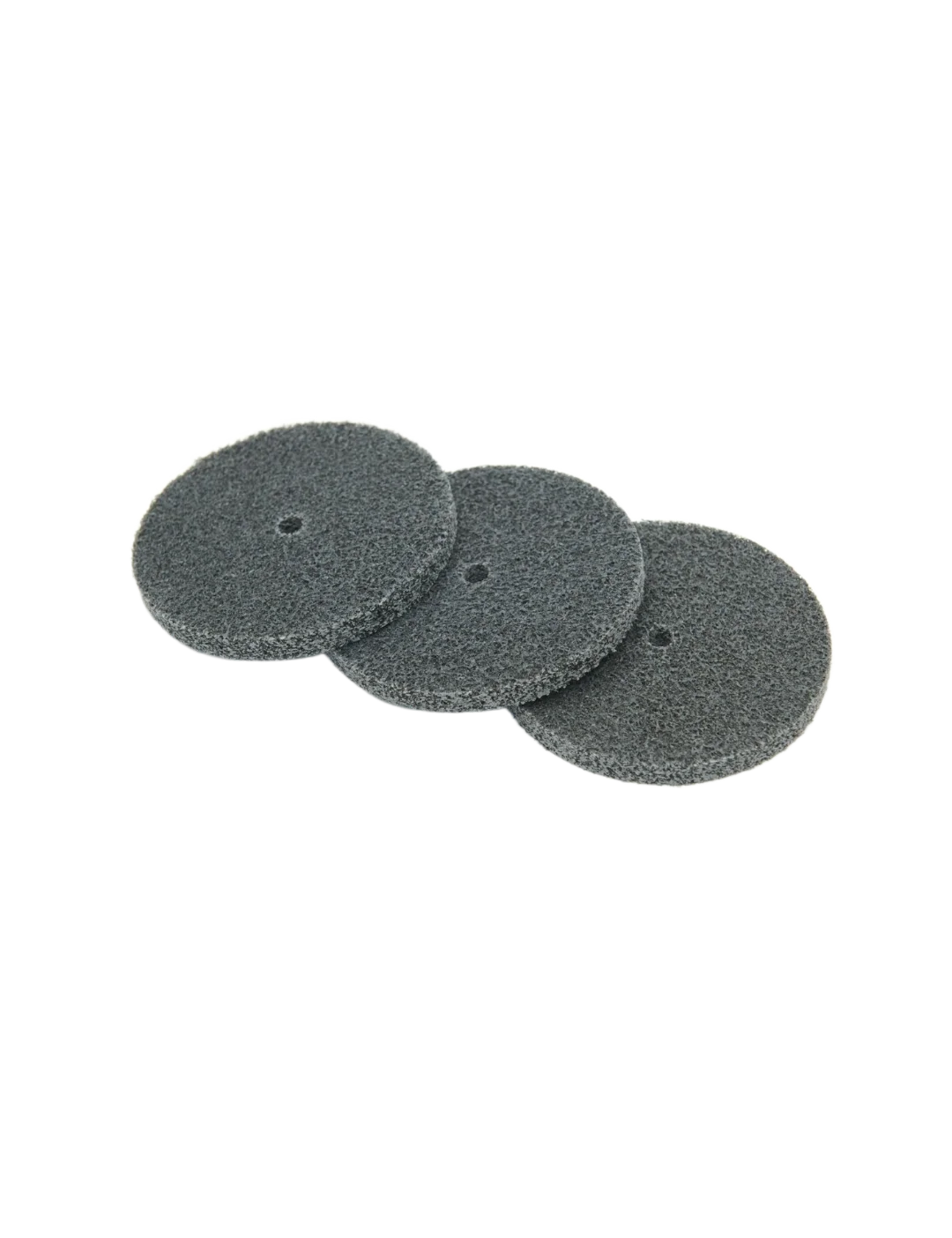

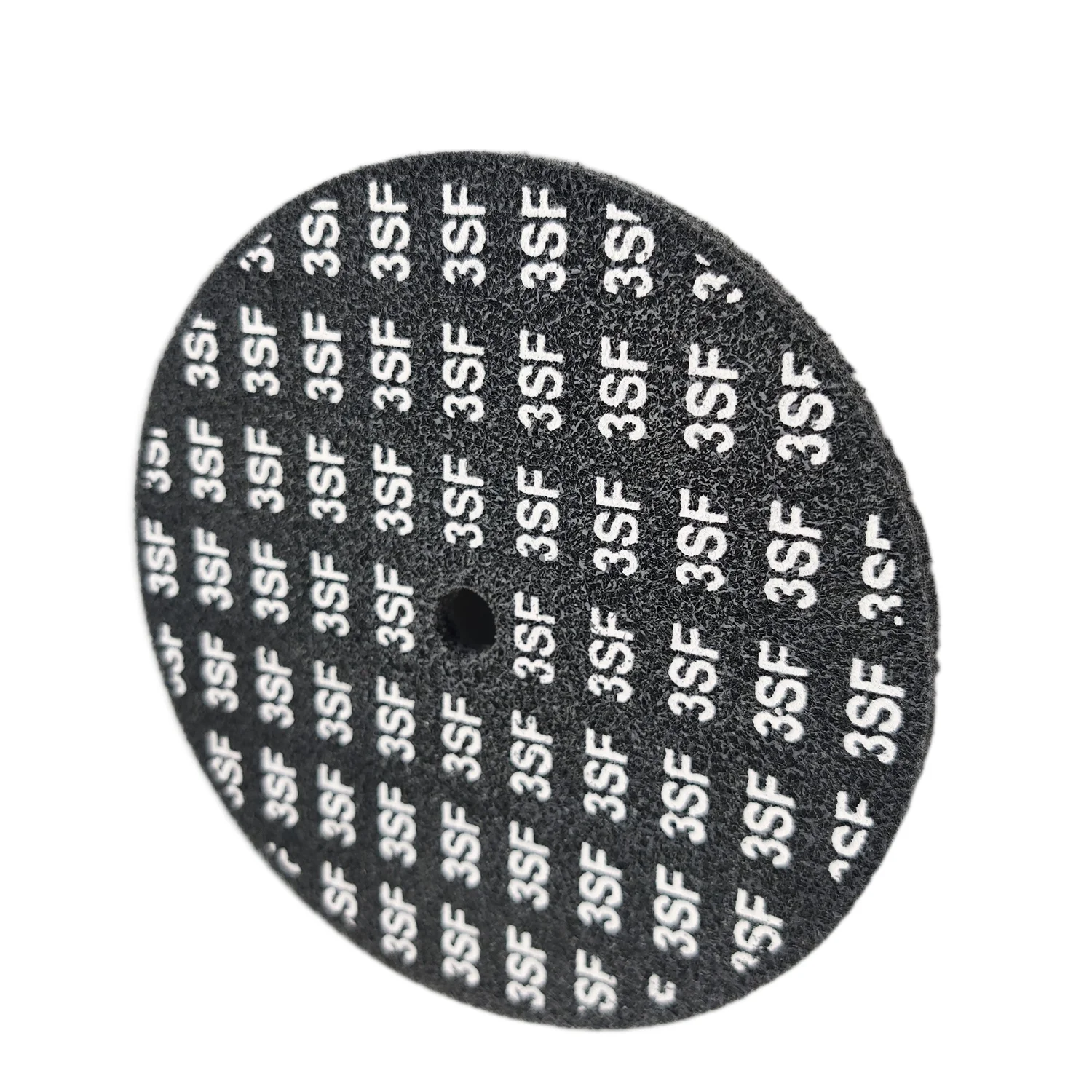

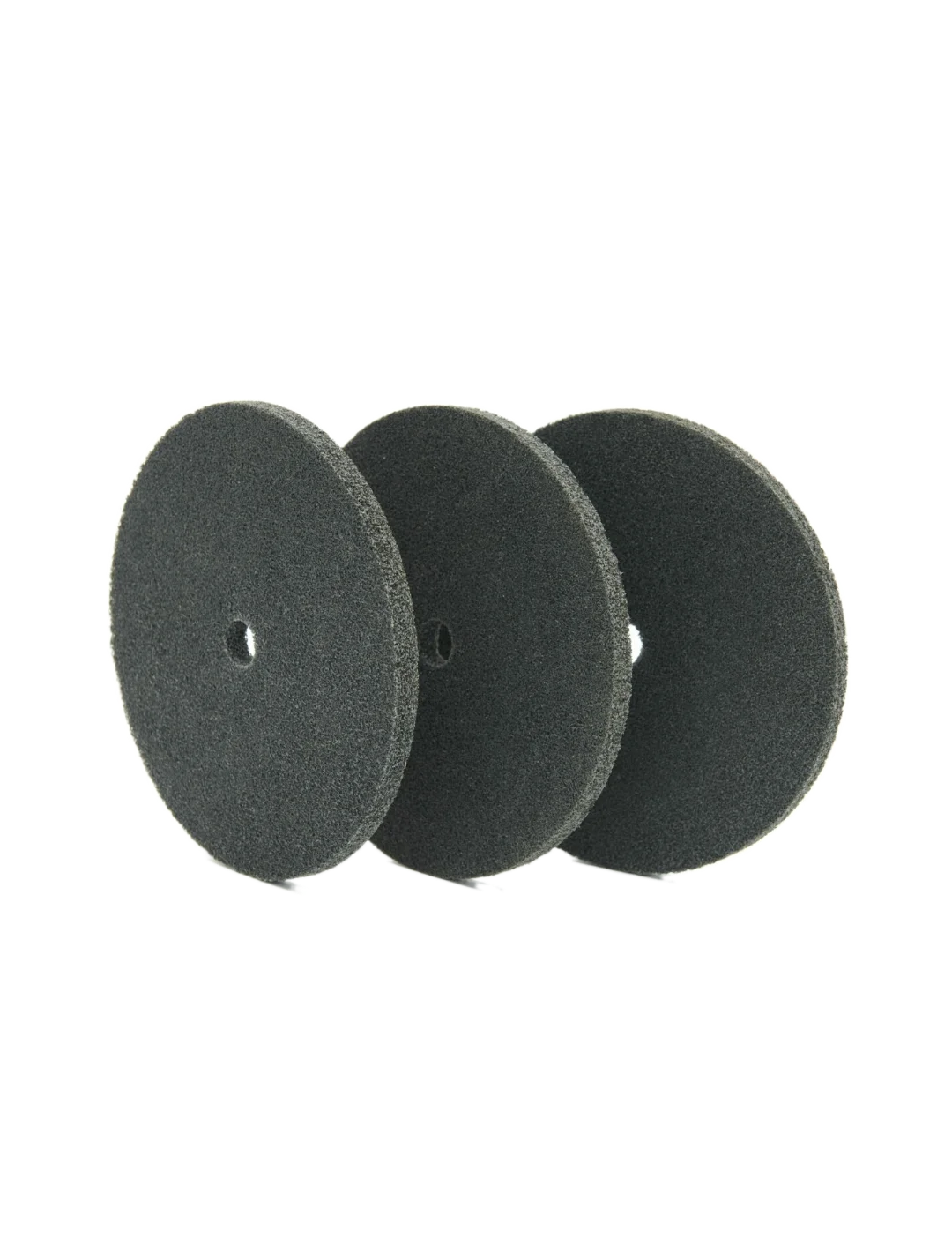

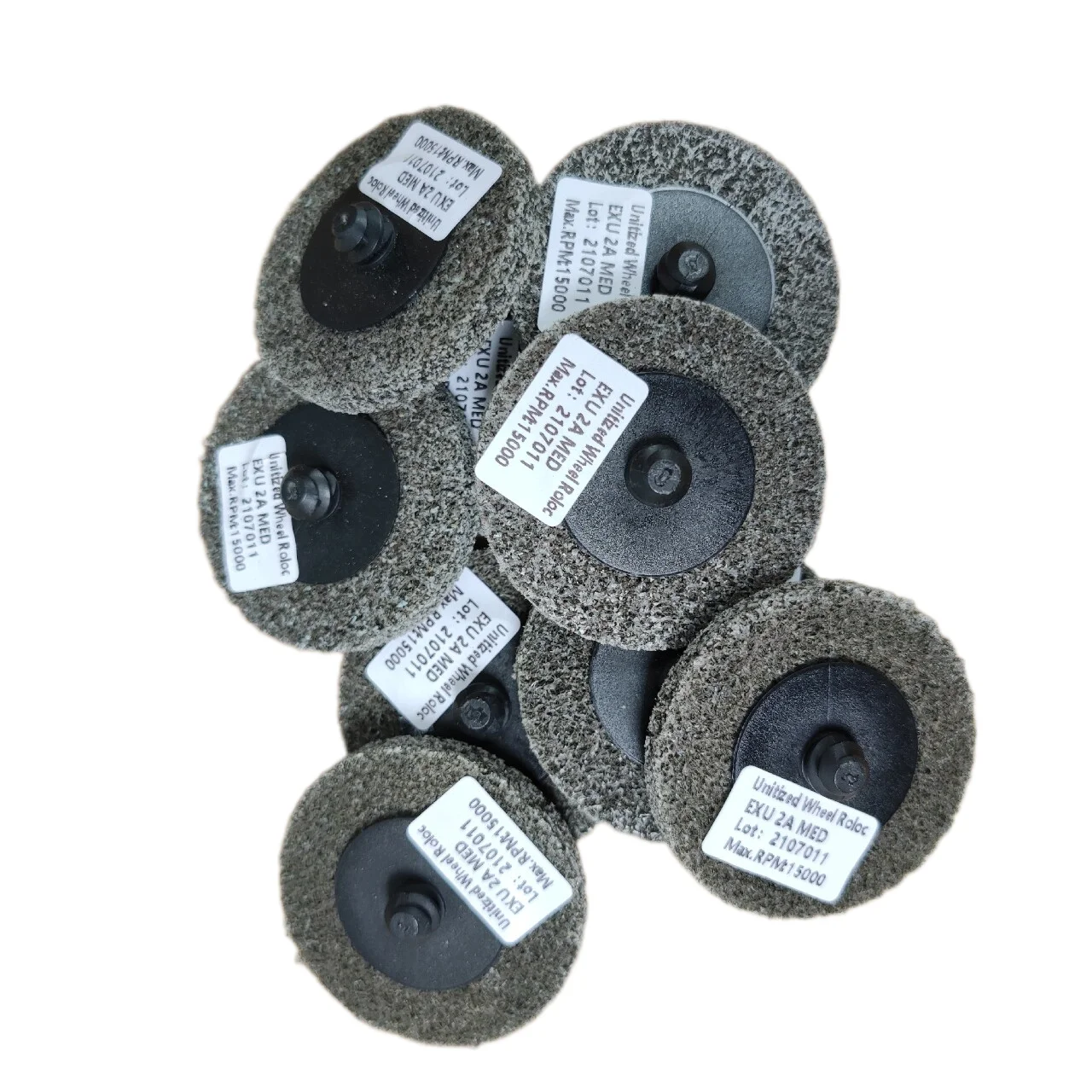

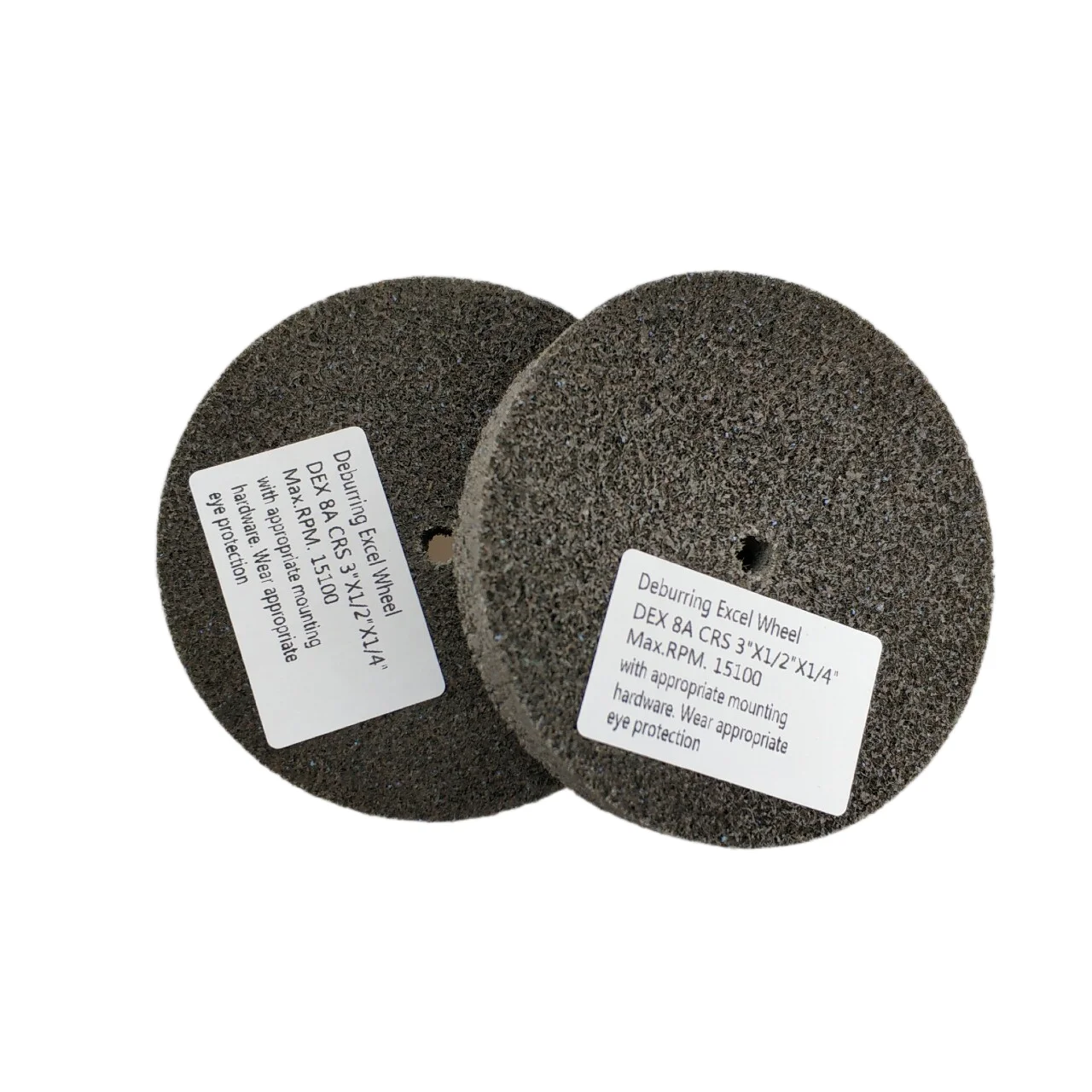

Detailed Images














Applications

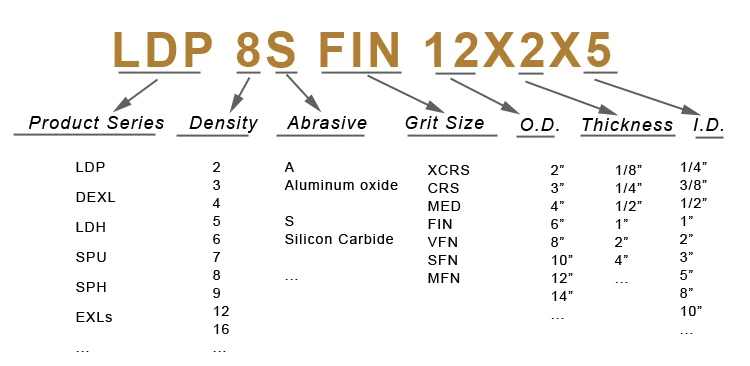

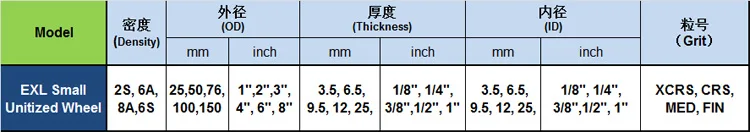

Models






Grit Size

The Grit Size is aligned with global standard, an reference could be find in right table.



Safety


Safety Awareness

      The safety performance of 99D grinding wheel is strictly tested and has clear safety operation instructions. However, it is still essential to install and use it properly and stick to the safety instruction. Each product is labeled with the MOS: Maximum Operating Speed (below table). The actual operating speed can not exceed the maximum operating speed.
Moreover, Please also pay attention to the mechanical protection, wear the mask, safety glass and safety shoe. Pay attention to the ventilation of the workshop.

When operating convolute wheel, we should pay special attention to the arrowhead marked on the product, and the direction of the arrow is the rotation direction of the product. The product must be operated with the right direction.





FAQ


Factors to be considered before choosing

The composition, shape and material type and its hardness of the workpiece.
The roughness and surface state before the working procedure
The surface conditioning effect that the workpiece needs to be achieved, the component tolerance requirements
Tools, speed of equipment, installation size of equipment and other parameters
Grinding steps needed for processing work pieces successively



Product Choose...

Usually, we need to consider the structure of the parts, the size of the grinding wheel, and the speed of the tool and other fixed circumstances.
The SP series product is a kind of laminate structure, the edge surface is the cutting face, the cutting is relatively higher than convolute wheel, it has no rotation direction.
Convolute wheel series (LDP, DEXL, RF, LP...) is the winding structure, the inner hole size is generally 1, 3, 5, 8 inches, plane surface is the cutting surface. When it is used, it is directional and can only rotate in one direction. The arrow identifies the direction of rotation. The convolute wheel is more durable than the SP wheel, which is more suitable for sharp and harsh applications such as deburring.



Product to replace

Replacing similar products: SP series can replace various kinds of unitized wheel, fiber polishing wheel and cloth wheel with mineral; LDP, DEXL, RF, LP can replace the imported brands convolute wheels with similar application purpose.
Cross product substitution: replace steel wool, steel wire brush, abrasive, hard bristle, manual file, polishing paste, grinding fluid, grinding wheel, rubber scraper, manual sandblasting equipment, dressing, cleaning cloth etc.
