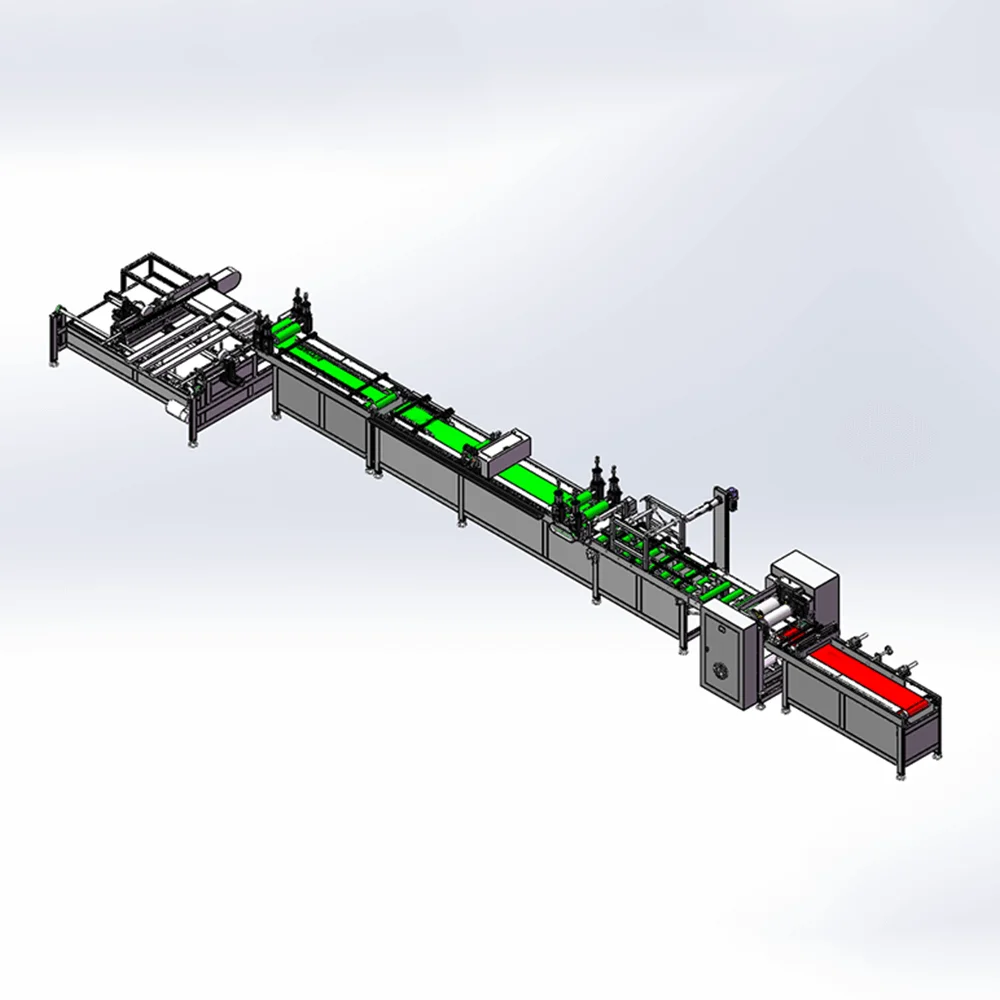

Automation IXPE/EVA Laminating machine for SPC WPC vinyl Flooring Production Line
- Category: Woodworking Machinery >>>
- Supplier: Changzhou Sum Industry Limited
Share on (1600547158286):
Product Overview
Description
Product Overview

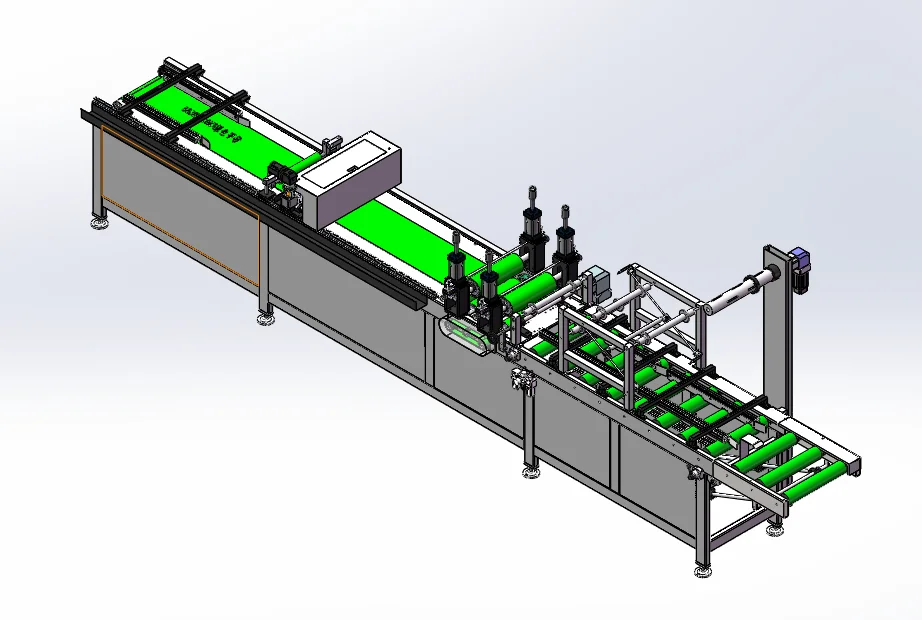

IXPE/EVA pad laminating machine for SPC floor backside
Bond the underlayment materials on the backside of the flooring to improve the ability of sound insulation，make the SPC floor more comfortable,improve the level of the SPC floor.
After adjusting the flooring straight system, the floors go with the conveyor and coated with glue, going through the heating oven ,laminate the underlayment tightly by rubber rollers ,then trimming.
After adjusting the flooring straight system, the floors go with the conveyor and coated with glue, going through the heating oven ,laminate the underlayment tightly by rubber rollers ,then trimming.
Feature:
1.Full automatic
2.High precision control
3.High capacity
4.Stable working condition
Equipment parameters
Item | Parameters |
Floor length | 600~1850mm |
Floor width | 80~310mm |
Floor thickness | 3~20mm |
Working speed | 70m/min |
Installation power | 35kw |
Dimensions | 12745*2300*2000mm |
Details Images

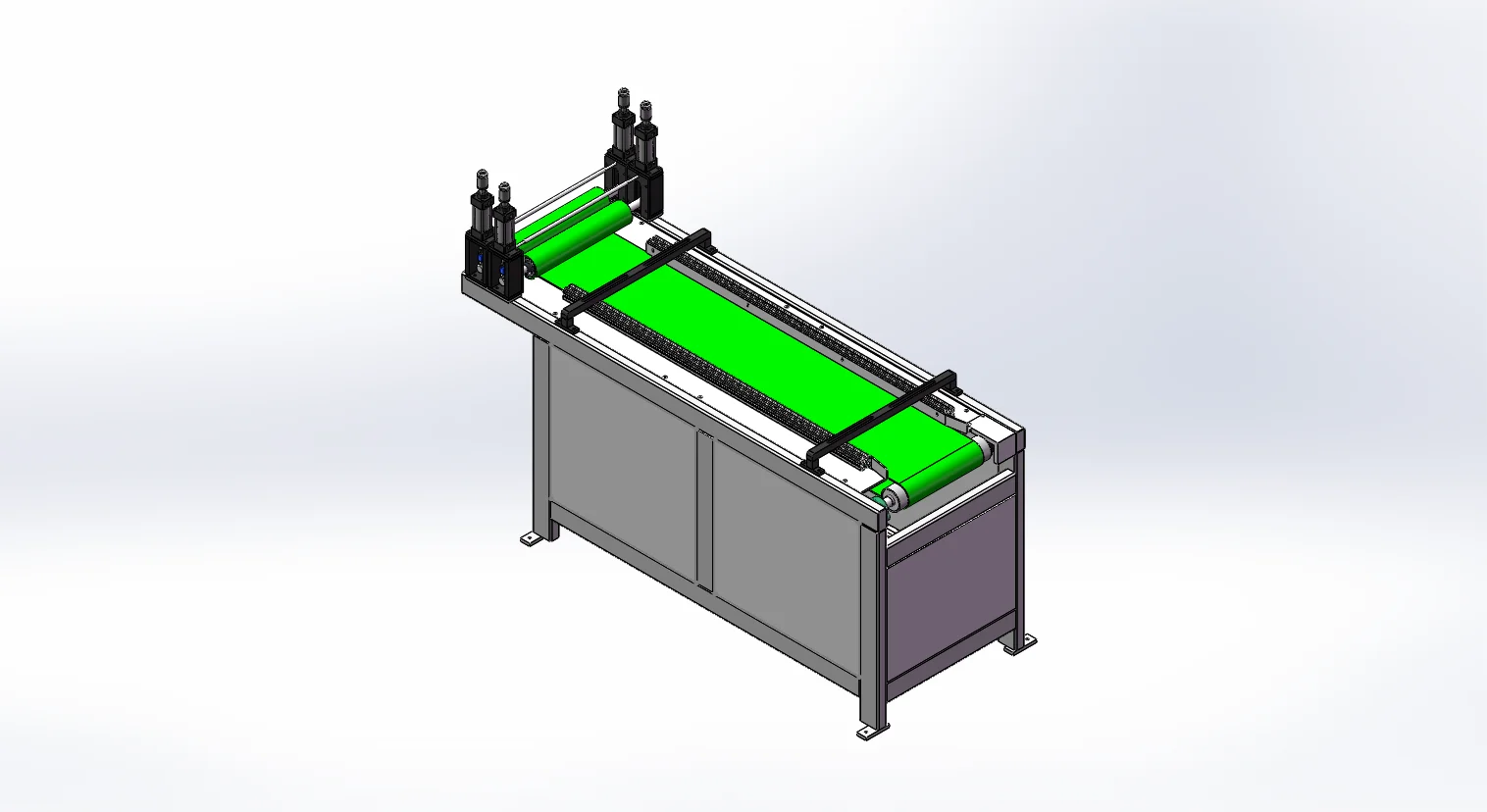

Infeed conveyor
① This unit consists of specially designed belt (Soft enough to prevent the surface of the flooring from getting scratch) and main
machine structure.
② The guide liner and flooring baffle makes sure the straightness of flooring when conveying via the belt one by one .
③ Make sure the flooring baffle is fixed with a right height to make sure there is one flooring pass each time.
④ Make the press Roller down to touch the flooring back side.
machine structure.
② The guide liner and flooring baffle makes sure the straightness of flooring when conveying via the belt one by one .
③ Make sure the flooring baffle is fixed with a right height to make sure there is one flooring pass each time.
④ Make the press Roller down to touch the flooring back side.

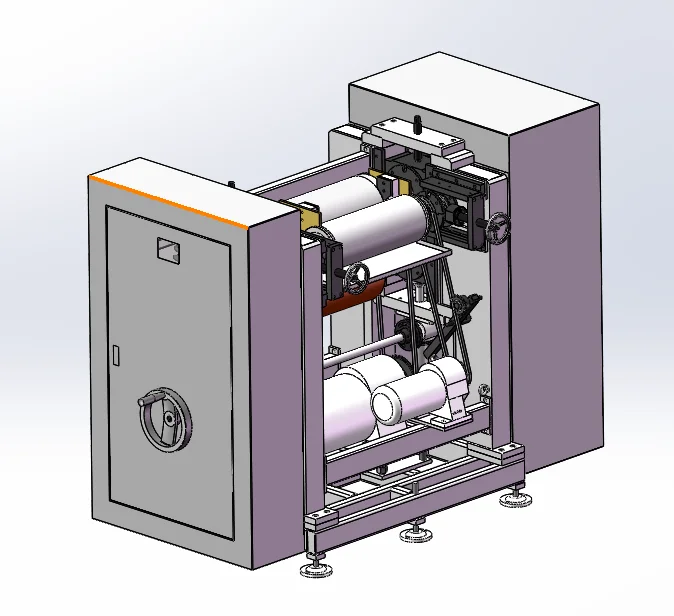

Glue applicator
① The glue spreader system is consist with two stainless steel roller.
② The Users can adjust the glue amount by the speed between the glue spreader roller and supporting roller. .
③ The glue roller is heated by the temperature moulding controller .
④ The new designed two-steel roller applicator can stop the glue from leaking.
② The Users can adjust the glue amount by the speed between the glue spreader roller and supporting roller. .
③ The glue roller is heated by the temperature moulding controller .
④ The new designed two-steel roller applicator can stop the glue from leaking.
Laminating cutting machine (servo unwinding)
This part is equipped with falling conveying; positioning backing, servo active unwinding, servo cutting.
After the glue is applied, the ground is conveyed to the laminating position, and the servo unwinding passes through the new tension control system.
Prevent stretching of the film. After the film is finished, the silent film will be cut by the servo cutting machine.
Prevent stretching of the film. After the film is finished, the silent film will be cut by the servo cutting machine.

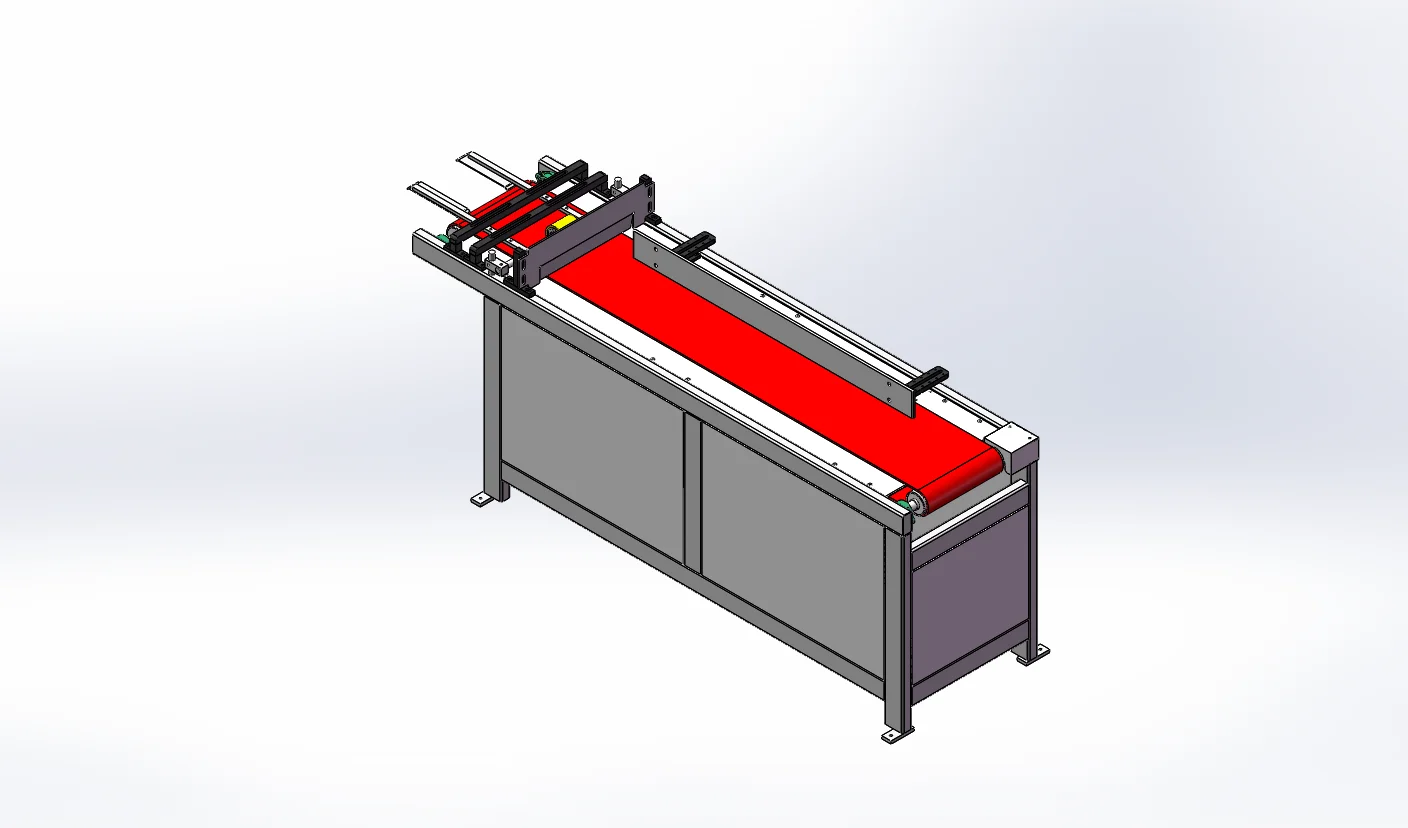

Belt Conveyor
The finished floor and floor are conveyed to the trimming machine in an orderly manner through a belt.

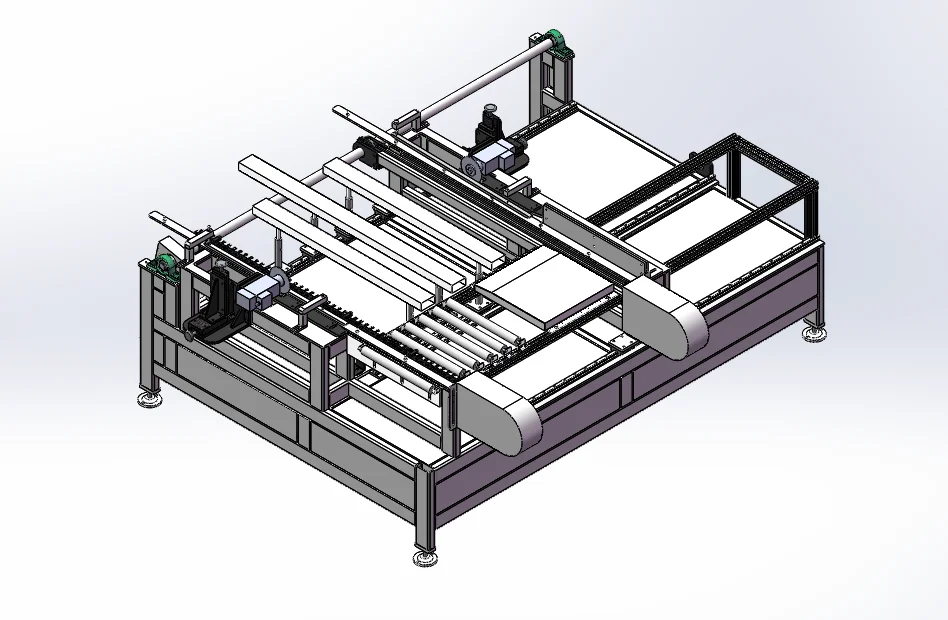

Trimming and cutting machine
The floor finished with film passes through a special magazine (this magazine has a roller table + a flat form, and its stability is far better than that of a traditional magazine), and enters the trimming machine in an orderly manner.
The underlayment is trimmed by a round blade driven by a high-speed motor to shave the excess underlayment film.
Equipped with a waste recycling device to absorb and concentrate the excess underlayment film.

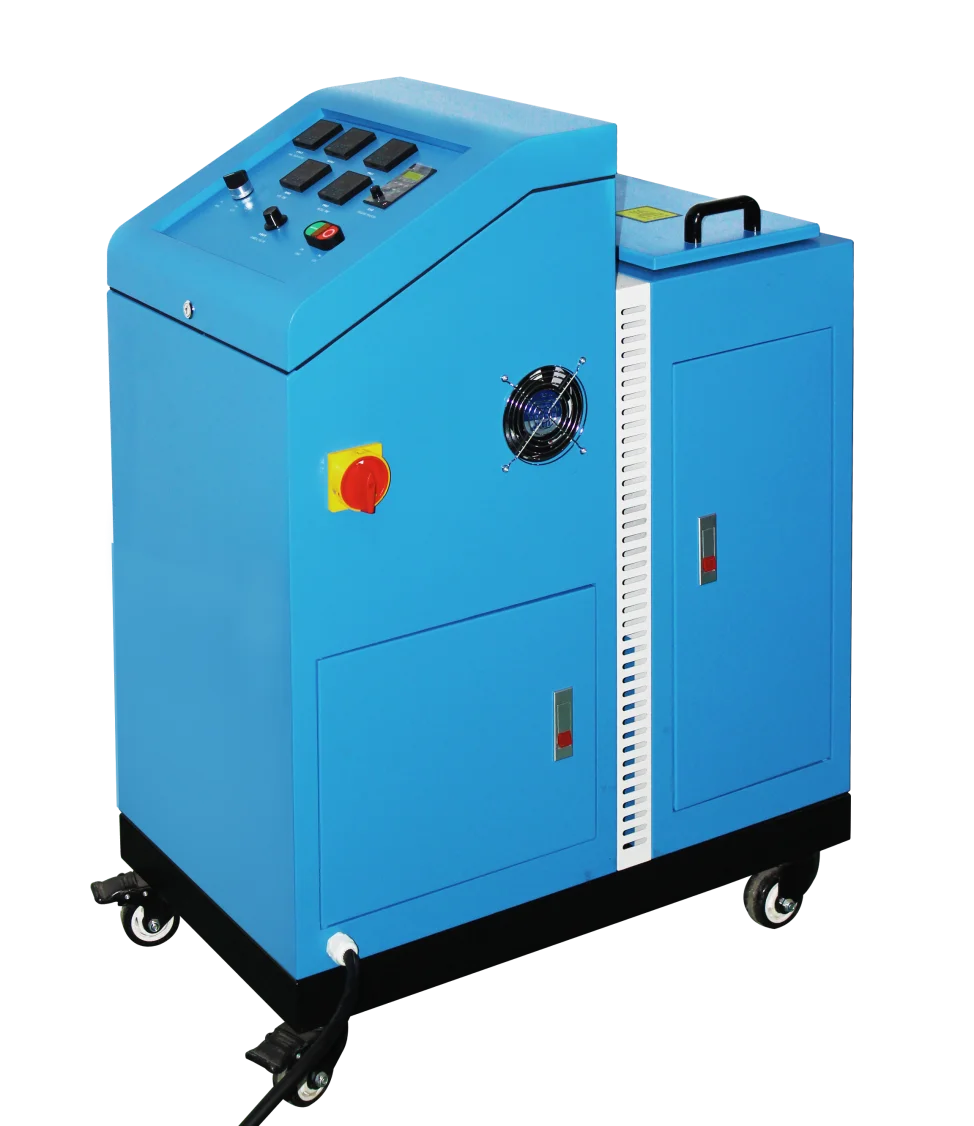

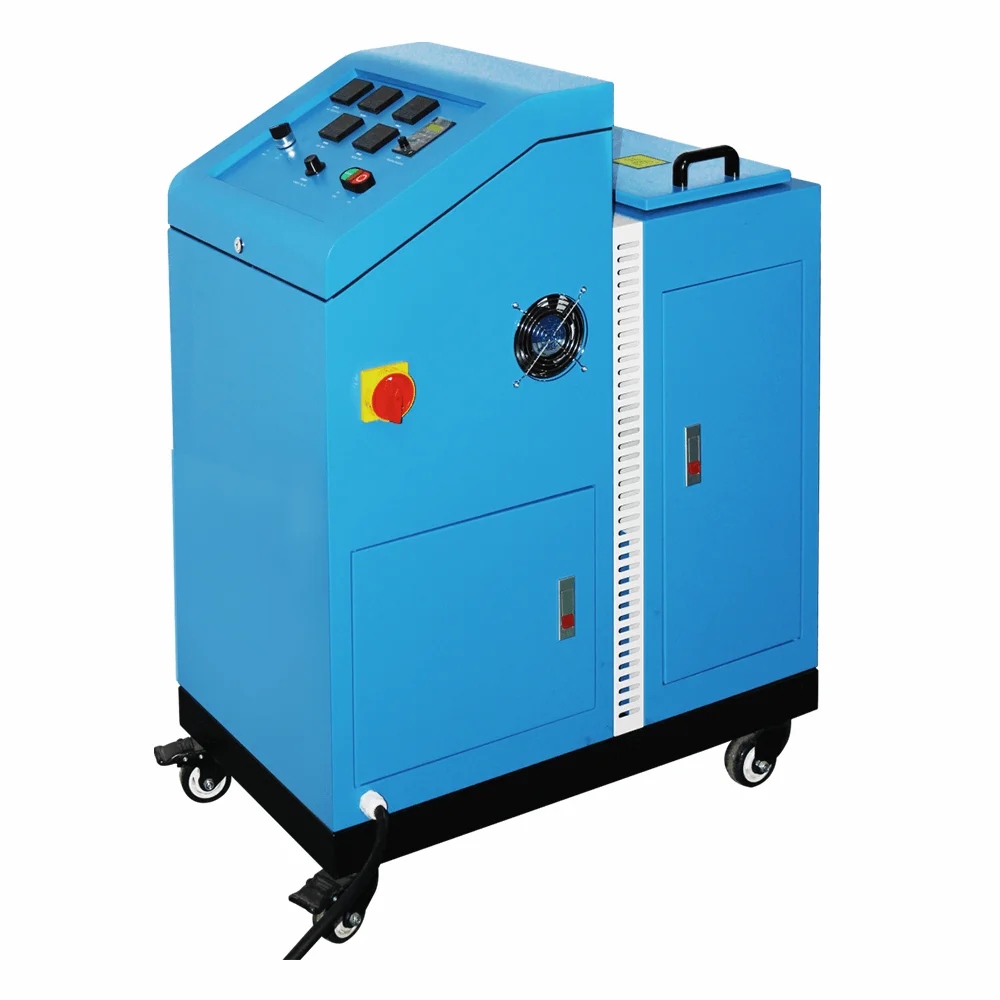

Glue Melter
This unit is designed to melt the press sensitive adhesive and pump the melted glue to the glue roller .

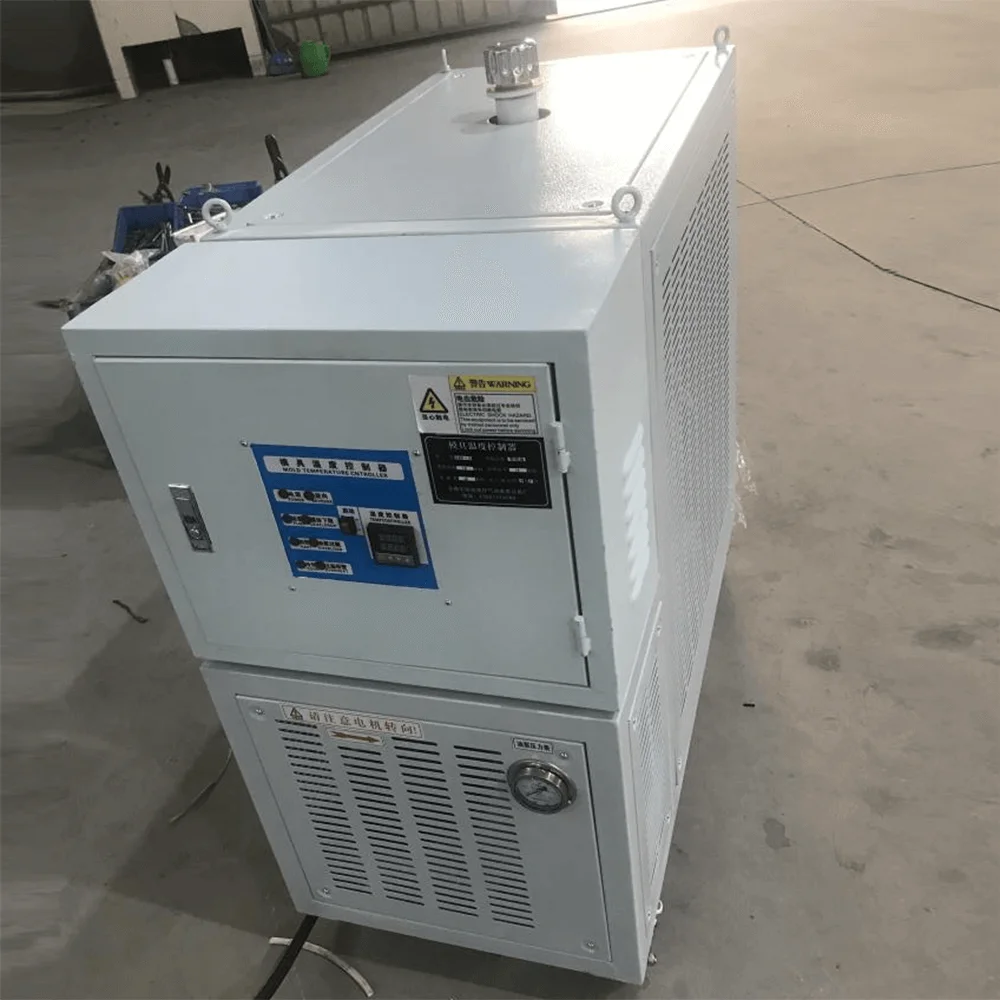

TCU
This unit is to heat the thermal oil and pump the heated thermal oil to heat the glue roller.
