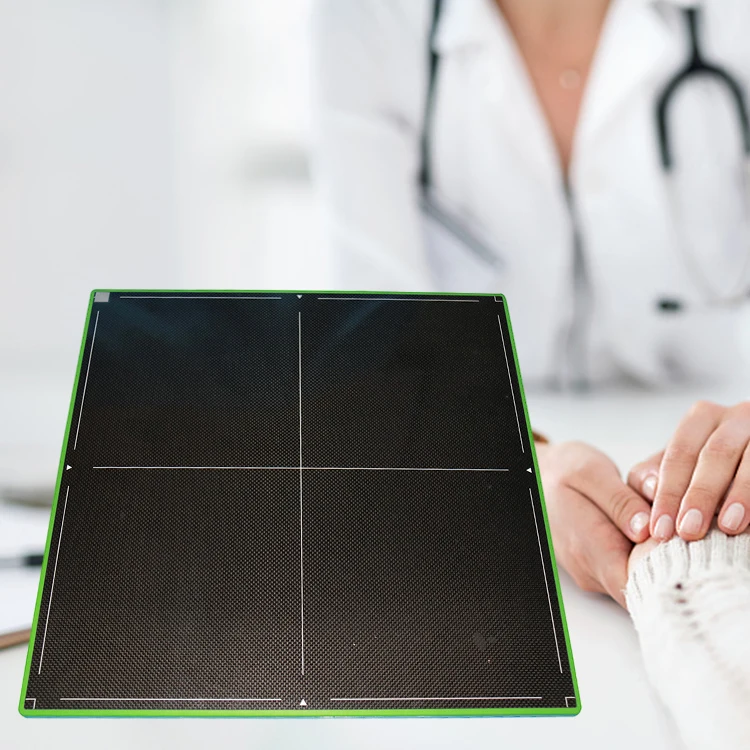

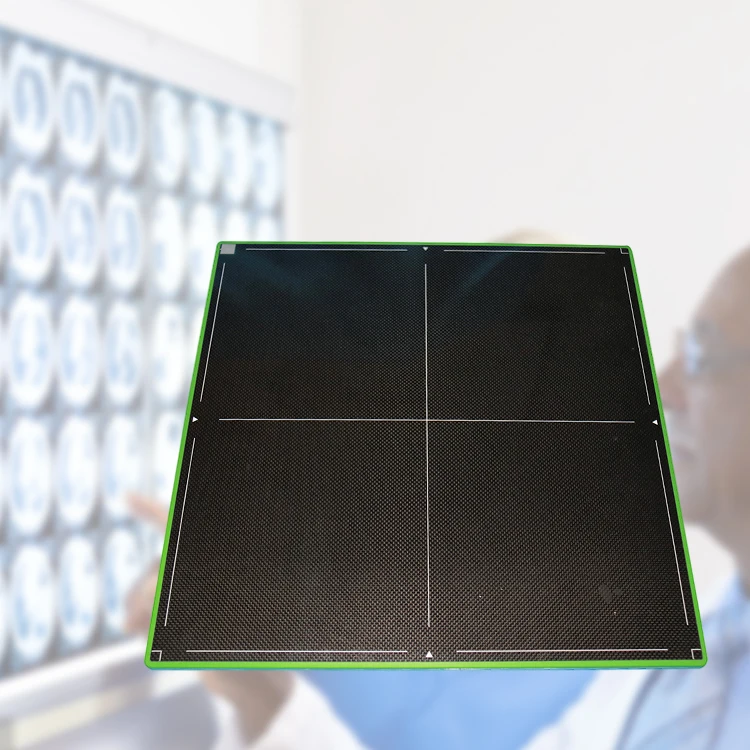

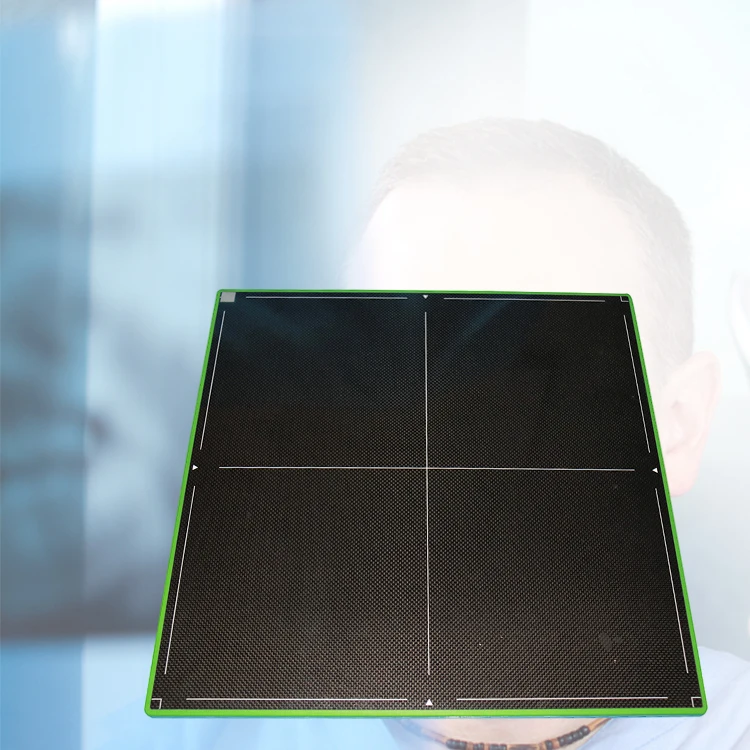

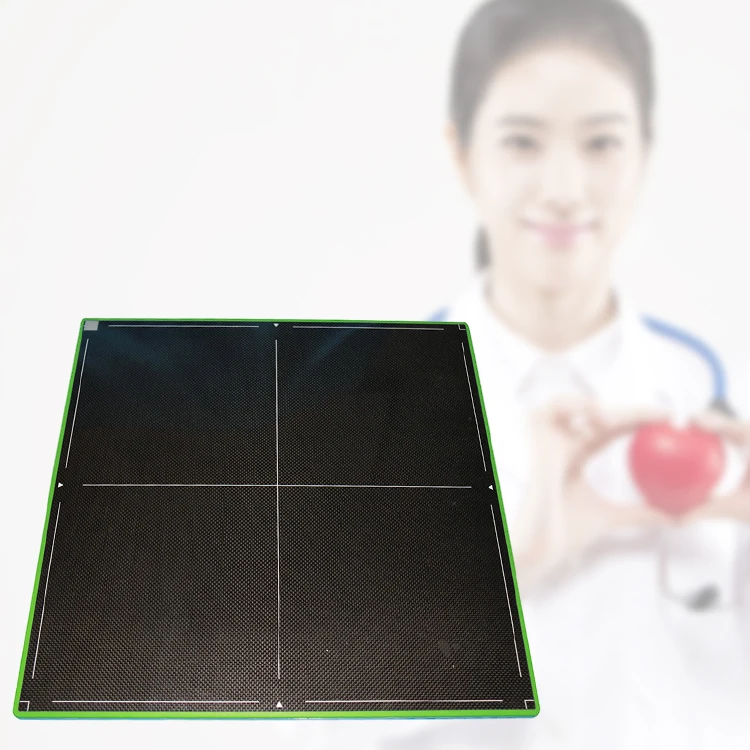

DR flat panel detector x-ray MSLCV08
MSLCV08 IS A 17X17 CASSETTE-SIZE WIRELESS PORTABLE FLAT PANEL DETECTOR DESIGNED FOR HUMAN USED DIGITAL RADIOGRAPHY.
Detailed Images
Technical Specifications
Sensor | ||
Scintillator | CsI | |
Active Area | 433.5mm x 433.5mm² | |
Pixel Array | 2816*2816 | |
Pixel Pitch | 154 um | |
Mechanical | ||
Dimensions | 460*460*15mm | |
Weight | 4.1kg | |
Housing Material | Carbon fiber imaging plate, high strength aluminum alloy body | |
Communication | ||
Communication interface | Gigabit Ethernet | |
Acquisition Time | 2-4s | |
Exposure Control | F²AED (Full-Field AED), Manual Sync, External Sync | |
Image Quality | ||
Spatial Resolution | 3.57lp/mm | |
MTF | ≥63% (@1lp/mm), ≥35% (@2lp/mm), ≥17% (@3lp/mm) | |
DQE (RQA5, 30μGy) | ≥62% (@0 lp/mm), ≥17% (@ 3lp/mm) | |
Dynamic Range | ＞80dB | |
Envirnomental | ||
Temperature | 5-35℃ operating, -20～55℃ in storage | |
Humidity | 30-75% RH | |
Power | ||
Power supply | 100-240 Volts AC | |
Frequency | 50/60Hz | |
Power Dissipation | 20W operating, ＜8W in standby mode | |
