Product Overview

Description





Our factory is specialized in producing:
2 to 5 axis single(double) colour brush machine,
CNC tufting machine,
CNC tufting and drilling machine,
CNC drilling and tufting combination machine,
filament trimming machine,
filament cutting machine.

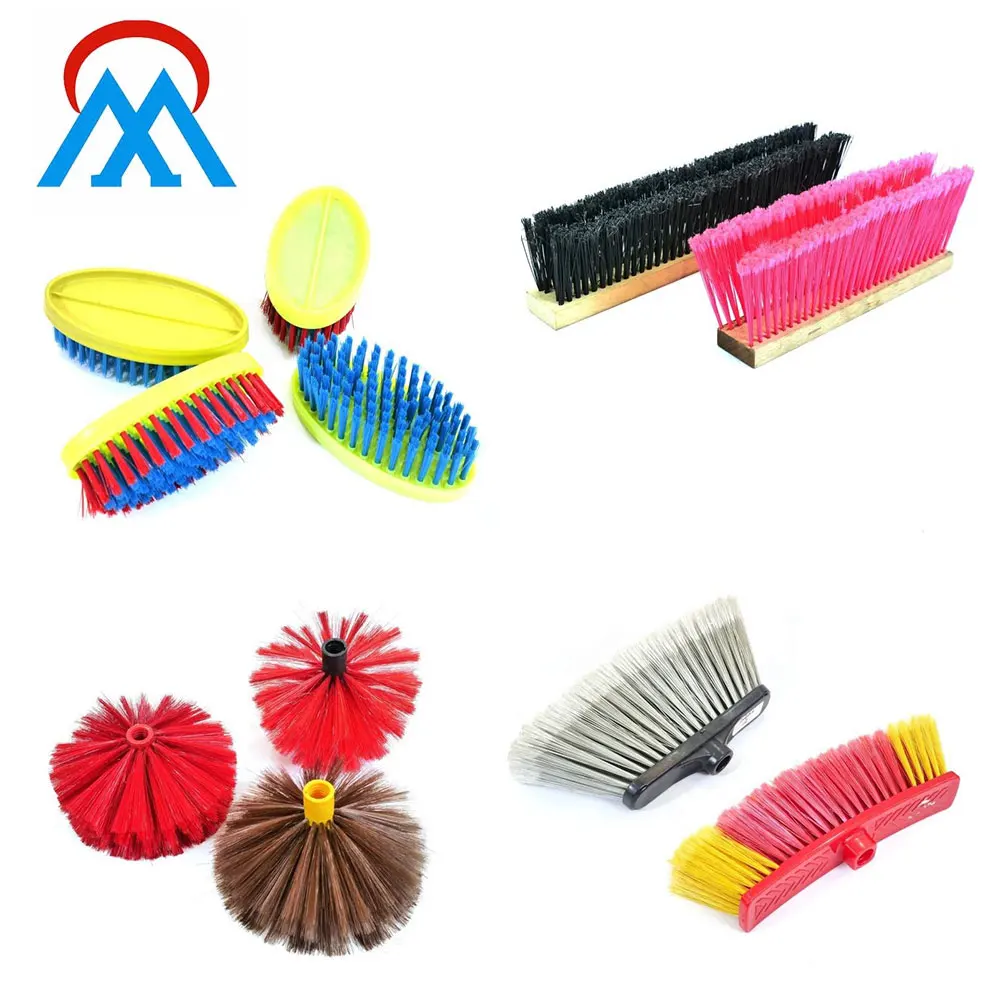

Our products mainly are widely used in all kinds of brushes:
broom(plastic and wood)cleaning brush, electric toothbrush, travel toothbrush, cosmetic brush, nail polish brush, industry roller brush, strip brush, round disc brush, dish washing brush, comb, massage brush, wooden brush, barbecue brush and so on.




Model
MX308
Axis
5 axis
wire
flat wire
Journey of Y axis
200mm
The swing angle of Z axis
100°
Journey of X axis
250mm
The height of A axis
300mm
Maximum Tufting Speed
4-6 holes/second
Main power input
380VAC/220VAC
Main Speed Control
Frequency control
The length of filament
30-120mm
Fiber Box
double or three colour
Hole diameter
4-7mm
Drive Motor
sevo motor
Net weight
about 1000kg
Head Motor
China WANXIN servo motor
Orbit
TBI original linear guide
Application
to make broom brush

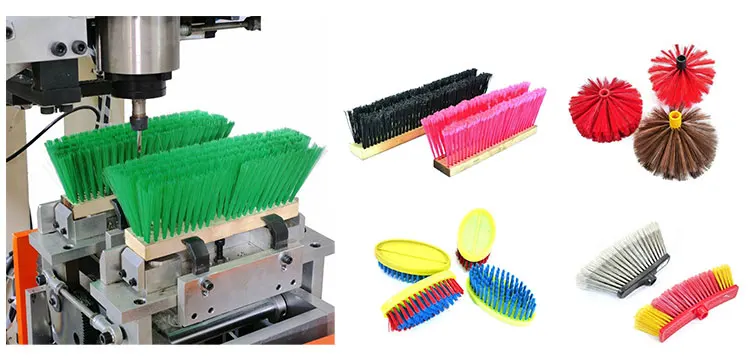

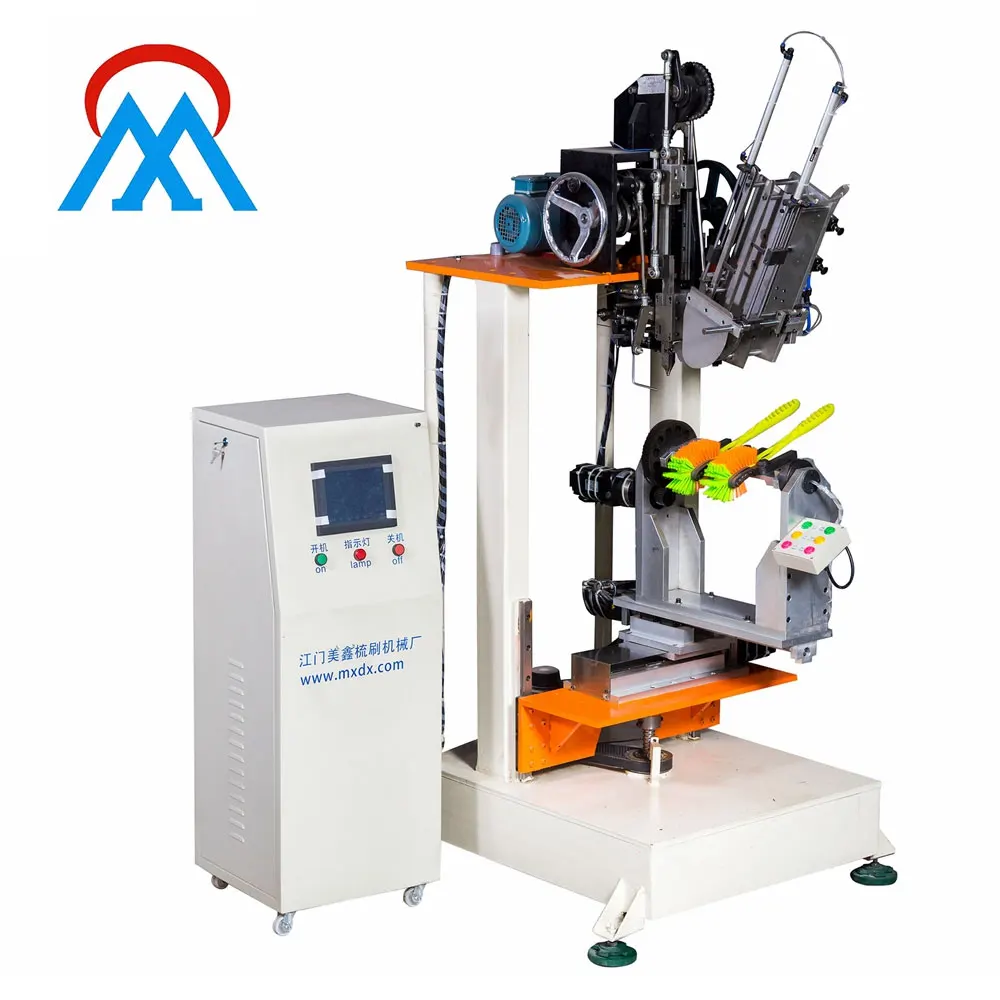

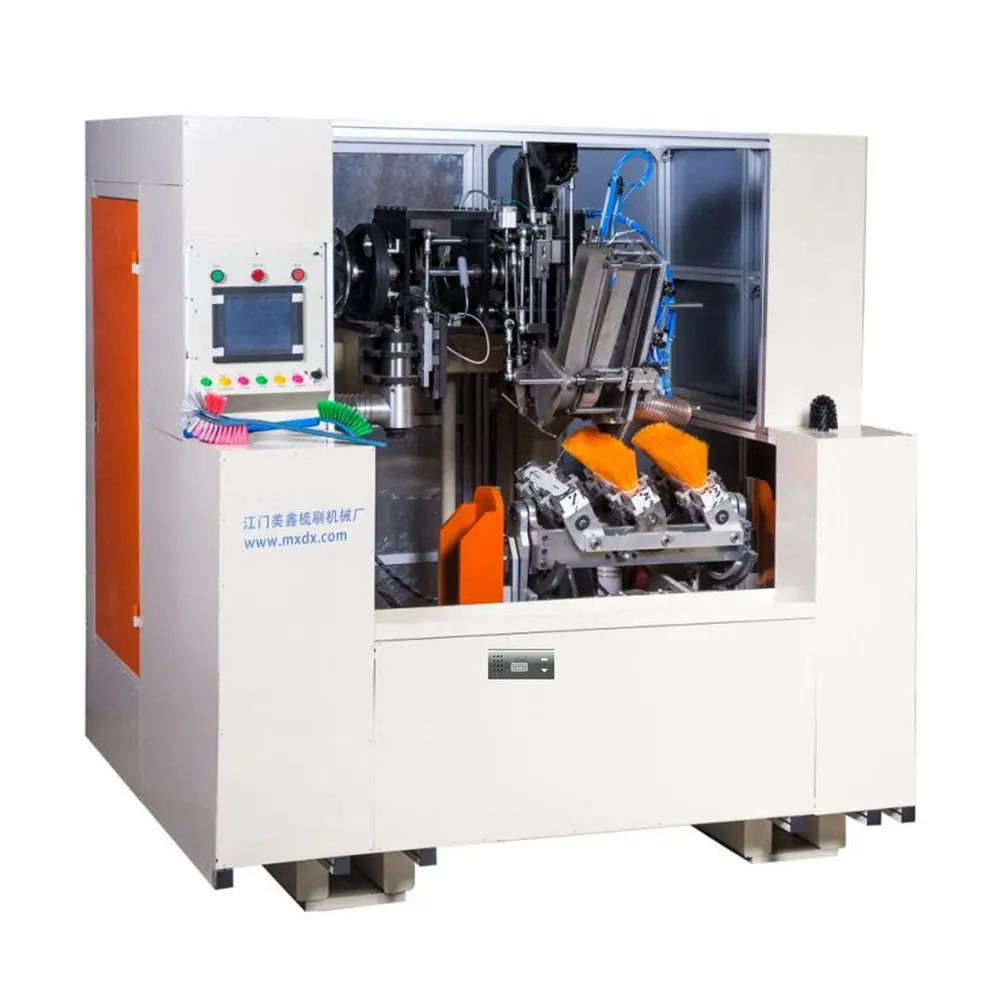

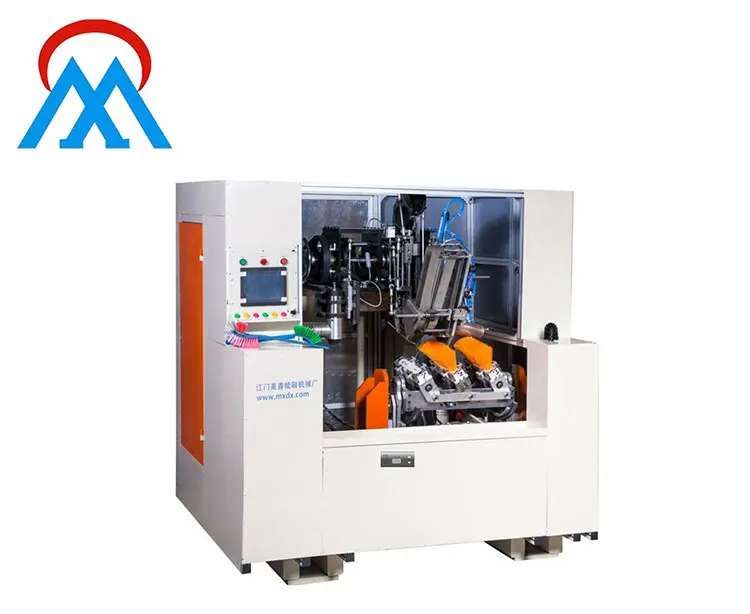

Automatic Brush Making Machines Automatic 5 axis 2 drilling and 1 tufting broom brush making machine

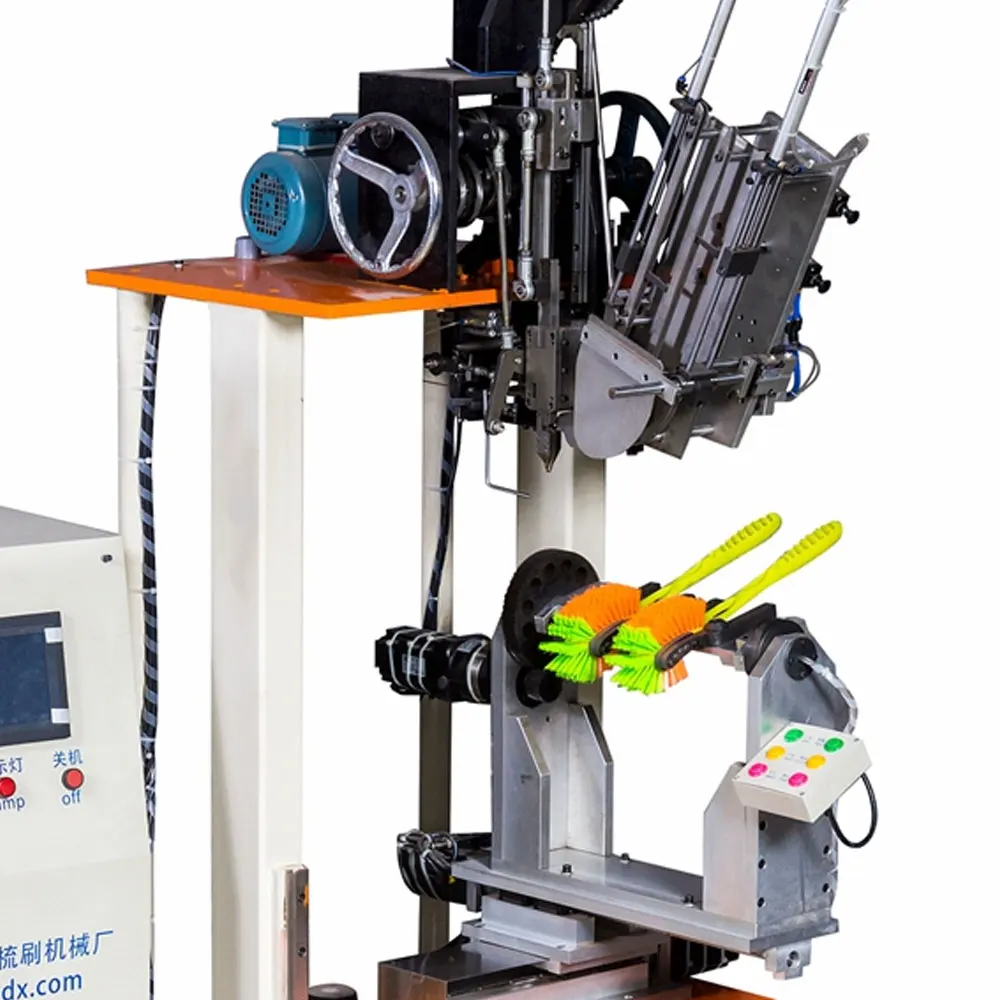

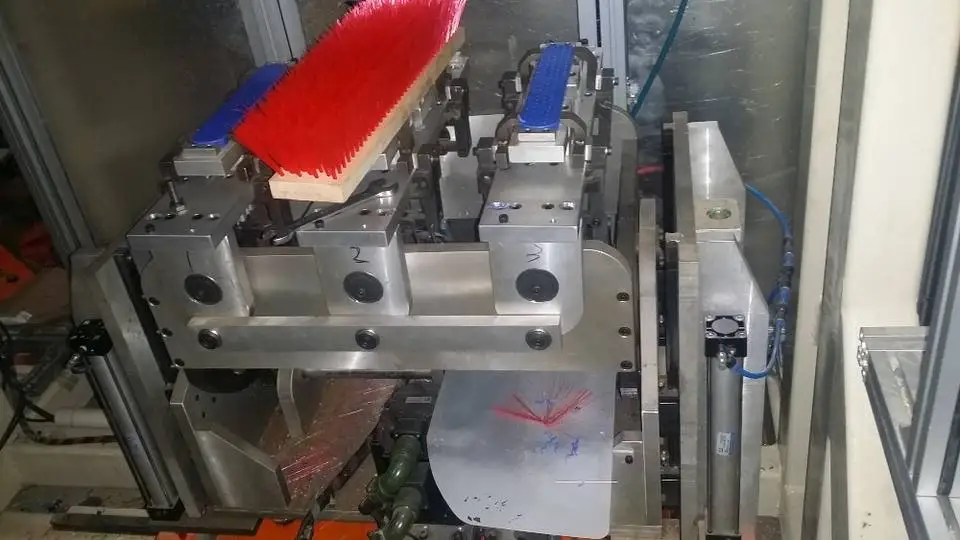

The computerised flocking machine has a computer-controlled working platform. As the head completes a flocking action, the platform moves to the next brush shank hole position, and when it reaches the next position, the head flocking needle again inserts the iron piece with the hair into the hole, and so on and so forth, completing a brush process! The movement of the working platform is controlled by the electric eye (proximity switch) next to the head linkage arm. After the linkage arm has left the lower electric eye, the working platform starts to move to the next hole position and waits for the flocking needle to come down.
