SRC S 163 L4 от итальянского бренда Refcomp полугерметичный винт инверторный компрессор

Product Overview

Description

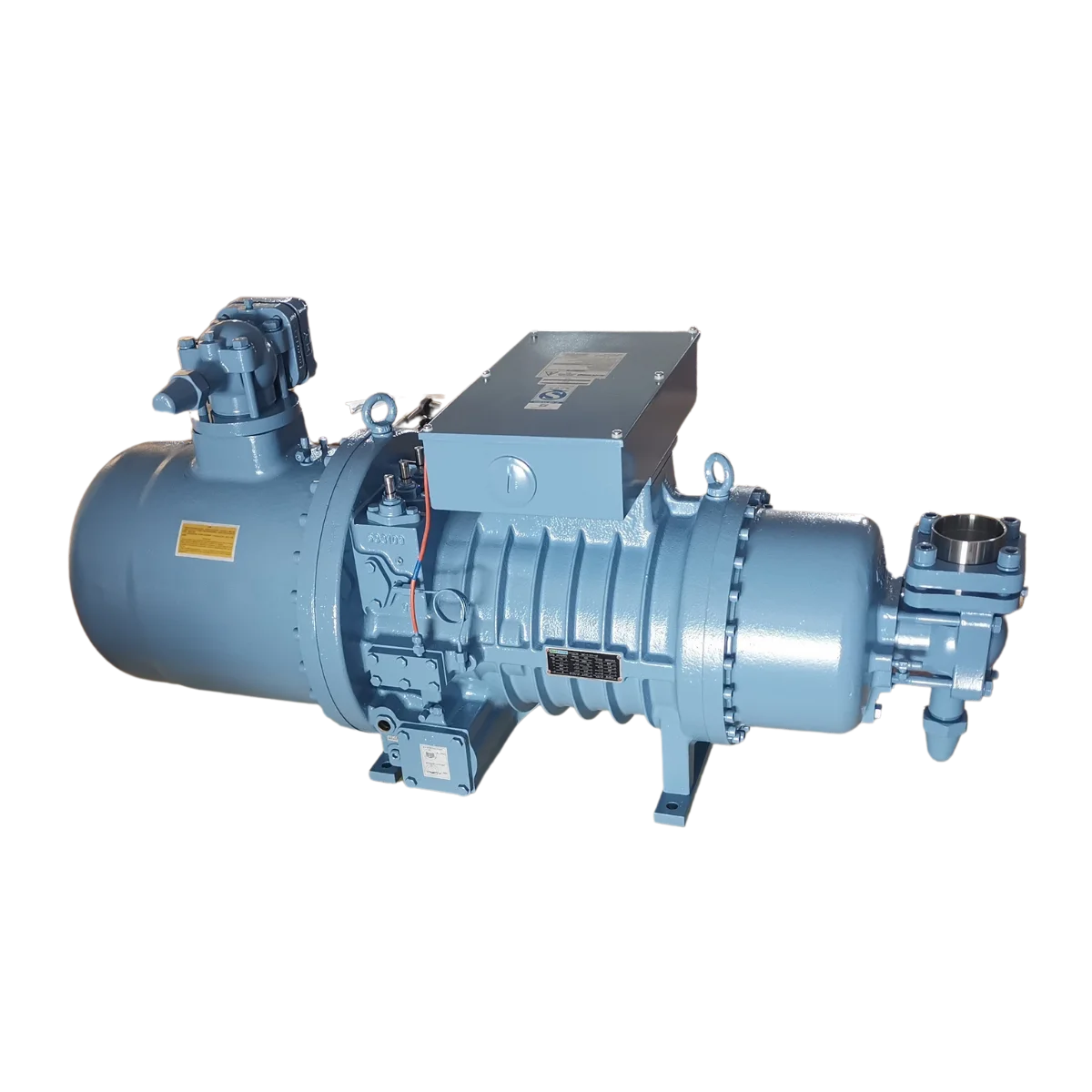

SRC-S-163-L4 Italy brand Refcomp semi-hermetic screw inverter compressor

Functionality:

*High efficiency oil separation system

*Sound emissions and vibrations extremely low

*Improved compression process

*Step or stepless capacity control

Features characteristic:

Extent of delivery:

Y/ motor(400V-3-50HZ,460V-3-50HZ) with 6TC temperature sensors,suction shut-off valve,discharge shut-off valve,intergrated check valve,intergrated safety relief valve,flanged-on oil separator,oil sight glass,oil filter,oil charge.Oil heater,4 steps capacity control(100-75-50-min%) or stepless(100-min%)

motor protection moudle RCX-A(220V-1-50/60HZ),electrical box with enclosure class IP54,Nitrogen protective charge,kit oil cooling connection(only on SRC-XS-040/050/060,SRC-S-255/285/305/755/785/885/985),Vibration dampers kit.

Accessories:

On request the following accesssories can be delivered:

Special motors,connection kit for liquid injection,connection kit for ECO port with shut-off valve,connection kit for oil cooling,oil level control,coversion kit for step-less capacity control,bridges for D.O.L. starting
