Price:$1.75 - $3.50

Quantity:


Product Overview

Description

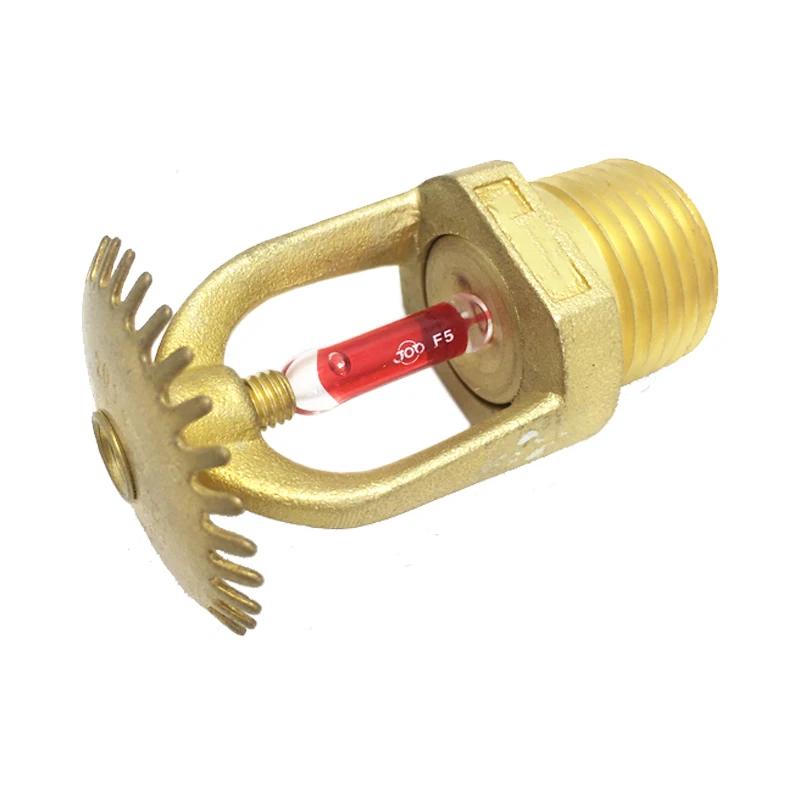

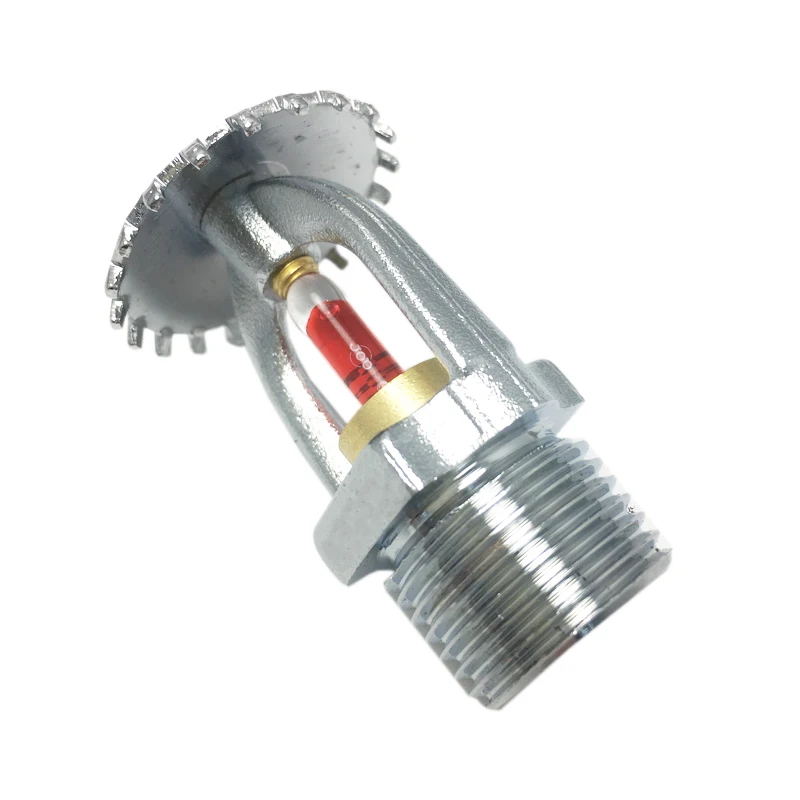

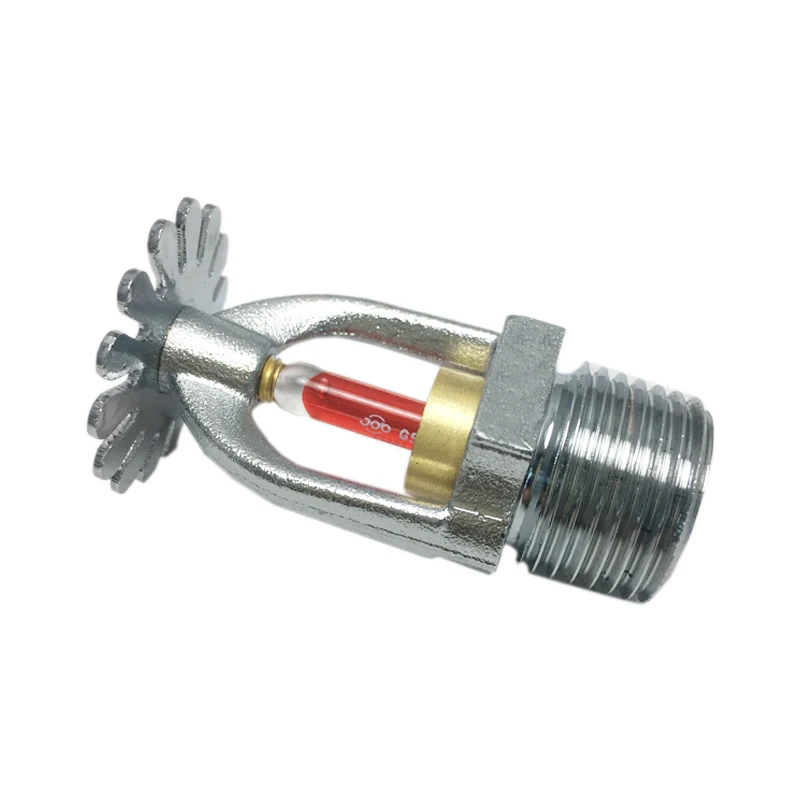

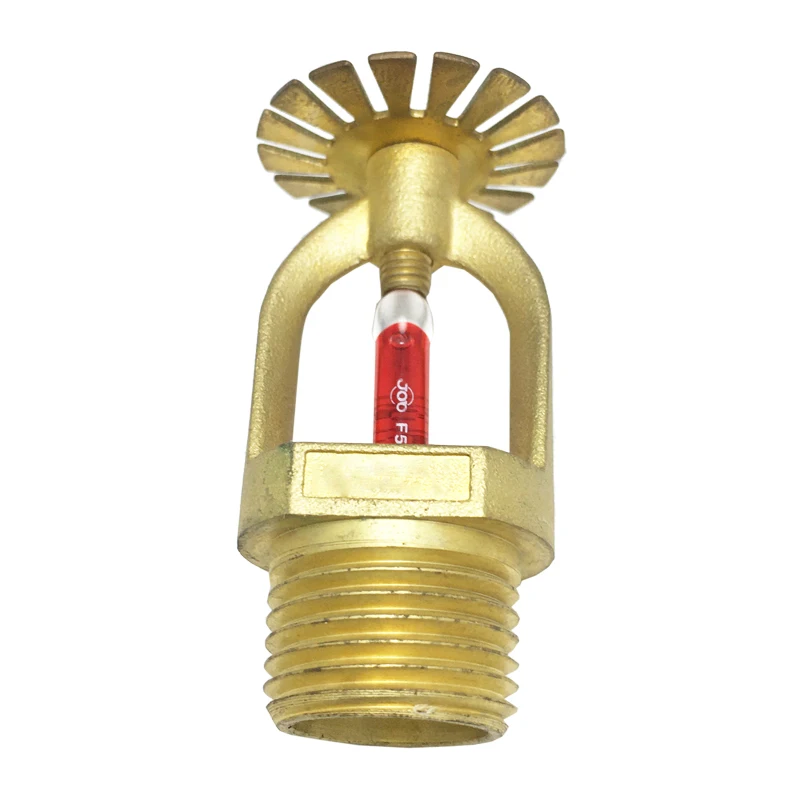

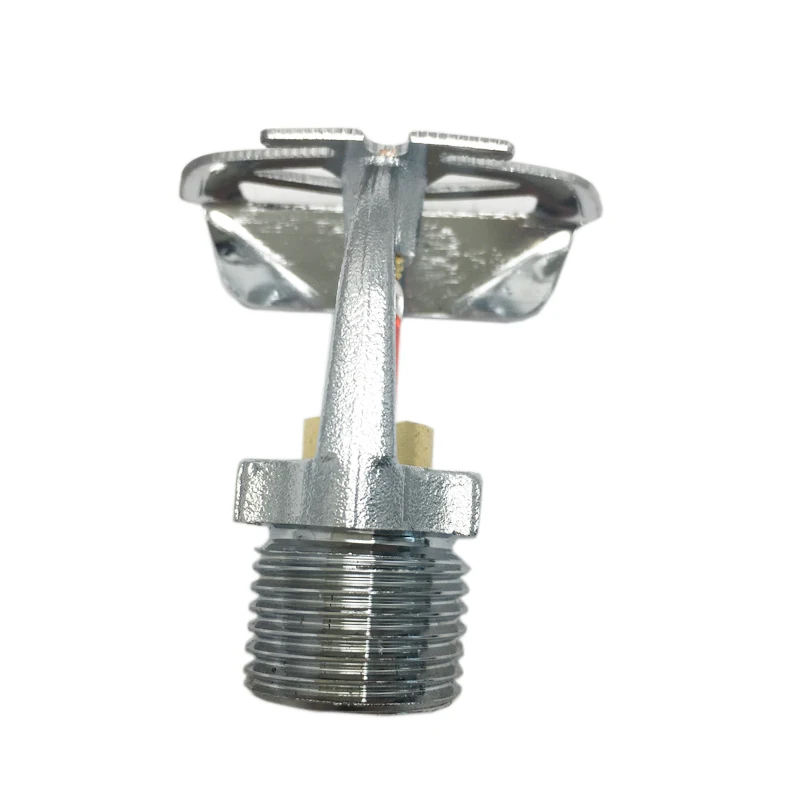

HD standard response upright type fire sprinkler head is a small thermosensitive, glass-bulb spray sprinkler with different finishes and temperature ratings to meet design requirements. It can be widely used in light or ordinary hazard such as shopping mall, hotel, bank, hospital etc..



Parameters and Functions
Model
Fire sprinkler
Material
Brass
Type
Upright，Pendant，Sidewall
Norminal diameter(mm)
1/2" or 3/4"
Connecting thread
NPT，BSP
Glass bulb color
Red
Temperature rating
135°F/(57°C) 155°F/(68°C) 175°F/(79°C) 200°F/(93°C) 286°F/(141°C)
Flow Rate
K=80
Glass Bulb
5 Compression Screw
Finishes
Chrome plated, natrual brass, polyester coated
Testing
100% detection under 3.2Mpa seal test pressure
Response
Quick response/Standard response
