gypsum board machine/gypsum board making machines
US $7500-$12000
Одиночная рабочая станция для системы взвешивания пластырей
- Category: Other Construction Material Making Machinery >>>
- Supplier: Tangshan Hexiang Intelligent Technology Co. Ltd.
Share on (1600549049758):
Product Overview
Description
Product Description
This system is a comprehensive equipment for quantitative conveying, automatic weighing, quantitative water supply, and vacuum stirring of plaster powder in the production process of ceramic industry model preparation. Compared with the traditional method, it has the advantages of high degree of automation, easy operation, low labor intensity of workers, and clean working environment. The plaster mould produced has the advantages of good water absorption, high strength, and light weight.

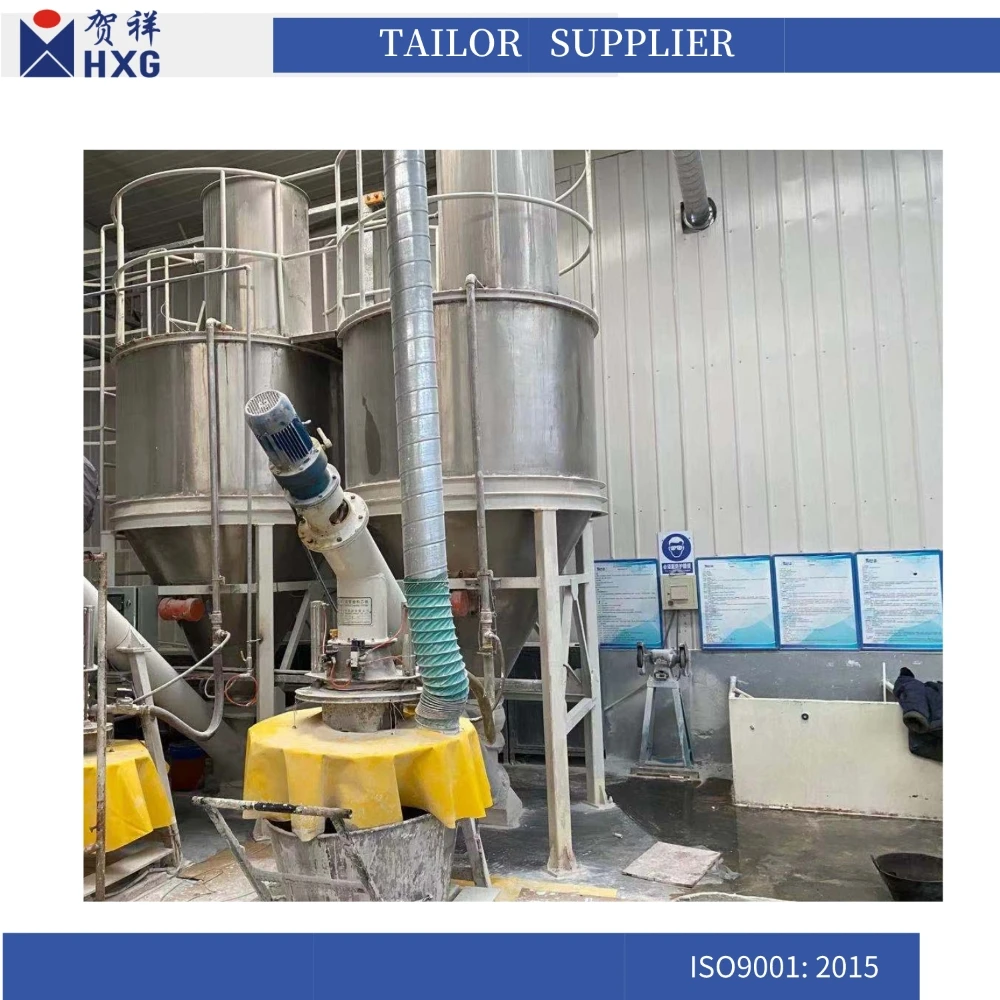

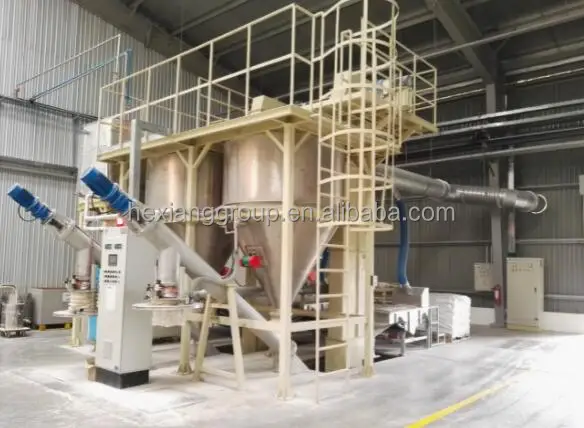

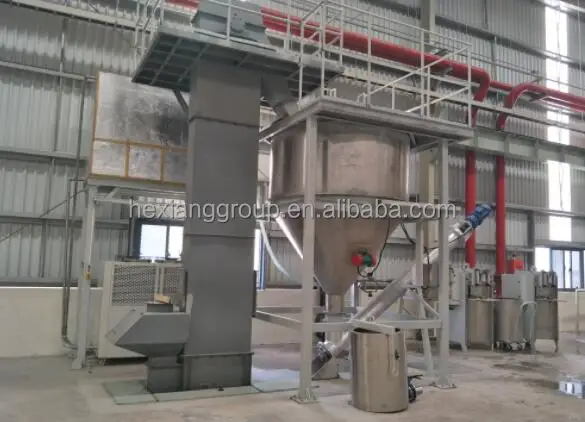

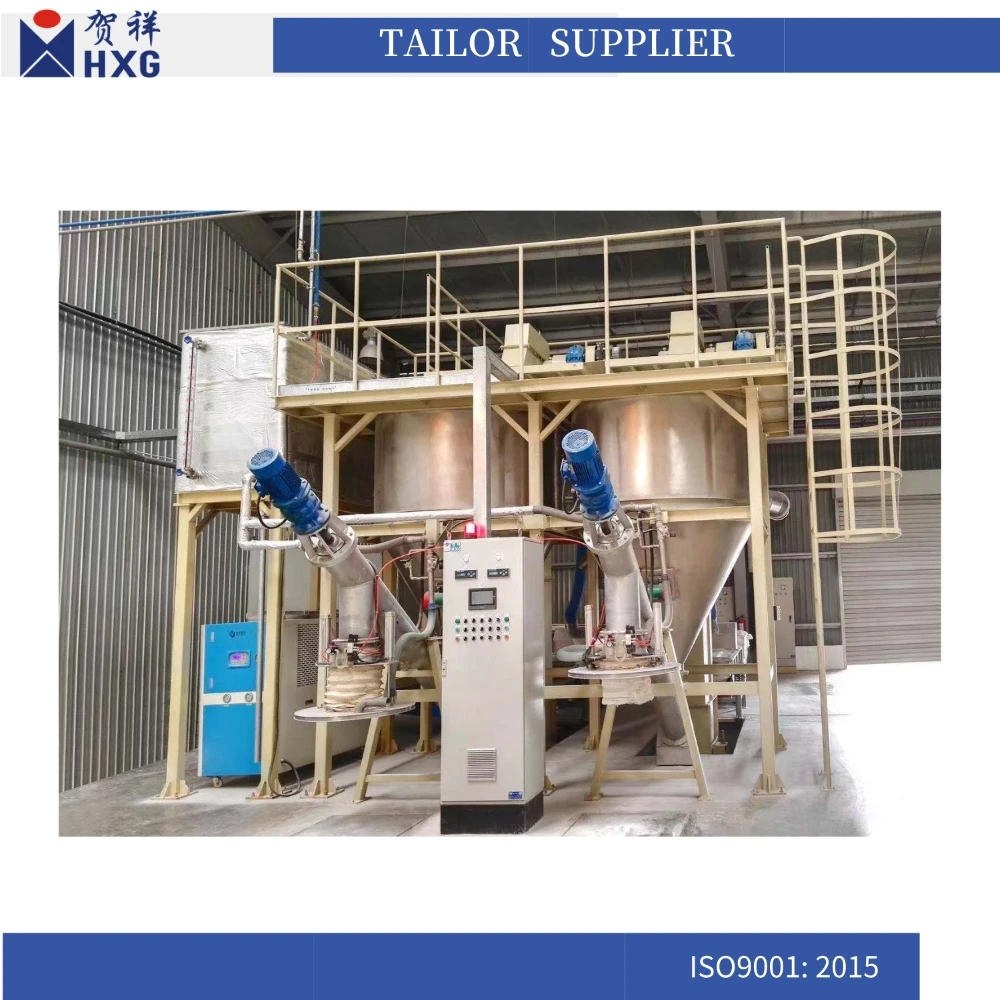

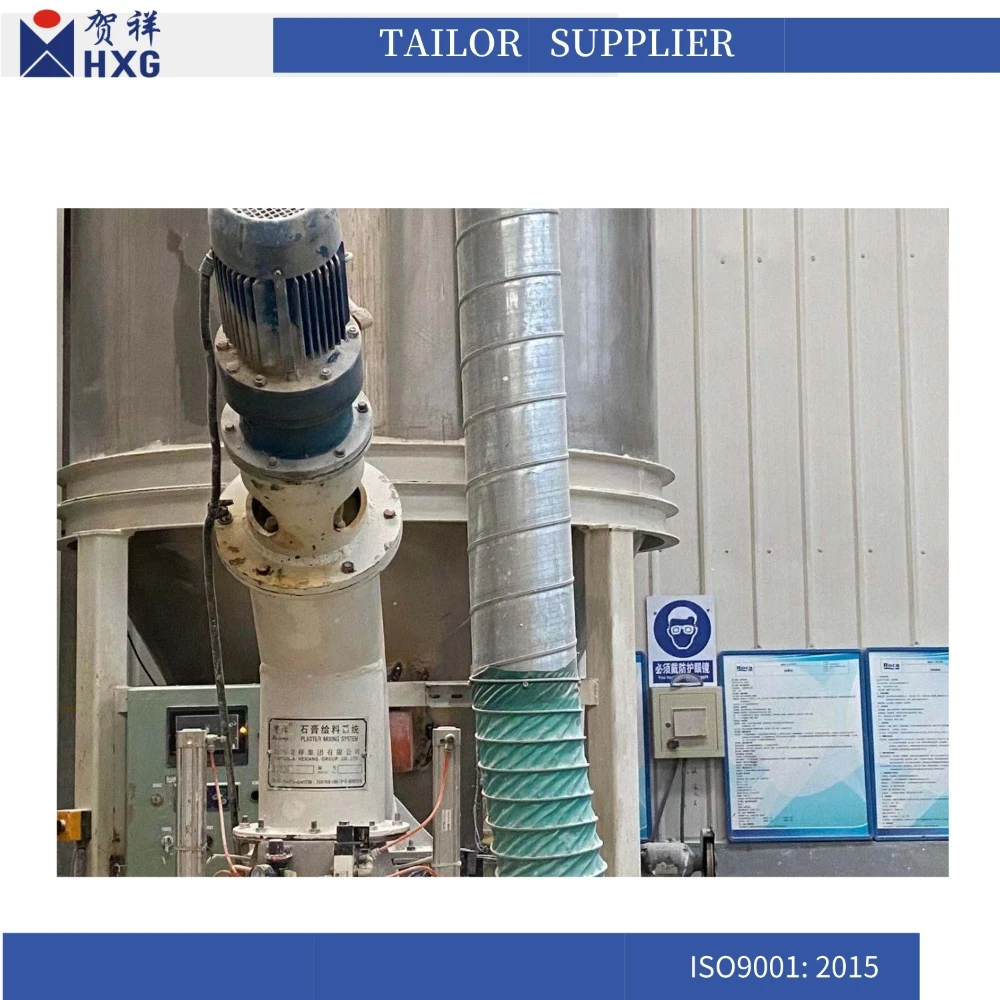

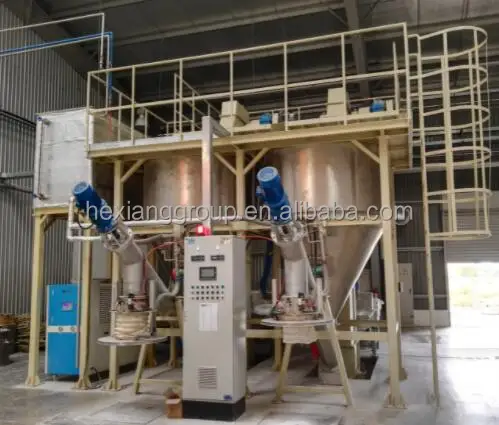

Detailed Photos
Product Parameter
Single station plaster powder conveying capacity | 6-8t/h 2 stations |
Conveying capacity of bucket elevator | 6-8t/h, 3KW, 2 sets |
Screw conveyor power | 2.2kw (according to design) 2 sets |
Warehouse wall vibrator power | 0.37kw 4 units |
Load capacity of weighing system | 1500kg 2 sets |
Silo volume: | 4 m³/2pcs |
Water chiller: | whole machine power 9.5kw, cooling power 29kw, cooling capacity 25000kcal/hr |
Water chiller size | 1.35m (L) × 0.803m (W) × 1.55m (H) |
Constant temperature water tank: | 2m (L) × 1m (W) × 1.5m (H) |

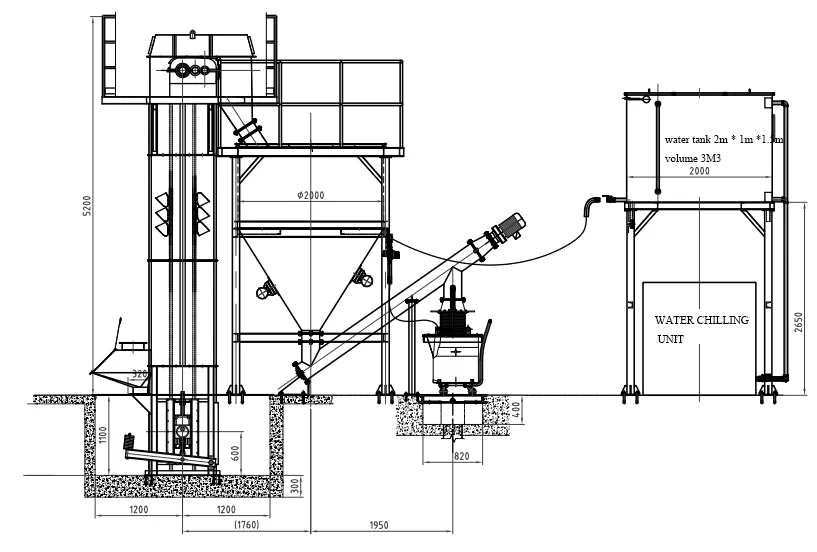

Working Principle
The feeding system includes the following parts:
Inlet of material
Spiral conveyor
Material storage pin
Hoppe lifting device
Auto feeding water device
Weighting system
Thermal water tank
Lifting device
Feeding system platform
Outlet of material
Ladder and climb
Guard railing
