Pharmaceutical Industry Production Line Injection Liquid Vial Filling Capping Machinery Equipments
- Category: Pharmaceutical Machinery >>>
- Supplier: Pharmec Technologies Co. Ltd.
Share on (1600549080464):
Product Overview
Description
Products Description
Brief introduction
It is mainly used for filling and plugging of vial liquid and lyophilized products in pharmaceutical factories.

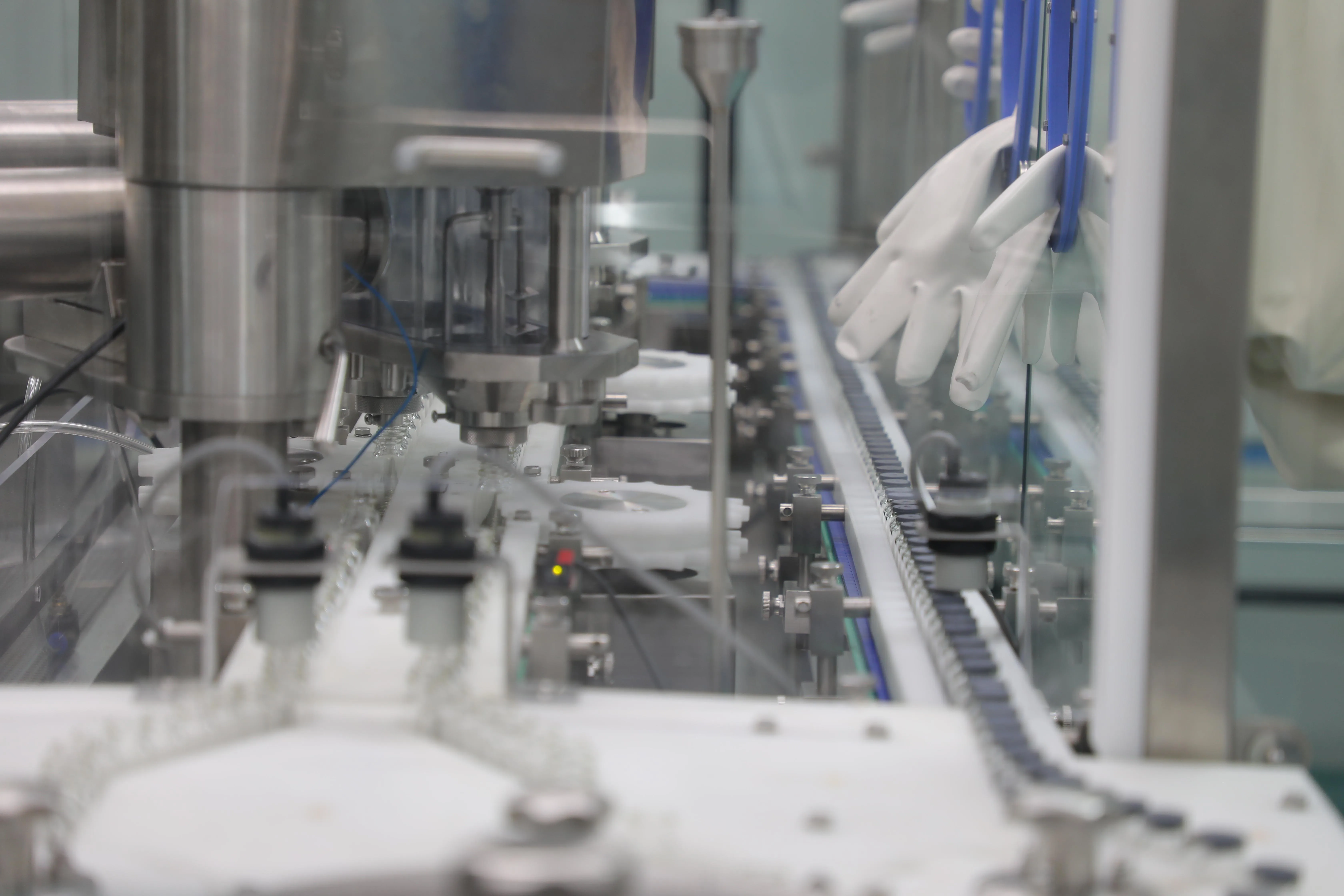

This machine adopts single row synchronous belt for conveying, and servo motor control for following movement: filling needle up and down & fro and back, integral type sucker plugging and outfeed. It can automatically finish procedures of vial orienting, conveying,(pre-nitrogen), filling, (post-nitrogen), stopper orientation, plugging etc. For the plugging, it can do full plugging and half plugging.
Based on all kinds of advanced technology in company, together with the filling principle, we designed and developed this kind of high speed sterile filling machine with all servo system. There are options for ORABS, IPC weighing system, CIP&SIP for filling system. The high configuration of this method can fully meet EU cGMP standard.
Technical Data
Based on all kinds of advanced technology in company, together with the filling principle, we designed and developed this kind of high speed sterile filling machine with all servo system. There are options for ORABS, IPC weighing system, CIP&SIP for filling system. The high configuration of this method can fully meet EU cGMP standard.
Technical Data
Model | Suitable sizes | Output | Filling heads | Plugging heads | Power | Net weight | Overall dimensions |
ABGZ12 | 2-30ml vial | 6000-24000pcs/h | 12 | 24 | 17kw | 2000kg | 4670*2150*1850mm |
ABGZ12/10 | 6000-20000pcs/h | 10 | 16kw | ||||
ABGZ12/8 | 6000-16000pcs/h | 8 | 15kw | ||||
ABGZ12/6 | 2-100ml vial | 3000-12000pcs/h | 6 | 12/24 | 14kw | ||
ABGZ6 | 2-30ml vial | 3000-12000pcs/h | 6 | 14kw | 1500kg | 3950*1950*1850mm | |
ABGZ6/4 | 3000-7200pcs/h | 4 | 13kw | ||||
ABGZ6/2 | 2-100ml vial | 1000-3600pcs/h | 2 | 12kw |
Material | Stainless Steel |
Customized | Accept |
Service | OEM and OEM |
Package | Standard wooden packing for sea shipping |
