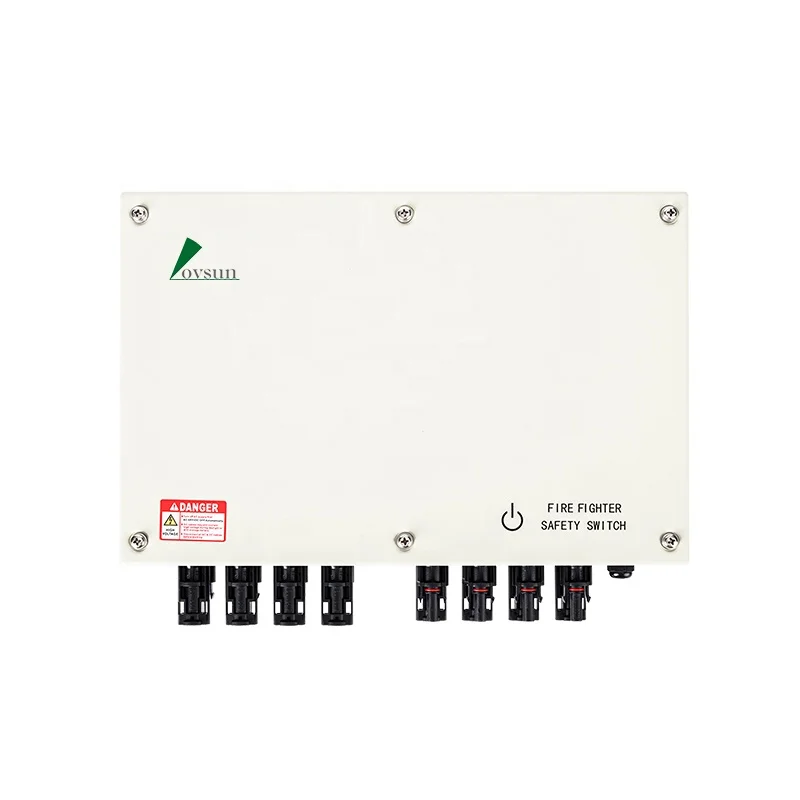

Firefighter Safety Switch Rapid Shutdown for Protection of Solar Energy System 2 strings
Firefighter Safety Switch Rapid Shutdown for Protection of Solar Energy System 2 strings
Firefighter Safety Switch Rapid Shutdown for Protection of Solar Energy System 2 strings
Firefighter Safety Switch Rapid Shutdown for Protection of Solar Energy System 2 strings
Firefighter Safety Switch Rapid Shutdown for Protection of Solar Energy System 2 strings
Firefighter Safety Switch Rapid Shutdown for Protection of Solar Energy System 2 strings

Firefighter Safety Switch Rapid Shutdown for Protection of Solar Energy System 2 strings

Share on (1600549321304):


Price:$115.00-127.00

Quantity:


Product Overview

Description



Product Description






Specification


Model
TW-RSD100-30-2
TW-RSD150-40-2
Main loop parameters
Number of strings
2
Max DC voltage
1000 Vdc
1500 Vdc
Max DC current
30 A
40 A
Parameters
1000V18A,600V32A,400V32A
1500V26AJ 000V40A.600V40A
DC connector
MC4
Control loop parameters
Power supply type
AC single phase
Nominal voltage
230Vac
Operating voltage
100-270 Vac
Nominal frequency
50 Hz
Operating frequency
47-53 Hz
Nominal current
30mA
Max current
300mA
AC connector
Plug-in
Product parameters
Protection degree
IP 66
Protection level
Class II
Certification
CE
Switch according to
EN 60947-3
Number of operations
>10000
N. of operations under load
>1500
Operating temperature
-20°C ~ 70°C
Temperature sensor trigger
70°C
Warranty
5 years
Dimensions (L,W*H)
265 * 280*115mm
Weight
3130 g

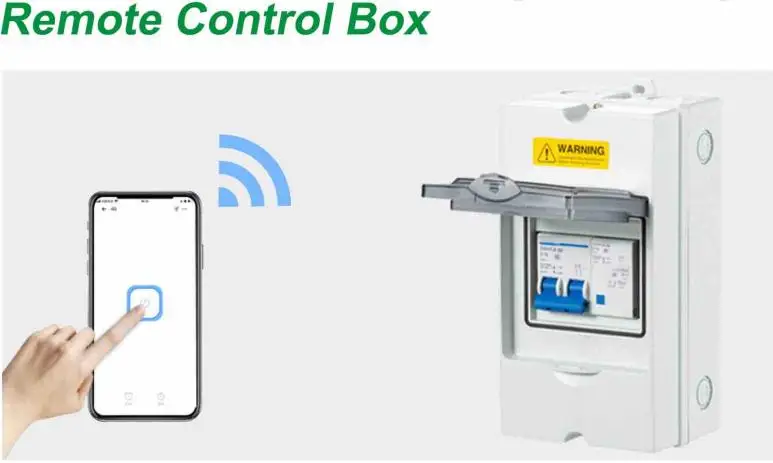

Remote Control Box is as an Additional Option @ usd60/pcs




Item
Remote Controll-BOX
Power supply type
AC single phase
Nominal voltage
230 Vac
Operating voltage
100-270 Vac
Nominal frequency
50Hz
Operating frequency
47-53HZ
Operating temperature
-20°C ~ 70°C
Pretection degree
IP66
AC connector
Plug-in
Warranty
5years






Payment Terms


T/T
EXW
30%  in advance for deposit payment, the balance payments will be paid before shipment.
FOB
CFR/C&F
30%  in advance for deposit payment, the balance will be paid against copy of B/L
CIF
L/C
For the amount  of one shipment above 50,000 usd,  L/C at sight  is acceptable.
West Union

For the amount less than 5000 usd
Paypal
Delivery Time
7~25 days after receiving the payment or the deposit payment
