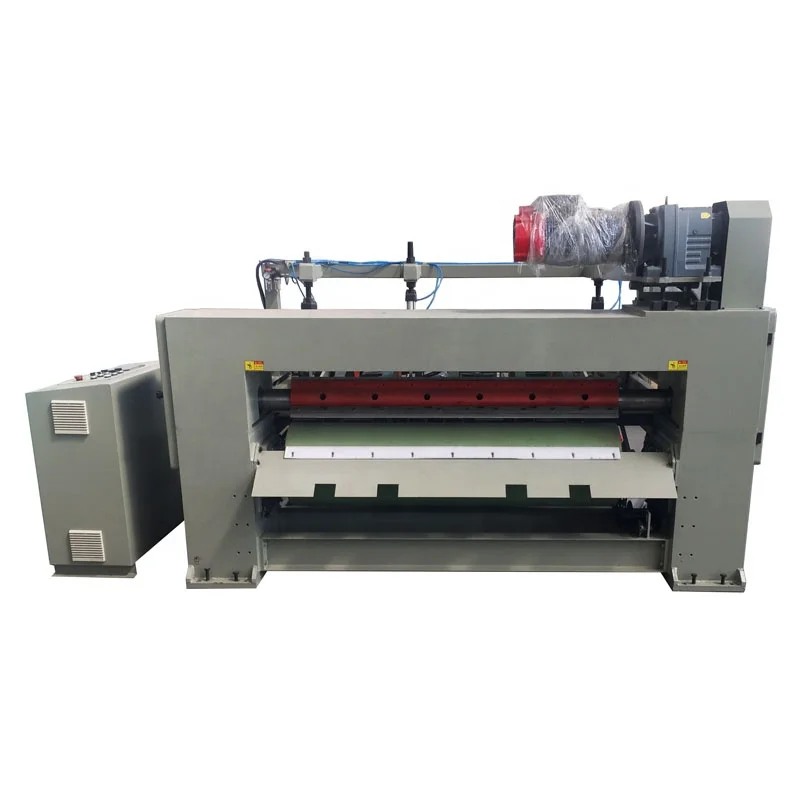

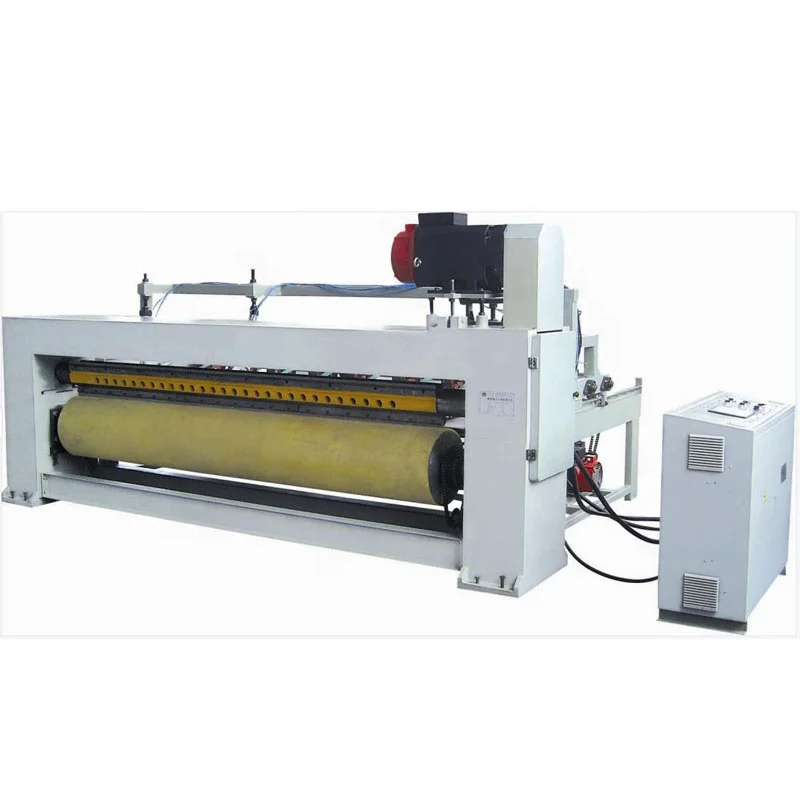

BJG1326, CE Standard High Speed CNC Rotary Veneer Clipping Machine
- Category: Woodworking Machinery >>>
- Supplier: WEIHAI BAISHENGYUAN INDUSTRY CO. LTD.
Share on (1600549631827):
Product Overview
Description
Product Description

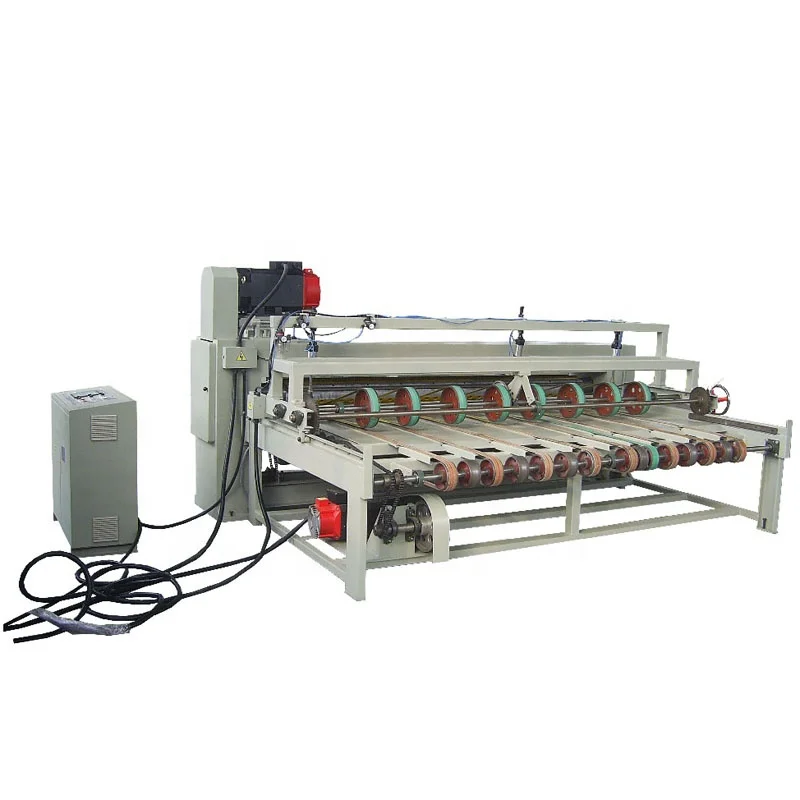

BJG1326, CE Standard High Speed CNC Rotary Veneer Clipping Machine
The BSY Brand High Speed CNC Rotary Veneer Clipping Machine use China CTB Brand operation system for machine controlling, use CTB servo motor for cutting and feeding. Japanese Mitsubishi Brand Operation system and servo motor for option.

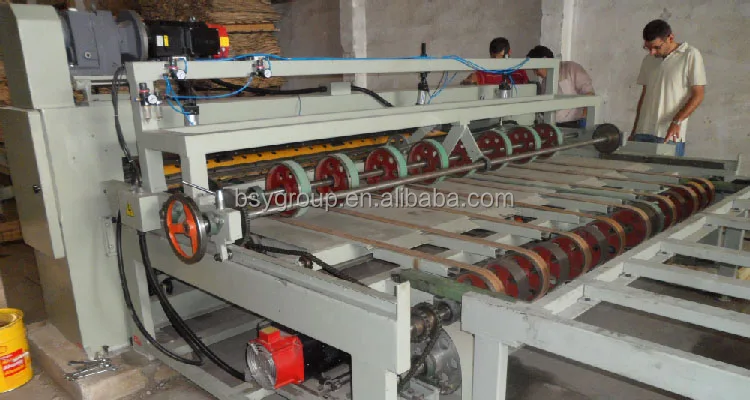

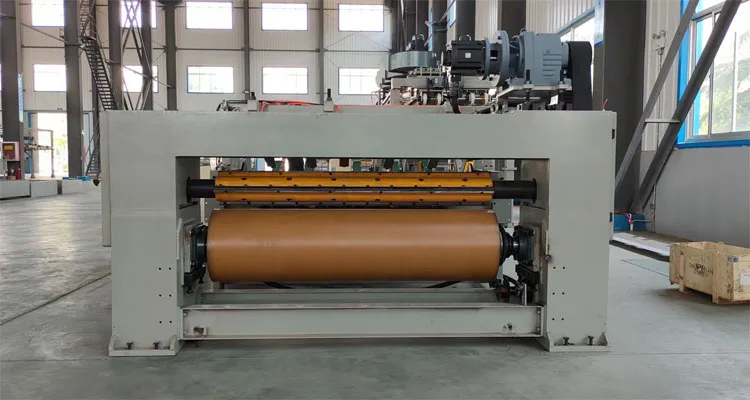

High Speed CNC Rotary Veneer Clipping Machine installed in Customer's facotry
The machine installed in Turkey Factory in 2010

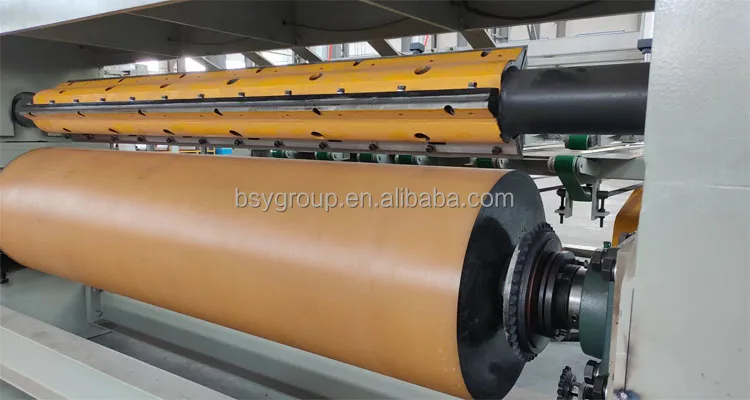

Knife Spindle & Rubber Roller for High Speed CNC Rotary Veneer Clipping Machine
The knife single has 3pcs knives installed;

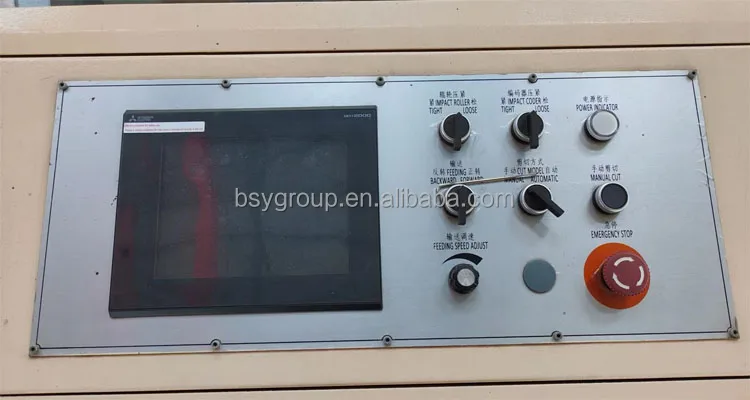

Operation system for High Speed CNC Rotary Veneer Clipping Machine
Standard model use China CTB Brand Operation System;
Japan Mitsubishi system for option.

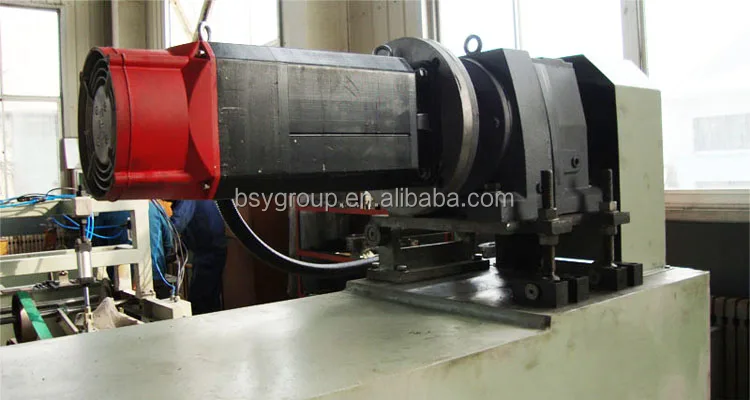

Cutting servo motor for High Speed CNC Rotary Veneer Clipping Machine
Standard model use China CTB servo motor for cutting & Feeding;
Mitsubishi Servo motor optional for cutting;

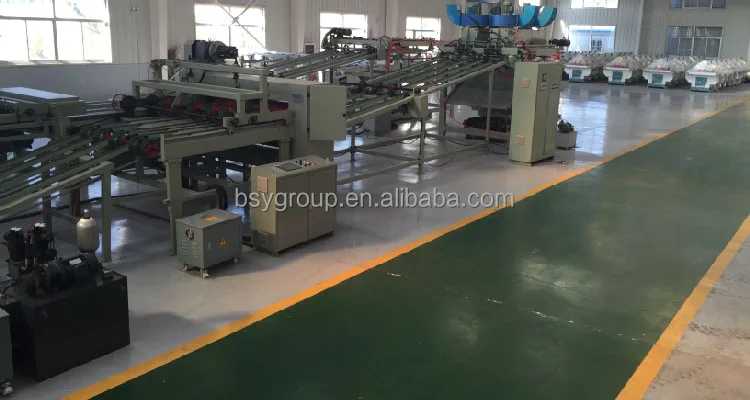

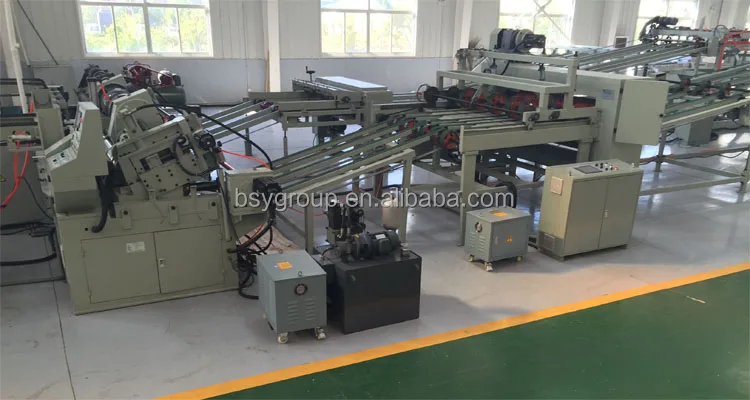

installation of High Speed CNC Rotary Veneer Clipping Machine
The machine commonly installed after Hydraulic Single Chuck Veneer Peeling Machine or CNC Non Chuck Veneer Peeling Lathe, before veneer auto stacker machine.
Specification
Model | BJG1313 | BJG1320 | BJG1326 | BJG1333 |
Max working width: | 1450mm | 2000mm | 2650mm | 3300mm |
Blade length: | 1500mm | 2150mm | 2700mm | 3380mm |
Blade Number: | 3pcs | 3pcs | 3pcs | 3pcs |
Veneer Thickness: | 0.5-3mm | 0.5-3mm | 0.5-3mm | 0.5-3mm |
Max Line Cutting speed: | 100m/min | 100m/min | 100m/min | 100m/min |
Max feeding speed: | 100m/min | 100m/min | 100m/min | 100m/min |
Cutting motor power: | 7.5kw | 7.5kw | 7.5kw | 11kw |
Feeding motor power: | 3.7kw | 3.7kw | 3.7kw | 5.5kw |
Weight: | 3000kg | 3200kg | 3500kg | 4300kg |
Dimension: | 6000*2685*1740mm | 6000*3275*1740mm | 6000*3860*1740mm | 6000*4580*1740mm |
Packing & Delivery

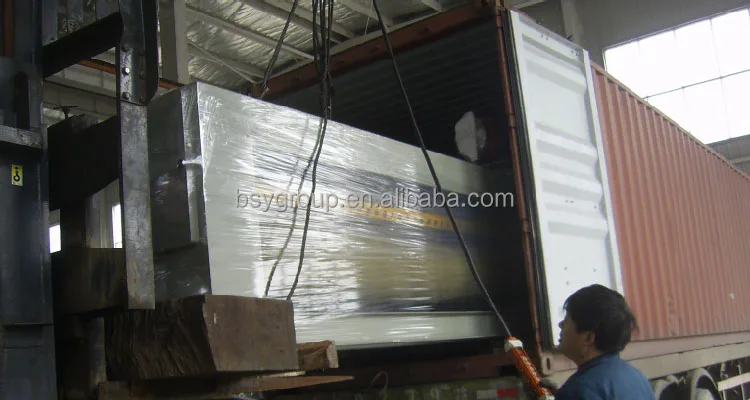

Container loading of High Speed CNC Rotary Veneer Clipping Machine
The High Speed CNC Rotary Veneer Clipping Machine will wrapped by plastic film for container loading and will be well fixed by cable inside container for shipment.
Recommend Products
Hydraulic single Chuck Veneer Peeling Machine with Vertical Log Centering Charger.
Working length: 4/6/8ft
Max Working diameter: 600/800/1000/1100/1300/1500mm
CNC Non Chuck Veneer Peeling Lathe
Working length: 4/6/8 ft;
Max working diameter: 360/480mm
Company Profile
Weihai Baishengyuan Industry Co.,Ltd
Professional Plywood Machine Manufacturer
Found in 1956;
Factory cover: more than 100,000 square meter;
Factory Stuff: more than 200 people;
Production facilities: more than 80 sets;
Main Products:
Log debarking machine, Single-spindle veneer rotary lathe, CNC Spindle less veneer peeling machine, CNC Rotary Veneer Clipping Machine, Veneer dryer;
Glue spreader, Pre-press machine, Hydraulic hot press machine, plywood Sizer, plywood Sander etc.
Service and stuff training is provided through the fully trained staff of BSY dealers, or directly via the BSY Industry’s own
service technicians.
Welcome visit us for win-win cooperation.
Factory cover: more than 100,000 square meter;
Factory Stuff: more than 200 people;
Production facilities: more than 80 sets;
Main Products:
Log debarking machine, Single-spindle veneer rotary lathe, CNC Spindle less veneer peeling machine, CNC Rotary Veneer Clipping Machine, Veneer dryer;
Glue spreader, Pre-press machine, Hydraulic hot press machine, plywood Sizer, plywood Sander etc.
Service and stuff training is provided through the fully trained staff of BSY dealers, or directly via the BSY Industry’s own
service technicians.
Welcome visit us for win-win cooperation.
FAQ
Who are we?
We are Leader manufacturer for High Auto Level Heavy Duty Plywood & Veneer Machine located in Shandong, China. Start sell abroad from 2006, has our own technical team, sales teams, and after-sales service teams.
What can you buy from us?
The whole wood veneer & plywood production line, from log conveyor, log charger, log debarking machine, Single or Spindle less Veneer Peeling machine, CNC Rotary Veneer Clipping Machine, auto veneer stacker, veneer drying machine, glue spreader, Pre-press machine, Hydraulic Hot Press, Plywood Sizer, Plywood sanding machine. Veneer Splicer, Knife Grinder, Hydraulic lift platform etc.
How can we guarantee quality?
The machine will have test running before put into warehouse and ready for shipment.
Why should you buy from us not from other suppliers?
1. We have long history, production technology is mature;
We are Leader manufacturer for High Auto Level Heavy Duty Plywood & Veneer Machine located in Shandong, China. Start sell abroad from 2006, has our own technical team, sales teams, and after-sales service teams.
What can you buy from us?
The whole wood veneer & plywood production line, from log conveyor, log charger, log debarking machine, Single or Spindle less Veneer Peeling machine, CNC Rotary Veneer Clipping Machine, auto veneer stacker, veneer drying machine, glue spreader, Pre-press machine, Hydraulic Hot Press, Plywood Sizer, Plywood sanding machine. Veneer Splicer, Knife Grinder, Hydraulic lift platform etc.
How can we guarantee quality?
The machine will have test running before put into warehouse and ready for shipment.
Why should you buy from us not from other suppliers?
1. We have long history, production technology is mature;
2. High auto level, we select best component and operation system for machine works control;
3. High working performance, All machining done strictly and precisely;
4. Continuous upgrade, our target is to do best in China.
5. Long Working Life. All machine model is built by high quality steel plate, cast iron, famous brand component. Machine body is strong enough to undertake the anti-force.
What services can we provide?
Accepted Trade Terms: FOB, CFR, CIF, EXW；
Accepted Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, Irrevocable L/C at sight.
What services can we provide?
Accepted Trade Terms: FOB, CFR, CIF, EXW；
Accepted Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, Irrevocable L/C at sight.
