Share on (1600549858853):


Price:$72,930.00

Quantity:


Product Overview

Description

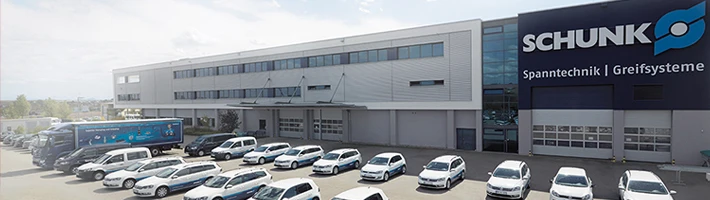

The world's competence leader for gripping systems and clamping technology and leading technology supplier of robots and production machines.
The world's largest product portfolio of gripping systems and clamping technology with more than 11,000 standard components
All the leading large and medium-sized companies in the automotive, machine building, robotics, assembly and handling, aviation, metal cutting industries and many more.






Description
Whereas grippers were previously designed for industrial automation, when it comes to robustness, longevity, and performance, with
gripping hands, the focus is on the aspect of flexibility of motion. The closer humans and robots work together, the greater the
relevance of humanoid 5-fingered hands will be. What is more, numerous gestures can be performed, thereby facilitating visual
communication between humans and the service robot, and increasing acceptance for its use in human environments.


Your benefits
* Suitable for mobile fields of application

* The all-rounder for high component variance

* Support for complex handling tasks


Description

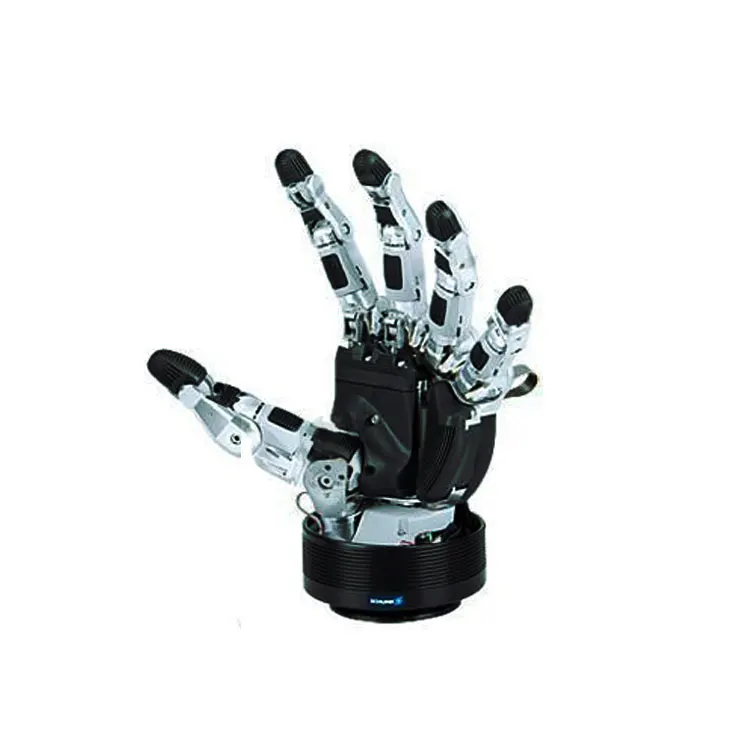

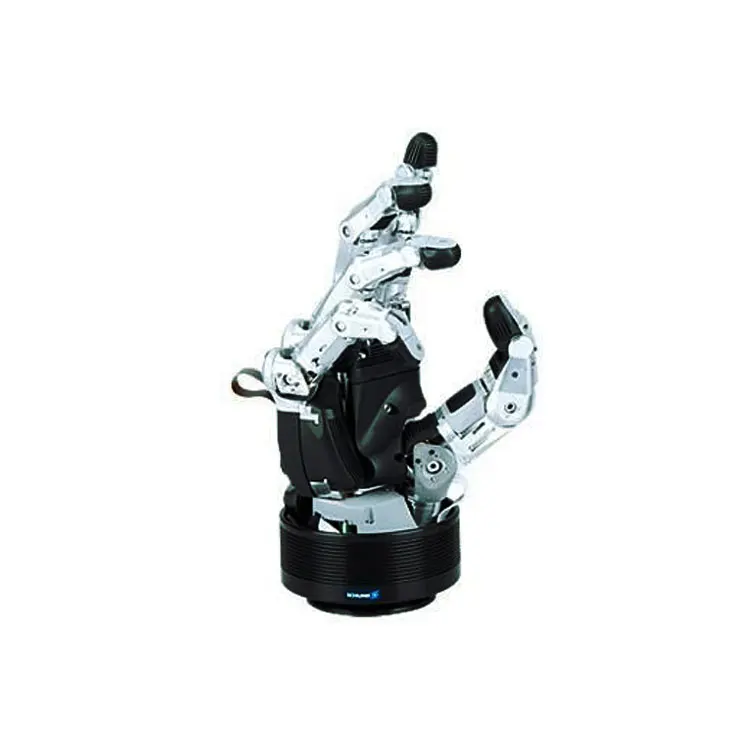

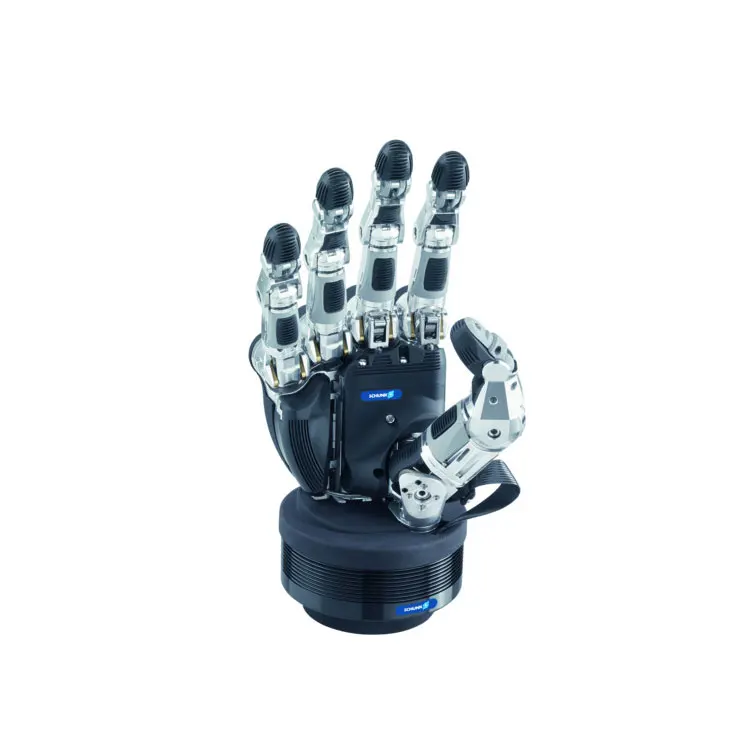

The ready for series production version of the anthropomorphic SCHUNK 5-finger hand grips nearly as perfectly as the human hand.
Due to the moving parts with a total of nine drives, various gripping operations can be executed with high sensitivity. Elastic
gripping surfaces ensure a reliable grip on objects. The electronics are completely integrated in the wrist.

Field of application

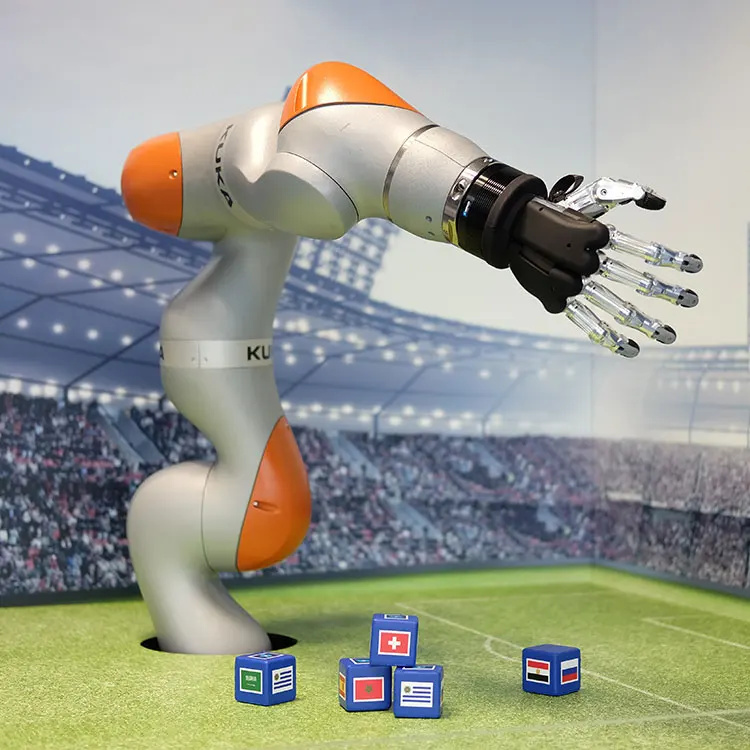

In addition to new dimensions in gripping and manipulation tasks, SCHUNK is defining the possibility of human / robot
communication by gestures with the 5-finger hand.

Advantages – Your benefits
Suited for mobile application fields
by low energy consumption at 24 V DC
Extremely compact design
due to integration of the complete control, regulator and power electronics in wrist
Defined interfaces
for easy connection with market-standard industrial and lightweight robots

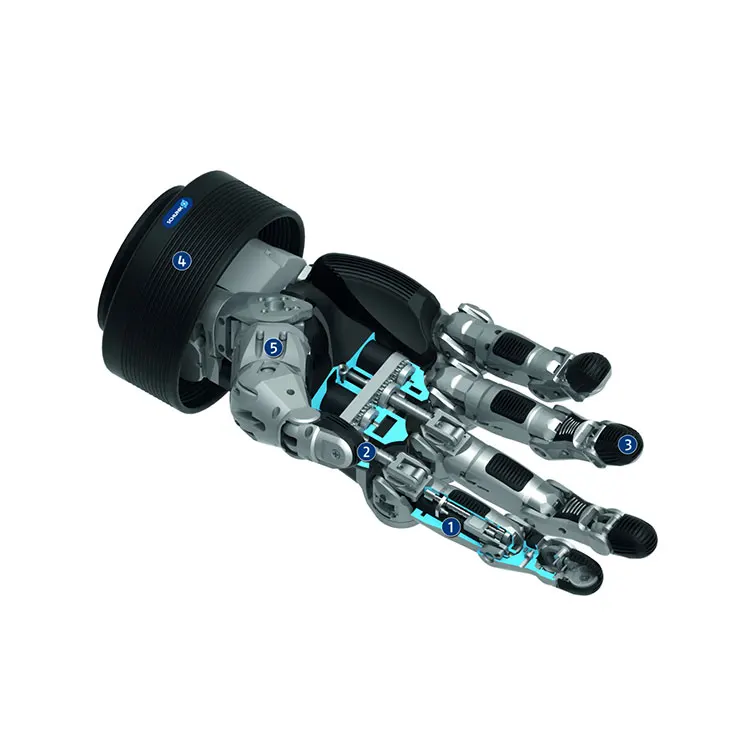

1 Drive index finger Distal
for controlling two axes

2 Drive index finger proximal
DC motor with spindle drive

3 Slip-resistant elastic gripping surface
for direct mounting on the robot arm

4 Integrated electronics
for direct mounting on the robot arm

5 Thumbs with two degrees of freedom
for bending and swiveling the thumb








ID
0306457
Degrees of freedom little finger
2
Overall length [mm]
242.5
Degrees of freedom to spread hand
2
Hand width [mm]
92
Weight [kg]
1.3
Number of axes
20
Nominal voltage [V]
24
Max. finger width [mm]
92
Communication interface
RS 485
Ratio to human hand
1:1
Opening time [s]
0.015
Degrees of freedom
2
P protection class
40
Degrees of freedom forefinger
2
Repeat accuracy [mm]
0.01
Degrees of freedom middle finger
2
Degrees of freedom ring finger
2




















Q1. Are you a trading company or a manufacturer?
We are an international trading company that has been working for more than ten years in gripping system and clamping system. We
design and create its own ERP management system, focusing on the sales and technical service of industrial manipulators. Our
company also is the Official agent of SCHUNK in Southeast Asia, The product is original with a good delivery time and service.

Q2. What is your minimum order quantity?
One set normally.

Q3. How long is your delivery time?
Our delivery time is about 7 days. If there is on stock, we can deliver the goods immediately.

Q4.: Is there a warranty for the goods?
it is usually guaranteed for one year after delivery. For some series of products, it's more than three years warranty. You can
consult us for specific products.

Q5. How can we process orders?
First of all, please let us know your definite request. In addition, we offer according to your requirements or our suggestions.




Fully automatic sorting of curtain clips
Workpiece
Plastic curtain hooks
Task
Sorting, testing, and depositing curtain clips on a conveying belt.
Solution
Two SCHUNK MPG-plus grippers for small components grip two curtain clips each and deposit them on the conveying belt. If the
optical test is negative, the information is sent to the gripper, and the faulty clip is deposited in a reject container.
Customer benefits
The cycle times are significantly shortened and the parts are precisely handled.
