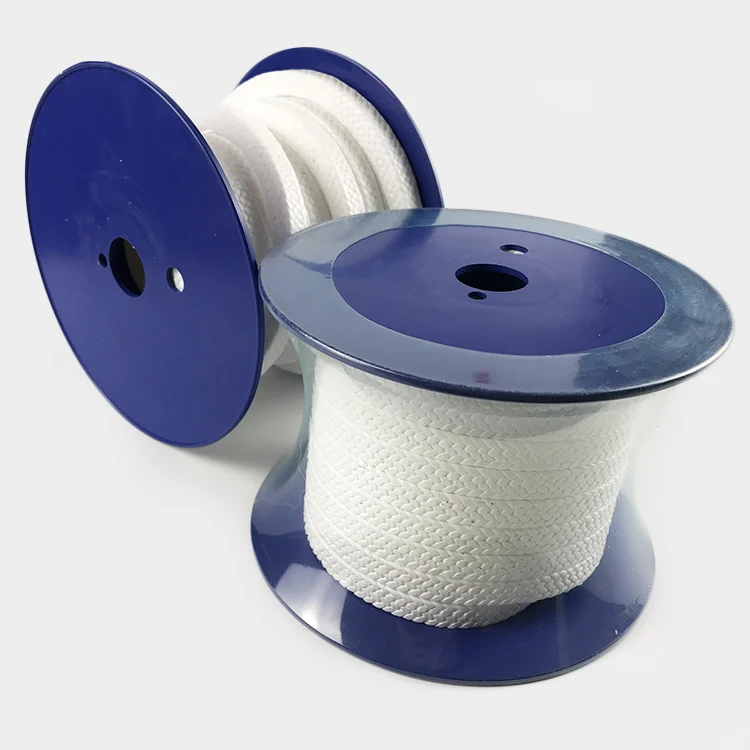

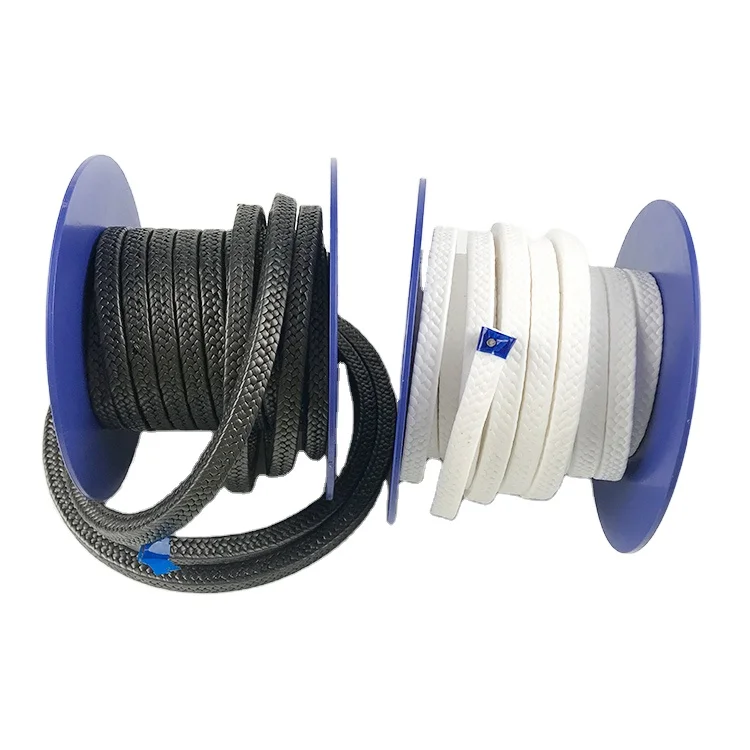

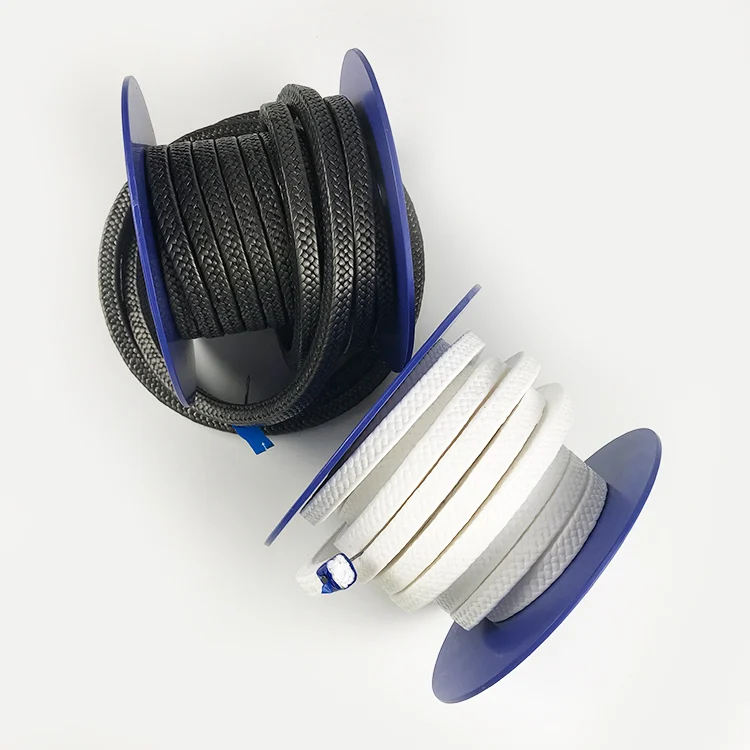

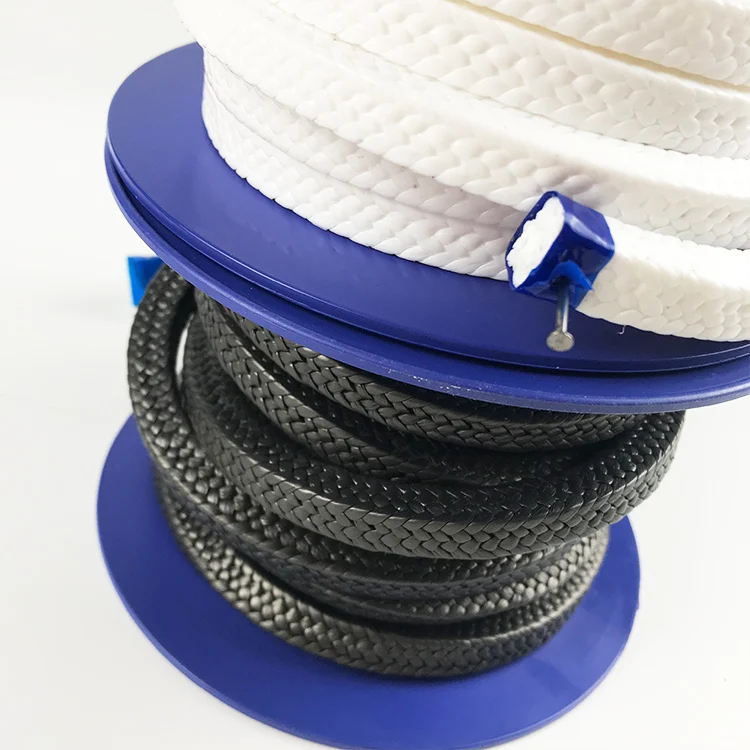

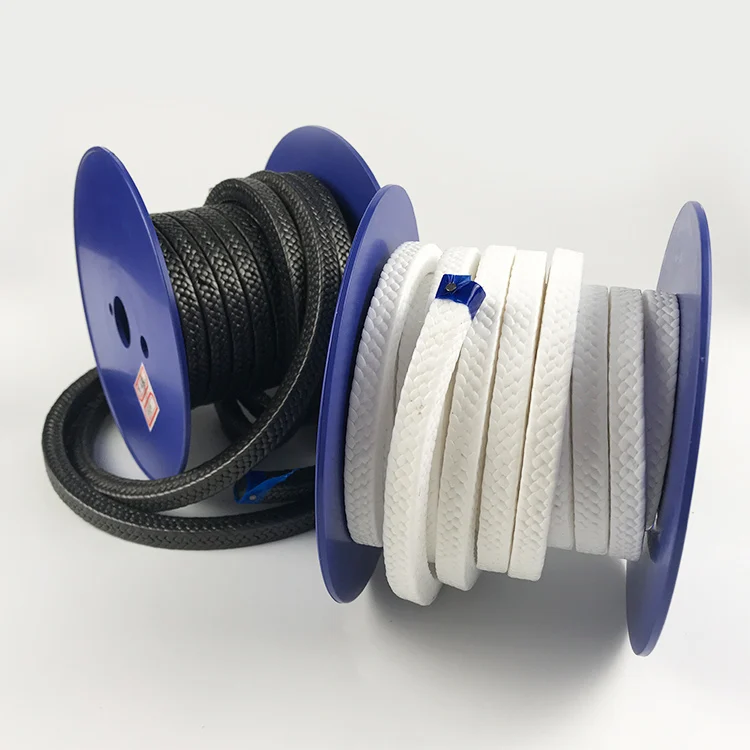

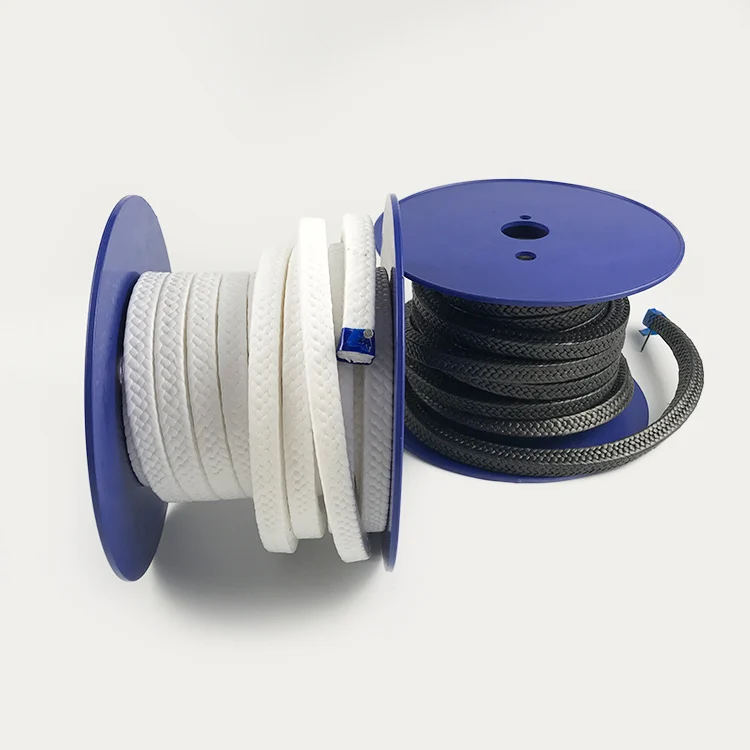

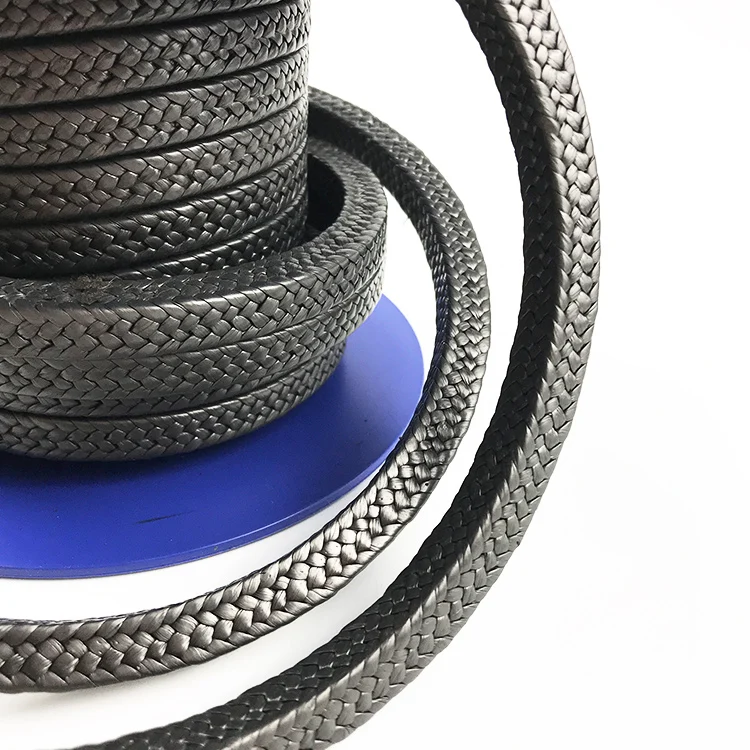

High Temperature and High Pressure Resistant Gland Sealing PTFE Packing
- Category: Seals >>>
- Supplier: Hebei Fuyuan Sealing Material Co. Ltd.
Share on (1600550956182):
Product Overview
Description
Product Description
Application: For use in pumps, valves, reciprocating and rotating shafts, mixers and agitators. Especially designed for services
involving surface speeds and temperature higher than those normally specified for pure PTFE packings. Can be safely used in all
chemical pump applications with the exception of molten alkali metals, fluoride, fuming nitric acid and other strong oxidizing
agents. It is also against water, steam, petroleum derivatives, vegetable oil and solvents.
involving surface speeds and temperature higher than those normally specified for pure PTFE packings. Can be safely used in all
chemical pump applications with the exception of molten alkali metals, fluoride, fuming nitric acid and other strong oxidizing
agents. It is also against water, steam, petroleum derivatives, vegetable oil and solvents.

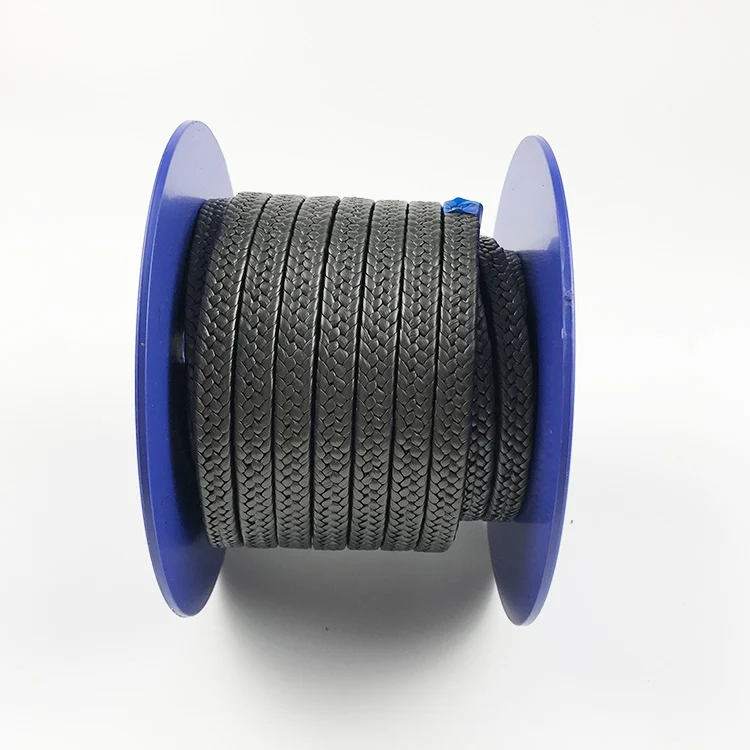

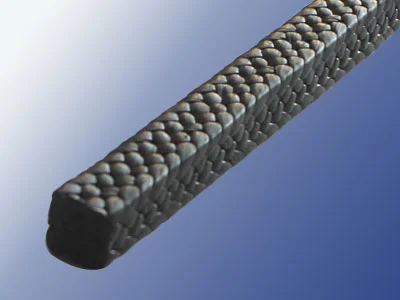

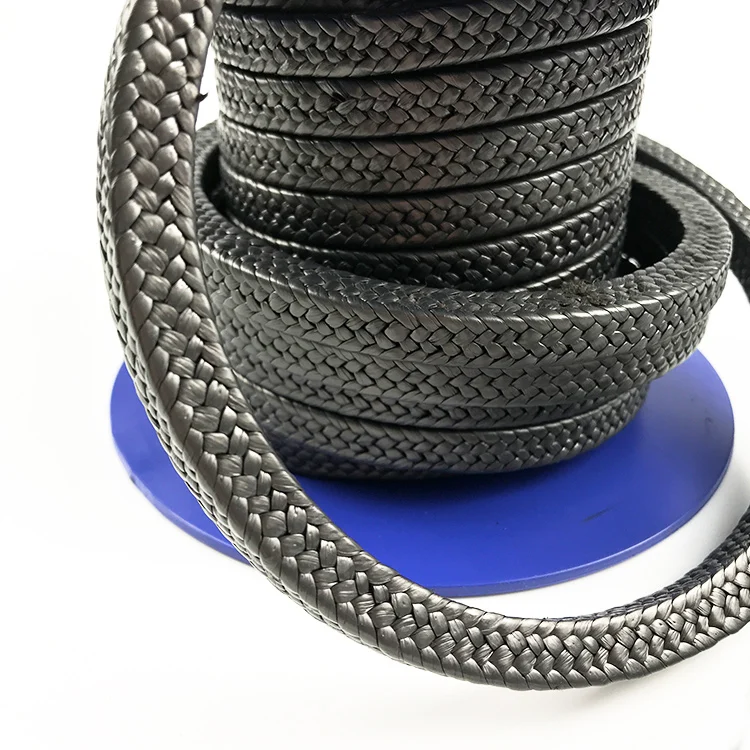

Flexible Graphite Packing
Size: From 6 x 6 mm to 50 x 50mm.
Packaging: In coils of 5 to 10 kg, other weight on request; as precut length
Work temperature :650 C
.Application: Designed for valves and lower shaft speed applications under medial pressure in food processing, pharmaceuticals,
paper mills, fiber plants where high purity and corrosion resistance is required.
Packaging: In coils of 5 to 10 kg, other weight on request; as precut length
Work temperature :650 C
.Application: Designed for valves and lower shaft speed applications under medial pressure in food processing, pharmaceuticals,
paper mills, fiber plants where high purity and corrosion resistance is required.

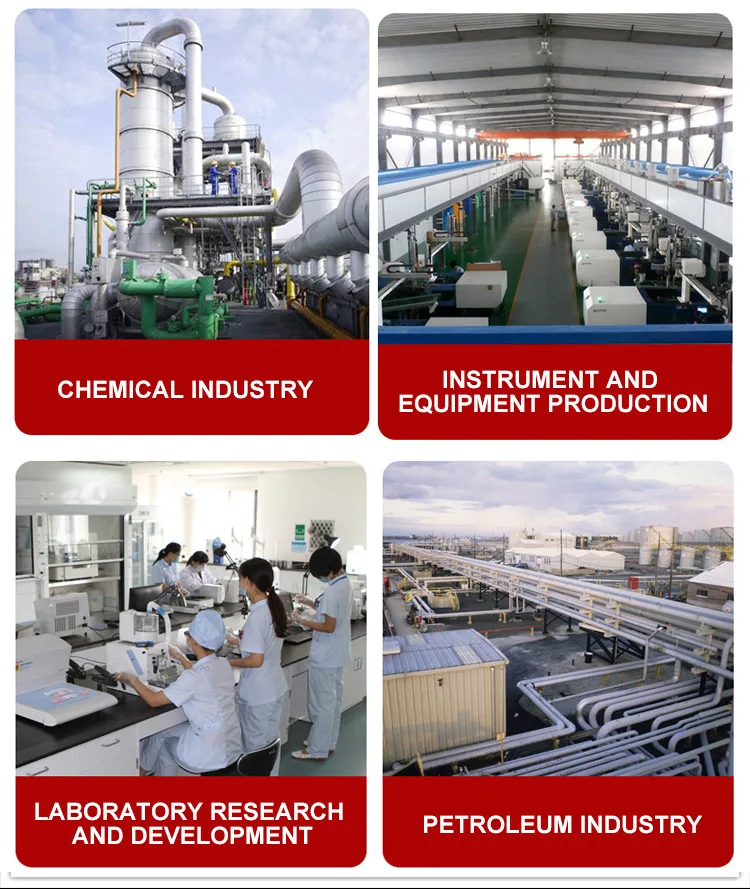

Application Area

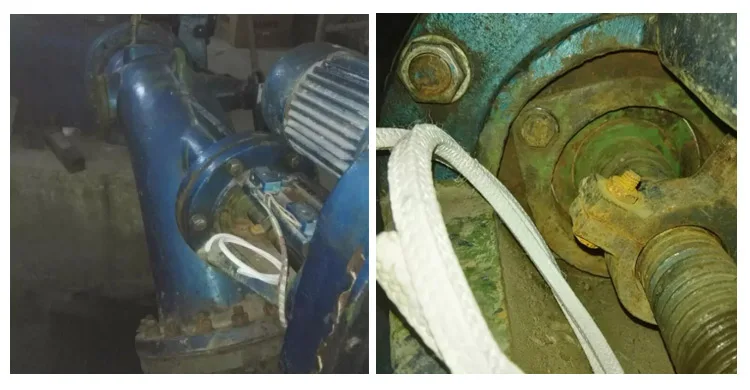

Packing replacement
Specification
item | value |
Size | 6*6 to 50*50mm |
Place of Origin | China |
Brand Name | AOHONG |
Model Number | Gland packing |
Place of origin | Hebei China |
Pressure Rotaing | 15 bar |
pressure Static | 150 bar |
Density | 1.3g/cm3 |
PH range | 0~14 |
Brand Name | AoHong |
Shaft speed | 2m/s |
Material Type | PTFE fiber |
Application | Pump Hydraulic Machine Rotary Shaft |
Packing | 5 kgs or 10 kgs per roll |

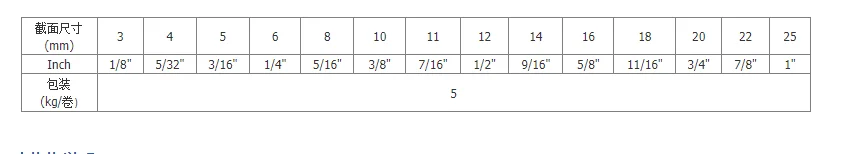

Inch mm comparison table
Packing & Delivery
Packing： 5 Kgs or 10 Kgs per roll then 20 kgs in a carton.
in wooden pallet of about 1000kgs, 2000kgs net each.
Company Profile

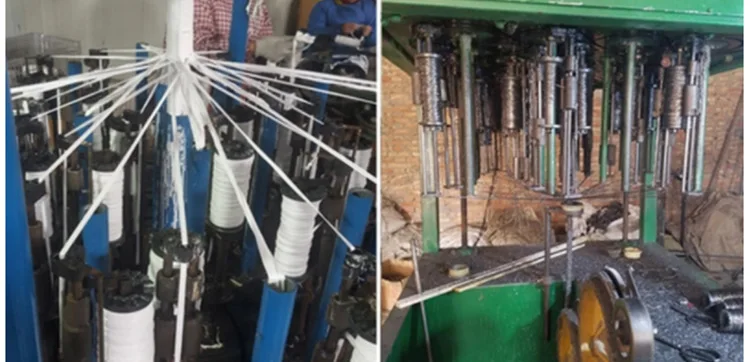

Hebei Fuyuan Sealing Material Co., Ltd. belong to AOHONG group co.,ltd. . She is a modern high-technology enterprise specialized in production and sales of sealing and heat insulation material with an experience of more than twenty years. We are equipped with the most advanced and complete machines and test facilities to produce high quality various kinds sealing material.
Our featured products are "Bright Pearl" brand sealing material series products, mainly sealing gasket sheet, braided packing, Heat Insulation cloth, tape, rope, sight glass, etc.
Our featured products are "Bright Pearl" brand sealing material series products, mainly sealing gasket sheet, braided packing, Heat Insulation cloth, tape, rope, sight glass, etc.
Purchase steps
1. Please kindly advise the size,thickness color and quantity.
2. Normally we will quote FOB Tianjin seaport,If you have agent please kindly tell me in advance,then the quotation will send via email.
3. We can send free sample for quality test or trail order.
4. Long term cooperation.
2. Normally we will quote FOB Tianjin seaport,If you have agent please kindly tell me in advance,then the quotation will send via email.
3. We can send free sample for quality test or trail order.
4. Long term cooperation.
Any problem please feel free to contact our salers
