Algae Tubular Separator Centrifuge
US $6800
Jieda Ps1250 промышленная Центробежная центрифуга для продажи
- Category: Separation Equipment >>>
- Supplier: Jiangsu Jieda Centrifuge Manufacture Co. Ltd.
Share on (1600559130111):
Product Overview
Description
Product Description
Drawings of PS Model top discharge centrifuge which motor is on the side
1. Machine base
2. Bowl part
3. Bearing block
4. Housing
5. Washing pipe
6. Machine cover
7. Oblique sight glass
8. Explosion-proof lamp
9. Feeding pipe
10. Flap turning device
11. Motor
12. Vibration absorber
13. Liquid discharging pipe
2. Bowl part
3. Bearing block
4. Housing
5. Washing pipe
6. Machine cover
7. Oblique sight glass
8. Explosion-proof lamp
9. Feeding pipe
10. Flap turning device
11. Motor
12. Vibration absorber
13. Liquid discharging pipe
Drawings of PSF Model top discharge centrifuge which motor is at the bottom

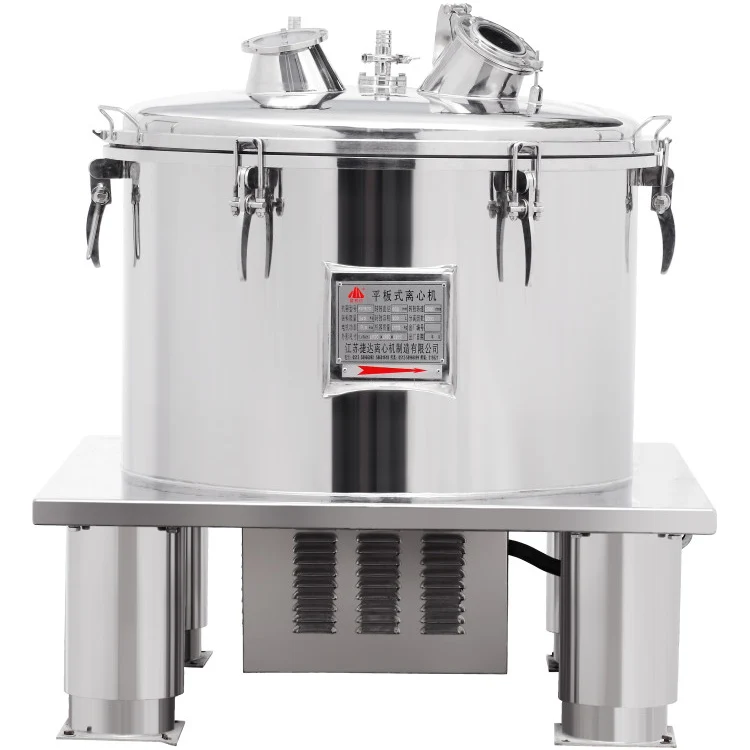

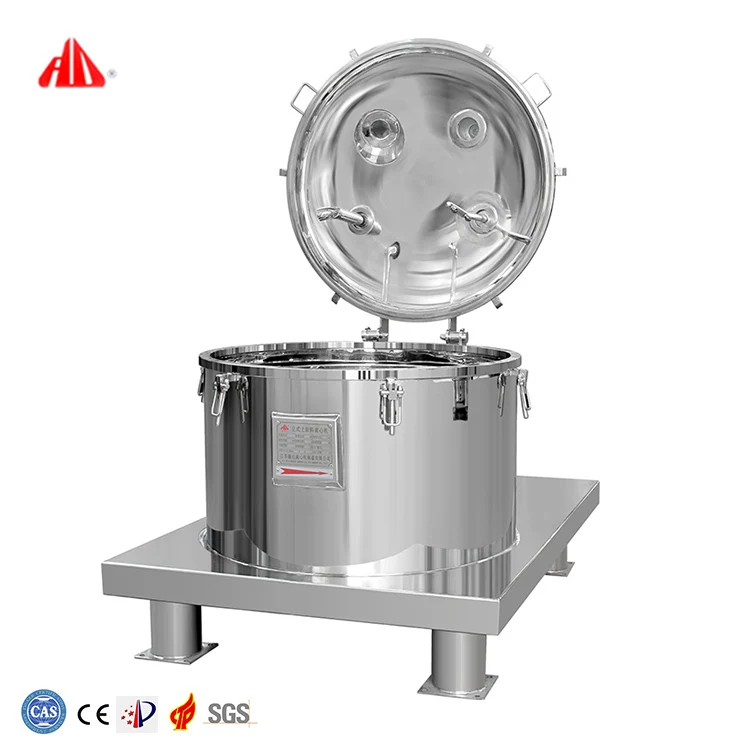

Introduction of Jieda PS1250 Perforated Top Discharge Centrifuge For Sale
This PS1250 model Basket Centrifuge is top discharge and intermittent operation type centrifuge. Material is feeded into the drum from the top, with the centrifugal force, liquid is discharged out of he machine through the filter bag, and solids retained in the filter bag. After the drum stops, then to discharge the solids.
Standard Manufacturing Form of Jieda PS1250 Perforated Top Discharge Centrifuge:
1.Structure: The housing is equipped with the feeding pipe, washing pipe, sight glass, exhaust port, and lighting hole. The closed structure, basket, housing and cover are made of stainless steel SUS304. The machine base is made of castings. The surface is covering with stainless steel. The interior and exterior surfaces of basket and housing, and the surface of exposed parts in the machine are all subjected to polishing treatment.
2.All fasteners are made of stainless steel.
3.Driving and braking: Explosion-proof motor + frequency converter .
4.Foundation-free type (balancing block + imported high-precision liquid damping agent type vibration isolator).
2.All fasteners are made of stainless steel.
3.Driving and braking: Explosion-proof motor + frequency converter .
4.Foundation-free type (balancing block + imported high-precision liquid damping agent type vibration isolator).
Specification
Model | Drum | Separation Factor(ω²r/g) | Motor Power(KW) | Weight(KG) | Dimensions(mm) | ||||||
Diameter(mm) | Working Volume(L) | Loading Limit(kg) | Speed(R/Min) | ||||||||
PS-200 | 200 | 1.5 | 2 | 2020 | 454 | 0.55 | 230 | 520*300*300 | |||
PS-300 | 300 | 5 | 10 | 2000 | 670 | 0.75 | 240 | 850*650*655 | |||
PS-450 | 450 | 20 | 30 | 1900 | 910 | 1.5 | 380 | 980*650*740 | |||
PS-600 | 600 | 40 | 60 | 1500 | 755 | 3 | 1100 | 1300*1000*1050 | |||
PS-800 | 800 | 100 | 135 | 1200/1500 | 645/1006 | 5.5/7.5 | 1500 | 1800*1300*1200 | |||
PS-1000 | 1000 | 140 | 200 | 1000/1200 | 560/806 | 7.5/11 | 2200 | 2000*1400*1220 | |||
PS-1200 | 1200 | 240 | 325 | 800 | 430 | 11 | 3000 | 2300*1700*1200 | |||
PS1250 | 1250 | 380 | 530 | 960/1050 | 645/770 | 18.5/22 | 3500 | 2300*1700*1450 | |||
PSF-300 | 300 | 5 | 10 | 1500 | 380 | 0.75 | 200 | 650*650*750 | |||
PSF-450 | 450 | 20 | 30 | 1500 | 566 | 3 | 380 | 800*800*850 | |||
PSF-600 | 600 | 40 | 60 | 1500 | 755 | 3 | 900 | 900*900*1050 | |||
PSF-800 | 800 | 100 | 135 | 1500 | 1000 | 7.5 | 1350 | 1220*1220*1210 | |||
PSF-1000 | 1000 | 140 | 200 | 1000 | 560 | 11 | 2200 | 1400*1400*1350 | |||
PSF-1200 | 1200 | 240 | 325 | 960 | 620 | 15 | 2500 | 1700*1700*1215 | |||
Main Features of PS1250 Perforated Top Discharge Centrifuge:
1. Frequency converter starting, stable starting, adjustable separation factor
2. Manual top discharge.
3. It complies with the requirements in the GMP standard.
4. Simple structure, convenient operation
5. The grains are not easy to break.
6. It is equipped with the nitrogen protection system to ensure air isolation between the inside cavity and the outside of the centrifuge.
7. Good versatility and wide application range
8. Closed structure. The seal is made of silicone rubber or fluorine rubber to meet the requirements of sealing and anti-explosion. It is suitable for poisonous, inflammable and explosive applications.
2. Manual top discharge.
3. It complies with the requirements in the GMP standard.
4. Simple structure, convenient operation
5. The grains are not easy to break.
6. It is equipped with the nitrogen protection system to ensure air isolation between the inside cavity and the outside of the centrifuge.
7. Good versatility and wide application range
8. Closed structure. The seal is made of silicone rubber or fluorine rubber to meet the requirements of sealing and anti-explosion. It is suitable for poisonous, inflammable and explosive applications.
Application Scope of PS1250 Perforated Top Discharge Centrifuge:
1. It is especially applicable to the filtering of toxic and flammable materials. It has found wide applications in such trades as chemical, pharmacy, food, light industry, etc.
2. For example: Gypsum, thiamine, mirabilite, ferric sulfate, copper sulfate, nickel sulfate, potassium chloride, acetic acid, borax, soda, rubber additives, dye, plastic raw material, soap, grease, all kinds of resins, food salt, sodium glutamate, food additives, starch sugar-making, vitamins, antibiotics, herbicide, insecticide, the dehydration of such mineral fines as copper, zinc, aluminum, etc.
2. For example: Gypsum, thiamine, mirabilite, ferric sulfate, copper sulfate, nickel sulfate, potassium chloride, acetic acid, borax, soda, rubber additives, dye, plastic raw material, soap, grease, all kinds of resins, food salt, sodium glutamate, food additives, starch sugar-making, vitamins, antibiotics, herbicide, insecticide, the dehydration of such mineral fines as copper, zinc, aluminum, etc.
Company Profile
Founded in 2001, Jieda Centrifuge specializes in technical research and development, project design, equipment manufacturing,
product sale and application services in the filtering and separating fields. Our company is a National High-tech Enterprise, a
Private Technology-oriented Enterprise in Jiangsu Province, a member of Separating Machinery Division of China General Machinery
Industry Association, a member of National Filtering Professional Technical Association, and a member of China Association for
Pharmaceutical Equipment.
With a wide variety of products, we focus on providing whole-course services and offering overall filtering and separating
solutions for such industries as medicine, chemical industry, food, environmental protection and metallurgy. With complete
manufacturing equipment and advanced management concepts, our company has been certified to the ISO9001 international quality
system and GMP. Our products have been underwritten by PICC P&C. While focusing on technical innovation, our company has
cooperated with Jiangsu University of Science and Technology to establish the postgraduate work station and build the centrifuge
separating technology research center, continuously climbing high peaks in the centrifugal separation field.
Constant pursuit of perfection will surely create distinguished products and accomplish prominent quality. With higher passion,
more extraordinary belief, as well as excellent products and services, Jieda personnel will realize future prosperity and dreams.
product sale and application services in the filtering and separating fields. Our company is a National High-tech Enterprise, a
Private Technology-oriented Enterprise in Jiangsu Province, a member of Separating Machinery Division of China General Machinery
Industry Association, a member of National Filtering Professional Technical Association, and a member of China Association for
Pharmaceutical Equipment.
With a wide variety of products, we focus on providing whole-course services and offering overall filtering and separating
solutions for such industries as medicine, chemical industry, food, environmental protection and metallurgy. With complete
manufacturing equipment and advanced management concepts, our company has been certified to the ISO9001 international quality
system and GMP. Our products have been underwritten by PICC P&C. While focusing on technical innovation, our company has
cooperated with Jiangsu University of Science and Technology to establish the postgraduate work station and build the centrifuge
separating technology research center, continuously climbing high peaks in the centrifugal separation field.
Constant pursuit of perfection will surely create distinguished products and accomplish prominent quality. With higher passion,
more extraordinary belief, as well as excellent products and services, Jieda personnel will realize future prosperity and dreams.
Our Workshop
Warehouse
Certifications
FAQ
1. Do you have OEM service? Do you supply the parts? Yes, we do, as long as you provide us your drawing and detailed requirements.
2. How can we easily find out the most fit centrifuges? We have experienced engineer team to help you make the model selection, as long as you provide us the detailed processing material characteristics.
2. How can we easily find out the most fit centrifuges? We have experienced engineer team to help you make the model selection, as long as you provide us the detailed processing material characteristics.
3. Will you dispatch technicians for installation andcommissioning? Yes, we can, we do lots of service, please refer to our after sales part.
4. What is your advantage compared with your competitors? Quality and experience. We are the top centrifuge supplier in China, our designs and structures are similar to world leader Alfa Laval, Westfaliar, Flottweg etc.
5. How do you protect the quality? My factory is a state owned enterprise with more than 20 years experience, strict operation policy is performed, advanced processing machines guarantee the precision of all components, workers with operation license, parts get multiprocessing, transmission&electrical parts are of international famous
brand. Series of test and inspection are done in the whole producing stage.
brand. Series of test and inspection are done in the whole producing stage.
