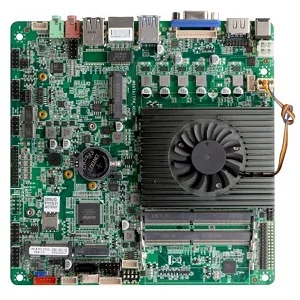

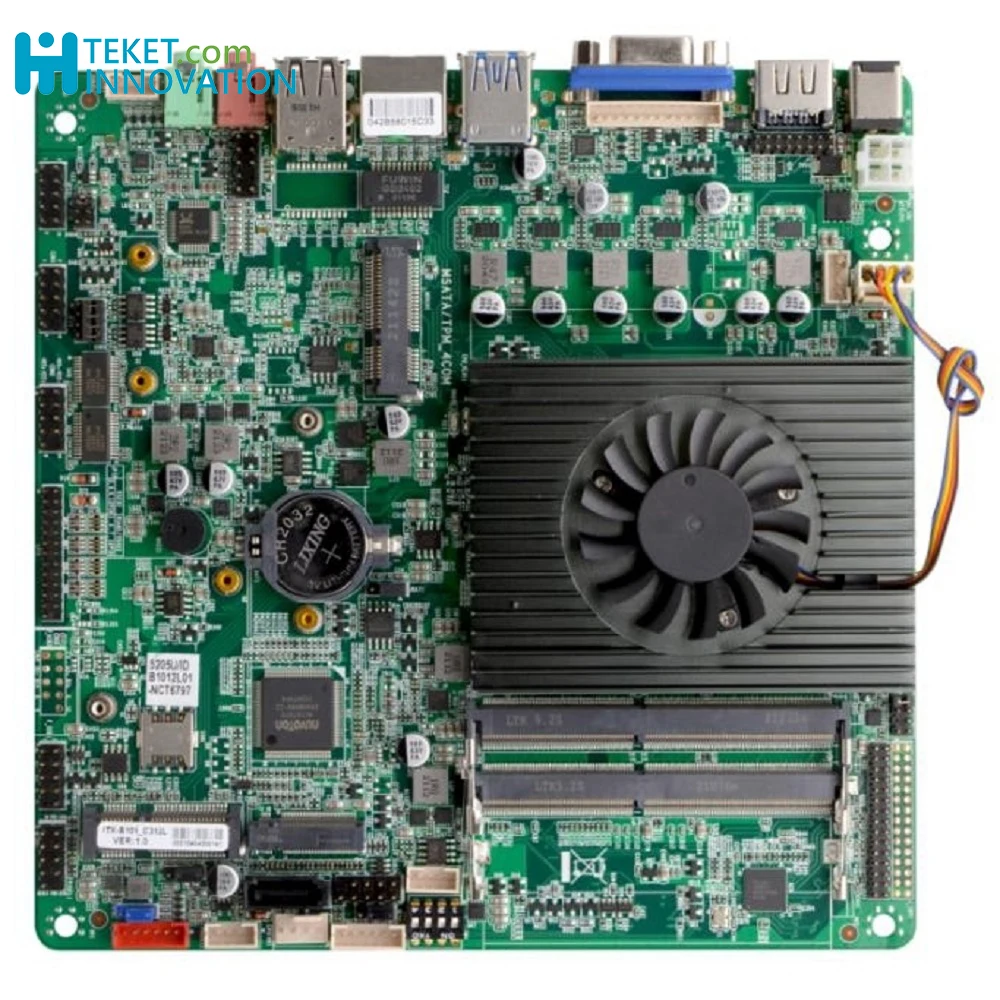

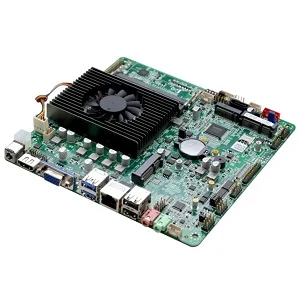

Intel Core Celeron 5205U J6413 i5 8265U i5 10210U Embedded Industrial Mini ITX Motherboard Dual Intel I225 2.5G12VDC

Intel Celeron Processor J4125 4M Cache, up to 2.70 GHz
Product Collection Intel Celeron Processor J Series
Code Name Products formerly Gemini Lake Refresh
Vertical Segment Mobile
Processor Number J4125
Status Launched
Launch Date Q4'19
Lithography 14 nm
Use Conditions PC/Client/Tablet
CPU Specifications
Total Cores 4
Total Threads 4
Burst Frequency 2.70 GHz
Processor Base Frequency 2.00 GHz
Cache 4 MB
TDP 10 W
Embedded Options Available No
Max Memory Size (dependent on memory type) 8 GB
Memory Types DDR4/LPDDR4 upto 2400 MT/s
Processor Graphics Intel UHD Graphics 600

8th Generation Intel® Core™ i5 Processors i5-8265U
Launched Q3'18
Lithography 14 nm
Total Cores 4
Total Threads 8
Frequency 1.6Ghz up to 3.9Ghz
Cache 6MB
TDP 15W
DDR4-2400, LPDDR3-2133

Intel® Celeron® Processor 5000 Series
Launched Q4'19
Lithography 14 nm
Total Cores 2
Total Threads 2
Frequency 1.9Ghz
Cache 2MB
TDP 15 W
DDR4-2400, LPDDR3-2133

Intel® Celeron® Processor J Series
Launched Q1'21
Lithography 10 nm
Total Cores 4
Total Threads 4
Frequency 1.8Ghz up to 3.0Ghz
Cache 1.5MB
TDP 10 W
4x32 LPDDR4/x 3733MT/s Max (8GB, 16GB @3200MT/s) / 2x64 DDR4 3200MT/s Max 32GB



Product Model B101-5205U B101-J6413 B101-8265U
Processor Integrated 10th generation Intel® Celeron 5205U 1.9GHz dual-core two-thread processor, TDP 15W
Compatible with Intel® Comet Lake-U Celeron/Pentium/I3/I5/I7 low power processors
Chipset SOC
Memory 2*DDR4 SODIMM memory slot, support 2666MHz memory, maximum support 64GB
Display Integrated Intel® UHD Graphics, support DirectX 12 OpenGL 4.5, support 4K
1*VGA interface, the highest resolution supported is: 1920X1200@60Hz
1*HDMI1.4 interface, the highest resolution supported is: 4096x2304@24Hz
1*Support dual-channel 24bit LVDS interface, choose one from EDP, default LVDS
Network 1/2* Intel I225 Gigabit LAN, support Wake-on-LAN, PXE function
Storage 1* SATA3.0 hard disk interface, transmission speed up to 6Gbps
1* MSATA slot, SSD solid state drive supporting Intel protocol, transmission speed up to 6Gbps
1* M.2 slot, support M.2 2260/2280 NVME PCIE x4 standard SSD
Note: Choose either MSATA or TPM-4COM, you can use TPM-4COM to expand 4 serial ports, when using TPM-4COM small board, you can use M.2 SSD

Audio Integrated ALC892 7.1+2 channel high-fidelity audio controller, support MIC, Line_out, power amplifier
Support power amplifier 2Ω5W speaker
Expansion slot 1* Mini-PCIE slot, support WIFI/4G module

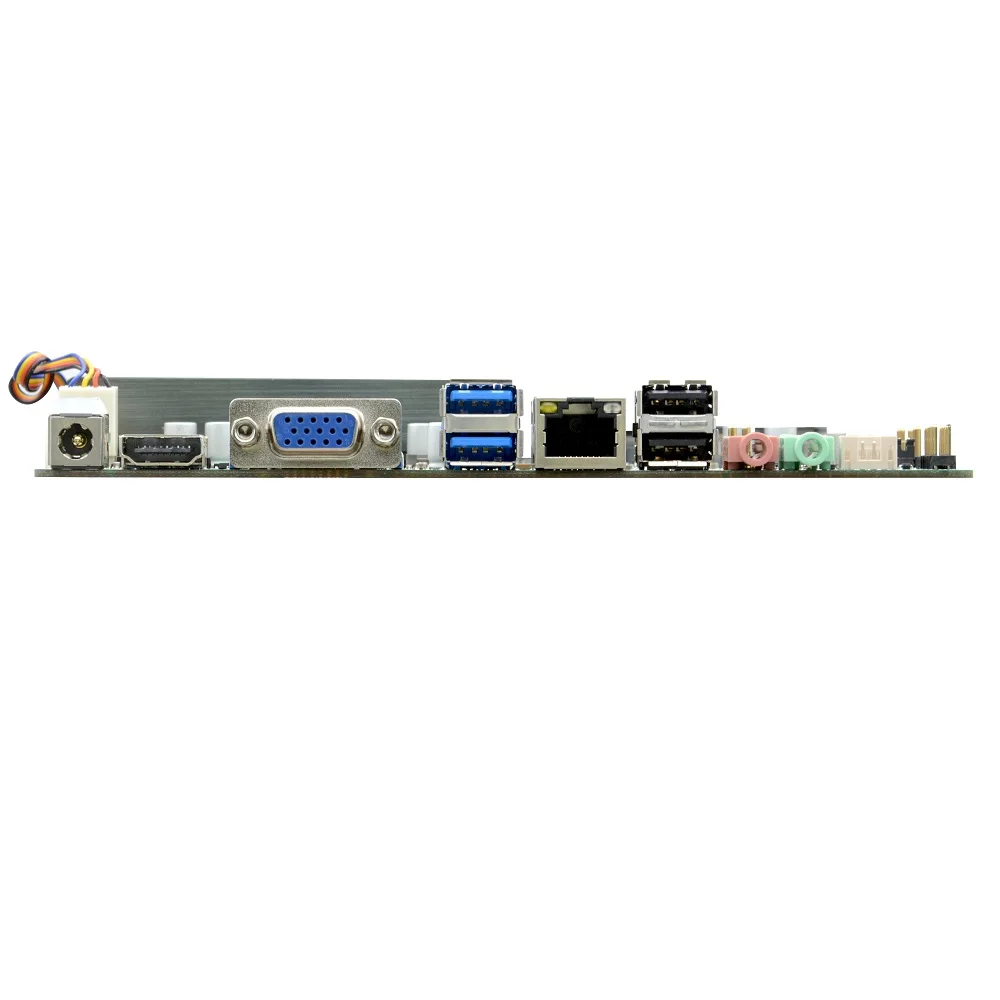

Backplane I/O interface 2*USB3.0 interface, 2*USB2.0 interface or the second LAN port
1* HDMI port
1* DB15 VGA port
1* RJ45 Gigabit network interface
1*Line-out(green), 1*MIC(red)
1* DC12V power interface, support 12V power input
Built-in I/O interface 1* JVGA1 interface 1*12pin (same signal as DB15)
1* JHDMI interface 2*10pin, same signal as HDMI interface
1* LVDS interface 2*15pin, support dual channel 24bit
1* LVDS backlight power supply interface 1*6pin
1* Screen brightness adjustment interface 1*4pin
2* RS232 serial interface, COM1 supports the 9th pin live function, COM2 supports RS485/422 function
1* PS/2 keyboard and mouse interface (red) 1*6Pin
4* USB2.0 interface 2*5pin
1* Front audio interface 2*5pin
1* LPT printing interface 2*13pin
1* Front panel switch button and indicator port 2*5Pin
1* HDD power supply interface 1*4pin
1* Amplifier interface 1*4pin
1* 4pin ATX power interface (can be used as 12V input power interface)
1* SIM card holder
Fan Connector 1*4pin CPU Smart Fan Connector, 1* 4pin System Fan Connector
GPIO supports 4 input and output GPIO functions
BIOS 128Mb Flash ROM
Watchdog Support hardware reset function (256 levels, 0~255 seconds)
Power type Powered by DC 12V power supply
Operating System Windows 10,Linux
Working temperature -10℃~60℃
Storage temperature -20℃~70℃
Working humidity 5%-95% relative humidity, non-condensing
Dimensions 170mm x 170mm

Order Information
B101-5205U MINI-ITX CPU 5205U 1.6/2.7Ghz 2C2T 2*SODDR4 1*VGA 1*HDMI 2Ch24bit LVDS 1/2*LAN(Intel I225) 8/6*USB 2*COM(RS485) DC12V
B101-J6413 MINI-ITX CPU J6413 1.8/3.0Ghz 4C4T 2*SODDR4 1*VGA 1*HDMI 2Ch24bit LVDS 1/2*LAN(Intel I225) 8/6*USB 2*COM(RS485) DC12V
B101-8265U MINI-ITX CPU i5-8265U 1.6/3.9Ghz 4C8T 2*SODDR4 1*VGA 1*HDMI 2Ch24bit LVDS 1/2*LAN(Intel I225) 8/6*USB 2*COM(RS485) DC12V
B101-10210U MINI-ITX CPU i5-10210U 1.6/4.2Ghz 4C8T 2*SODDR4 1*VGA 1*HDMI 2Ch24bit LVDS 1/2*LAN(Intel I225) 8/6*USB 2*COM(RS485) DC12V
