SCT8050QT 800A/5A busbar type rectangular split core current transformer window size 81mm*51mm

Product Overview

Description

SCT8050QT 800A/5A busbar type rectangular split core current transformer window size 81mm*51mm



1 split core current transformer

2 Brand : YHDC                  Model : SCT8050QT
3 current input: 800A AC

4 output 5A AC

5 Accuracy: class 3.0 or class 1.0 or class 0.5 ( optional ), the price is for class 1.0

6 window size : 81mm*51mm
7 work frequency:50-60Hz
8 current transformer

9: Purpose:

        over current / undercurrent measurement

        electric leakage current detection

        current measurement

        power monitor

10 fire resistance : UL94-V0

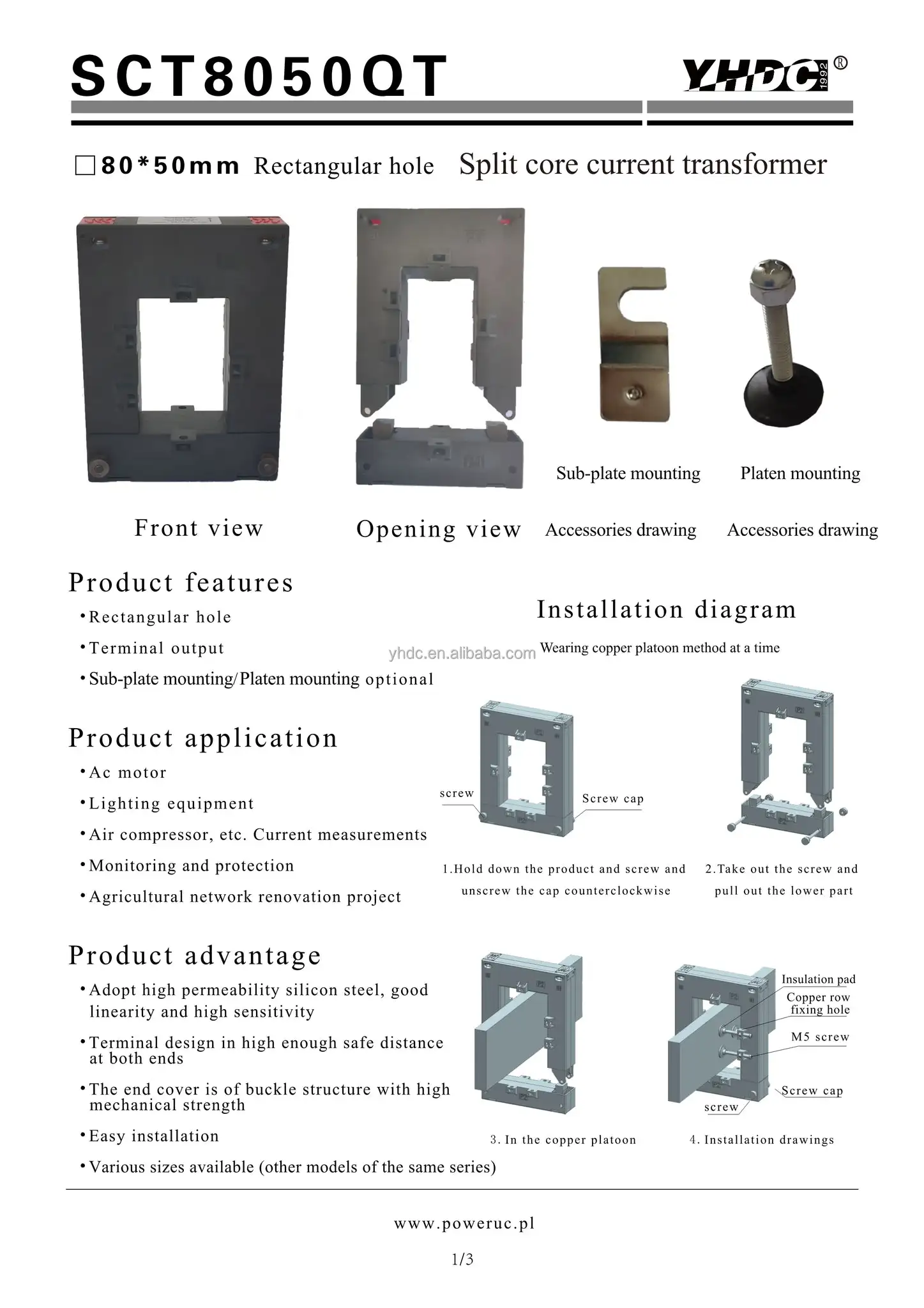

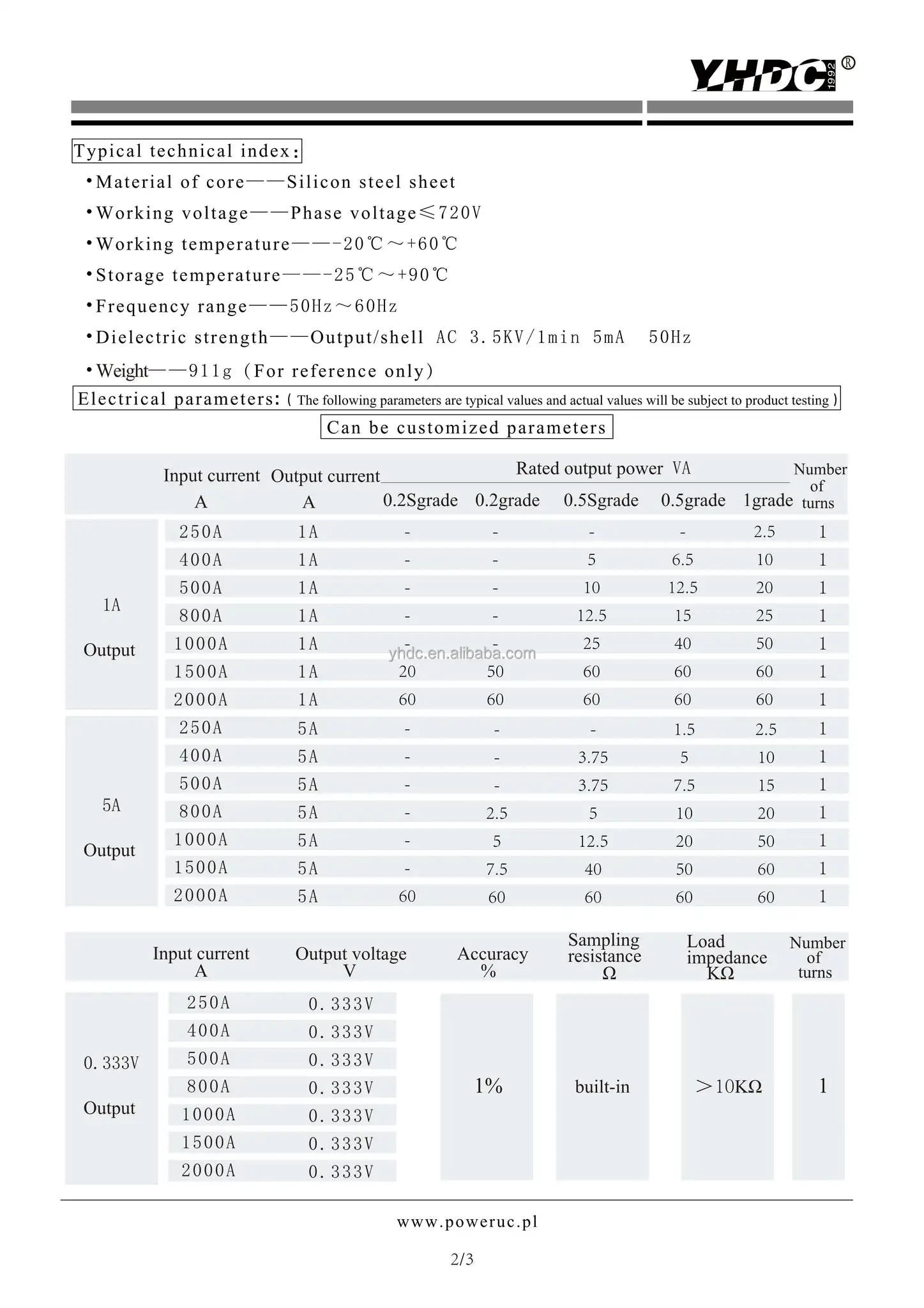

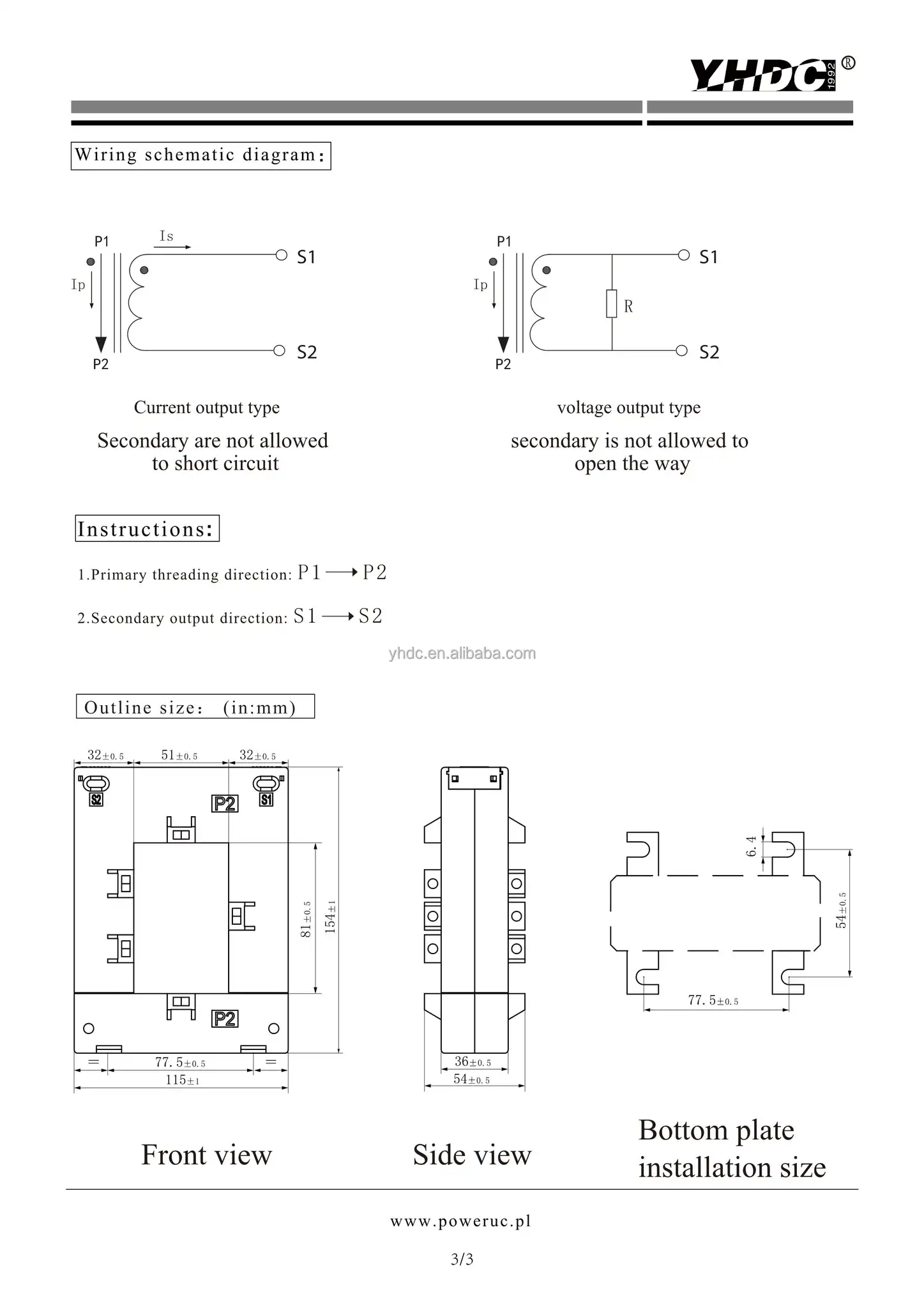

technical data of  SCT8050QT 800A/5A busbar type rectangular split core current transformer window size 81mm*51mm



We are the manufacturer of  SCT80500QT 800A/5A busbar type rectangular split core current transformer window size 81mm*51mm , we have our own factory, so that we can provide you OEM service and my split core current transformer have got ISO / ROHS / CE certificate, there is no need for you to worry about the quality, meanwhile as the  current transformer manufacturer, we can promise you low price and regular supply, welcome to order our SCT8050QT 800A/5A busbar type rectangular split core current transformer window size 81mm*51mm
