2022 W70*H14 Gypsum skirting line Recessed led Aluminium Profile for Architectural linear strip Lighting With PC Diffuser
- Category: Non-ferrous Metal >>>
- Supplier: Shenzhen Bestto Technology Co. Limited
Share on (1600560775815):
Product Overview
Description

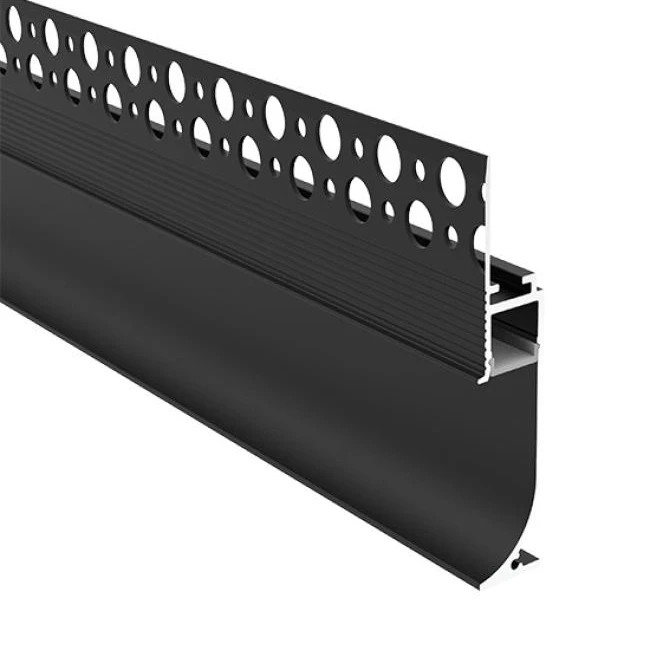

2022 W70*H14 Gypsum skirting line Recessed led Aluminium Profile for Architectural linear strip Lighting With PC Diffuser
Check the LED Strip Light Tracks with along flange,which can be recessed in the dry wall or ceiling,allowing the thickness of the drywall or plasterboard up to 12.5mm.
The LED Light Tracks are made of6063-T5 extruded aluminum material and with anodized surface treatment, anti-oxidation feature and has a longer lifespan than other similar products,there are 3 colors available,silver,white and black,the standard length is 1M and max length is 6M.
The length is cuttable freely and custom length available. there are 2 types of bendable diffusers available,PC diffused cover and black diffused cover both of them are 20 meters per reel. you can cut to any length for your project you can use them for interior linear lighting proijcts.
The inner width of the Aluminum Tracks is 12.3mm and allows the max-width of the LED strips 12mm. you can install the SMD LED Strips or COB LED Strins inside.

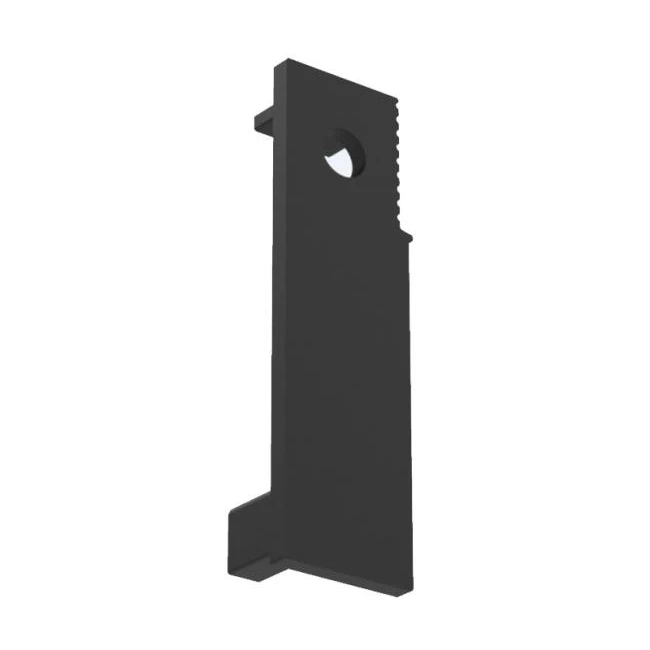

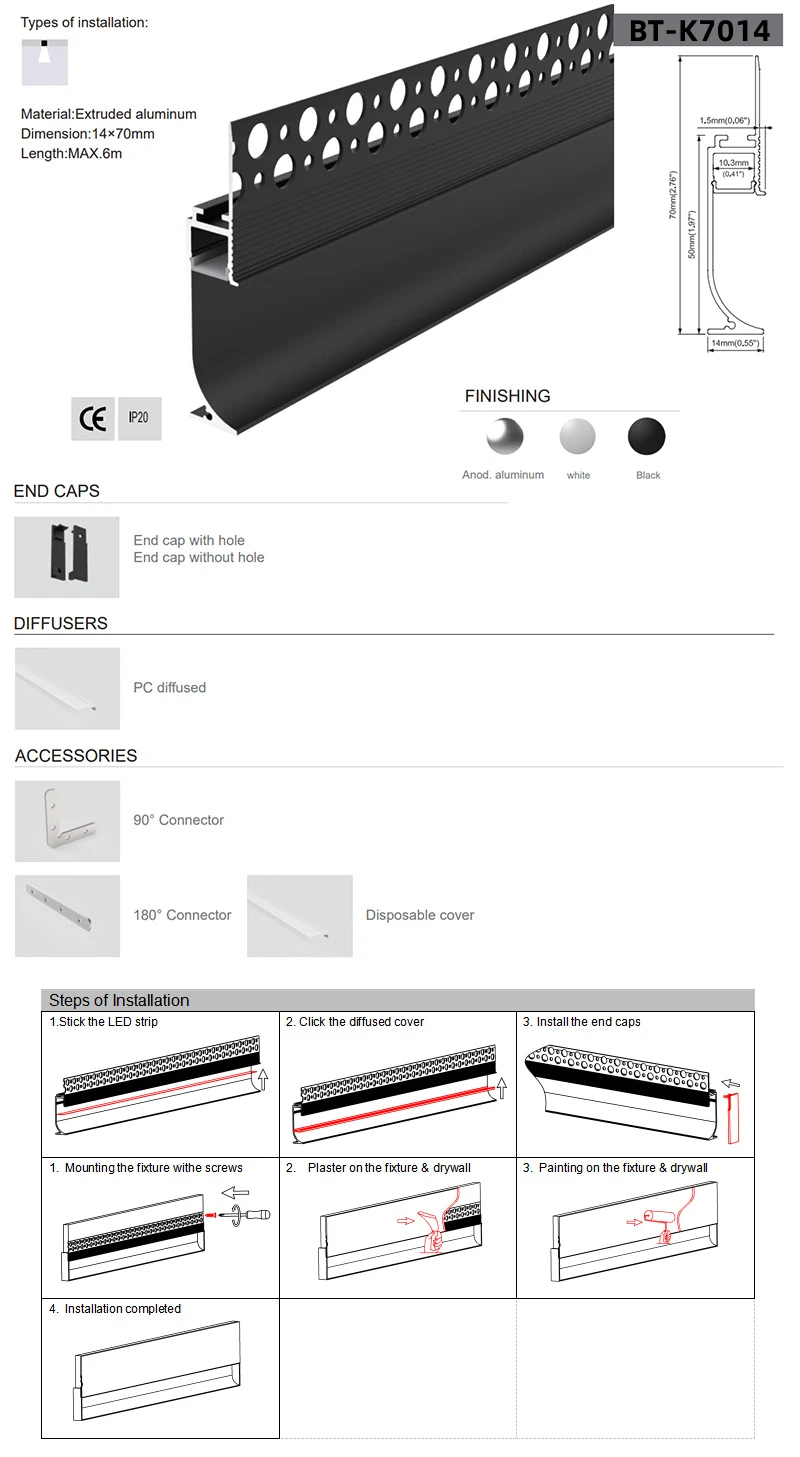

The aluminum base can be worked as a heat sinker for better heat dissipation.the end caps with wire holes included, easy to connect the LED Lights to a Power Supply to light up. both sides of the LED Tracks with honeYcomb holes,easy to recess them in the dry wall or ceiling, then plaster and paint on the Tracks and wall to finish the installation.
Product Description
Specification
Product name | Cabinet led aluminum profile |
Model No. | BK-T7014 |
Size | L1000*60*13 mm |
Available lengths | 100cm,200cm,300cm |
Material main body | Aluminium |
Cover | PC |
End cap | PP |
Mounting clips | Steel |
Cover type | Transparent/diffused/milky white |
Operation temperature | -30°C~60°C(-22°F~140°F) |
Grade of aluminium | Anodized 6063-T5 |
Heat stabilility | Under 100°C |
Flammability | V2 Fire Rating for PC Cover |
Heat transmission properties | Aluminium specific heat is 0.88x10J/(Kgx°C) |
Suggested light source | 10mm widest PCB flexible LED strip |
Heat transmission properties | Aluminium specific heat is 0.88x10J/(Kgx°C) |
Company Profile
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than 100pcs
Q3. Do you have any MOQ limit for led light order?
A: MOQ 50pcs, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than 100pcs
Q3. Do you have any MOQ limit for led light order?
A: MOQ 50pcs, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
