Price:$8.50 - $8.70

Quantity:


Product Overview

Description



Product Detail

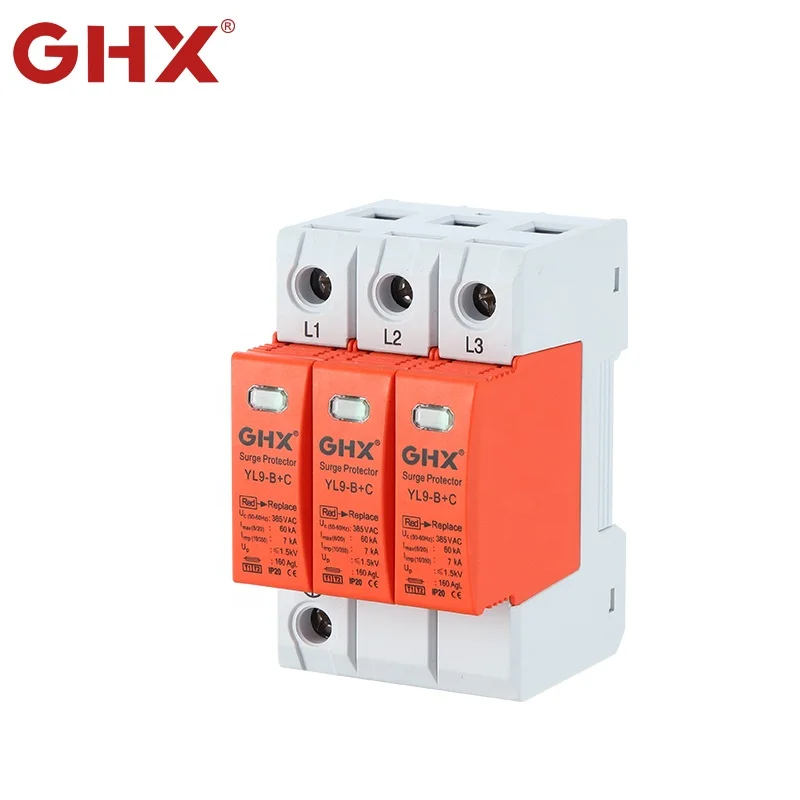

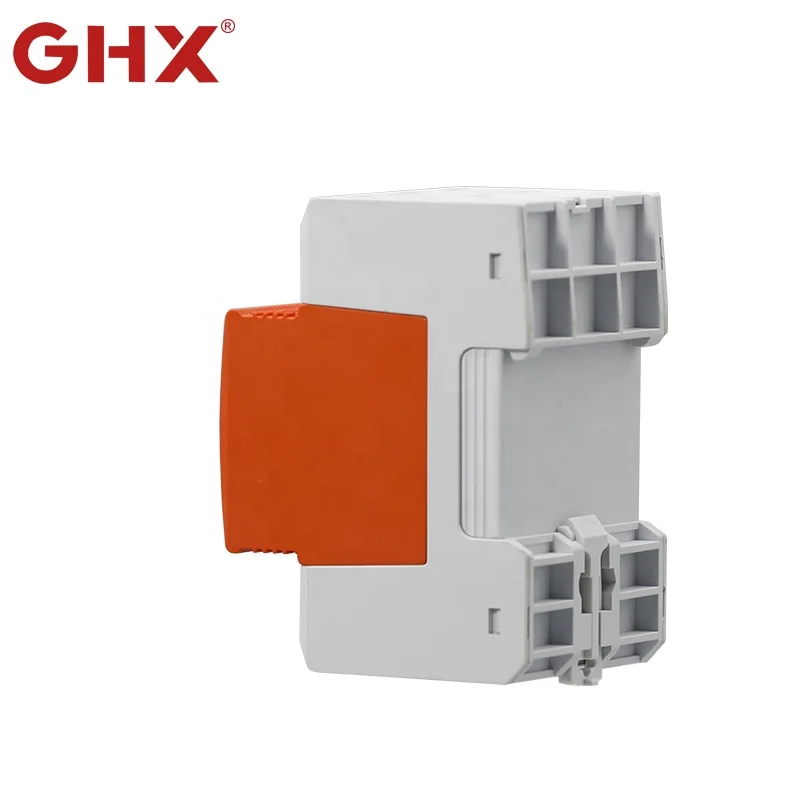

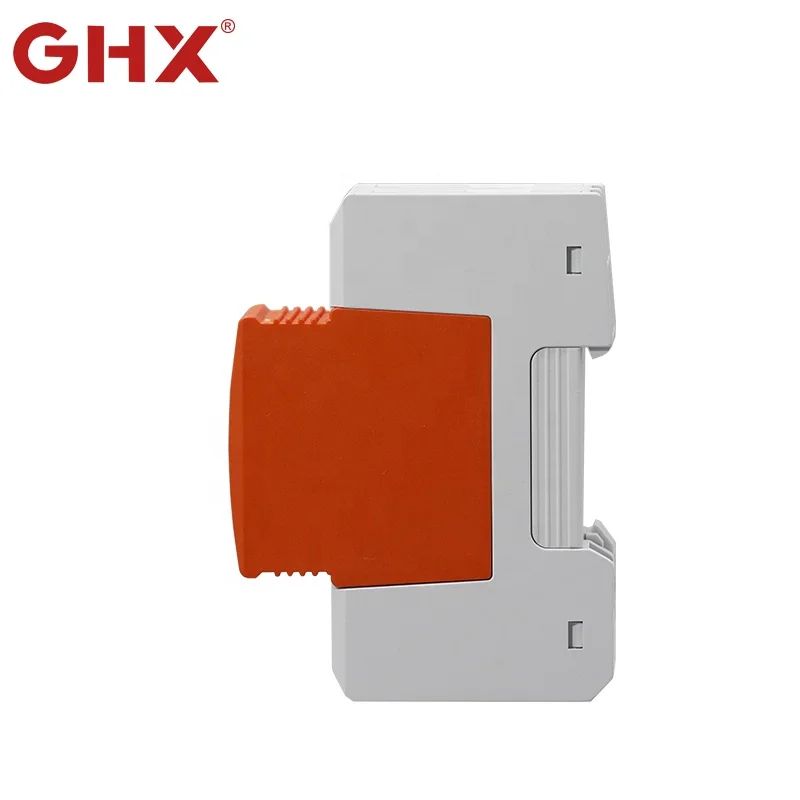

b+c 3p.jpgb+c 2p 3P 4P.jpgb+c 3p .jpg

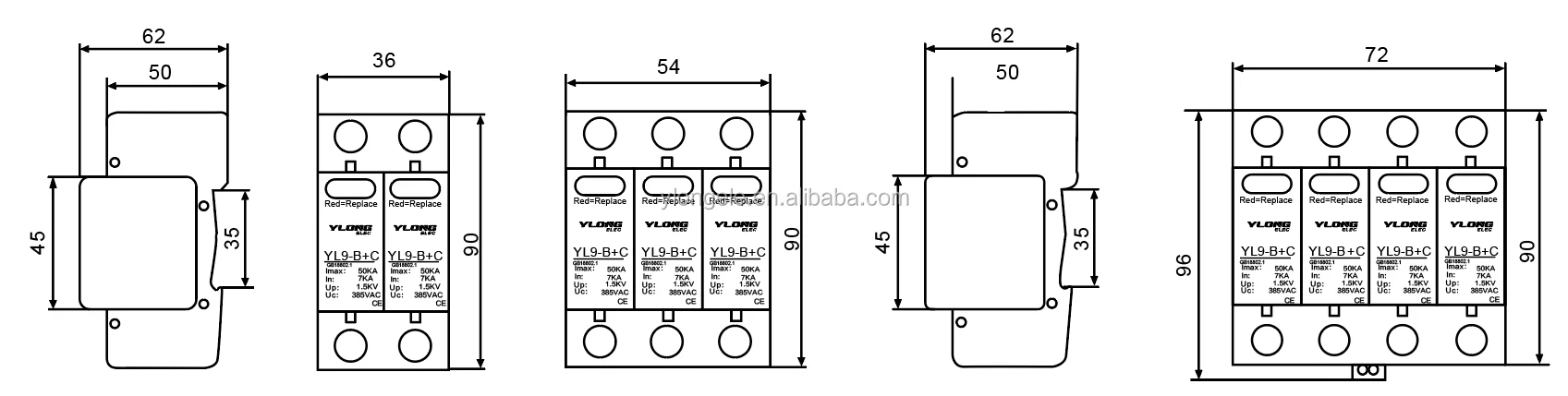

 Proudct Drawing-




Technical Parameters






































































































MODELYL9-B+CYL9-B+C
SPD portOne portOne port
SPD categoryCombination TypeCombination Type
Test categoryClass I+II testClass I+II test
Rated voltage of Un(V)220V AC 50-60HZ220V AC 50-60HZ
Max. continuous operating voltage Uc(V)280V AC 50-60HZ280V AC 50-60HZ
Norminal discharge current In(8/20μs)(KA)3030
Max.discharge current of Imax(8/20μs)(KA)5060
Max.impulse current of limp(10/350Ms)712.5
Voltage protection level up(8/20 m s)1.51.6
Fuse or circuit breaker/Backup protector(KA)40A/80 40A/100
The response time of NS≤25ns≤25ns
Outline size(mm)72*60*6972*60*69
Failure indicationGreen:normal                    Red:invalid
Sectional area of wires6-25MM²
Installation method35mm standard din rail   (EN50022/DIN46277-3)
Environmental temperature-40~85℃
Shell materialAccord with UL94 V-0
Protection gradeIP20
Remote alarmNormally open/normally closed contact terminal(optional)
Remote signal interface connection capabilityThe maximum 1.5mm
