Микроэкскаватор XN08 Rhinoceros, одноцилиндровый экскаватор двигателя с кузовом
- Category: Excavators >>>
- Supplier: Shandong Rhinoceros Engineering Machinery Co. Ltd.
Share on (1600564783979):
Product Overview
Description
Micro Excavator XN08 Rhinoceros single cylinder engine digger with Koop motor
Mini crawler excavator general information:
| Net weight | 880kg | Operation weight | 1000kg |
| Max. digging depth | 1400mm | Max.digging height | 2490mm |
| Engine | Euro III emission standard : Changchai :7.5kw /Koop :7.6kw | Euro V emission standard | Changchai/Koop :7 kw |
· Multi-purpose: losingsoil of vegetable greenhouse,campus greening of municipal departments,digging the hole for tree planting of Fruit-land Nurseries concrete pavement crushing,sand-gravel material mixing, construction work in the narrow place etc...
· It can reduce maintenance and operating costs liberate the workforce. Improve the mechanization, Iow investment,high return.

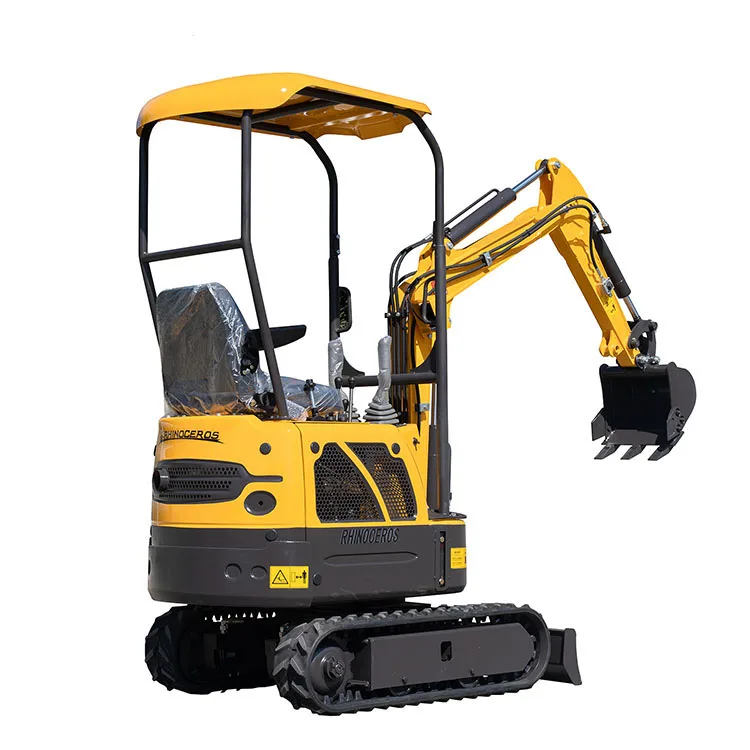

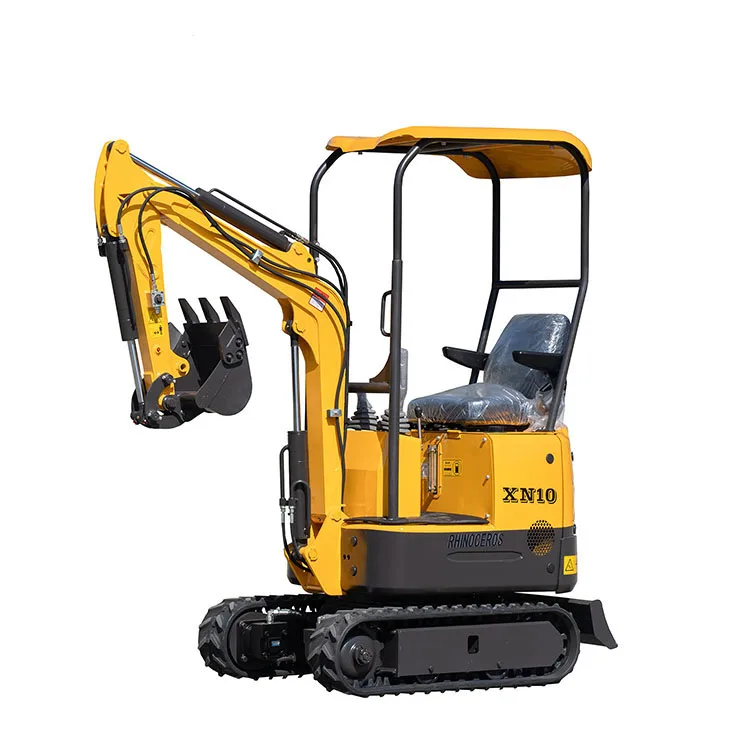

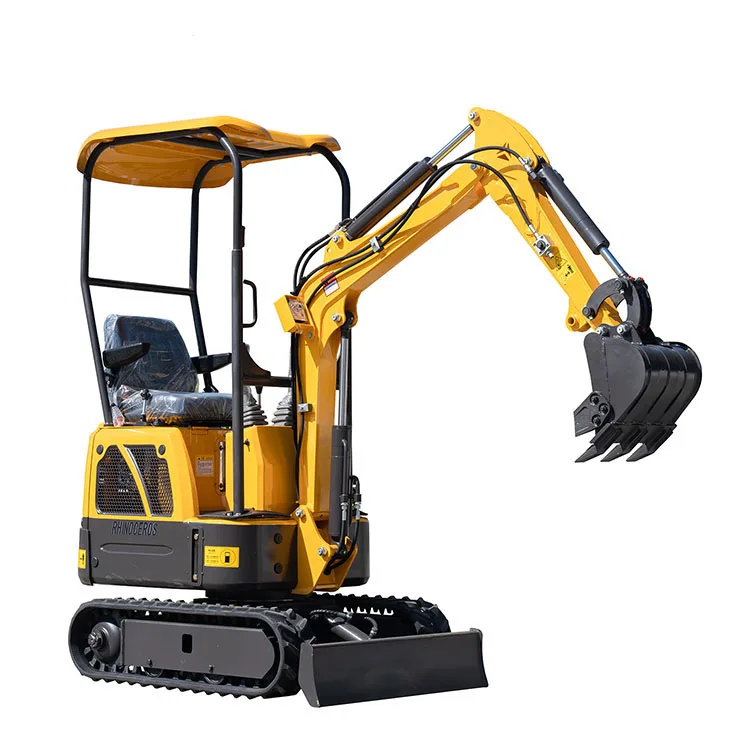

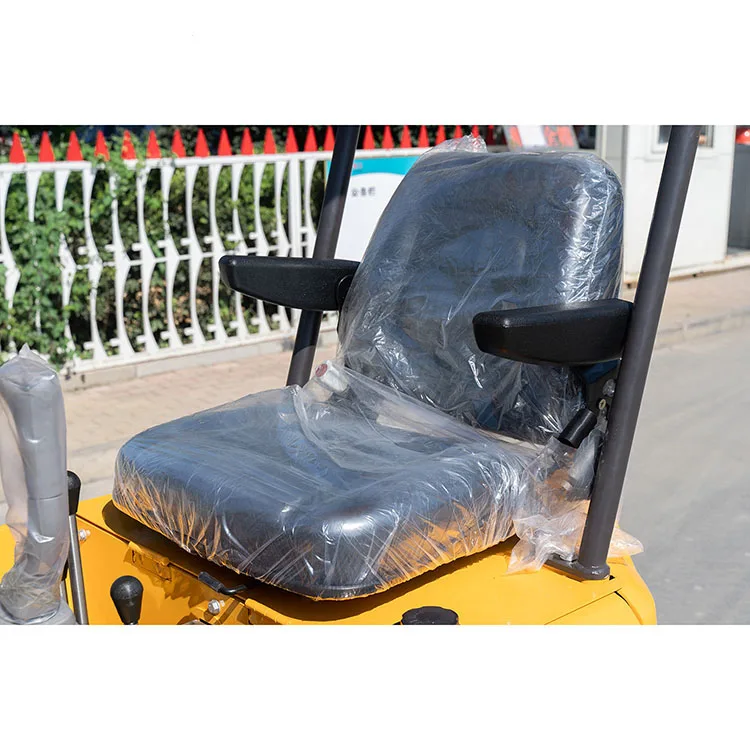

Mini crawler excavator pictures:

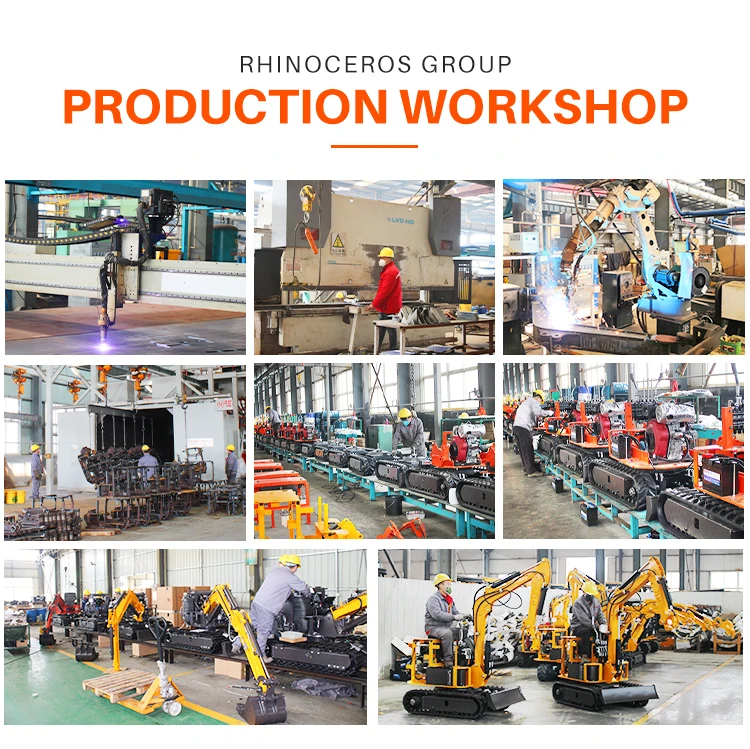

Mini crawler excavator production line pictures:

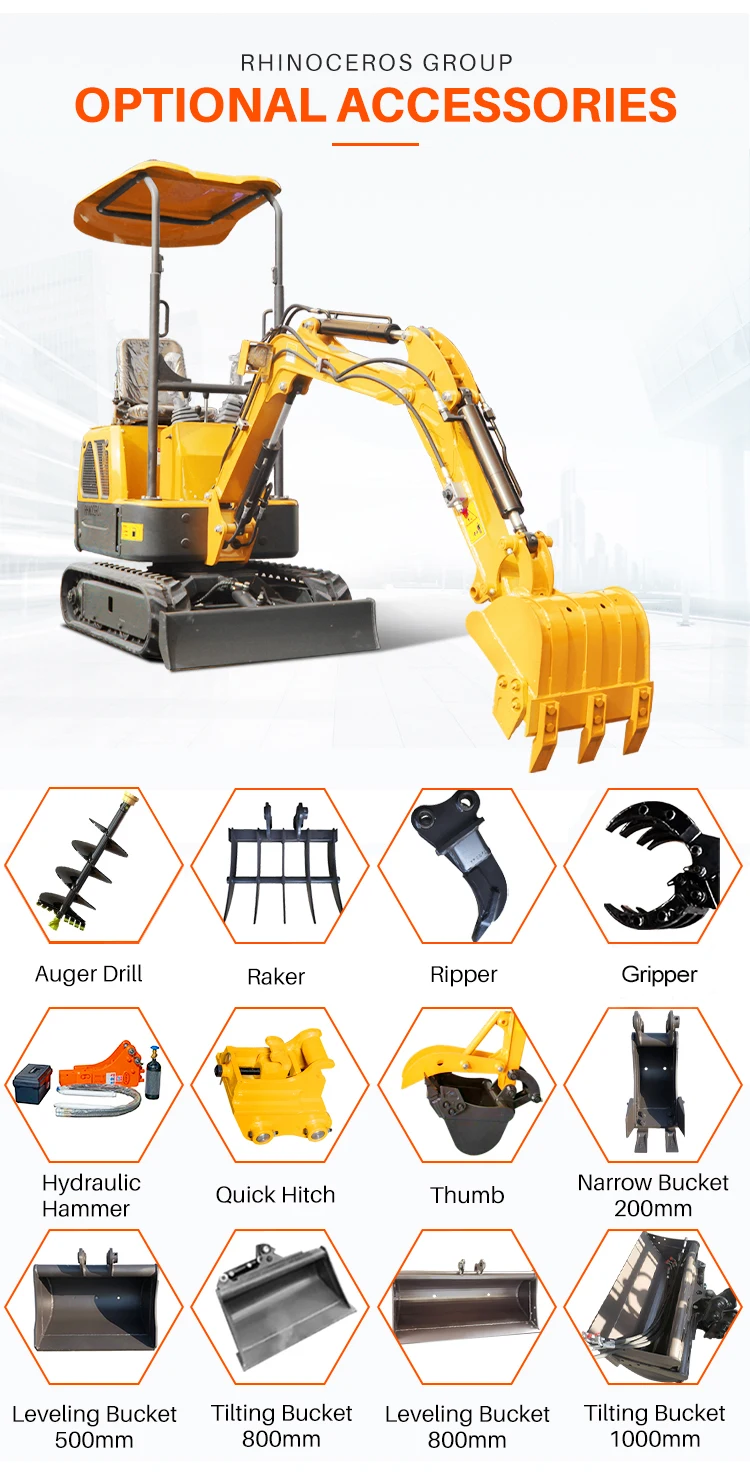

Mini crawler excavator accessoires:
Mini crawler excavator Specification:
| Brand | RHINOCEROS |
| Operating Weight | 800kg |
| Digging bucket capacity | 0.025cbm/120kg |
| Digging bucket width | 350mm, can add narrow bucket is 200mm |
| Engine | CHANGCHAI (KD192FAM) |
| Rated power | 8.6kw/3600r/min |
| Displacement | 6.8ml/r |
| Bore stroke | single cylinder, fan cool |
| Main pump | SAISIDA |
| Valve | BEIFANG |
| Swing motor | SJ-TECH (MP-1-160) |
| Traveling motor | KERSEN (OMS-2450) |
| MAIN DEMENSIONS | |
| Overall dimension( LxWxH) | 2770x896x1490 mm |
| Wheelbase | 910 mm |
| Total length of track on land | 1230mm |
| Platform ground clearance | 380 mm |
| Platform back turning radius | 784 mm |
| Chassis width | 896 mm |
| Track width | 180 mm |
| Chassis ground clearance | 132 mm |
| Track height | 320 mm |
| OPERATING RANGE | |
| Max. Digging depth | 1650 mm |
| Max. Vertical digging depth | 1375 mm |
| Max. Digging height | 2610 mm |
| Max. Dumping height | 1850 mm |
| Max. Digging radius on ground | 2850 mm |
| Min. Rotation radius | 1330 mm |
| Max. Upgrade height of bulldozer blade | 345 mm |
| Max. Digging depth of bulldozer blade | 255 mm |
Packaging & Shipping
Packaging& Shipping:
10-12 units / 40HQ
Related Products
FAQ
What is the machine advantage? Why I choose from you ?
A: Adopting world famous brand engine and parts, ensure long life service, all the structure parts are produced and checked by our engineers,
Each machine is carefully tested before send to customer.
Warranty time for 1 year or 1200 working hours.
Are you able to export less than 1 container of mini excavator ? And what's the wooden box's dimension and total weight ?
A:Yes ,if 1 unit or 2 units mini excavator machine could shipment by LCL,wooden box;if 4 unit or more than 4 units suggest used 20ft container.
The warranty of the machine and how will you carry out the service?
A: Warranty period: 1 years or1200 working hours manufacturers warranty whichever comes first. One line service is provided 24 hours every day, there are technicians ready to serve for you, they are well trained, they can be assigned to your site and serve for you.
Spare parts supply:
A: Spare parts is available all the time.
A spare parts kit for free will be sent with each machine, which can be used for 1 year.
There are also a spare parts list recommended for 2 years, you can choose and order some parts sent with machine in advance or we recommend the list for you.
