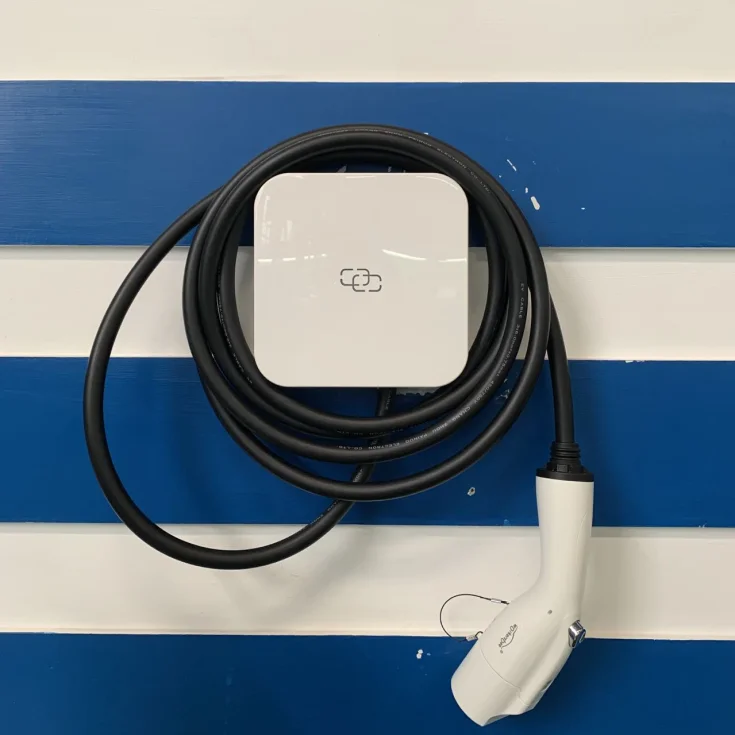

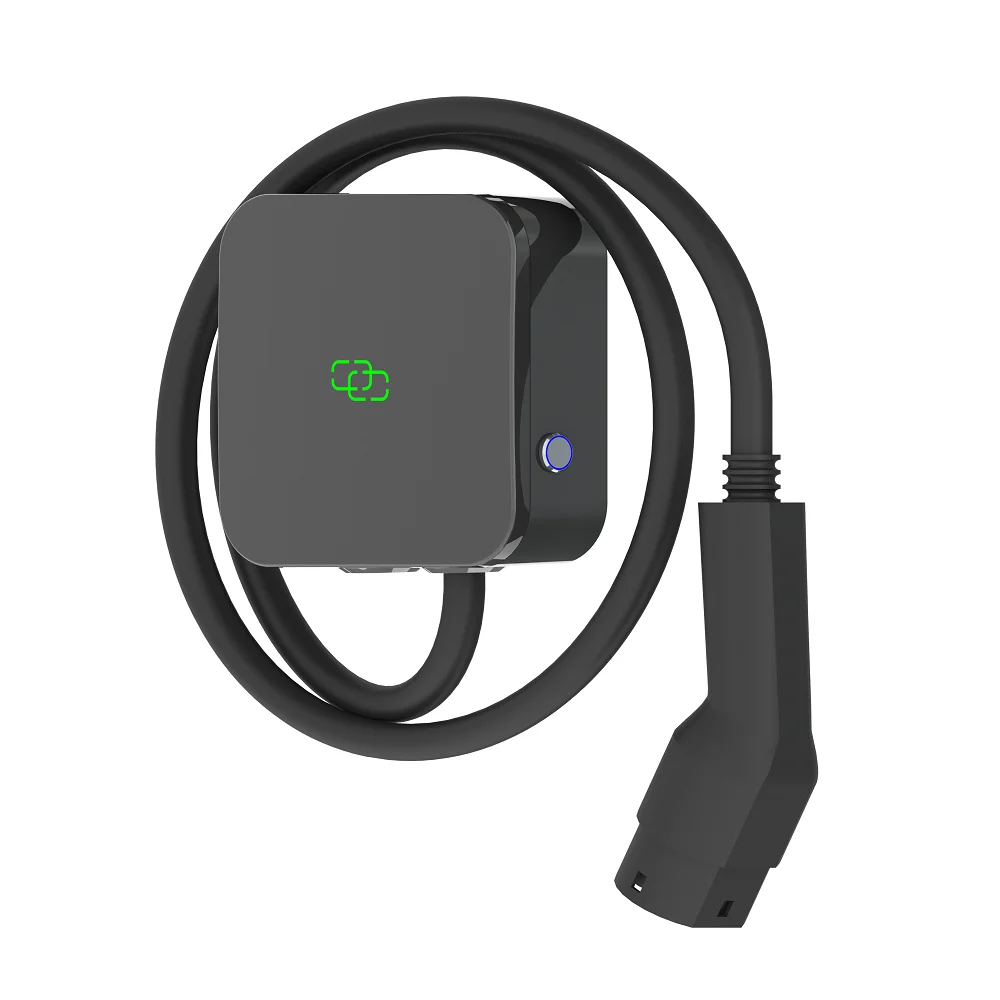

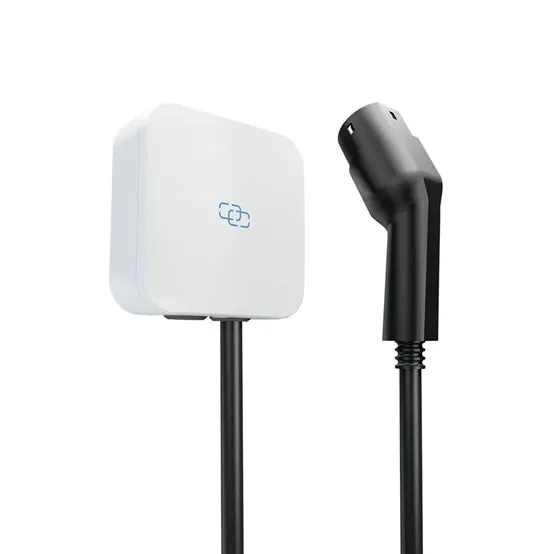

Factory Direct 22kw EV Charging Station 32A EV Wallbox Electric Car Charging Station with APP Support RFID EV Charging Point
- Category: Auto Electronics >>>
- Supplier: Sichuan Weiyu Electric Co. Ltd.
Share on (1600564944431):
Product Overview
Description
Product Description

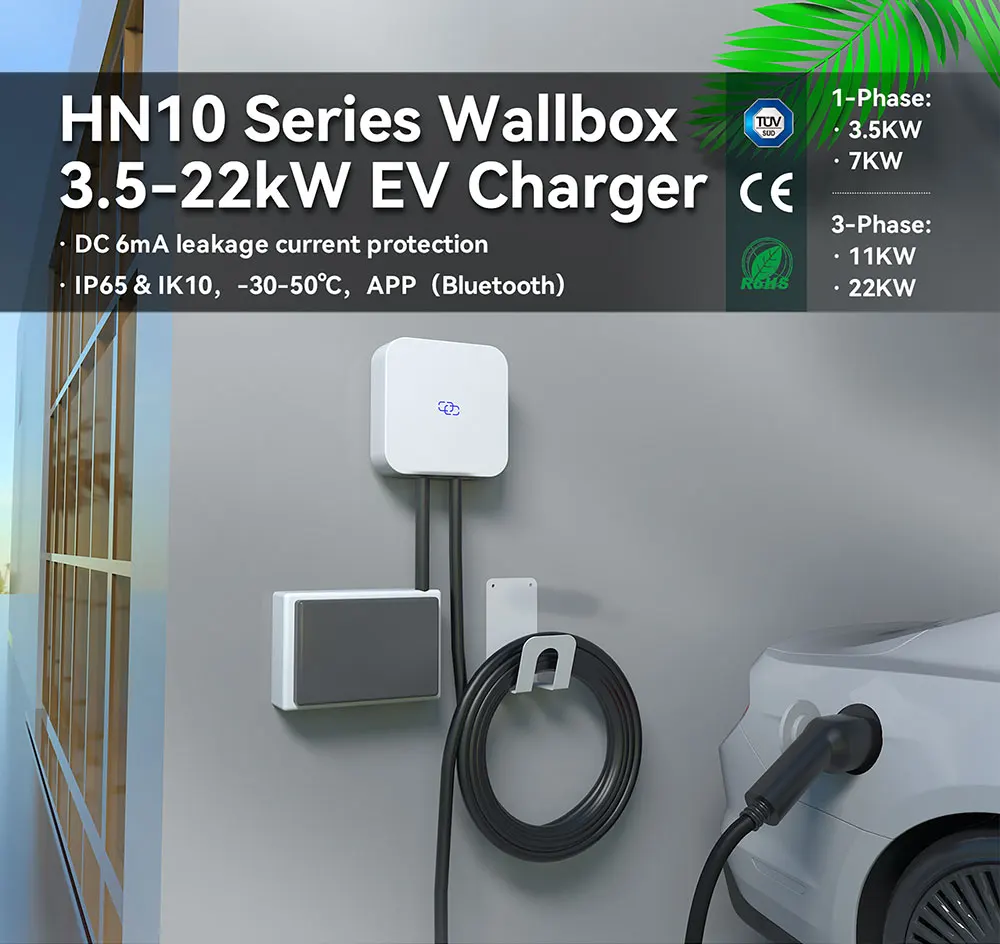

Features of HN10 AC WALLBOX EV CHARGER SERIES
1. Applicable to lEC Type 2 charging, and the maximum charging power up to 11kw.
2. Applying for CE certification.(TUV-mark)
3. No earth electrodes protection, designed for the UK and other regions using TN-C power supply system.
4. Safe and reliable, with multiple fault protection, suitable for household.

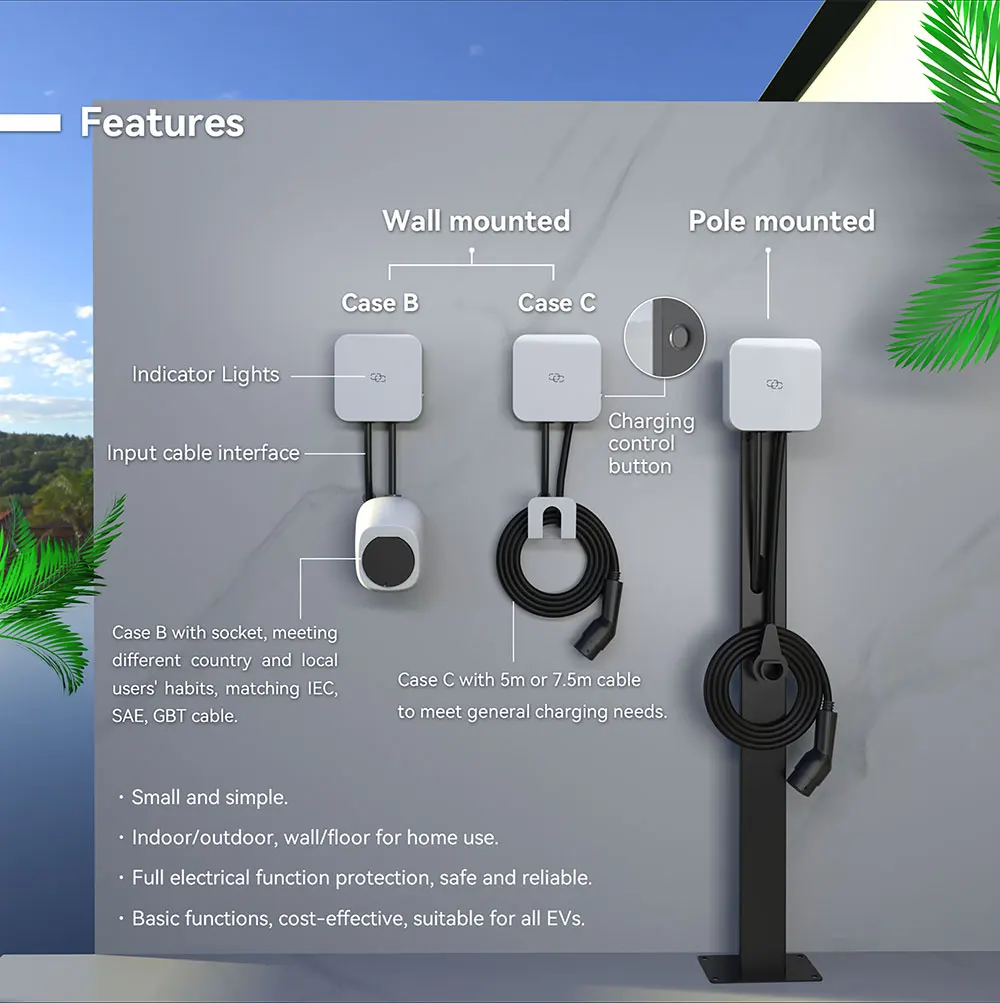

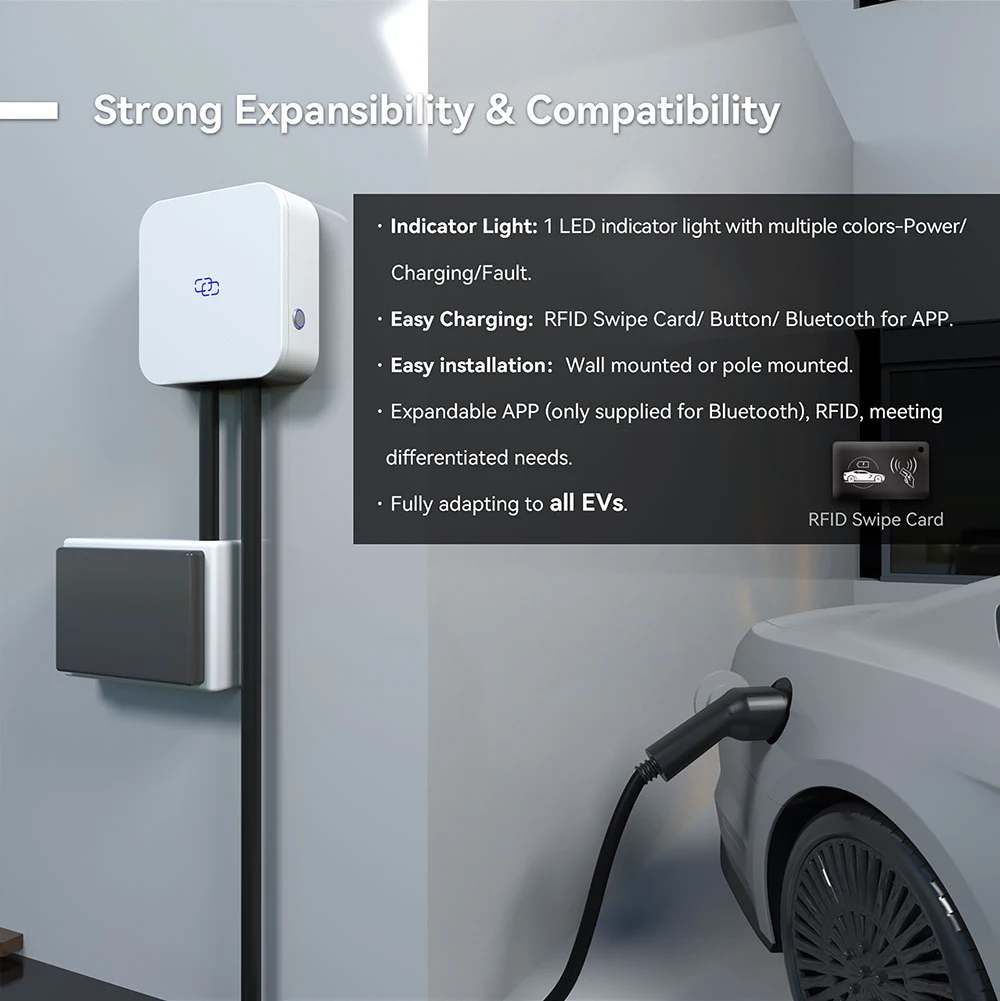

5. Easy installation, wall mounted or pole mounted for optional.
6. IP65&IK10 rated for indoor or outdoor applications.

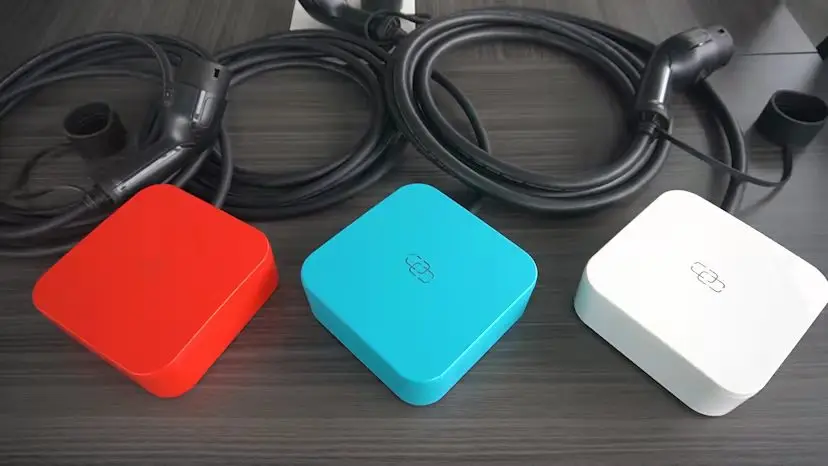

7. LOGO, color, function etc. are customizable.
8. OEM/ODM including size, shape etc. are available.
2. Applying for CE certification.(TUV-mark)
3. No earth electrodes protection, designed for the UK and other regions using TN-C power supply system.
4. Safe and reliable, with multiple fault protection, suitable for household.
5. Easy installation, wall mounted or pole mounted for optional.
6. IP65&IK10 rated for indoor or outdoor applications.
7. LOGO, color, function etc. are customizable.
8. OEM/ODM including size, shape etc. are available.
Product Paramenters
Power Specification | ||||||||
Phase Number | 1-Phase | 3-Phase | ||||||
Model | HN10116 | HN10132 | HN10316 | HN10332 | ||||
AC Power Input Rating | 230VAC,50/60Hz | 400VAC,50/60Hz | ||||||
Power Wiring | 3 Wire - L1,N plus PE | 5 Wire -L1, L2, L3, N plus PE | ||||||
AC Output Rating Power | 3.5kW | 7kW | 11kW | 22kW | ||||
AC Output Rating Current | 16A | 32A | 16A | 32A | ||||
Connector Type | IEC 62196-2,Type 2 Plug + 5m Charging Cable | |||||||
Connector Mechanical Operating Life | ≥ 10000 Times(Plug in & pull out with no loadd) | |||||||
User Interface & Control | ||||||||
Charging Control | Button-controlled,Card-controlled | |||||||
Indicators | 1 LED indicator with multiple colors-Power/Charging/Fault | |||||||
Communication Interface(Optional) | Bluetooth | |||||||
Environmental | ||||||||
Storage Temperature | - 40 to 75 ℃ ambient | |||||||
Operating Temperature | - 30 to 55 ℃ ambient | |||||||
Operating Humidity | up to 95% non-condensing | |||||||
Attitude | ≤ 2000m | |||||||

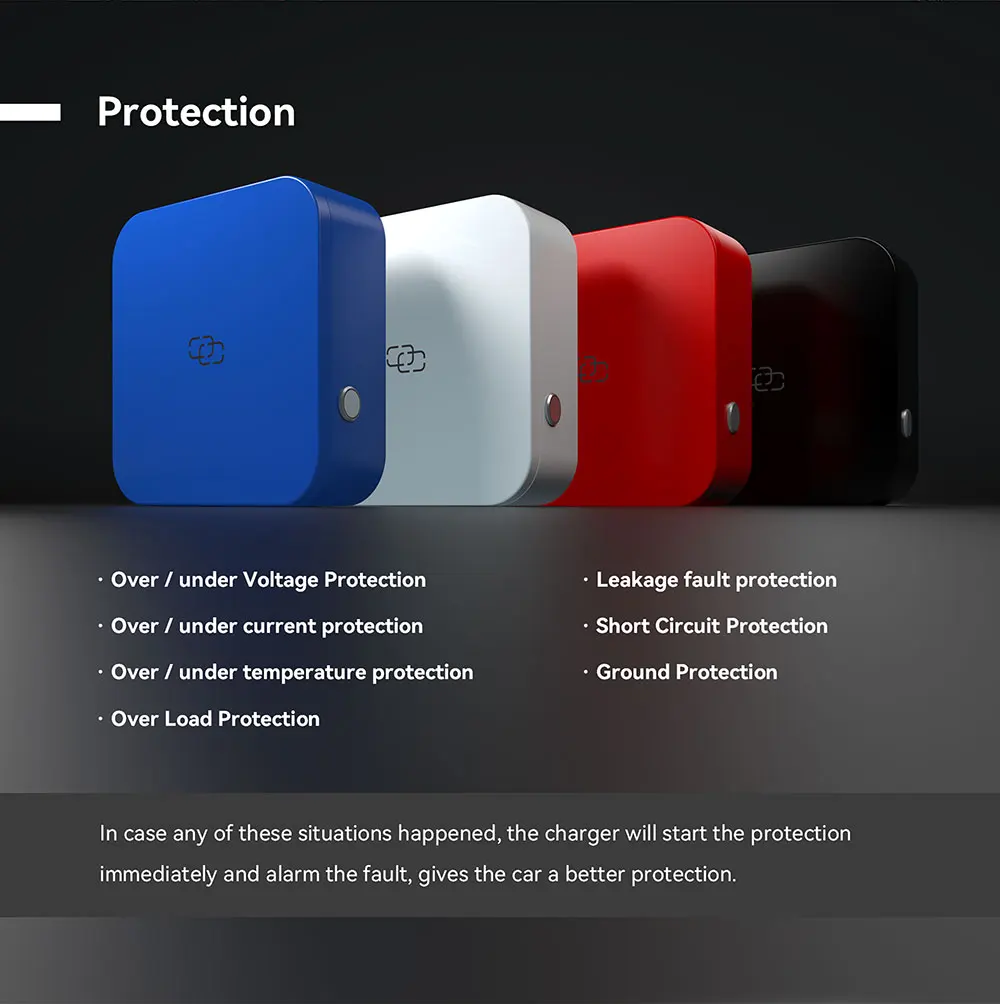

Protection | ||||||||
IP Code | IP 65 | Over Voltage Protection | Yes | |||||
Short Circuit Protection | Yes | Under Voltage Protection | Under Voltage Protection | Yes | ||||
Over Load Protection | Yes | Over-temp Protection | Over-temp Protection | Yes | ||||
Leakage Fault Protection | DC 6mA current fault protection built-in. Need to install a Residual-current-operated circuit breaker of at least type A(30mA trip current) to protect Leakage fault. | |||||||

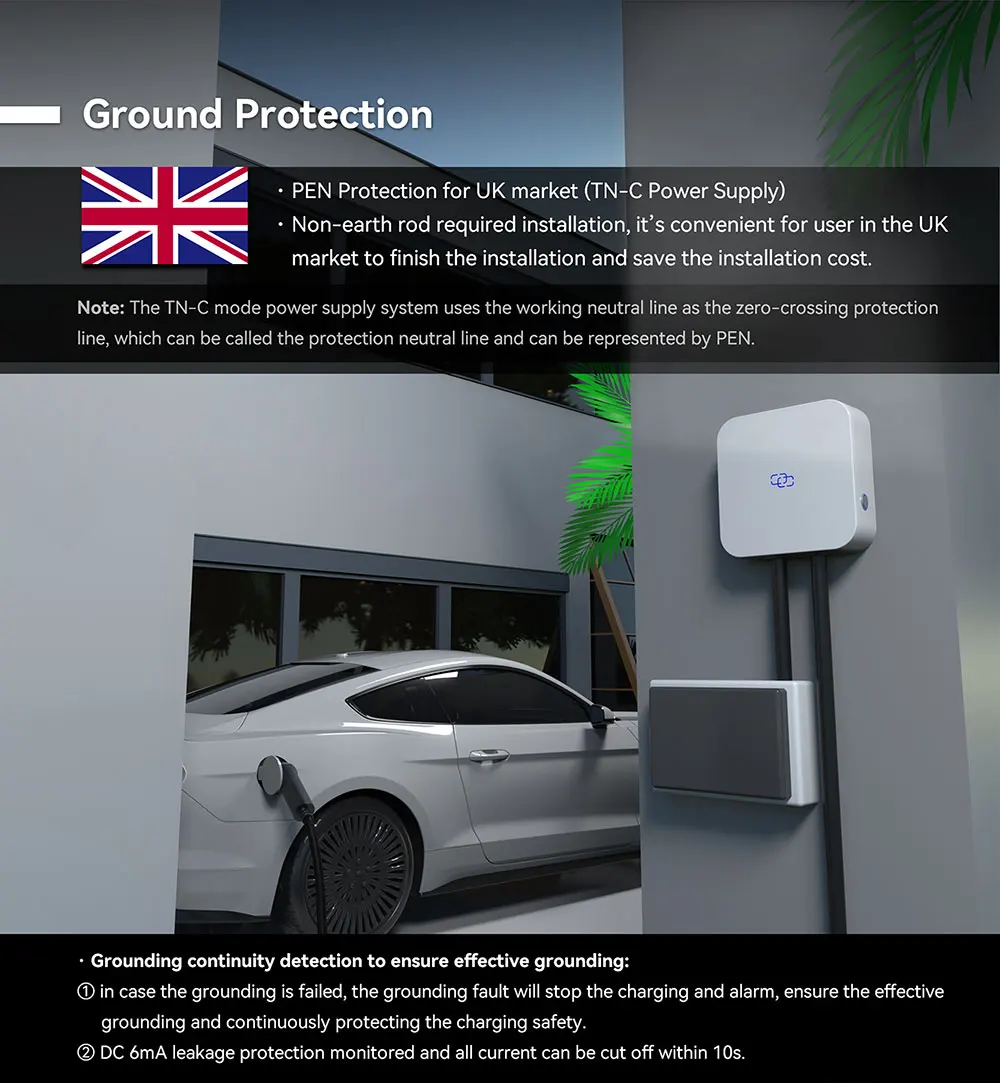

Ground Protection | Yes, designed for TN-C-S power supply system | |||||||
No earth electrodes Protection | Optional, designed for the UK and other regions using TN-C power supply system | |||||||
Wallbox Mechanical | ||||||||

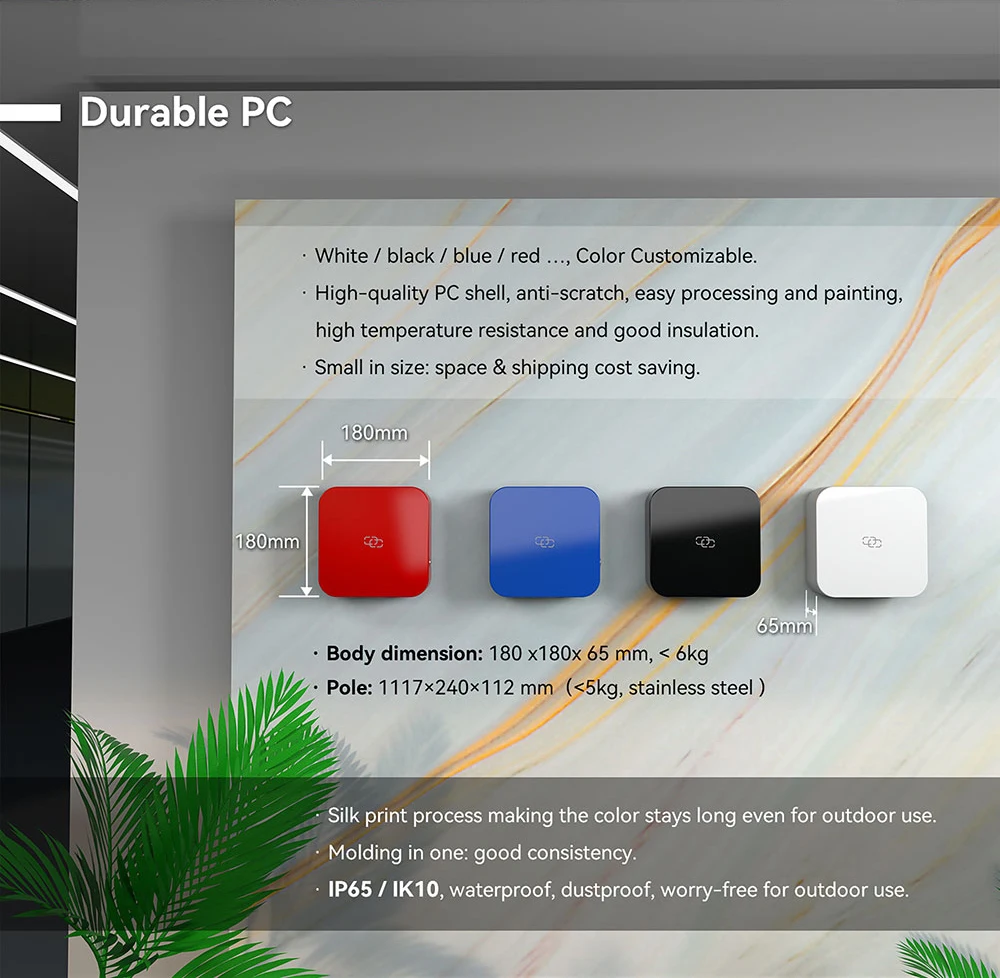

Dimension (H*W*D), mm | 180*180*65 | |||||||
Weight | < 6kg | |||||||
Charging Cable Length (total) | 5m or customized length (≤7.5m) | |||||||
Enclosure Material | An external Case B charging socket without charging cable is optional PC (White) | |||||||
Mounting Pole Mechanical (Optional) | ||||||||
Dimension (H*W*D), mm | 1117*240*112 | |||||||
Weight | < 5kg | |||||||
Enclosure Material | Stainless steel | |||||||
OEM Customize Options | ||||||||
Logo on Front panel | Yes | Nameplate | Nameplate | Yes | ||||
User manual | Yes | Length of charging cable | Yes | |||||
Recommend Products
Our Advantages
WEEYU, an “EVSE” (electric vehicle supply equipment) brand of Sichuan Weiyu Electric Co., Ltd. Weiyu electric was founded in 2016.With the professional R&D and Sales & Service Team, we can not only provide the products mainly including all kinds of EV charging
stations, but also a complete solution. In addition, OEM&ODM or engineering application assistance are available.
WEEYU is the wholly-owned subsidiary of a listed company (Stock Code: 300820)-Sichuan Injet Electric Co., Ltd. With Over 500 workers, 22000 ㎡ non-dust workshop, 169 patent certifications, 24 years’ experience in electric power industry, Injet has received high praise from international renowned enterprises for the superior products and service like ABB, Siemens, Schneider, GE, GT, SGG and etc.

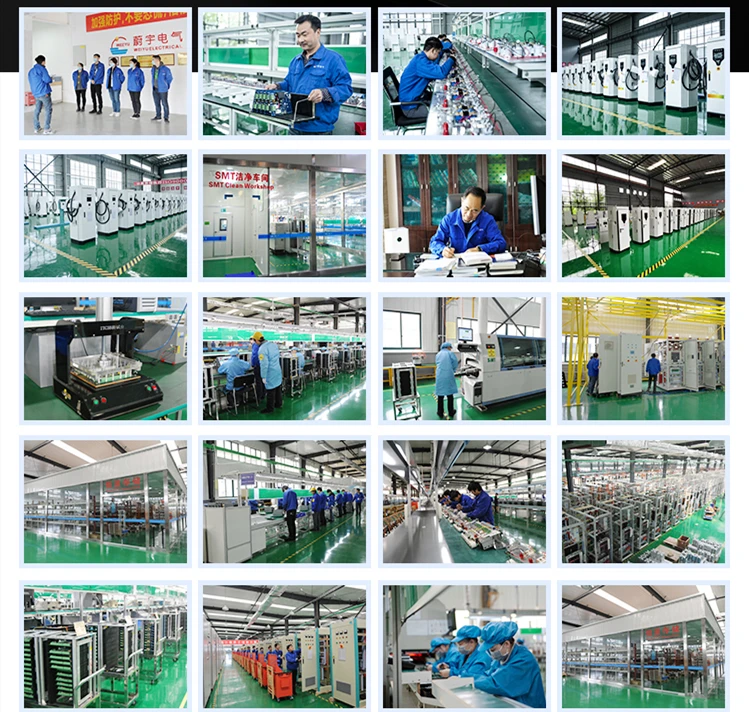

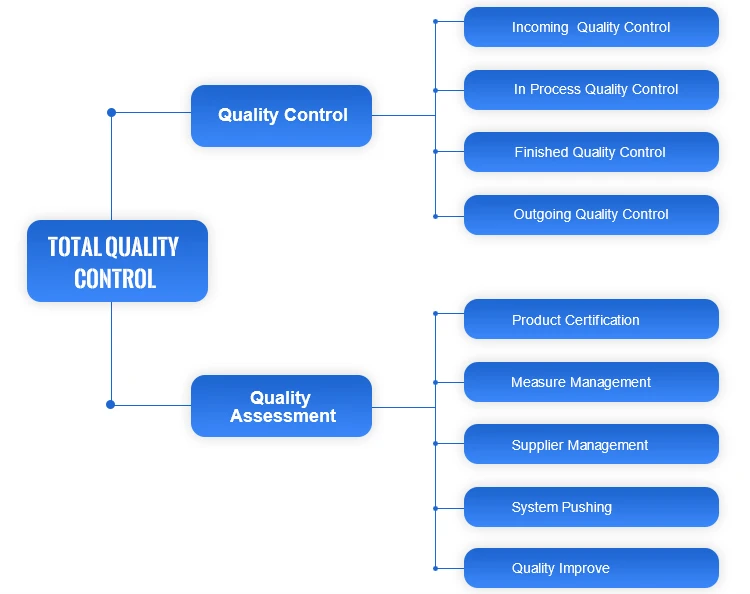

We have our QC system, all the EV chargers would be tested before shippment, and the testing report will be sent together with electric car charging station.
We have experience in exporting to USA, Russia, Germany, Japan, Serbia, Dutch and etc.
We Weeyu and Injet have more than 180+ patents till now. For EV charging station, we can design and manufacture according to customer requirements.

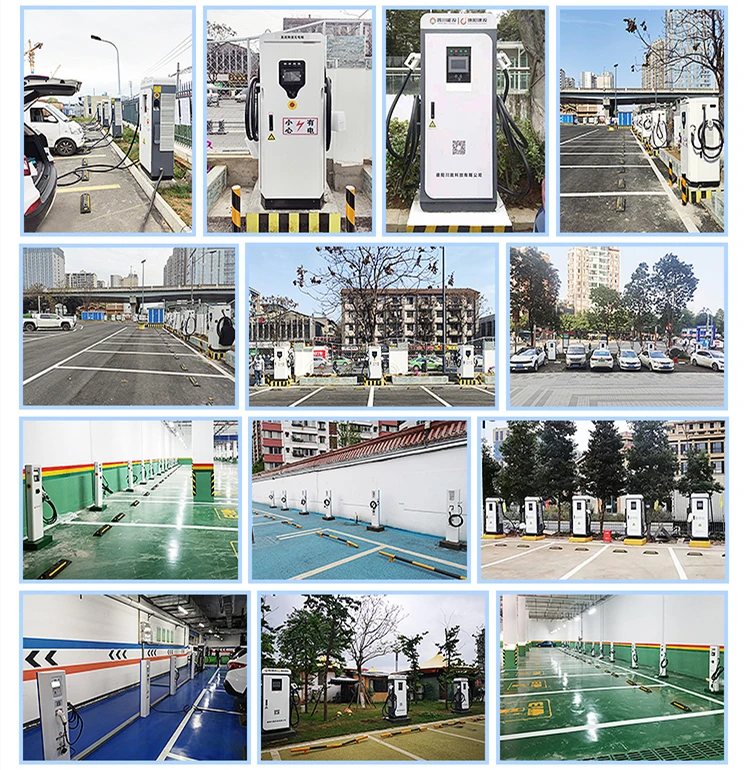

Full production and operation experience in domestic DC and AC Charging Stations. The leading ev charger manufacturer of Southwest China.

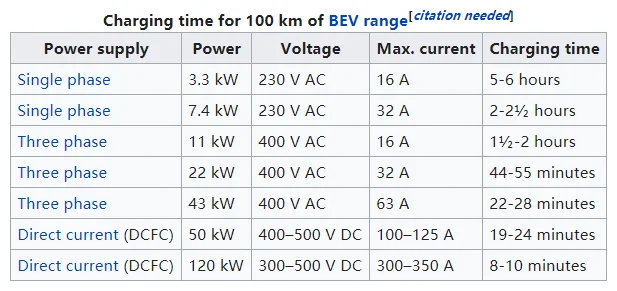

Charging Time Reference
FAQ
WHY US?
1. First, WEEYU’s chargers Compatibility with most global Electric Vehicles charging interface. WEEYU has the CE, ROHS, REACH certificate for European Market. and WEEYU are the first company that got the UL Listed of EV charger in China! We also have KFW Listed for Germany market.
2. WEEYU has a series of EV chargers to meet different customer’s needs. such as for home use or for commercial.
3. WEEYU is the directly manufacturer, our main products are AC Wallbox, AC Integrated EV Charger, DC fast charging stations, EV connectors. There is no the middleman, you can get the best price and services. WEEYU has strong R&D Capability, OEM and ODM are available.

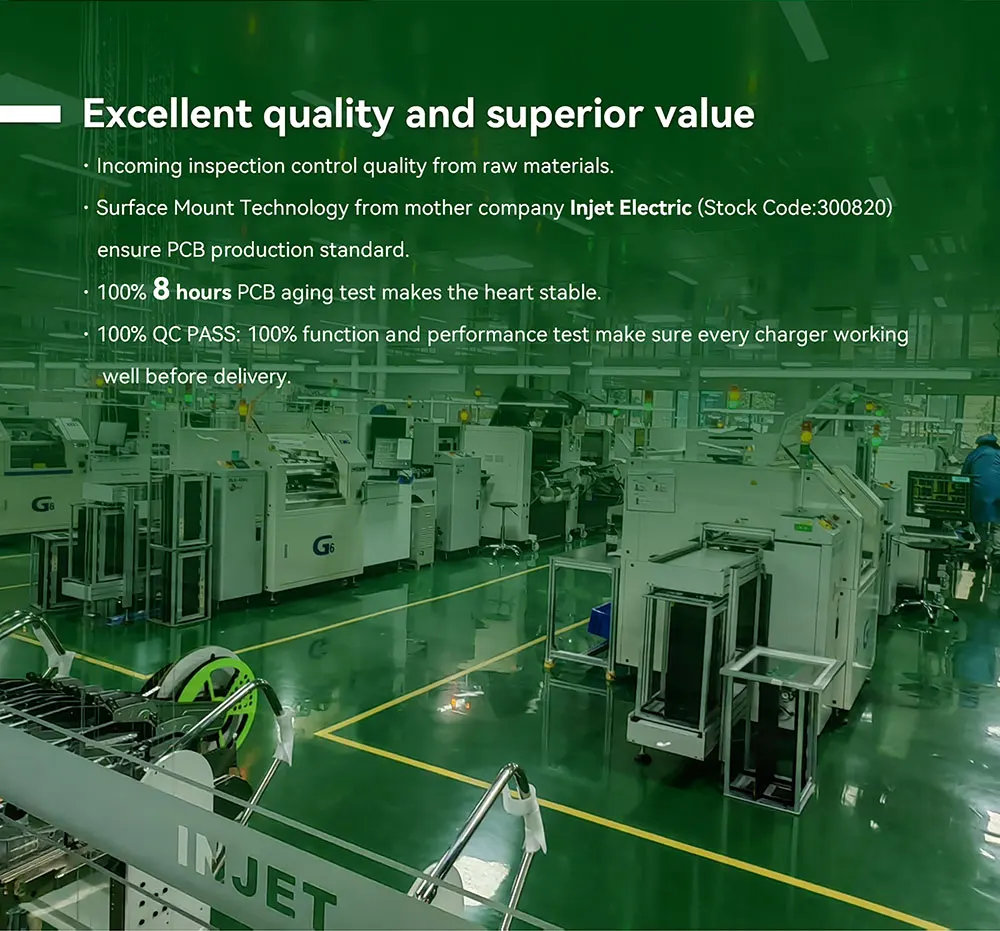

4. How to promise the quality? First, WEEYU produce the chargers in strict accordance with quality management system standard (ISO9000). Second, in the production, we will age and test the EV CHARGER 3 times; Third, through the Digital Factory, production can be traced and visualized, so as to ensure the stability of products.
5. Our mission is: Create higher value for customers with innovative products and services. Come and be our customers!
