for storing and unreeling Cable Reels De reeling Stand Roller high pulling tension torsion resistance Compact Cable Drum Roller
- Category: >>>
- Supplier: Bazhou Dpair Hardware Equipment Co. Ltd.
Share on (1600565273669):
Product Overview
Description
Products Description

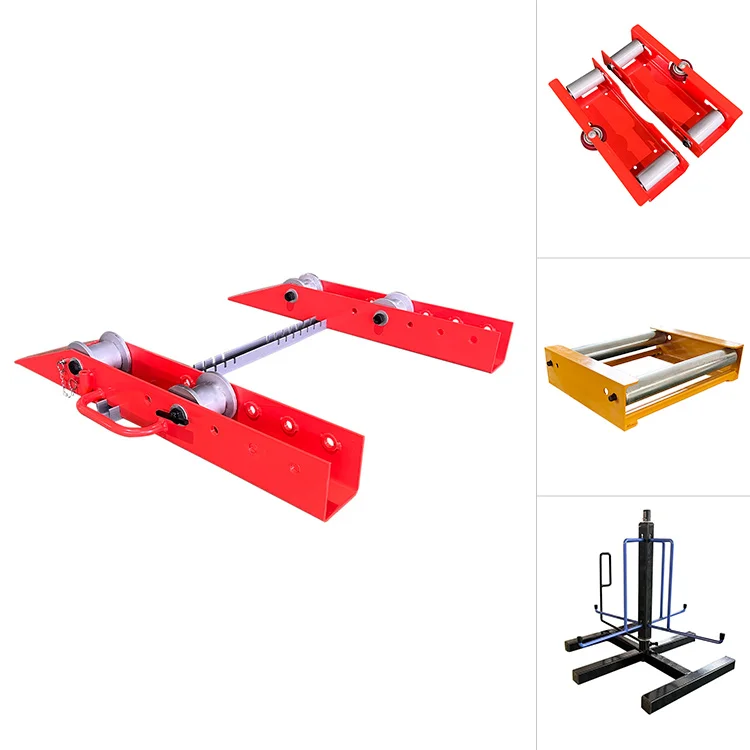

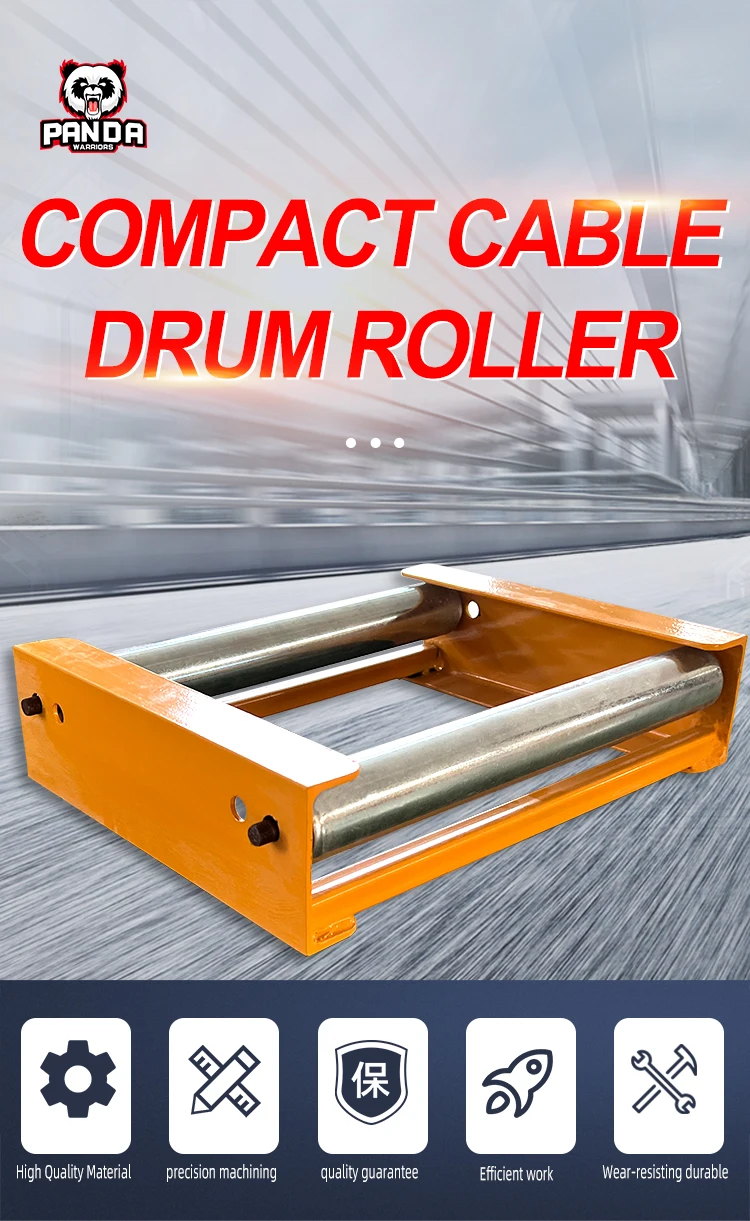

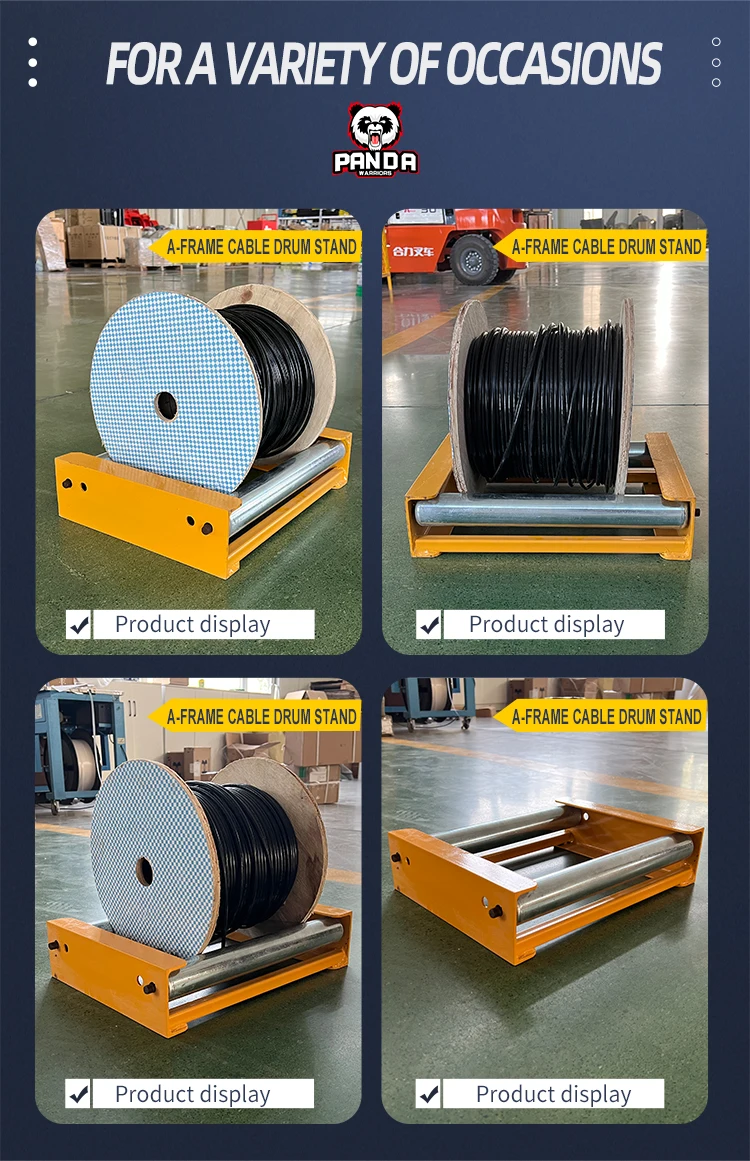

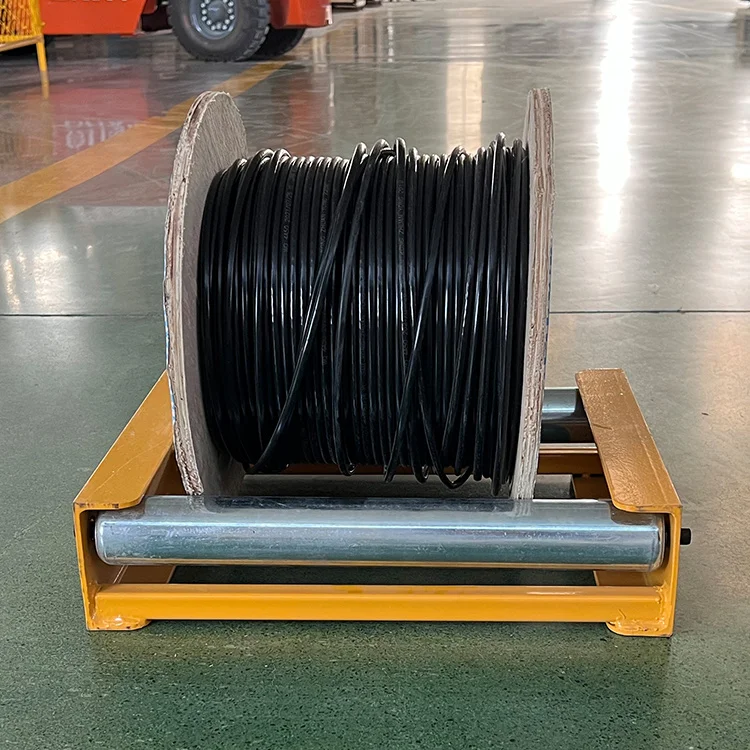

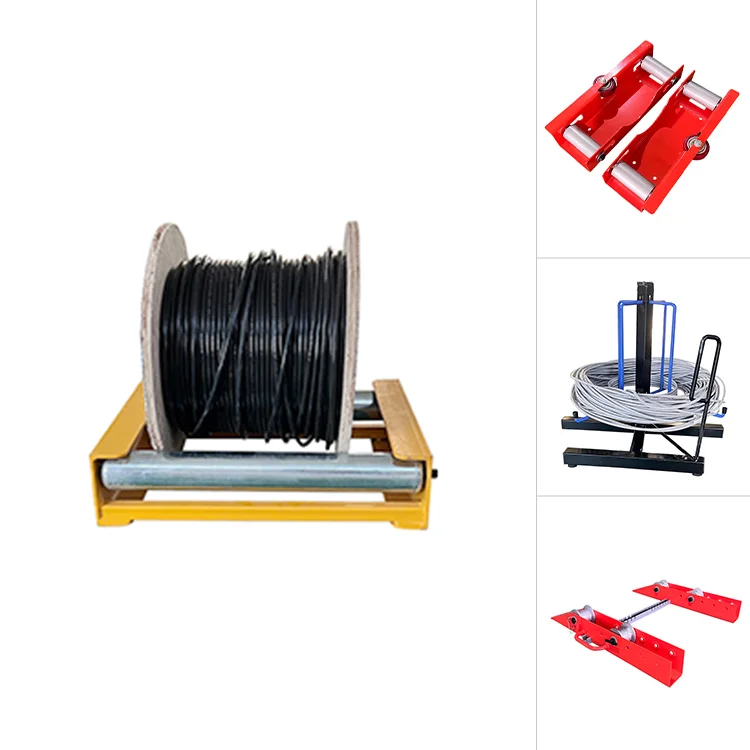

Compact Cable Drum Roller
Portable Compact Cable Rollers for storing and unwinding reels of cable. Constructed from robust powder-coated ‘safety’ yellow, designed to safely dispense a reel of cable or wire easily and safely. Each smooth running rollers houses heavy-duty sealed steel ball-bearings to ensure smooth running so the reels unroll without twisting or tangling reel payout without snags or twisting. Each roller can be simply and easily replaced by depressing the spring-loaded centre axle shaft and removing the roller from the steel frame. Suitable for drums between 300mm & 600mm diameter.
350mm Compact Cable Roller [200kg LR] can house a roll of cable up to 350mm wide. The two rollers can be moved closer and further away to adjust for small or large diameter cable reels with a distance between 190mm and 265mm.
650mm Compact Cable Roller [380kg LR] can house single or double reels up to 650mm wide. The two rollers can be moved closer and further away to adjust for small or large diameter cable reels with a distance between 190mm and 340mm.
650mm Compact Cable Roller – Heavy Duty [500kg LR] with heavier duty rollers, axles and ball bearings, can house single or double reels up to 650mm wide. The two rollers can be moved closer and further away to adjust for small or large diameter cable reels with a distance between 190mm and 340mm
Portable Compact Cable Rollers for storing and unwinding reels of cable. Constructed from robust powder-coated ‘safety’ yellow, designed to safely dispense a reel of cable or wire easily and safely. Each smooth running rollers houses heavy-duty sealed steel ball-bearings to ensure smooth running so the reels unroll without twisting or tangling reel payout without snags or twisting. Each roller can be simply and easily replaced by depressing the spring-loaded centre axle shaft and removing the roller from the steel frame. Suitable for drums between 300mm & 600mm diameter.
350mm Compact Cable Roller [200kg LR] can house a roll of cable up to 350mm wide. The two rollers can be moved closer and further away to adjust for small or large diameter cable reels with a distance between 190mm and 265mm.
650mm Compact Cable Roller [380kg LR] can house single or double reels up to 650mm wide. The two rollers can be moved closer and further away to adjust for small or large diameter cable reels with a distance between 190mm and 340mm.
650mm Compact Cable Roller – Heavy Duty [500kg LR] with heavier duty rollers, axles and ball bearings, can house single or double reels up to 650mm wide. The two rollers can be moved closer and further away to adjust for small or large diameter cable reels with a distance between 190mm and 340mm
Model | Describe |
CLP-48723504 | Compact Cable Drum Roller – 350mm wide : 200kg |
CLP-48723514 | Compact Cable Drum Roller – 650mm wide : 380kg |
CLP-48723527 | Compact Cable Drum Roller – 650mm wide : 500kg |

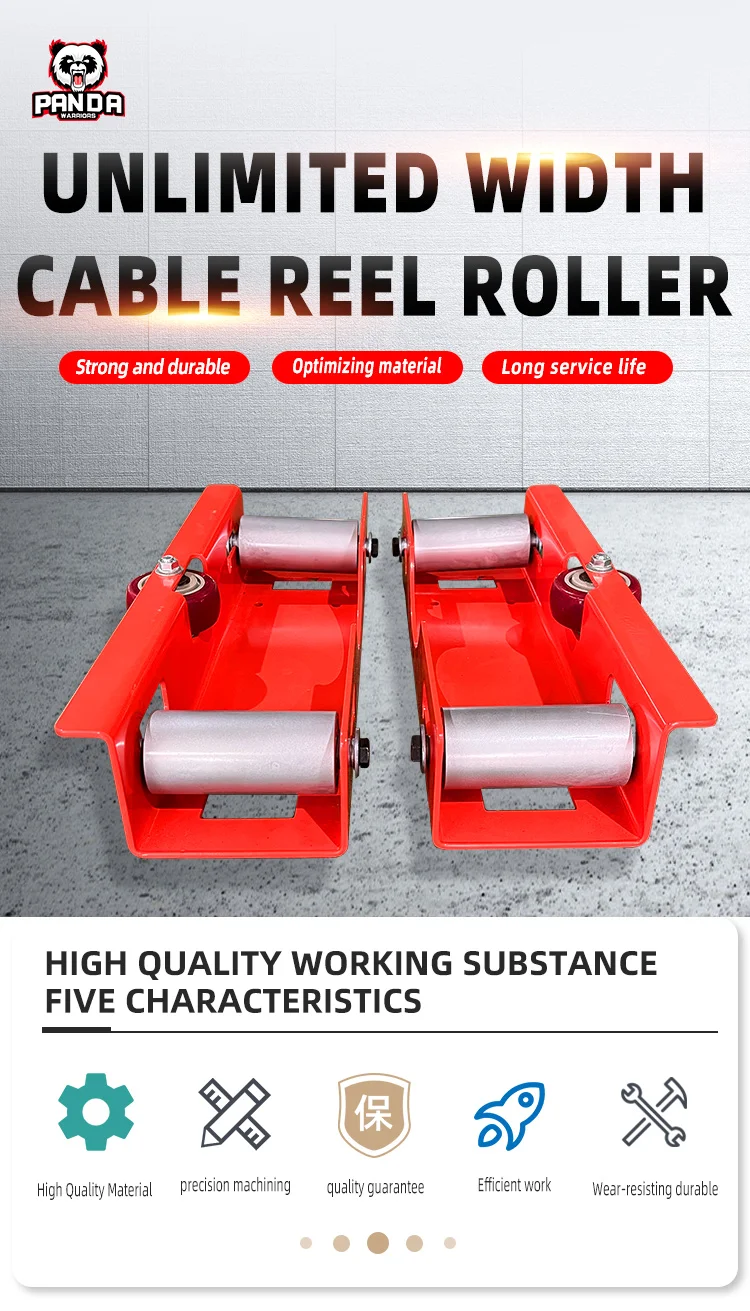

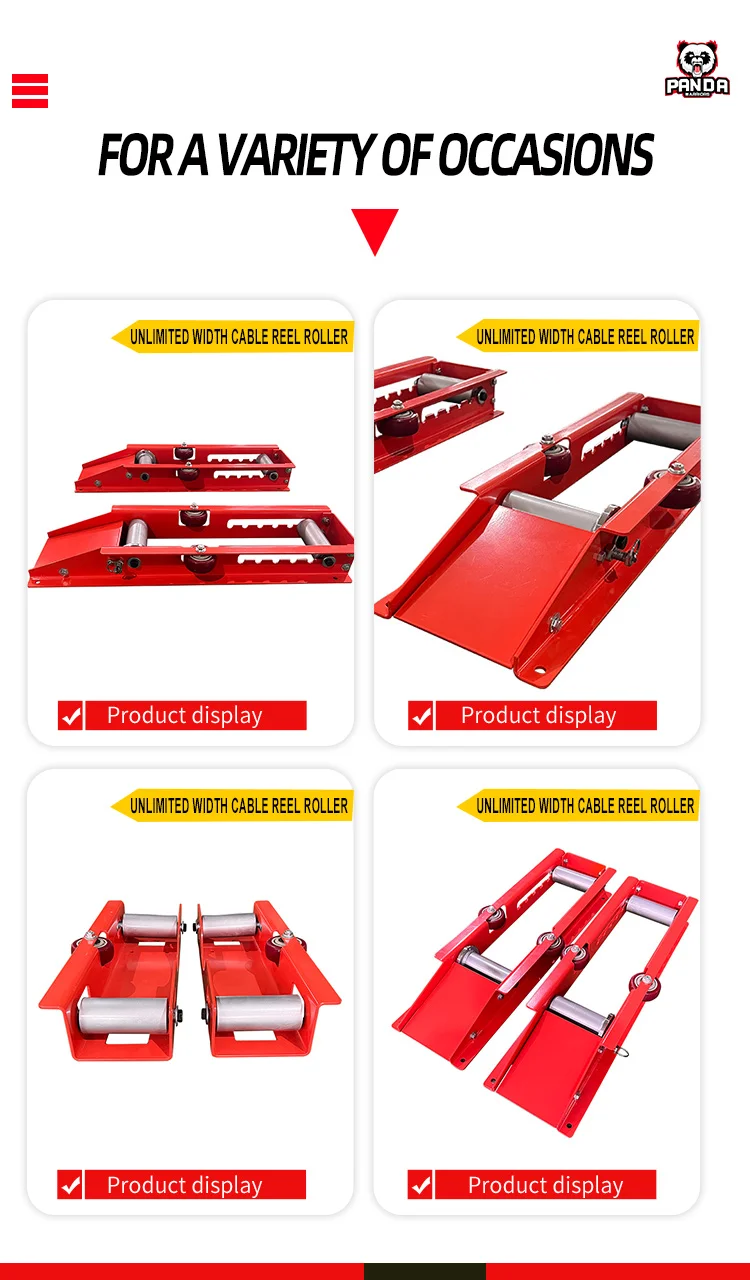

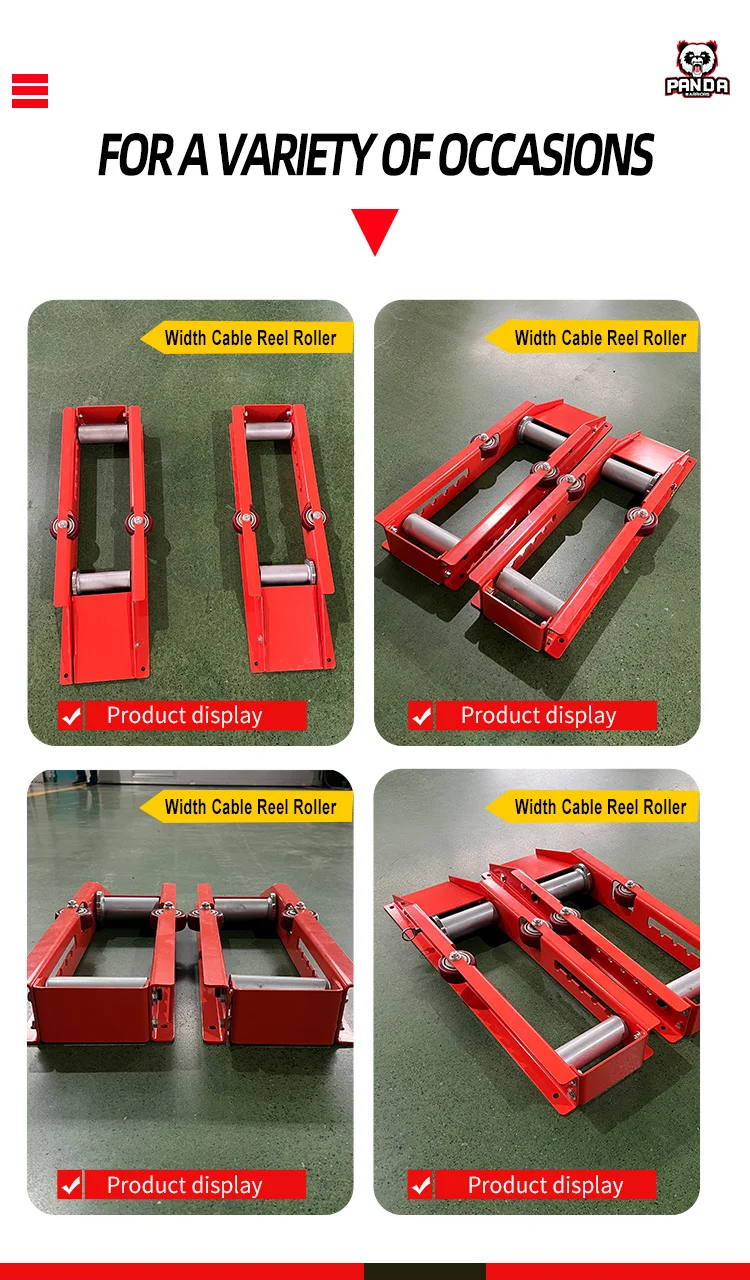

Unlimited Width Cable Reel Roller
Reel roller system is ideal for storage, dispensing and management solution of cable reels ranging from 13” to 48” in diameter. accommodate cable drums with weights up to 440 pounds. include three (3) position adjustments for the rollers, carrying handles for easy transport and pre-drilled holes for permanent mounting applications.
Reel roller system is ideal for storage, dispensing and management solution of cable reels ranging from 13” to 48” in diameter. accommodate cable drums with weights up to 440 pounds. include three (3) position adjustments for the rollers, carrying handles for easy transport and pre-drilled holes for permanent mounting applications.
Model | Rated Load(kg) | Cable Reel diameter(mm) | Cable Reel width(mm) | Weight(kg) | Overall dimensions |
MNFJA-400 | 200 | 350 - 1000 mm | 150 - 500 mm | 11,2 kg | 400mm*124mm*82mm |
MNFJA-450 | 200 | 350 - 1200 mm | 200 - 800 mm | 11.9kg | 450mm*130mm*84mm |
MNFJA-700 | 200 | 400 - 1600 mm | 350 - 1200 mm | 12,5 kg | 450mm*136mm*88mm |

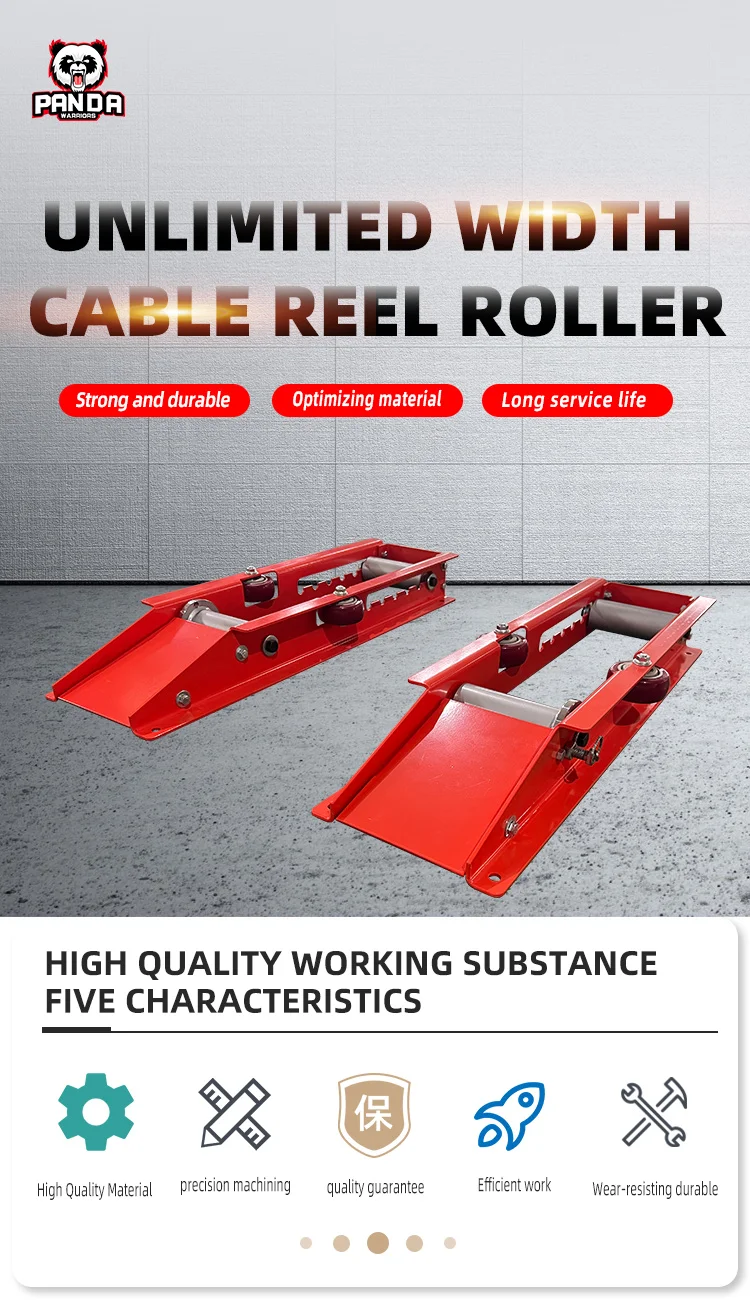

Unlimited Width Cable Reel Roller
Reel roller system is ideal for storage, dispensing and management solution of cable reels ranging from 13” to 48” in diameter. accommodate cable drums with weights up to 440 pounds. include three (3) position adjustments for the rollers, carrying handles for easy transport and pre-drilled holes for permanent mounting applications.
Reel roller system is ideal for storage, dispensing and management solution of cable reels ranging from 13” to 48” in diameter. accommodate cable drums with weights up to 440 pounds. include three (3) position adjustments for the rollers, carrying handles for easy transport and pre-drilled holes for permanent mounting applications.
Model | Rated Load(kg) | Cable Reel diameter(mm) | Cable Reel width(mm) | Weight(kg) | Overall dimensions |
MNFJA-350A | 200 | 350 - 1000 mm | 150 - 500 mm | 11,2 kg | 690mm*146mm*85mm |
MNFJA-350B | 200 | 350 - 1200 mm | 200 - 800 mm | 11.9kg | 450mm*130mm*84mm |
MNFJA-700 | 200 | 400 - 1600 mm | 350 - 1200 mm | 12,5 kg | 780mm*156mm*90mm |

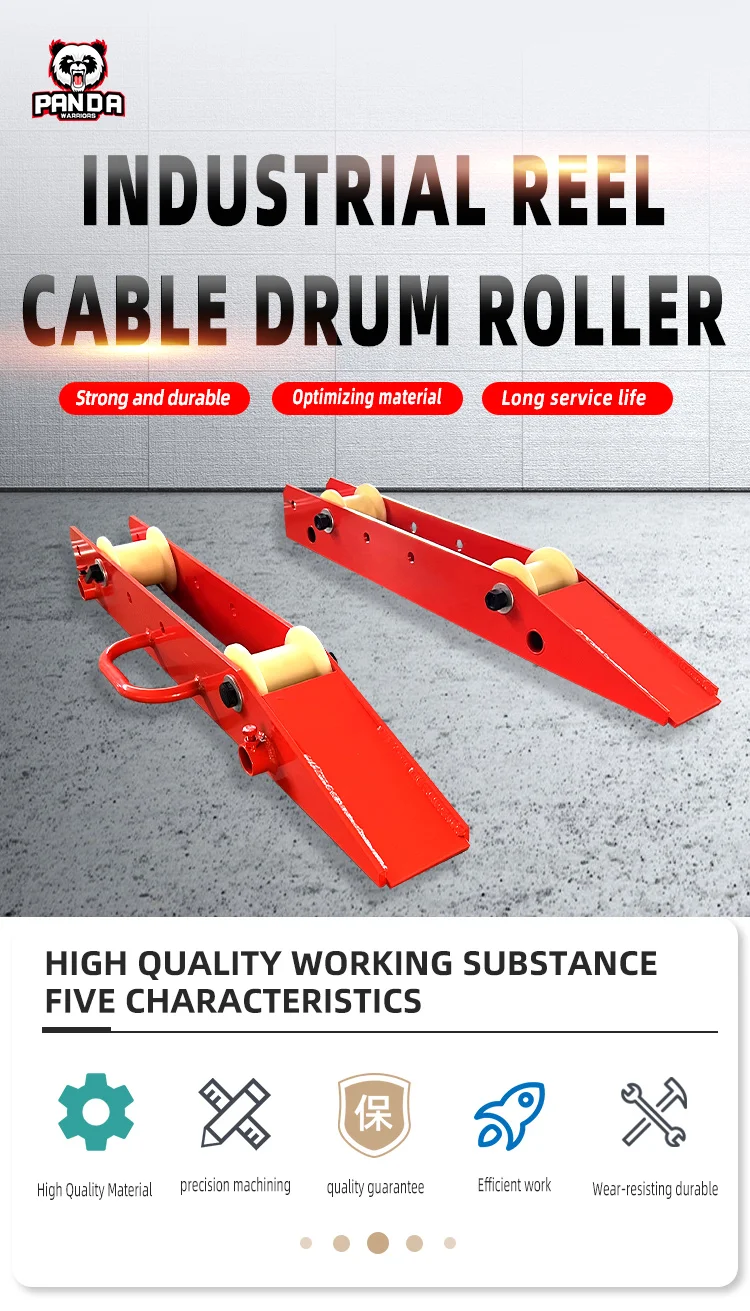

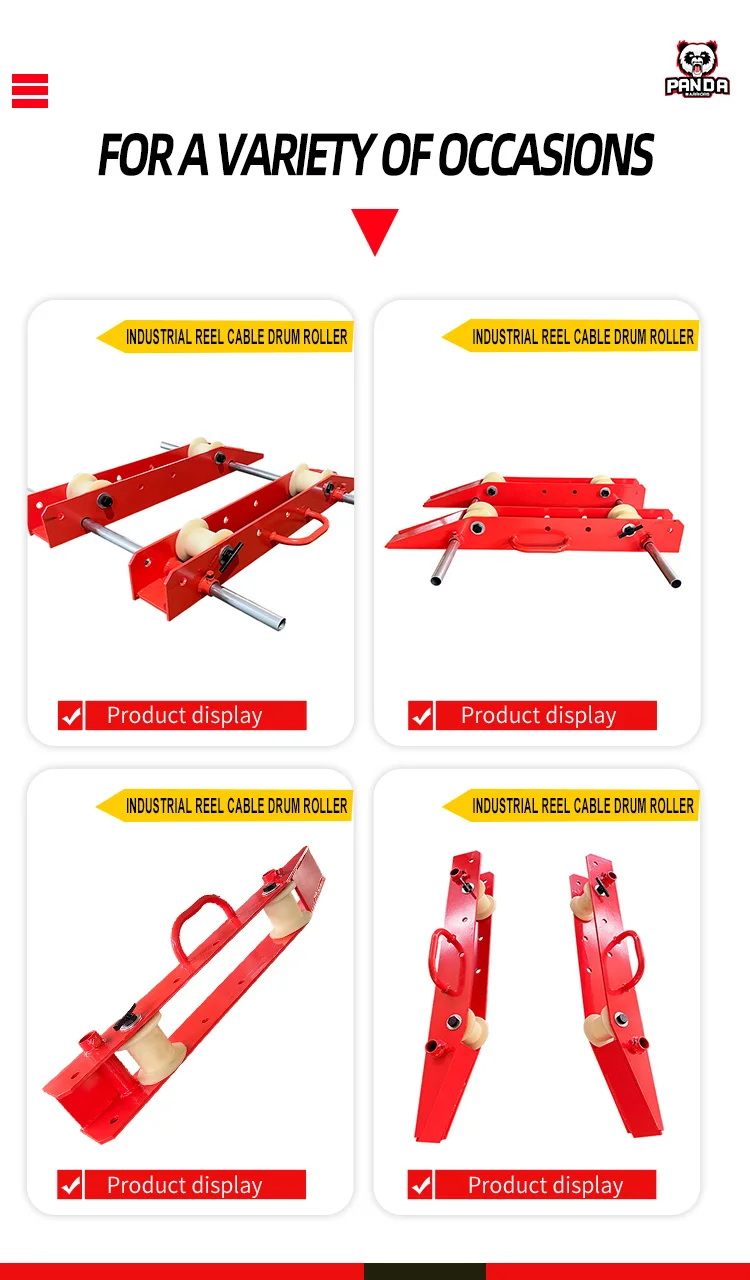

Industrial Reel Cable Drum Roller
Single Sleeve drum roller.
Used for easy winding and unwinding of large cable drums.
Powder coated orange for high visibilty.
Ramp for quick & effective movement of the drum.
Adjustable width.
Adjustable castors to fit drum size.
Castor with integrated side guidance.
Single Sleeve drum roller.
Used for easy winding and unwinding of large cable drums.
Powder coated orange for high visibilty.
Ramp for quick & effective movement of the drum.
Adjustable width.
Adjustable castors to fit drum size.
Castor with integrated side guidance.
Model | GDFJB-1000 |
Capacity (kg) | 1000 |
Suitable Coil Diameter (mm) | 300-1000 |
Suitable Coil Width (mm) | 300-750 |
Dimensions (LxWxH) (mm) | 860x160x230 |
Net Weight(kg) | 30.8 |
Cable drum unwinders
GDFJC- 1400
Adjustable: a single unwinder for all cable drums - Easy-to-dismantle: for ease of transportation to the sites
Can be dismantled into four elements
Adjustable according to the diameter (3 positions for the rear tensioner)
Adjustable in width by moving the clamps
Polyurethane tensioner: good adherence of cable drums, even when strapped
Blockage system of the front reel in order to remove the cable drum easily
Length of bars: 1,000 mm
For drums Ø 500 to 1400 mm
Maximum width 950 mm
Weight 28 kg
Dimensions of each clamp: l 130 x W 860 x H 110 mm
GDFJC-1650
Adjustable: a single unwinder for all cable drums / Easy-to-dismantle: for ease of transportation to the sites
Can be dismantled into four elements
Adjustable according to the diameter (3 positions for the rear tensioner)
Adjustable in width by moving the clamps
Polyurethane tensioner: good adherence of cable drums, even when strapped
Blockage system of the front reel in order to remove the cable drum easily
Length of bars: 1,000 mm
For drums Ø 500 to 1650 mm
Maximum width 950 mm
Weight 38 kg
Dimensions of each clamp: l 160 x W 990 x H 105 mm
GDFJC- 1400
Adjustable: a single unwinder for all cable drums - Easy-to-dismantle: for ease of transportation to the sites
Can be dismantled into four elements
Adjustable according to the diameter (3 positions for the rear tensioner)
Adjustable in width by moving the clamps
Polyurethane tensioner: good adherence of cable drums, even when strapped
Blockage system of the front reel in order to remove the cable drum easily
Length of bars: 1,000 mm
For drums Ø 500 to 1400 mm
Maximum width 950 mm
Weight 28 kg
Dimensions of each clamp: l 130 x W 860 x H 110 mm
GDFJC-1650
Adjustable: a single unwinder for all cable drums / Easy-to-dismantle: for ease of transportation to the sites
Can be dismantled into four elements
Adjustable according to the diameter (3 positions for the rear tensioner)
Adjustable in width by moving the clamps
Polyurethane tensioner: good adherence of cable drums, even when strapped
Blockage system of the front reel in order to remove the cable drum easily
Length of bars: 1,000 mm
For drums Ø 500 to 1650 mm
Maximum width 950 mm
Weight 38 kg
Dimensions of each clamp: l 160 x W 990 x H 105 mm

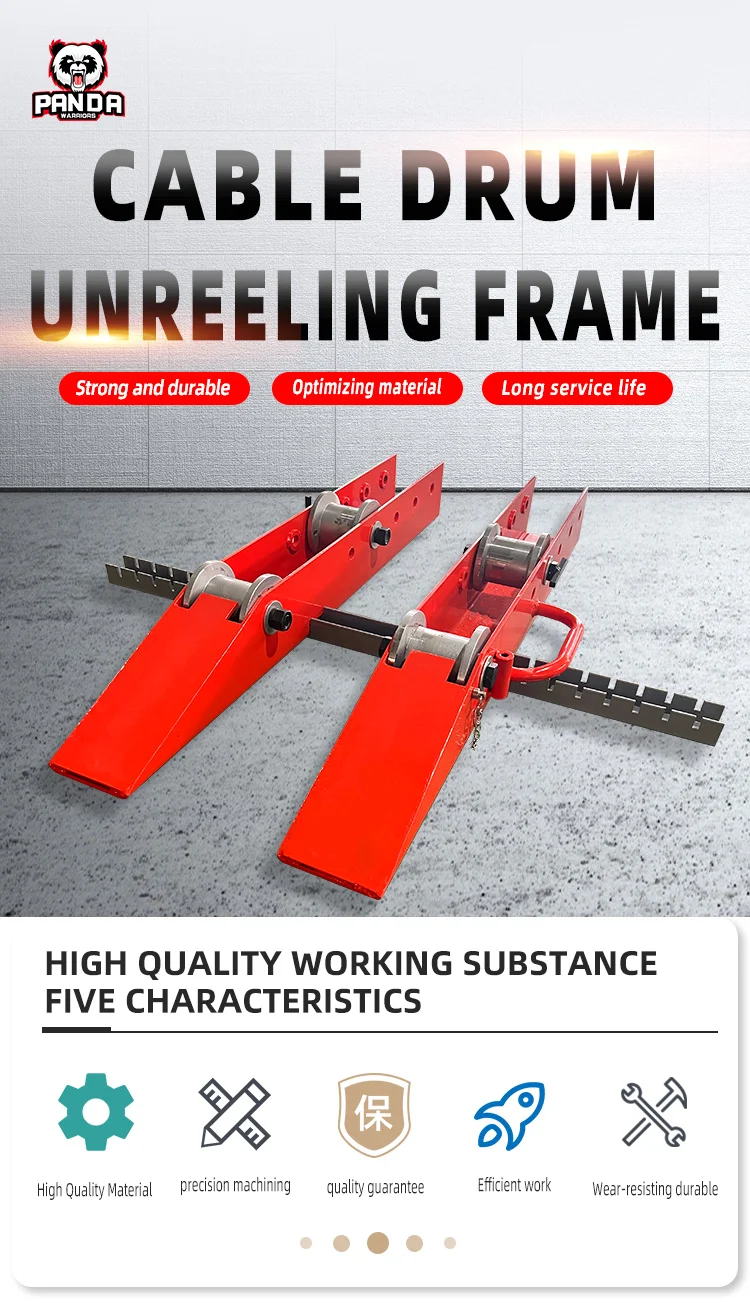

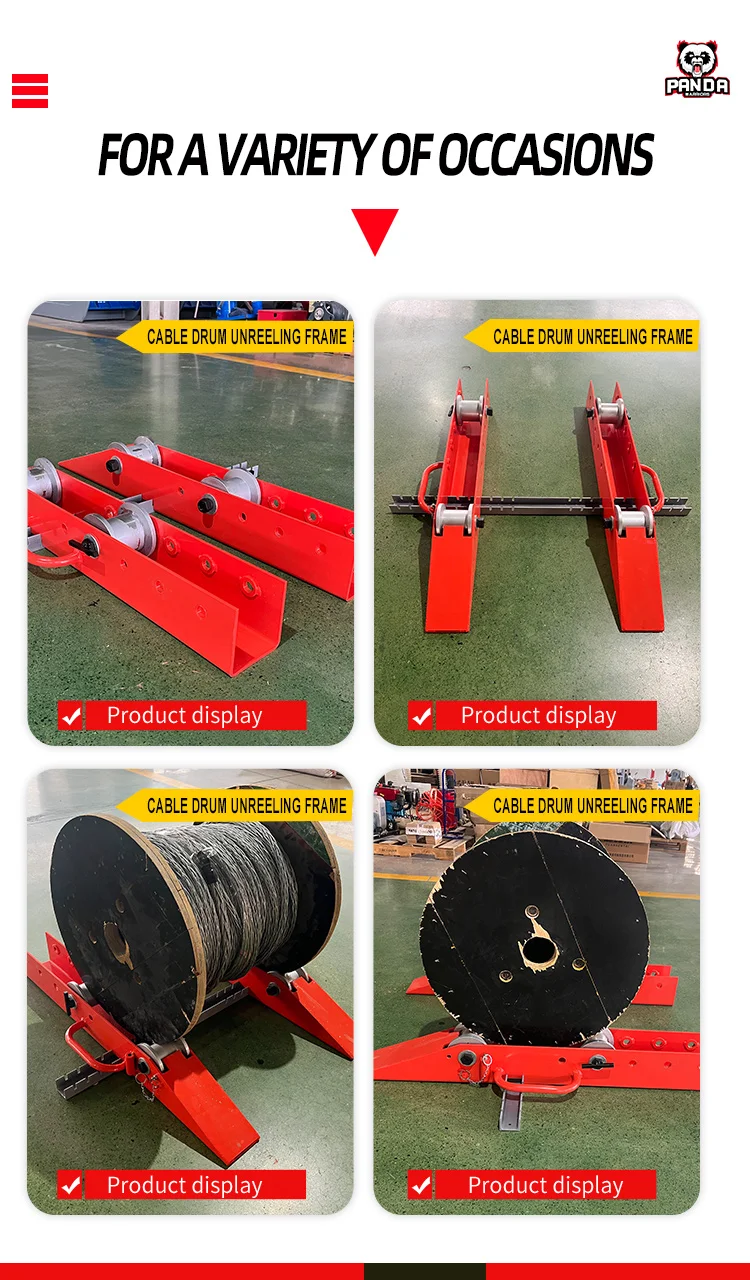

Cable drum unreeling frame
ramps with min. angle of inclination to easier the minimum effort during the loading of the drumaluminum alloy rollers mounted on ball bearings and positioning on different distances on the frame
Steel wheels and nylon wheels are also available
transport and positioning handle
steel bar with slots fit to vary the positioning of one pair of pads according to the drum width.
Model | Rated Load(kg) | Cable Reel diameter(mm) | Cable Reel width(mm) | Weight(kg) | Overall dimensions |
GDFJA-900A | 1000 | 480 - 900 mm | 400 - 1200 mm | 15,5 kg | 950x145x110 mm |
GDFJA-900B | 1000 | 480 - 900 mm | 400 - 1800 mm | 16,5 kg | 1050x145x110 mm |
GDFJA-1100A | 1000 | 480 - 1100 mm | 400 - 2200 mm | 20,5 kg | 1150x145x110 mm |
Product packaging

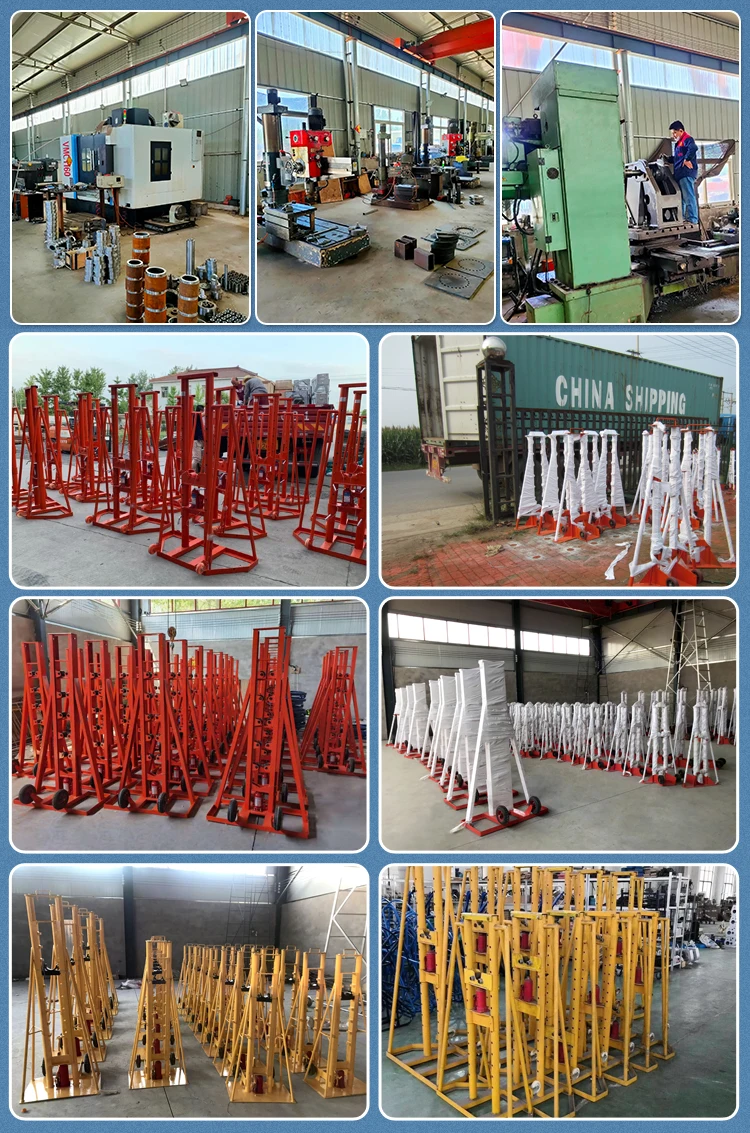

Manufacturing Technique
