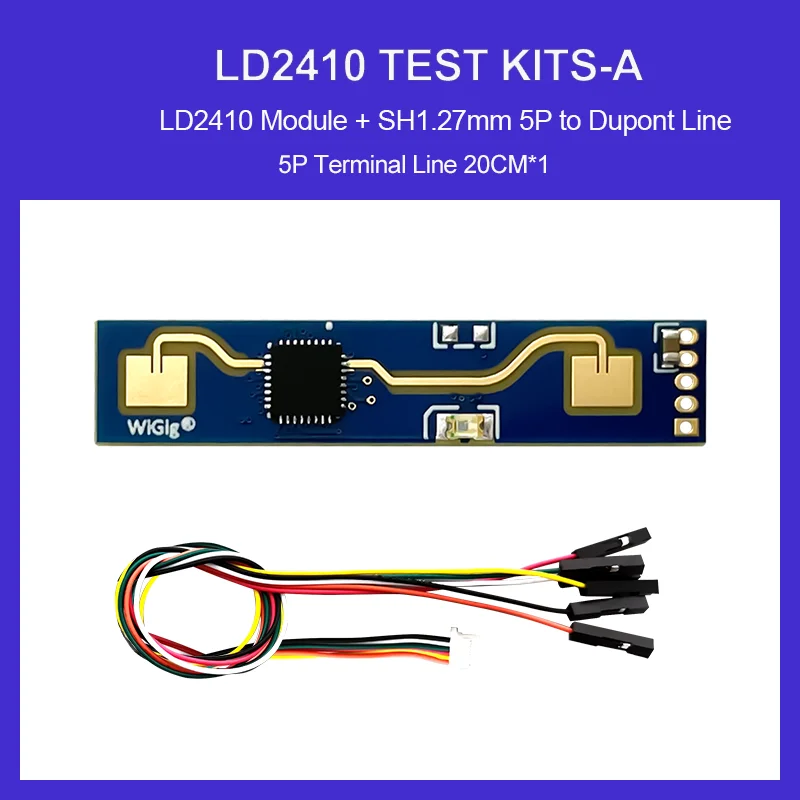

Hi Link 24GHz Human Presence Status Sensor Radar Module test Kits A Supports GPIO And UART Output in smart scenarios LD2410
- Category: >>>
- Supplier: Shenzhen Hi-Link Electronic Co. Ltd.
Share on (1600565324530):
Product Overview
Description
Product Description

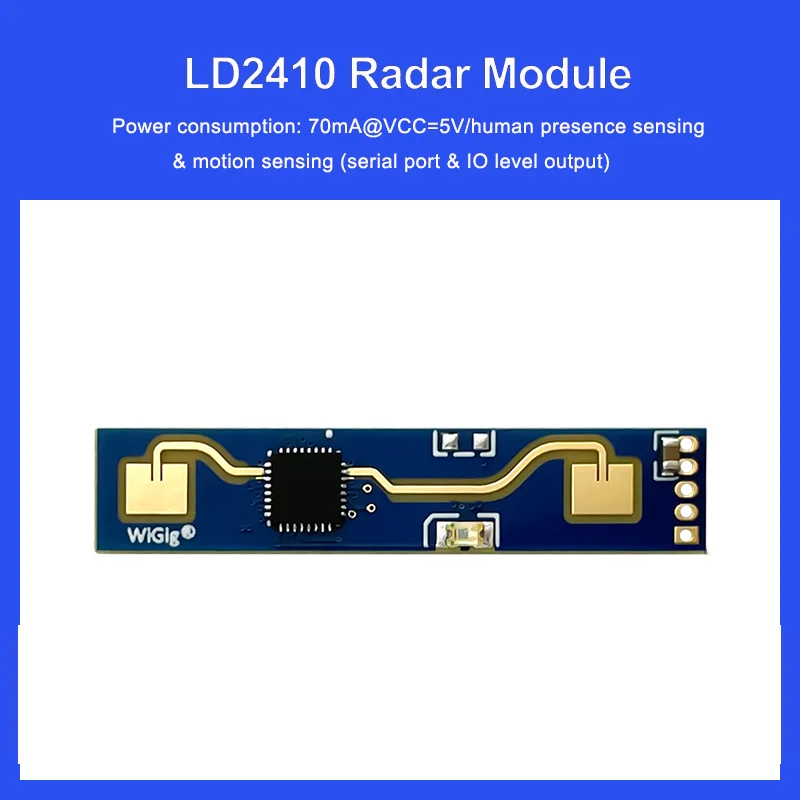

LD2410 is a high-sensitivity 24GHz human presence status sensing module developed by Hi-Link Electronics. Its working principle is to use FMCW frequency-modulated continuous waves to detect human targets in the set space. Combined with radar signal processing and accurate human body sensing algorithms, it realizes high-sensitivity sensing of human presence status, and can identify human bodies in motion and stationary states. And auxiliary information such as the distance of the target can be calculated.
This product is mainly used in indoor scenes to sense whether there is a moving or micro-moving human body in the area, and output the detection results in real time. The farthest sensing distance can reach 5 meters, and the distance resolution is 0.75m. Provides a visual configuration tool, which can easily configure the sensing distance range, sensing sensitivity in different intervals and unmanned delay time, etc., to adapt to different specific application needs.
Supports GPIO and UART output, plug and play, and can be flexibly applied to different smart scenarios and terminal products.
This product is mainly used in indoor scenes to sense whether there is a moving or micro-moving human body in the area, and output the detection results in real time. The farthest sensing distance can reach 5 meters, and the distance resolution is 0.75m. Provides a visual configuration tool, which can easily configure the sensing distance range, sensing sensitivity in different intervals and unmanned delay time, etc., to adapt to different specific application needs.
Supports GPIO and UART output, plug and play, and can be flexibly applied to different smart scenarios and terminal products.
Specification
item | value |
Model Number | HLK-LD2410 kit-A |
Type | Flat antenna |
Place of Origin | China |
Guangdong | |
Brand Name | Hi-Link |
Color | Blue |
farthest sensing distance | up to 5 meters |
coverage | up to ± 60 degrees |
distance resolution | 0.75m |

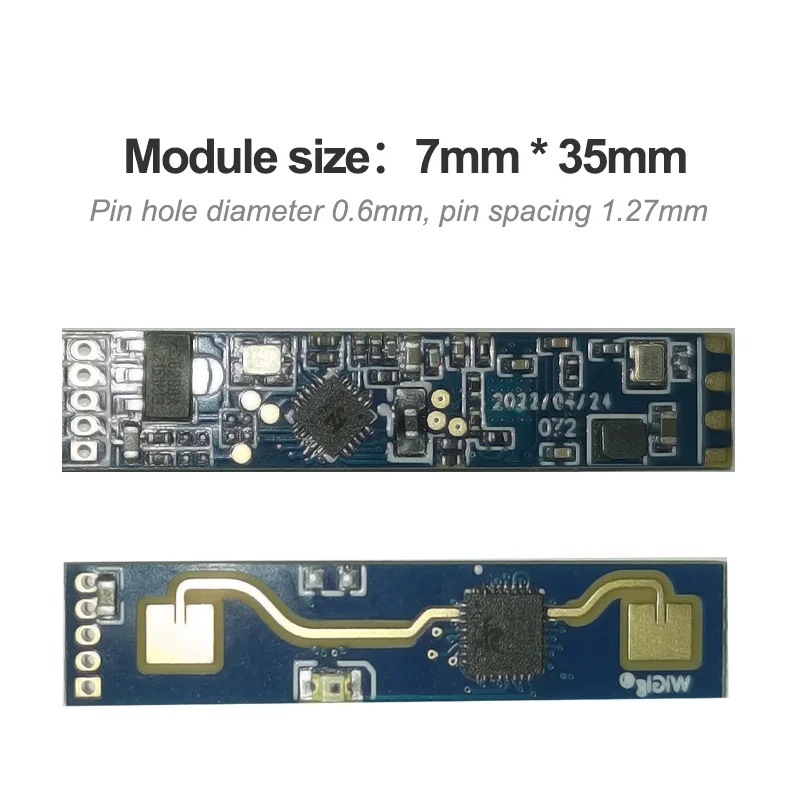

minimum size | 7mm * 35mm |
5 pin holes | OUT /UART_Tx /UART_Rx /GND /VCC |
Packing & Delivery
Standrad carton packing.
