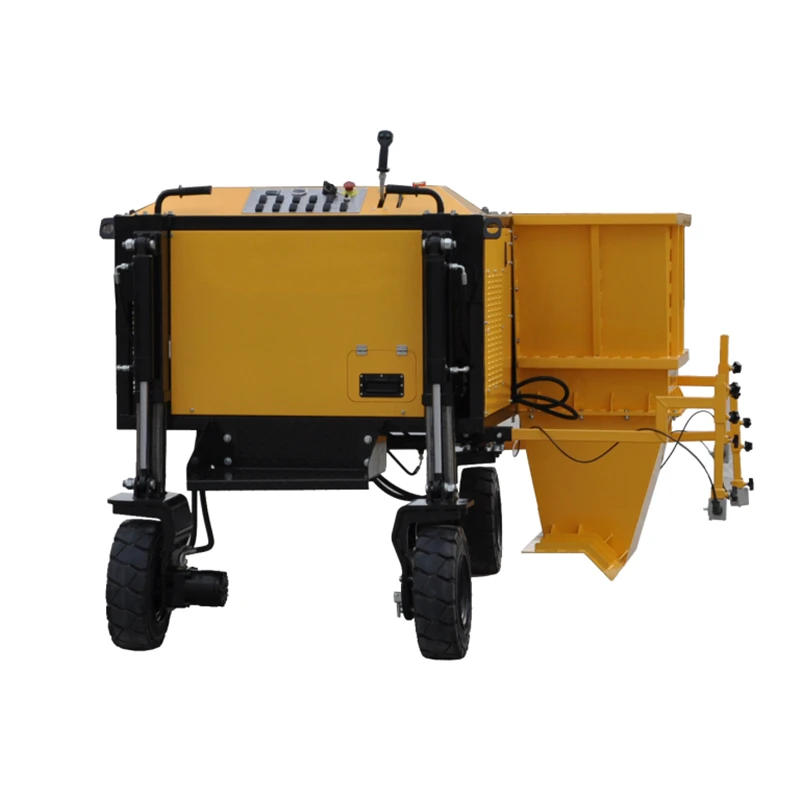

Hot Sale Concrete Curb Cutting Machine/ Curb Laying Machine/ Concrete Curb Paver Machine
- Category: Pavers >>>
- Supplier: Zhengzhou Gaode Equipment Co. Ltd.
Share on (1600565419631):
Product Overview
Description
Description

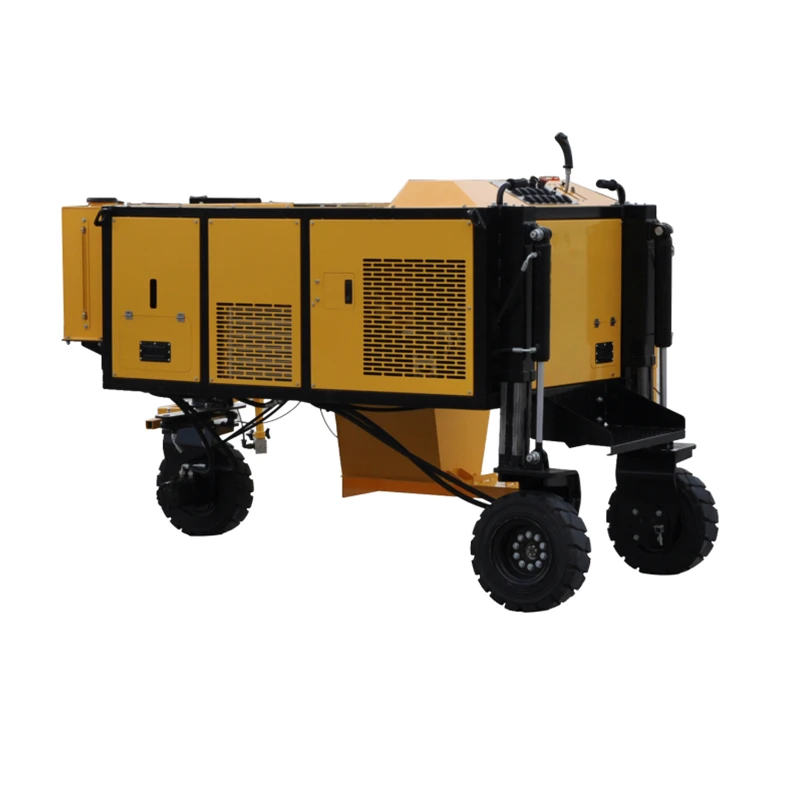

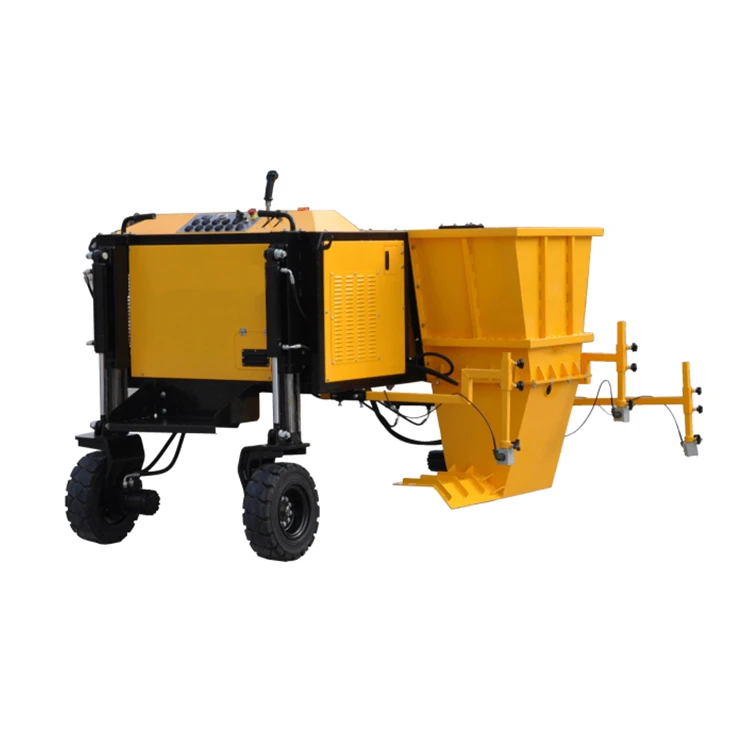

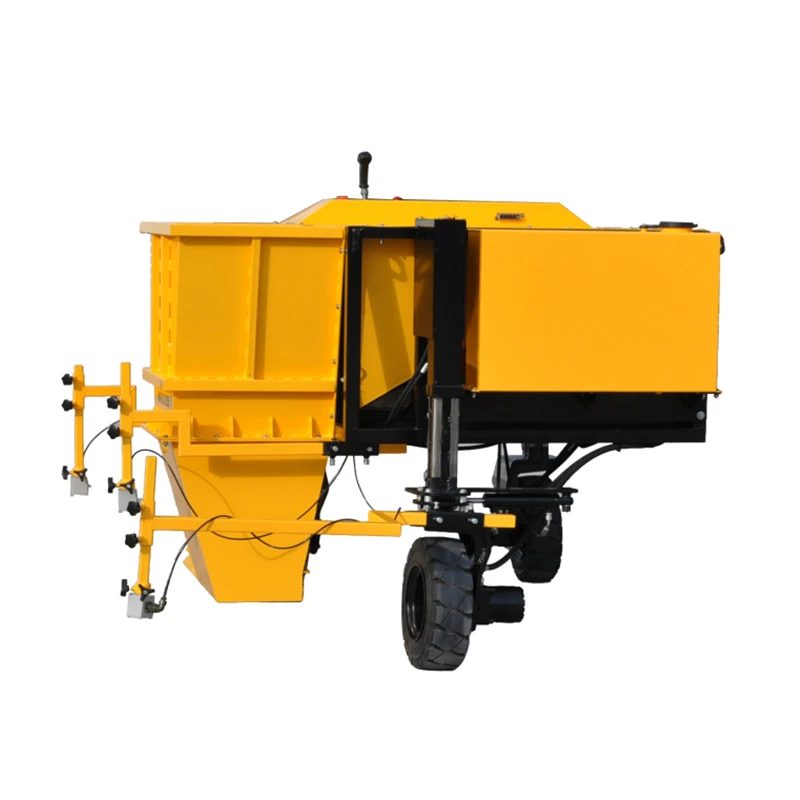

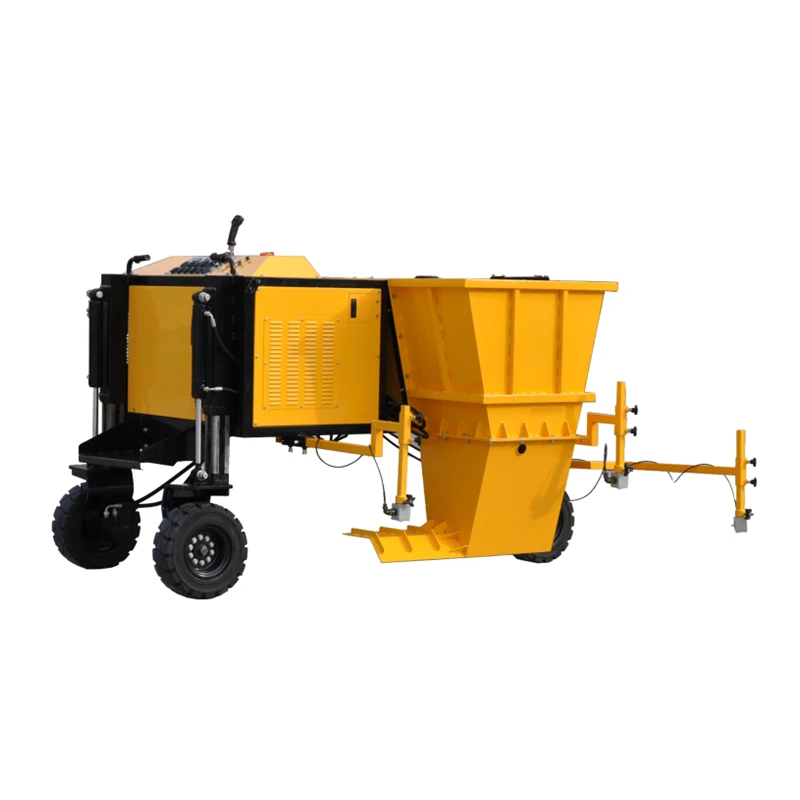

Description of GDHM31 Automatic Concrete Curb Paver
GDHM31 is a new kind of concrete curb paver, hammer feeding, with a manual and automatic control system. It is high-tech machinery, the integrative technique of mechanics-electronics-hydraulics, with advanced sensors, the machine itself can adjust the level and straight, makes the construction easily. Molds can dismantle and change in order to meet the construction requirements.
Technical Data
Type | GDHM31 | GDHM31D | ||
Engine | ||||
Model | HONDA GX630 | Yanmar 3TNV74F | ||
Type | Gasoline Engine, air cooled, two cylinder | Diesel Engine, water cooled, 3 cylinder | ||
Power | 20hp/3600rpm | 20hp/3600rpm | ||
Fuel tank volume | 60L | 60L | ||
Lubricant L | 1.5L | |||
Fuel consumption | 313g/Kwh | 313g/kWh | ||
Traveling system | ||||
Driving | Hydraulic motor | Hydraulic/Plunger motor | ||
Wheel | Solid puncture-proof type | Solid tyre | ||
Speed | 0-70m/min | 0-70m/min | ||
Vibration system | ||||
Vibrating rod | Hydraulic vibrating rod | Hydraulic vibrating rod | ||
Nominal amplitude | 1.5mm | 1.5mm | ||
Vibrating frequency | Adjustable | Adjustable | ||
Exciting force | 11KN(under 10000rpm) | 11kN(under 10000rpm) | ||
Control system | ||||
Control mode | Auto/Manual | Auto/Manual | ||
Automatic control | Steering, Transverse slope and Longitudinal slope by high accuracy sensor | Steering, Transverse slope and Longitudinal slope by high accuracy sensor | ||
Clean system | ||||
Power | Hydraulic motor | Hydraulic motor | ||
Theoretical flow | 20L/min | 20L/min | ||
Theoretical pressure | 7Mpa | 7Mpa | ||
Working | ||||
Speed | 0-15m/min | 0-15m/min | ||
Mold size | Width 100cm*Height 60cm | |||
Dimension | ||||
Overall dimension | 2610x1970x1500mm | |||
Weight | 1200kg | |||
Product Application
Application of GDHM31 Automatic Concrete Curb Paver

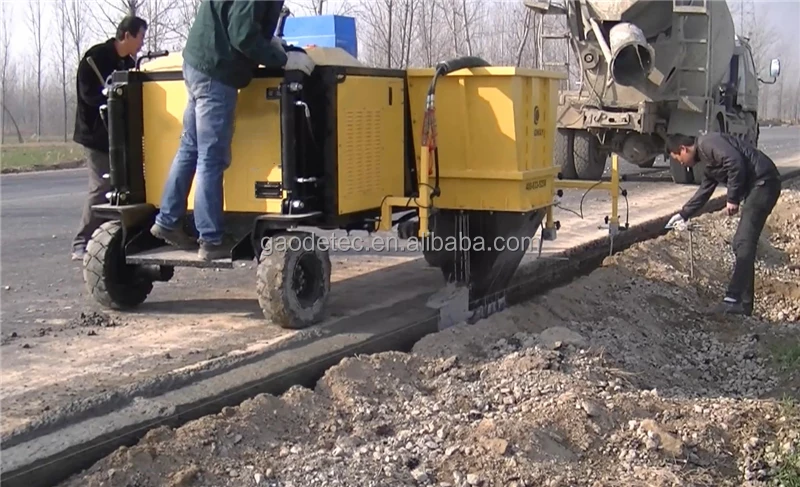

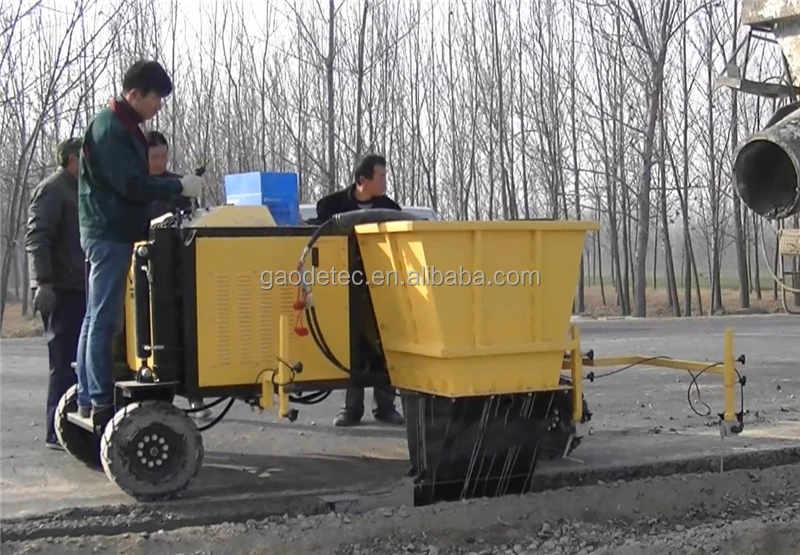

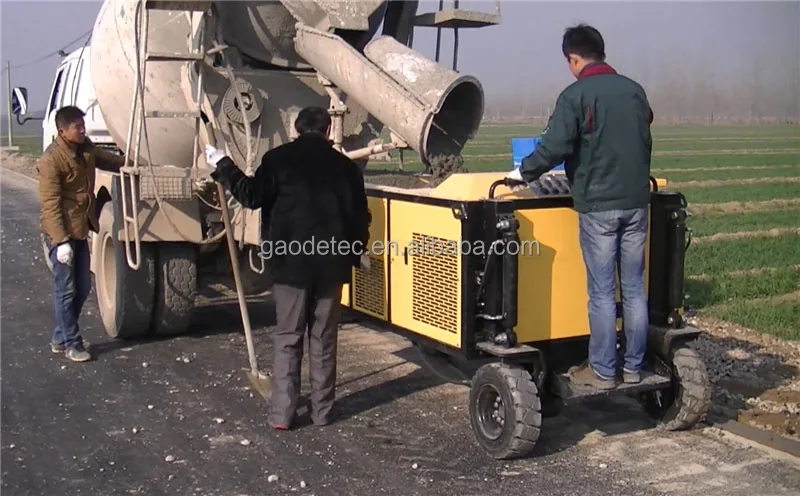

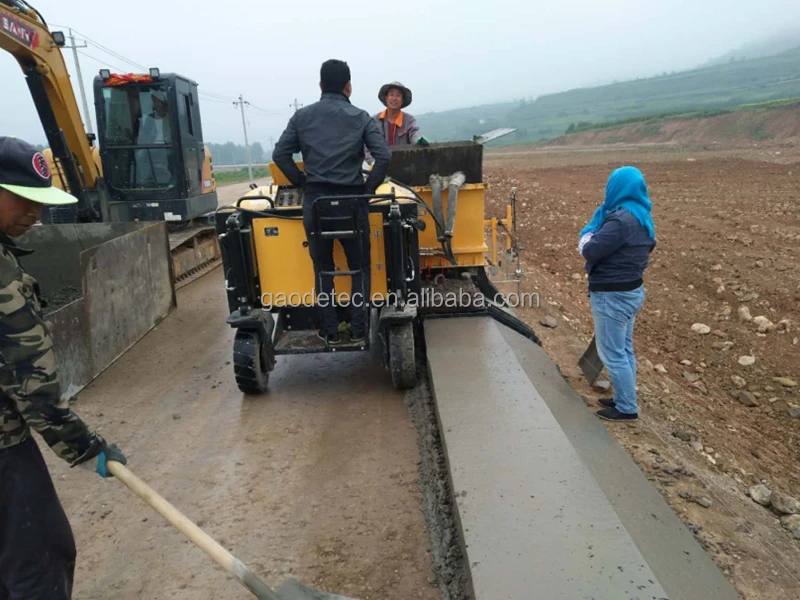

GDHM31 automatic concrete curb paver is mainly used to be made flower bed, curb of recreation green land, living buildings, road curbs, barriers on the highway.
Image Display
Details display
1. With HONDA gasoline engine or YANMAR diesel engine
2. With imported Danfoss hydraulic variable plunger pump
3. Integrated microcomputer control panel, easy operation
4. Forward, Reverse, and Steering all controlled by control lever, easy operation
5. With a hydraulic rod, high frequency, and strong power
6. With high sensitivity tilt sensor, to control the direction
7. With imported U.S.A Eaton driving motor
8. With hydraulic high-pressure washing pump can clean machine any time
9. With imported Germany DEUTSCH connectors, waterproof and dustproof

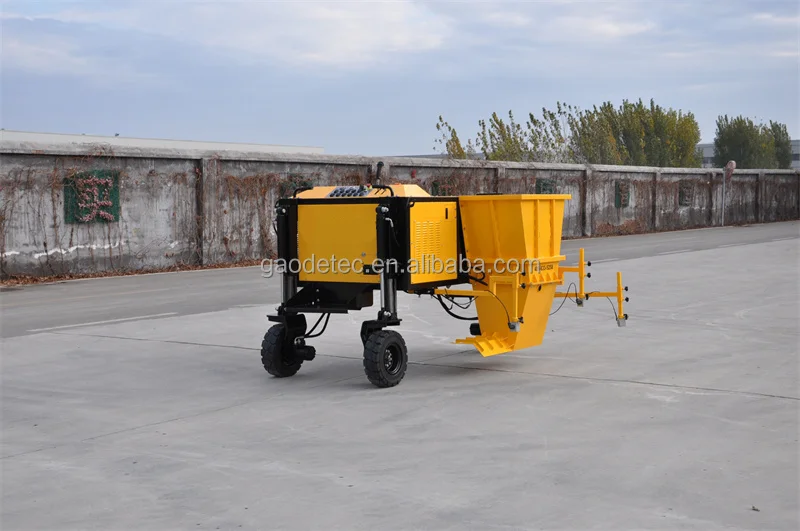

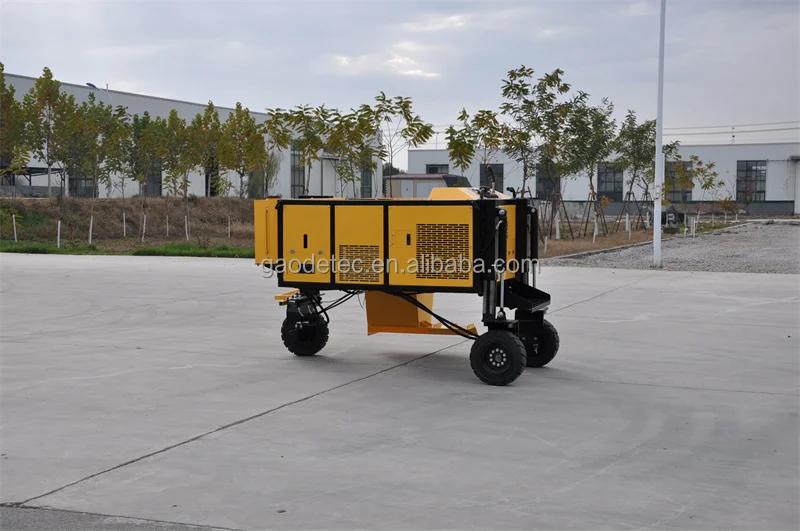

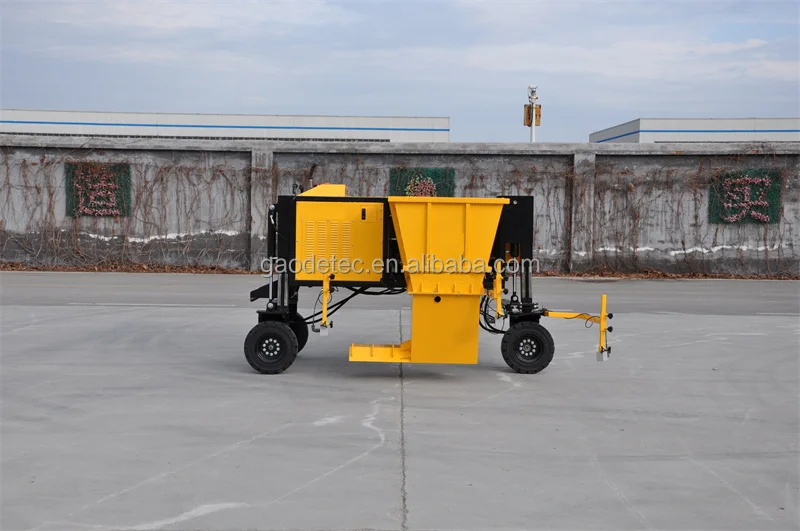

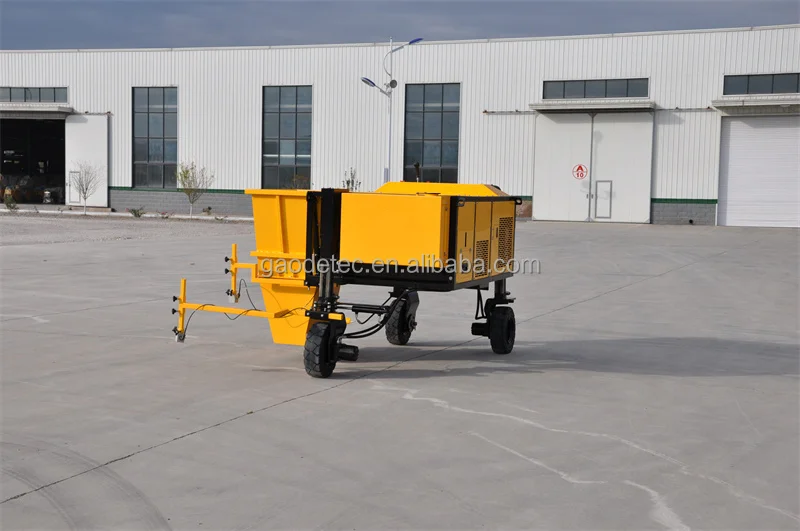

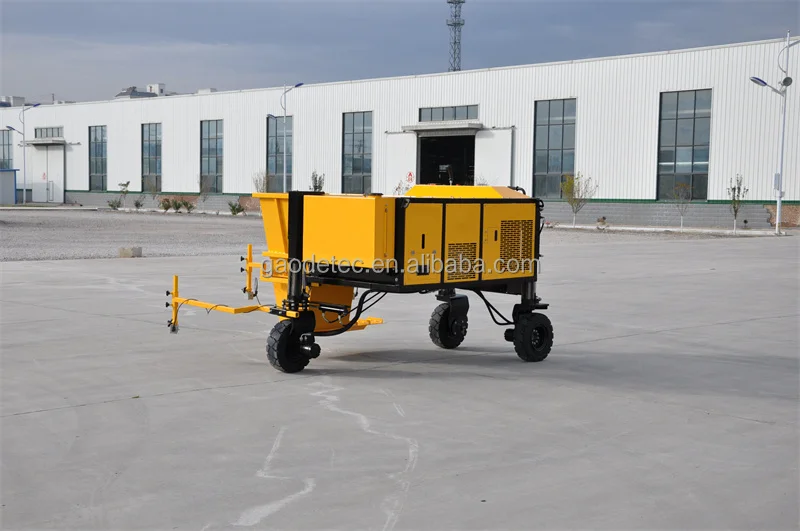

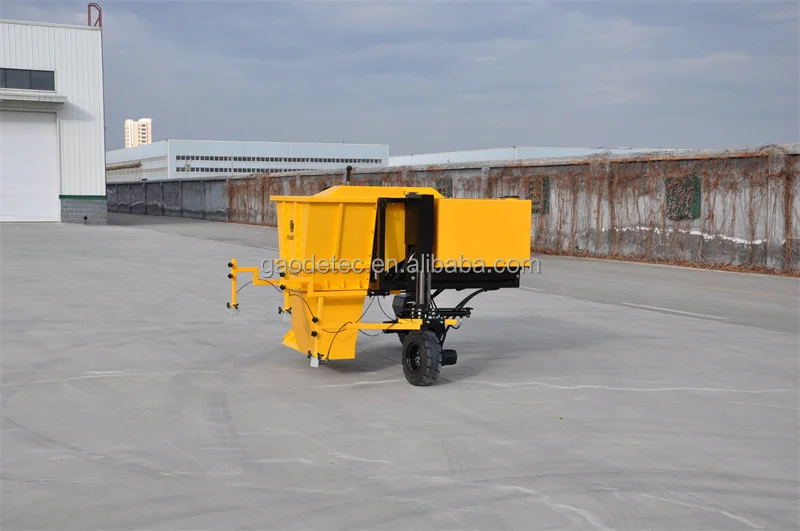

Physical map display

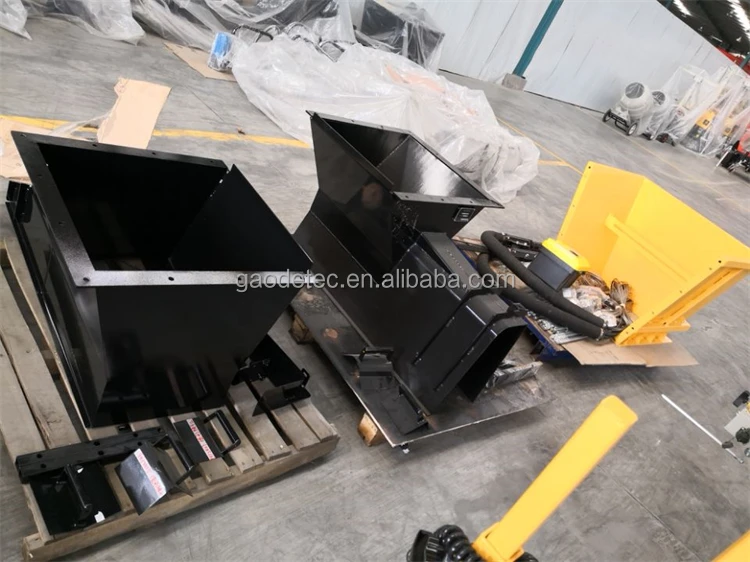

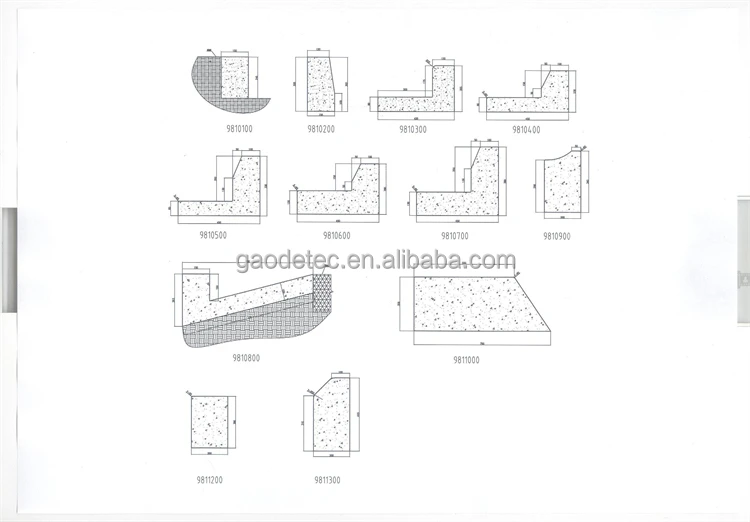

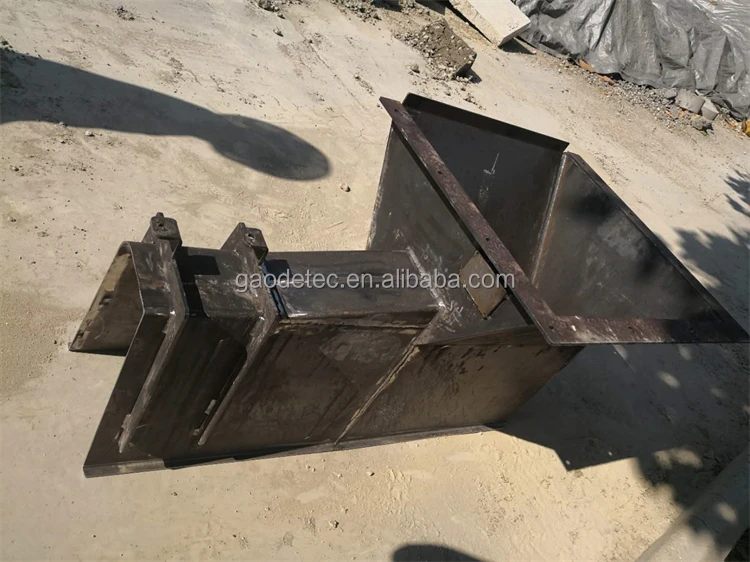

Molds
We have a variety of molds to choose, you could choose them from our available standard molds. Or please show us your mold drawing, including the width and height of your curb, we will recommend a suitable model for your project.

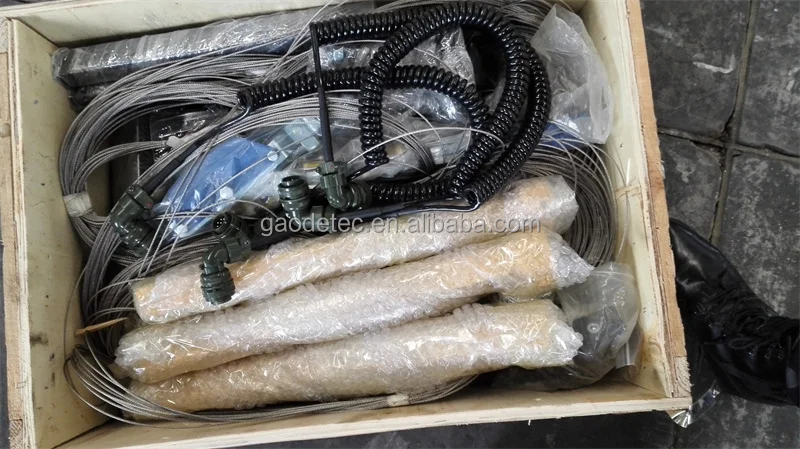

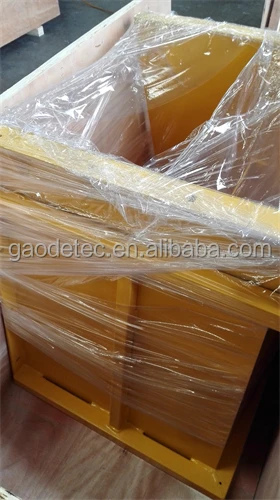

Packaging&Shipping

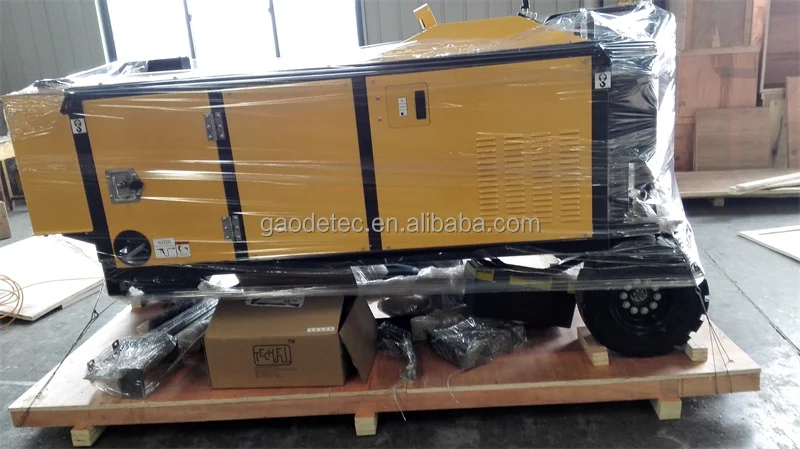

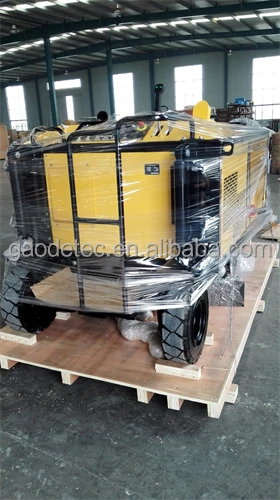

1. Wrapped by the plastic film;
2. Packaged with plywood, wooden cases, or according to your requirements.
2. Packaged with plywood, wooden cases, or according to your requirements.
Related Product
Company Profile
Contact Us
In order to recommend you a most suitable concrete curb machine, please let us know clearly about your requirements:
1. Could you please show us your mold drawing, including the width and height of your curb?
2. Do you want gasoline engine driven or diesel engine driven?
3. What's your quantity?
4. Which project do you do?
2. Do you want gasoline engine driven or diesel engine driven?
3. What's your quantity?
4. Which project do you do?
