PET Washing And Drying Production Line
Working Flow:

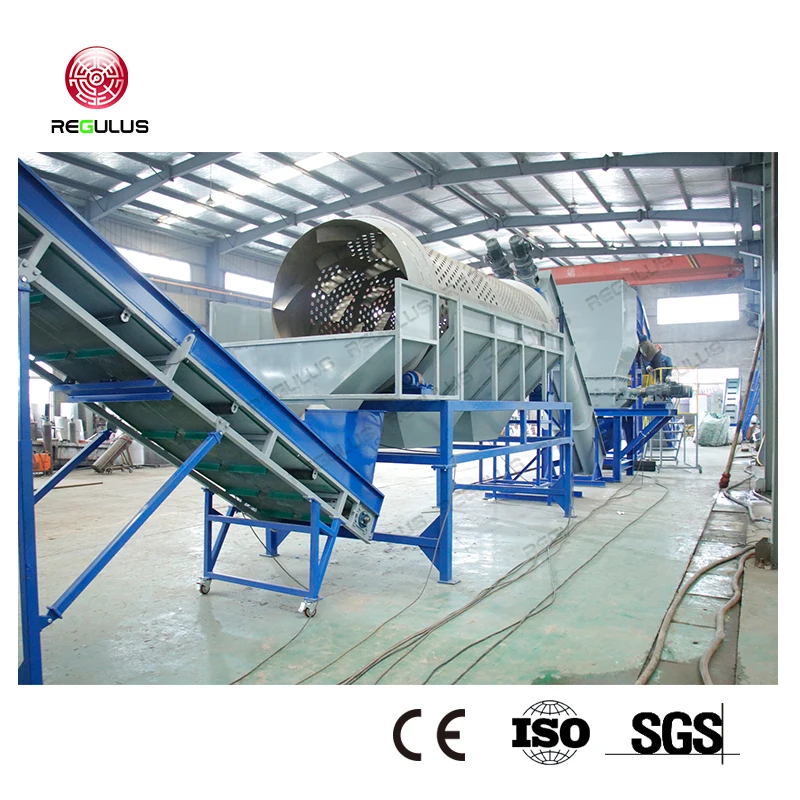

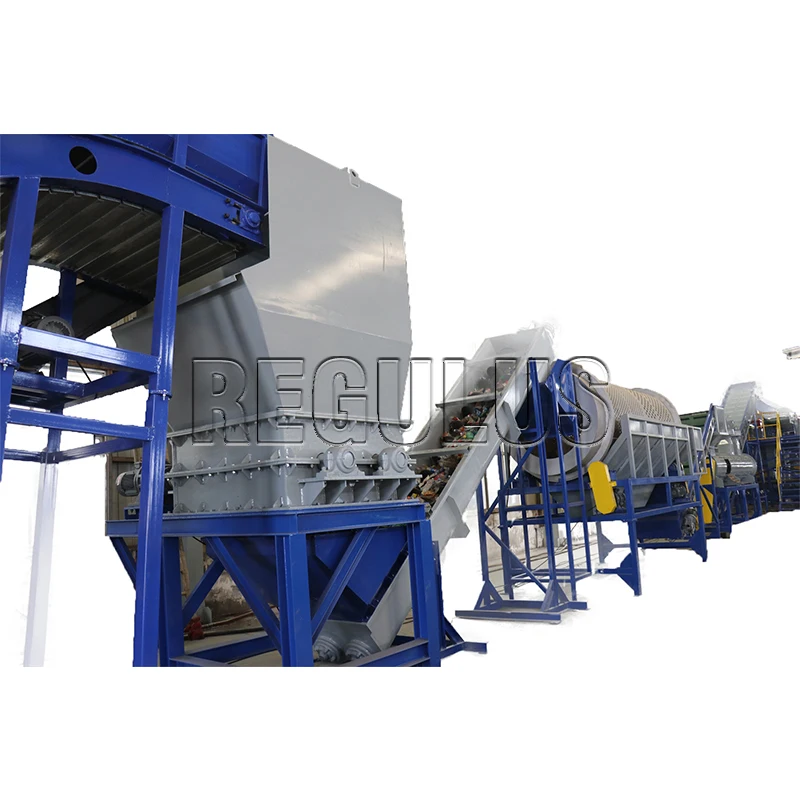

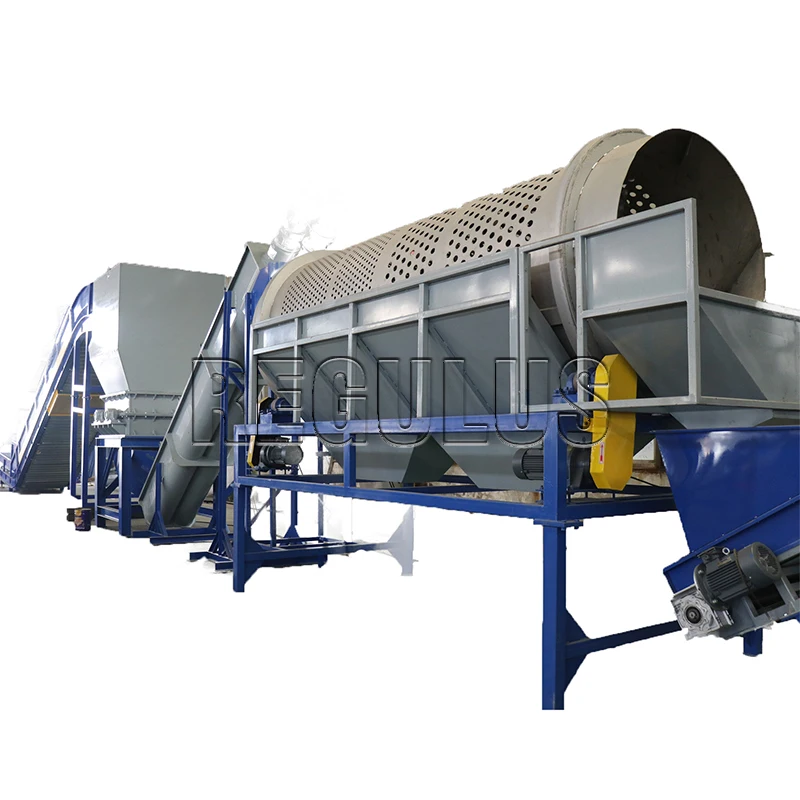

Belt conveyor → Bale opener machine → Belt conveyor → Pre-washer (trommel) →Belt conveyor → Mechanical label remover → Manual separating table → Metal detector →Belt conveyor → Crusher *2→ Screw conveyor*2 → Floating washer →Screw conveyor → Hot washer chamber *2 →Screw conveyor*2 → High speed friction machine → Screw conveyor → Floating washer → Screw conveyor →Floating washer →Screw conveyor → Horizontal dewatering machine → Drying pipe system → Zig zag air classification system → Storage hopper → Control
cabinet
cabinet
Product Description
Production Line Overview:
This production line is a special cleaning equipment for smashing PET bottles (Coke bottles) and waste PET plastics into plastic particles after sorting and de-labeling. The production line is developed by introducing, digesting and absorbing the advanced concepts and technologies of the international industry, combined with the national conditions of Saudi Arabia and the characteristics of the secondary application of waste plastics. It can meet the environmental protection requirements for the recycling of waste plastics.
The production line produces finished plastic pellets with a shape of less than 12mm.
The production line produces finished plastic pellets with a shape of less than 12mm.
Equipment Operation

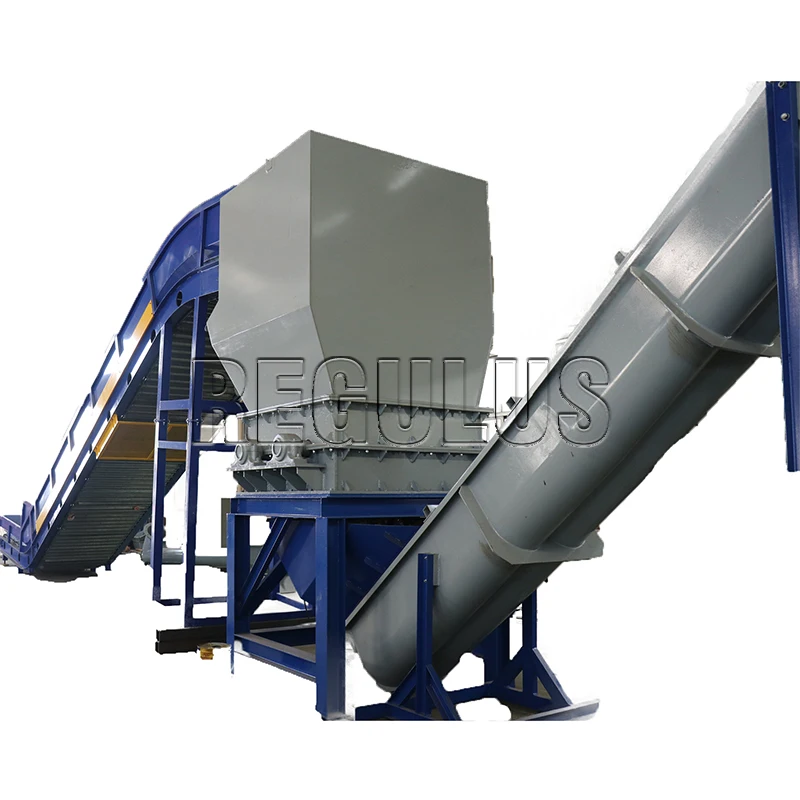

Crusher:
●rotor with balance treatment for stability and low noise
●rotor with heat treatment for long lifespan
●wet crushing with water, which can cool the blades and wash the plastic in advance
●can also choose shredder before the crusher
●special rotor structure design for different plastics like bottles or film
●blades made of special material, with high hardness
●easy operation to change blades or screen mesh
●high capacity with stability
●rotor with heat treatment for long lifespan
●wet crushing with water, which can cool the blades and wash the plastic in advance
●can also choose shredder before the crusher
●special rotor structure design for different plastics like bottles or film
●blades made of special material, with high hardness
●easy operation to change blades or screen mesh
●high capacity with stability

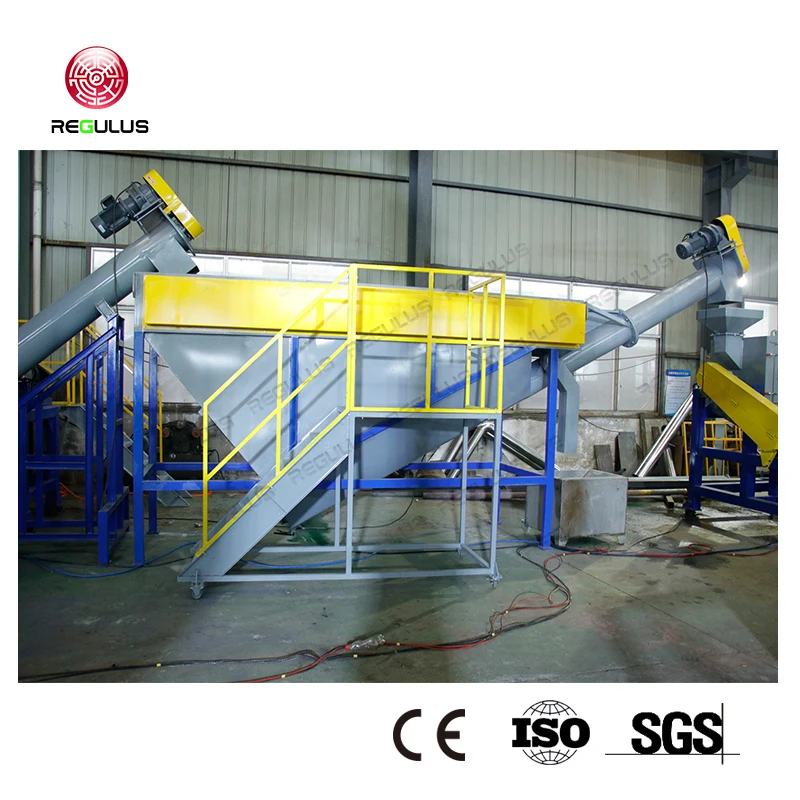

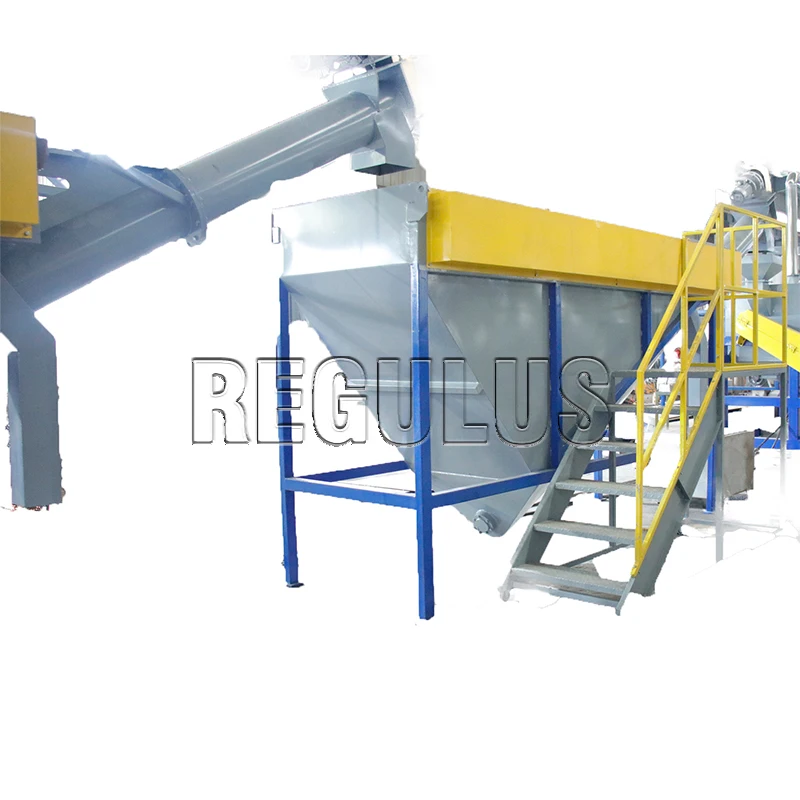

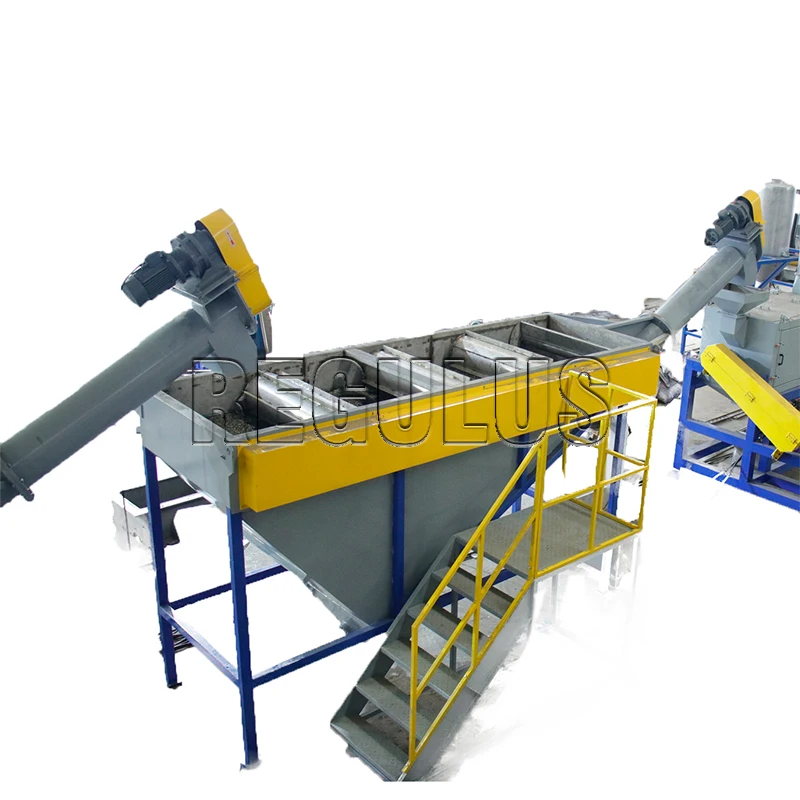

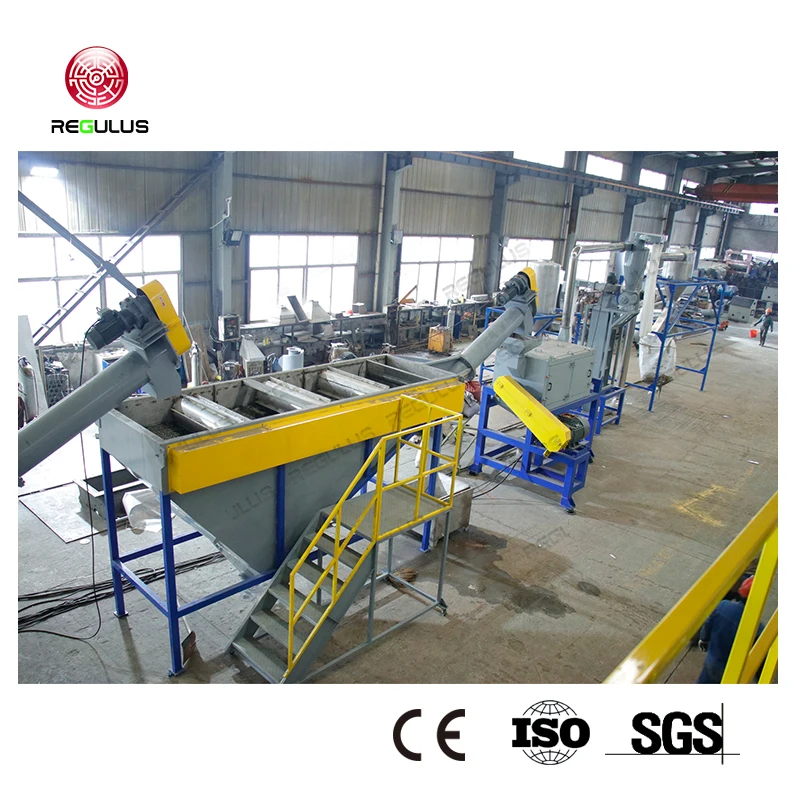

Floating washer:
●rinse the pieces of flakes or scraps in water
●can use hot type washer to add chemical for washing
●upper roller be inverter controlled
●all tank made of SUS304 or even 316L if needed
●bottom screw can process sludge
●can use hot type washer to add chemical for washing
●upper roller be inverter controlled
●all tank made of SUS304 or even 316L if needed
●bottom screw can process sludge

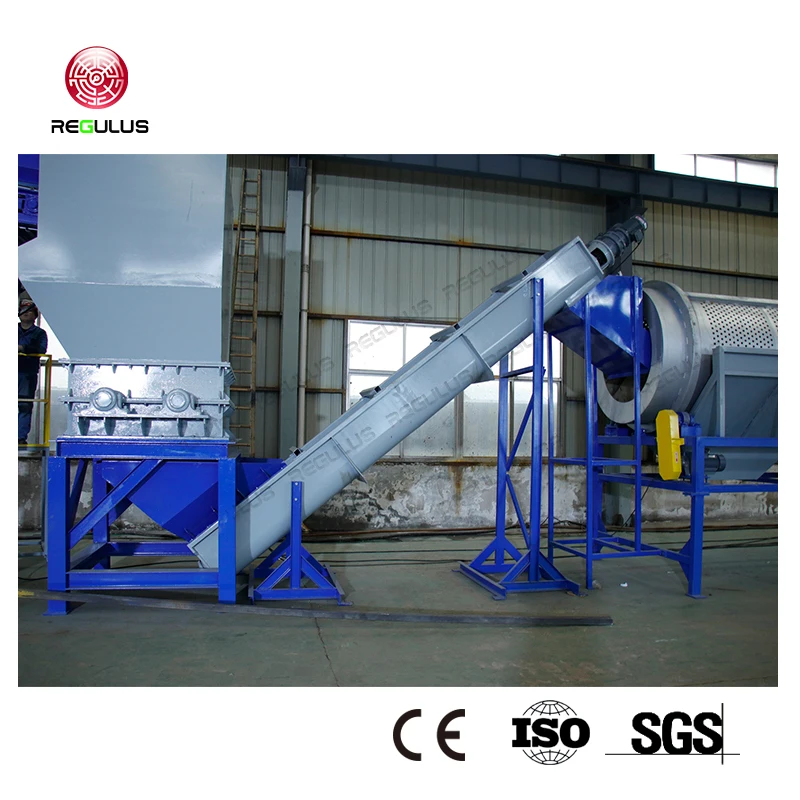

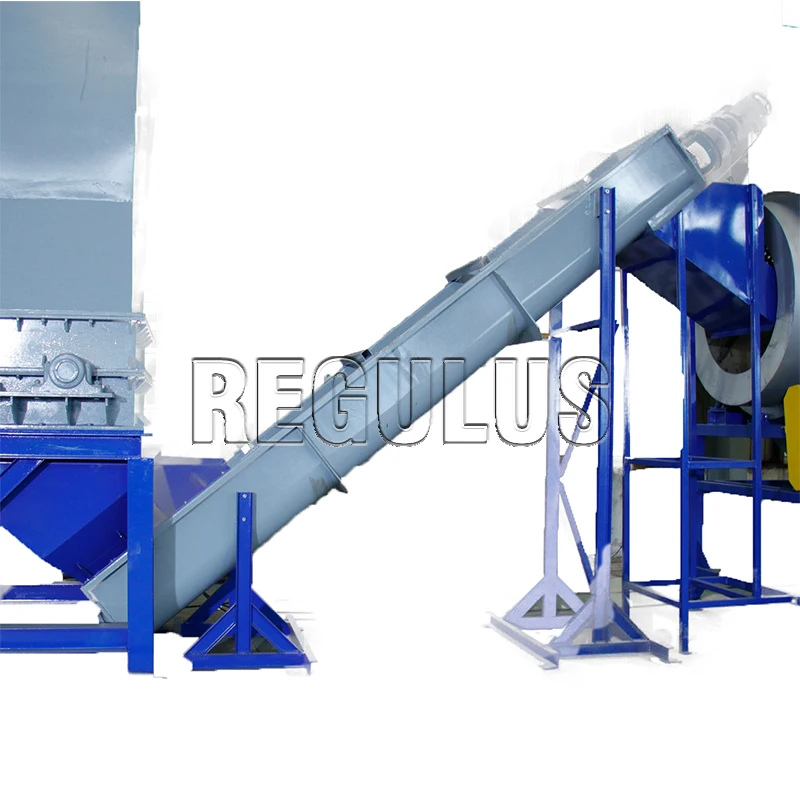

Screw conveyor:
●Conveying plastic materials
●Made of SUS 304
●With water input to rub and wash the plastic scraps
●with 6mm vane thickness
●made by two layers, dewatering screw type
●hard tooth gear box which ensures long lifespan
●special bearing structure to protect bearing from possible water leakage.
●Made of SUS 304
●With water input to rub and wash the plastic scraps
●with 6mm vane thickness
●made by two layers, dewatering screw type
●hard tooth gear box which ensures long lifespan
●special bearing structure to protect bearing from possible water leakage.

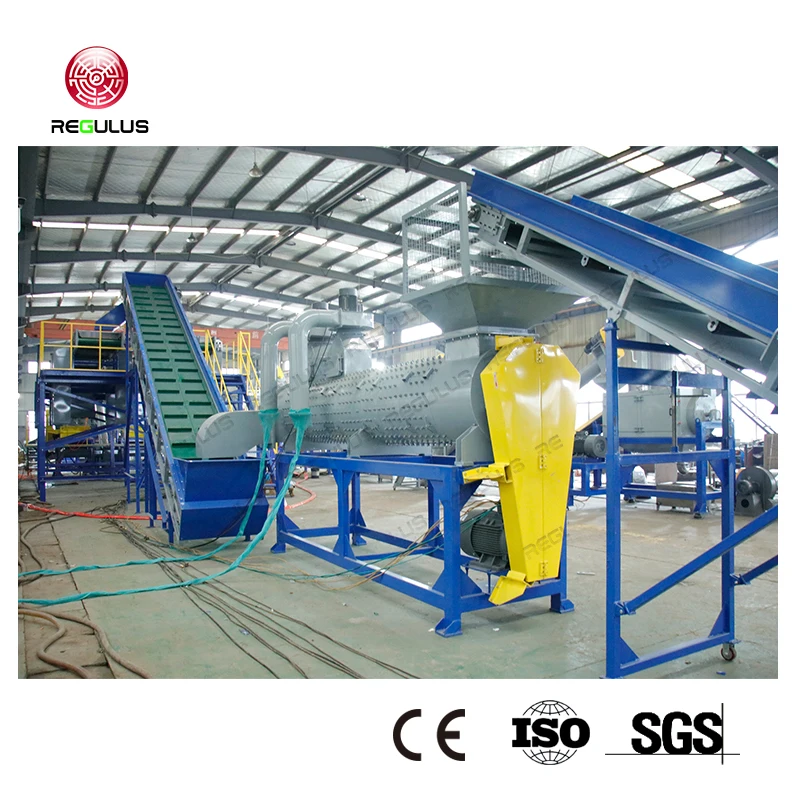

Friction Washing:
●Friction to clean the materials mechanically
●rotor made of strong&thick material, surface treatment with alloy
●rotor with balance treatment for stability
●rotor with heat treatment for long lifespan
●The bearing is externally connected with water cooling sleeve, which can effectively cool the bearing.
●rotor made of strong&thick material, surface treatment with alloy
●rotor with balance treatment for stability
●rotor with heat treatment for long lifespan
●The bearing is externally connected with water cooling sleeve, which can effectively cool the bearing.
Dewatering Machine:
●Drying materials by centrifugal force
●rotor made of strong&thick material, surface treatment with alloy
●rotor with balance treatment for stability
●rotor with heat treatment for long lifespan
●The bearing is externally connected with water cooling sleeve, which can effectively cool the bearing.
●rotor made of strong&thick material, surface treatment with alloy
●rotor with balance treatment for stability
●rotor with heat treatment for long lifespan
●The bearing is externally connected with water cooling sleeve, which can effectively cool the bearing.
Specification
Model | Capacity(kg/h) | Power Consumption(kw) | Waste Consumption(ton/h) | Manpower | Humidity Content |
XY-PET500 | 500kg/h | 220 kw | 1 ton/h | 8 | <1% |
XY-PET1000 | 1000kg/h | 245 kw | 3 ton/h | 5 | <1% |
XY-PET1500 | 1500kg/h | 320 kw | 4 ton/h | 5~6 | <1% |
XY-PET2000 | 2000kg/h | 394 kw | 5 ton/h | 6 | <1% |
XY-PET3000 | 3000kg/h | 580 kw | 6 ton/h | 7 | <1 % |
XY-PET4000 | 4000kg/h | 720 kw | 8 ton/h | 10 | <1% |
XY-PET6000 | 6000kg/h | 1200 kw | 10 ton/h | 16 | <1% |

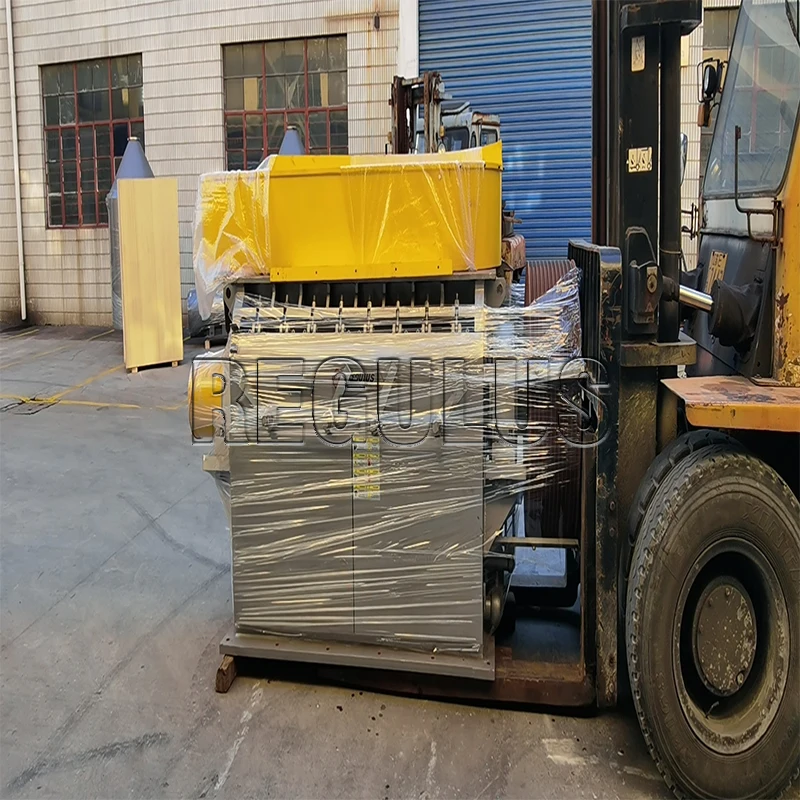

Packing & Delivery
wooden box
Company Profile
Zhangjiagang Regulus Machinery CO.,LTD boasts teams of professional and high-efficient colleagues in technology, management, sales, and service. with our continuous efforts in technology development and product quality control, we have been adhere to the principle of putting customer's benefit at the first place by providing the most competitive technique in plastic industry within the shortest period of time to create a higher value for customer.
