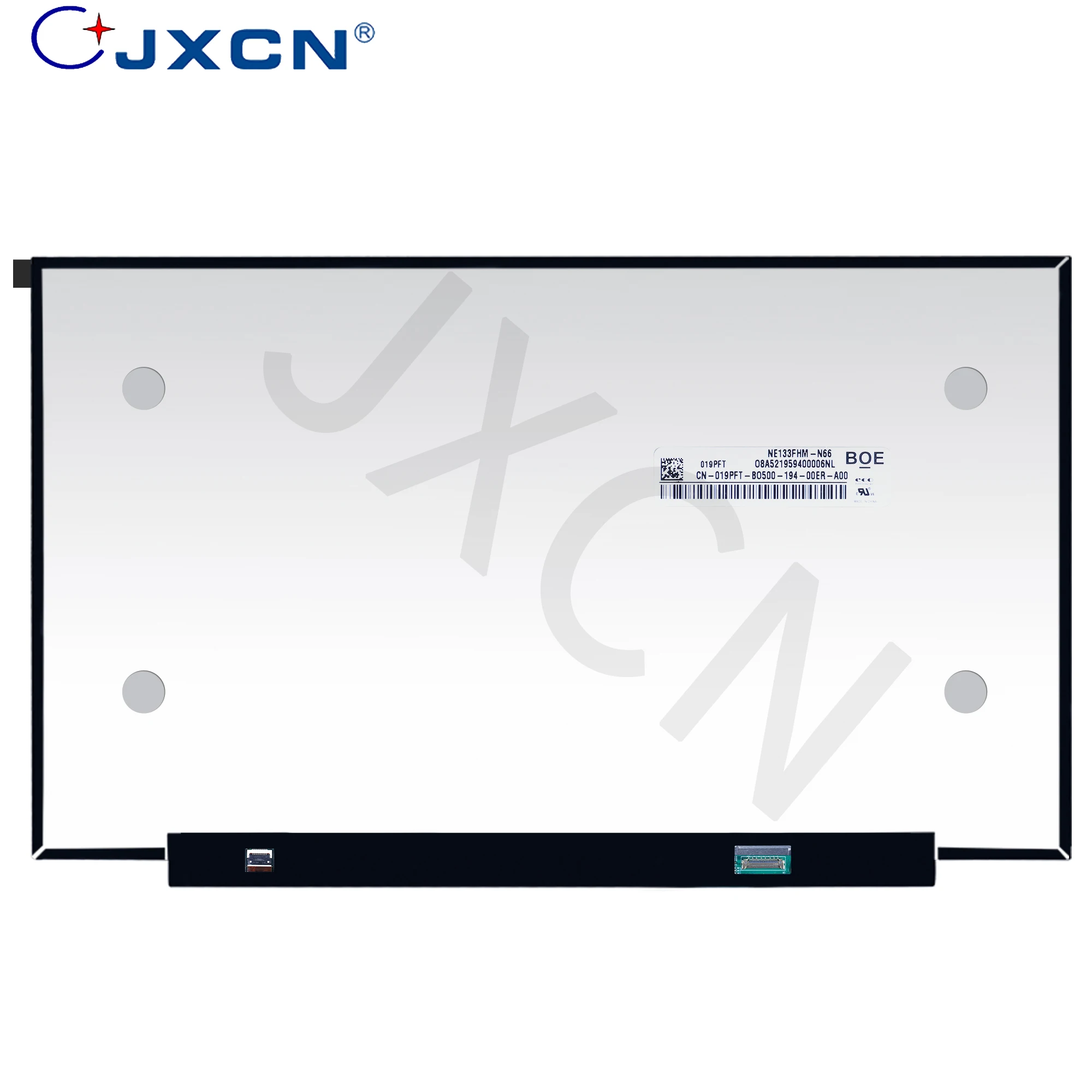

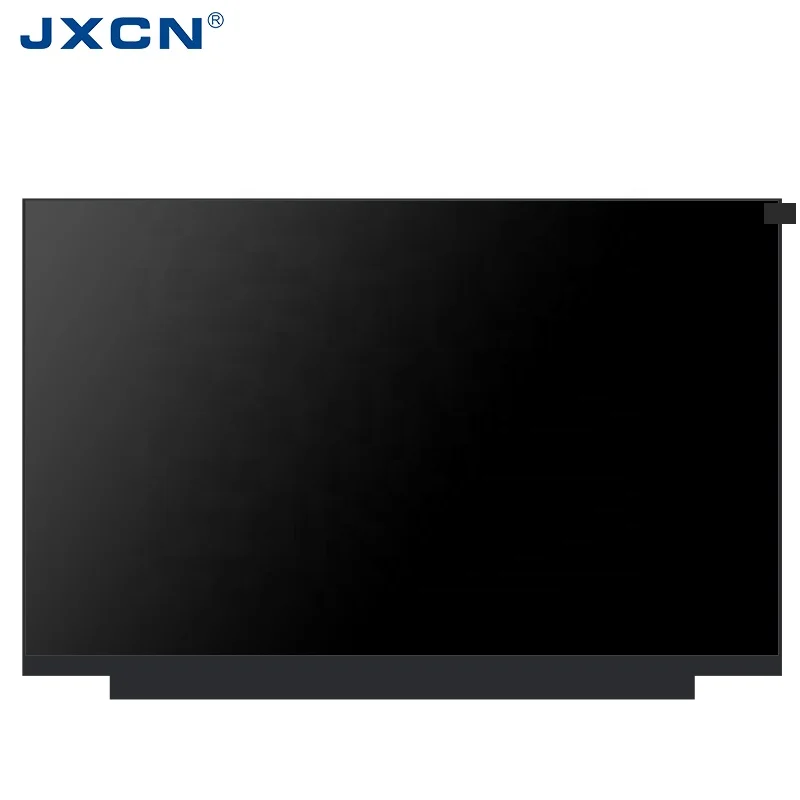

NV156FHM N48 N45 N69 N43 N4C N35 N3X N4X N6A FHD 1980*1080 45% 100% sRGB 15,6 дюймов Тонкий EDP 30PIN узкая сторона IPS экран ноутбука

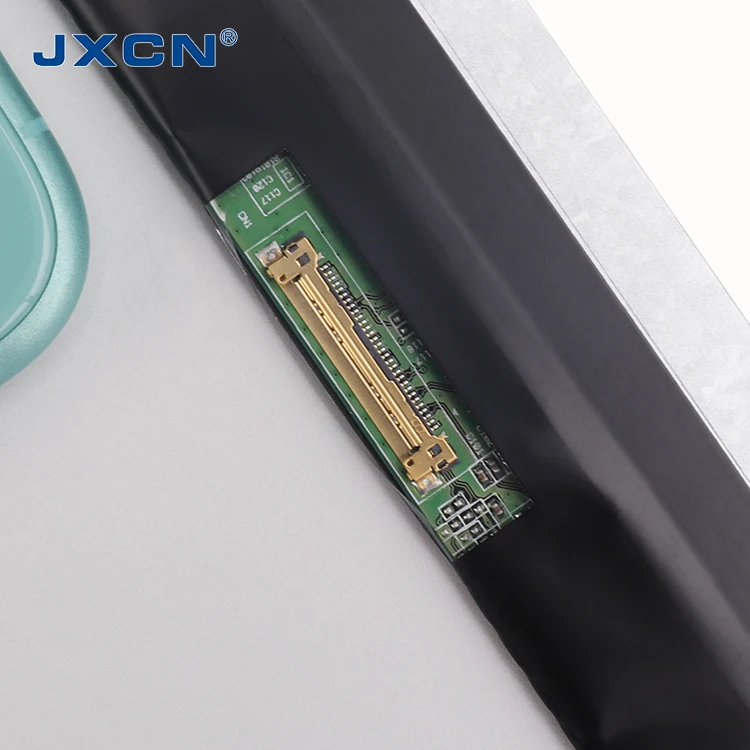

NV156FHM-N48 (product code: BOE0700) is a 15.6-inch LCD module product using a-Si TFT-LCD technology launched by BOE Technology Group Co., Ltd. (BOE, BOE), it is equipped with WLED backlight, including LED driver Backlight driven, no touch. According to the product specification with version number Rev.P1 released by BOE on January 6, 2016, the display resolution of NV156FHM-N48 is 1920(RGB)×1080(FHD), and the aspect ratio is 16:9 ( width:height), the pixels are arranged in RGB vertical stripes. Its display area size is 344.16×193.59 (W×H) mm, the appearance size is 350.66×216.25 (W×H)×3.2 (D) mm, the surface treatment is matte, and the net weight of the product is 360g (Max.) The appearance style is Thin screen (PCBA is straight, thickness≤3.2mm). In terms of backlight, this product adopts 10S4P WLED light-emitting edge light source (bottom), the service life of the light source is 15K hours, including LED driver. NV156FHM-N48 adopts eDP (2 Lanes) signal interface, a total of 30 pins, which are connected by terminals, and the drive voltage is 3.3V (Typ.). Its typical vertical refresh rate Fv is 60Hz.
