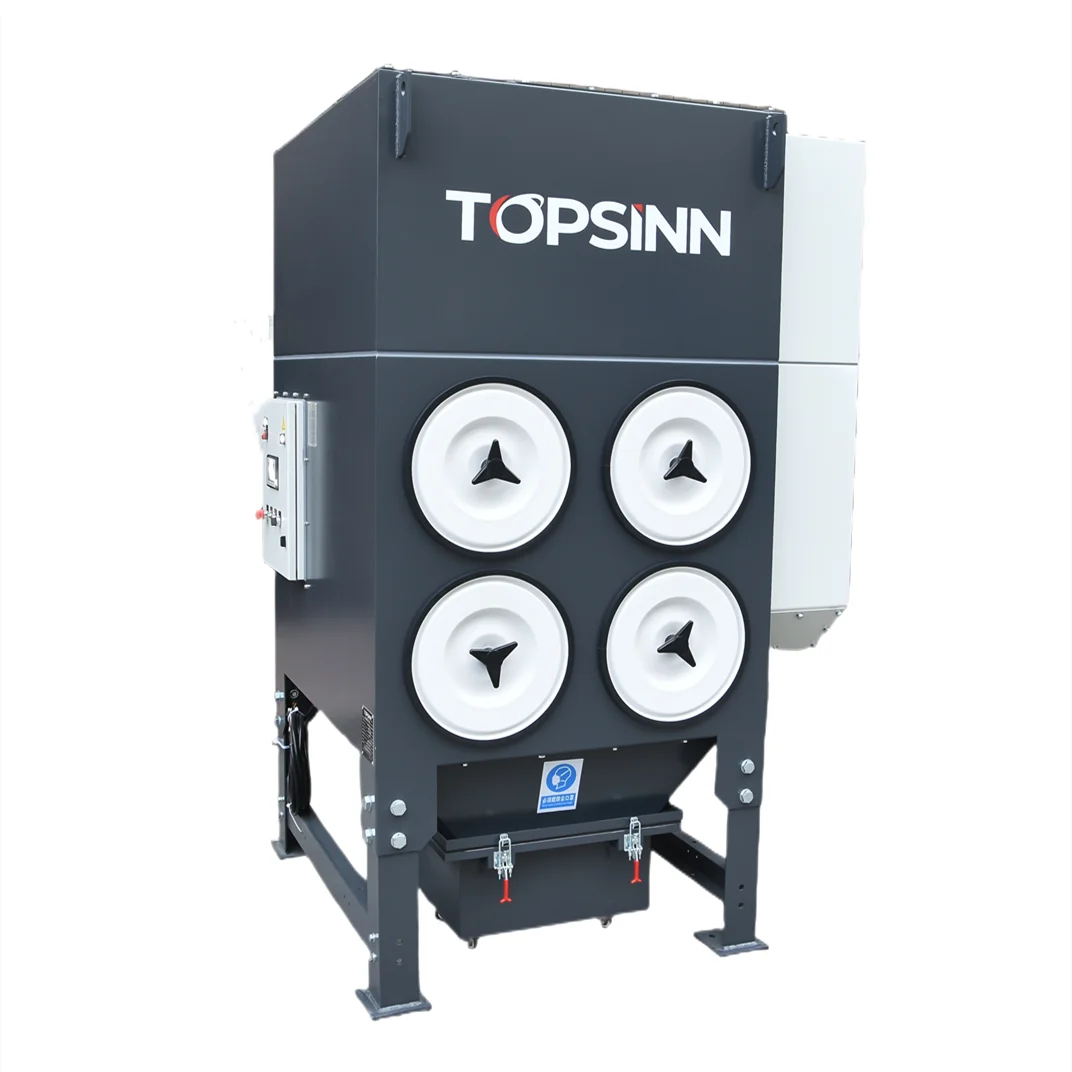

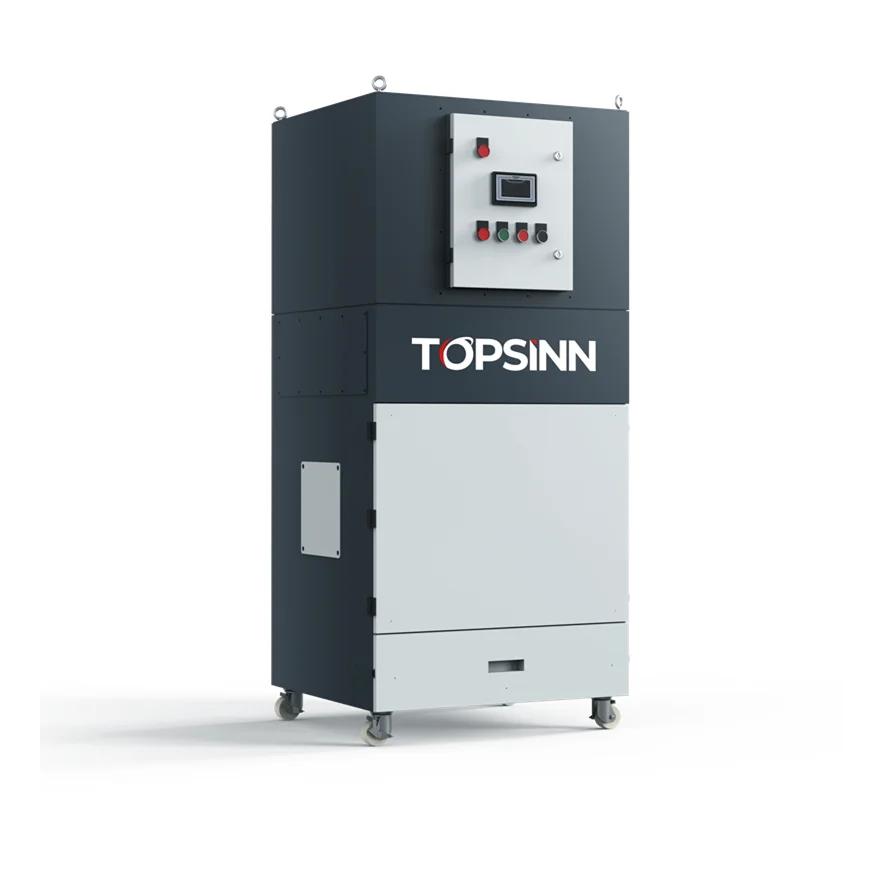

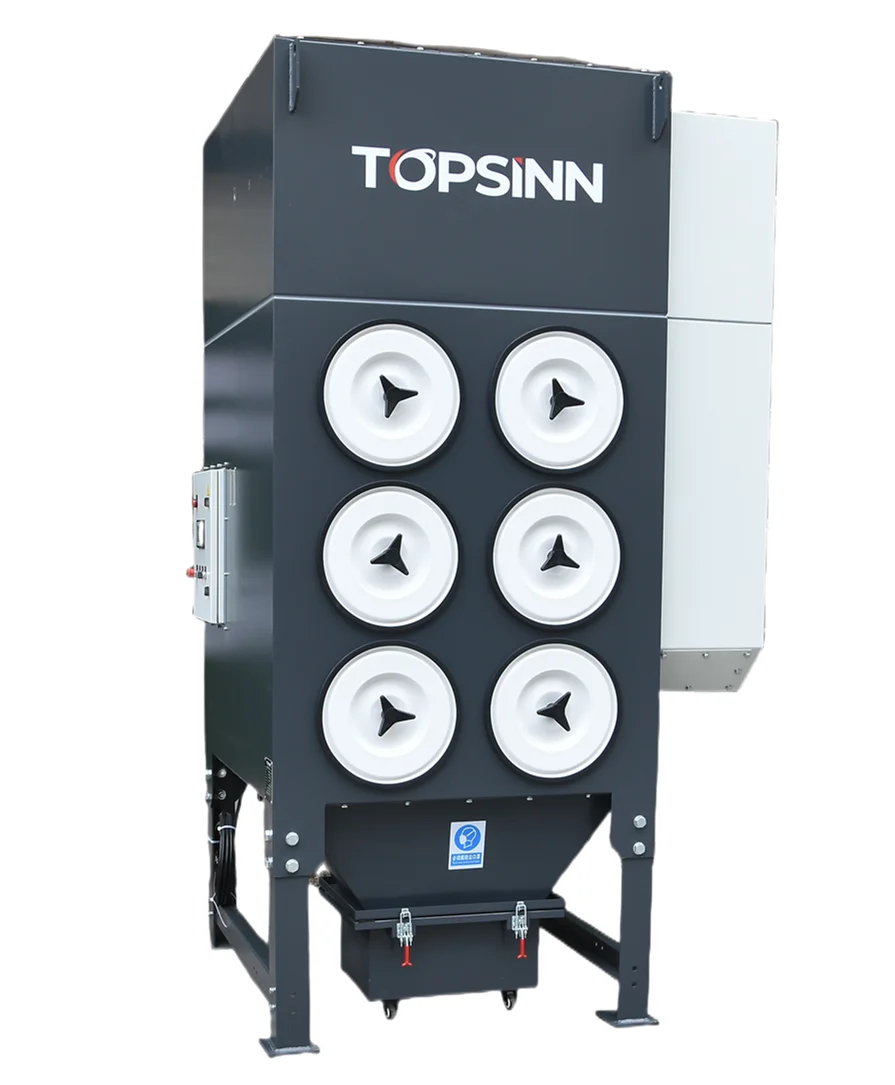

2 Filters Cartridge Dust Collector Welding Fume Collector Dust collector
Model | TODC-4L/6L/8L/2M |

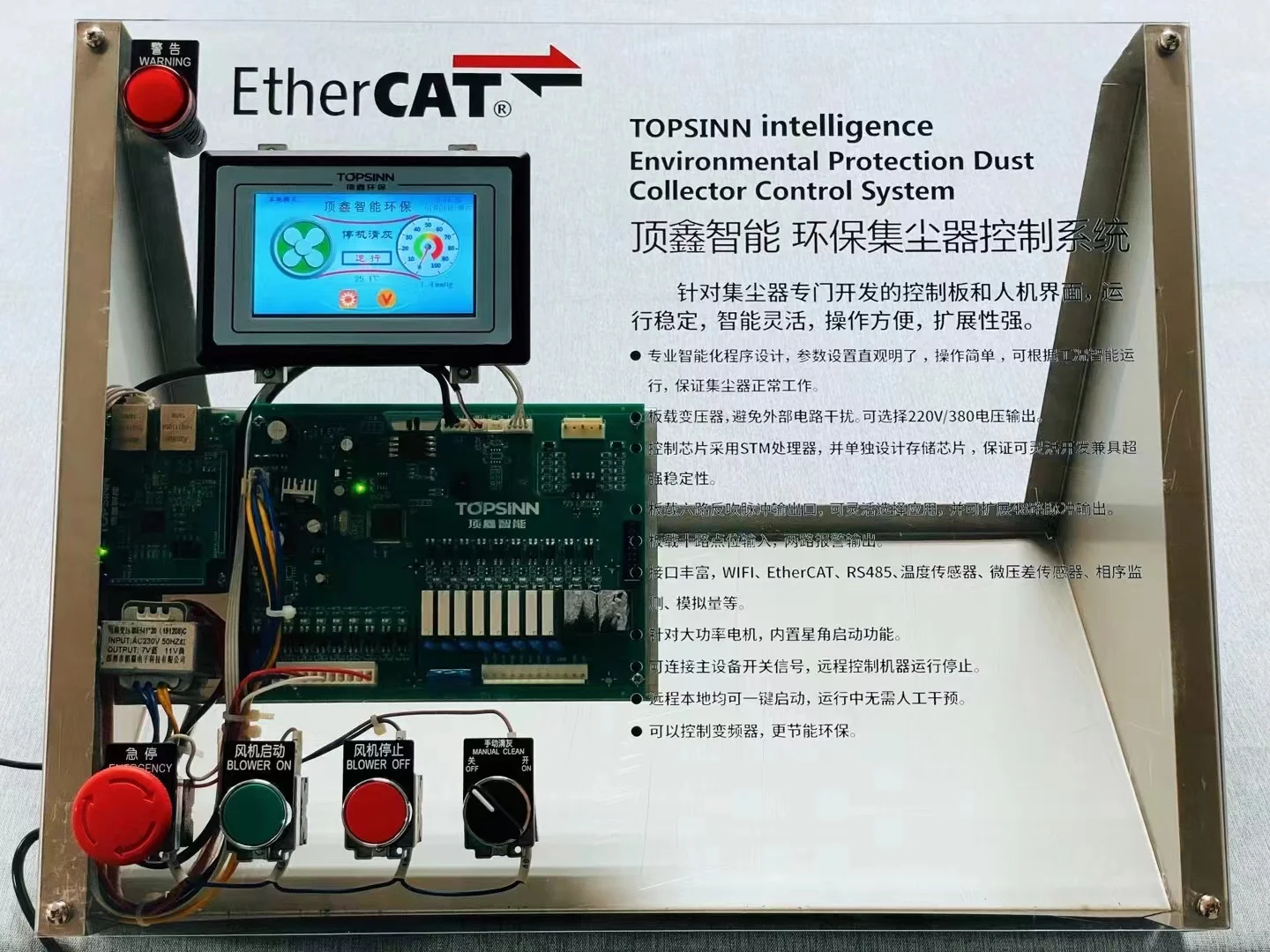

Controller | Independent R&D |

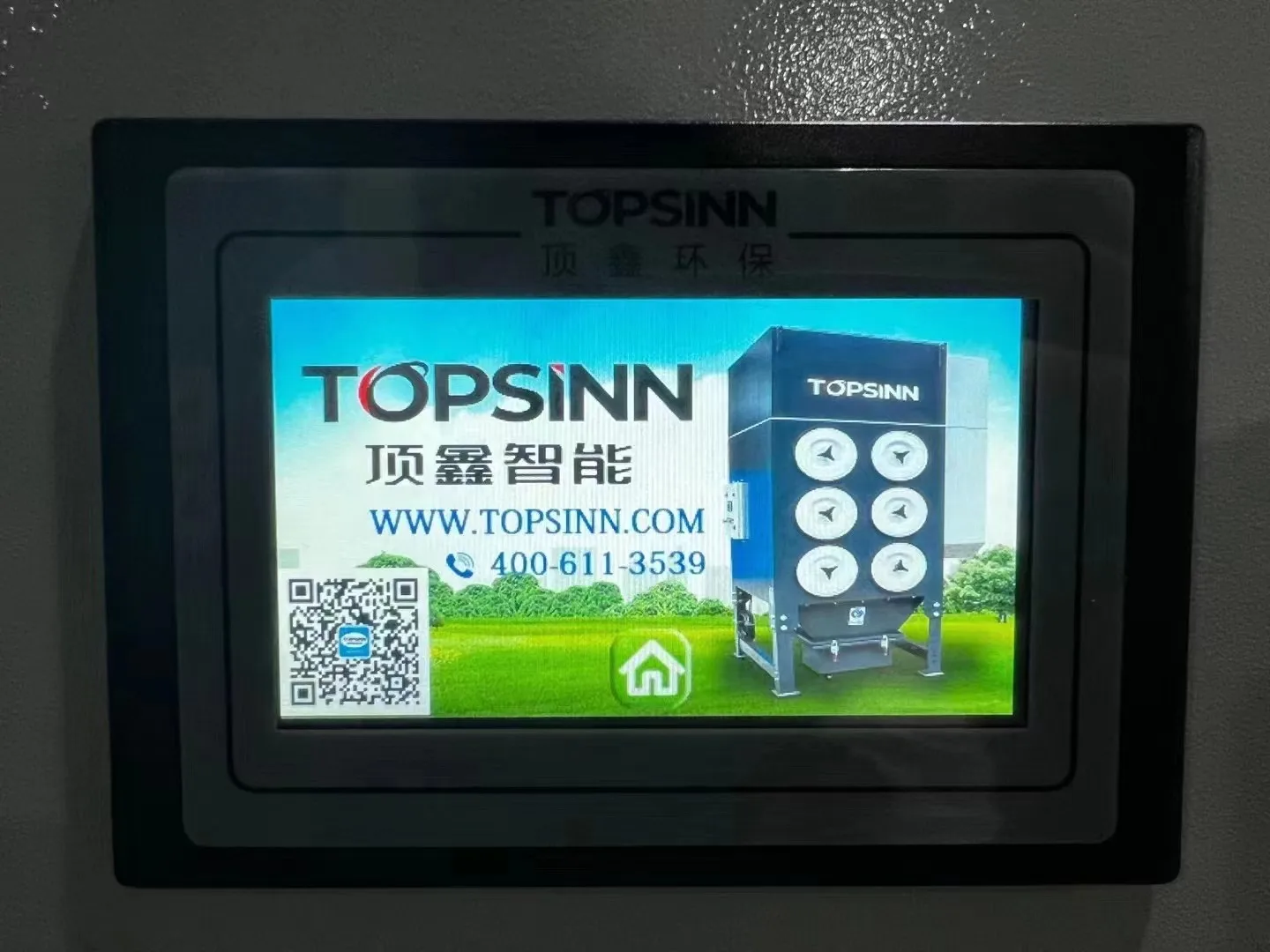

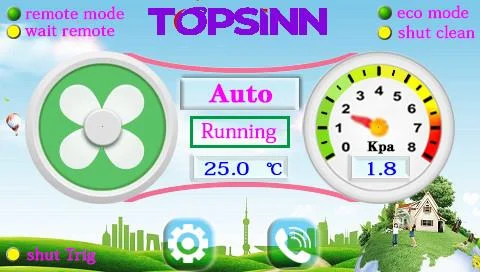

HMI | 4.3 Touch Screen |
Motor | SIMENS |
Backflush Valve | Pulse Control |

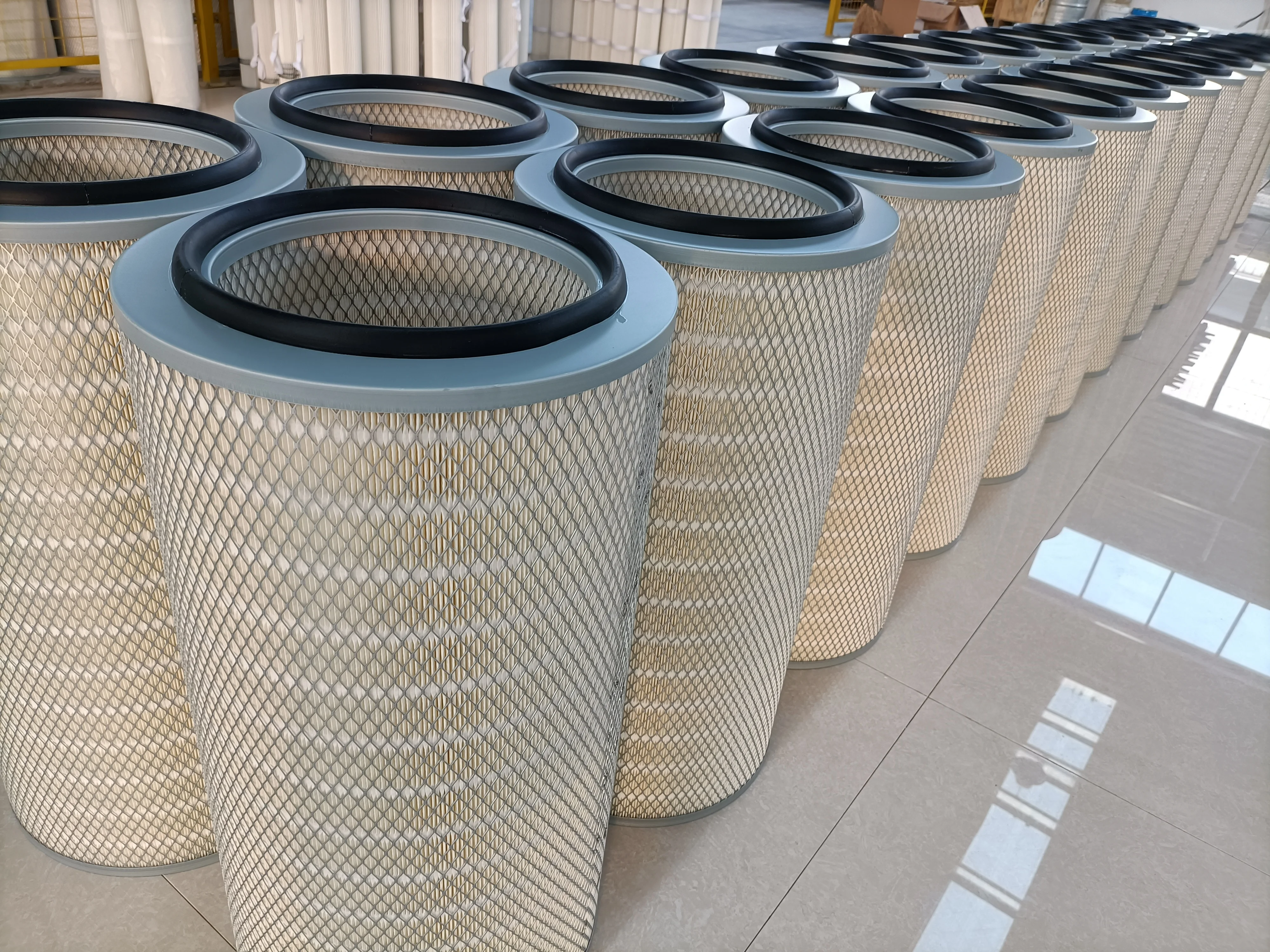

Filter | HV/Ahlstrom/TORAY |
Protocol | EtherCAT |
Energy Saving(optional) | Inverter Control |
Model | TODC-4L | TODC-6L | TODC-8L | TODC-2M | |||
Filter Cartridge Material | HV/Ahlstrom/TORAY, F9 | ||||||
Number of Filter | 4 | 6 | 8 | 2 | |||
Air Volume | 4000m3/h | 6000m3/h | 9000m3/h | 3000m3/h | |||
Air Pressure(Mpa) | 3000 | 3600 | 5000 | 2000 | |||
Filtration Efficiency | 99.99% | 99.99% | 99.99% | 99.99% | |||
Filtering Area | 80M2 | 120M2 | 160M2 | 40M2 | |||
Air Blower | 5.5KW SIEMENS | 7.5KW SIEMENS | 11KW SIEMENS | 3KW SIEMENS | |||
Collector Capacity | 45L | 50L | 90L | 120L | |||
Power Requirements | THREE PHASE,FOUR WIRE,380V | ||||||
Air Pressure Request | 0.6-0.7Mpa,Compressed Air Without Oil and Water | ||||||
Unit Weight | 700kg | 900kg | 1200kg | 400kg | |||

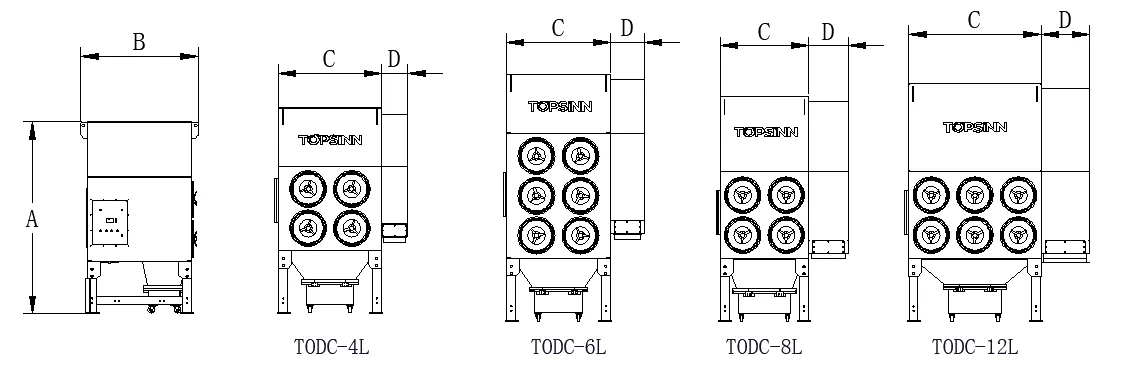

Outline Dimension(mm) | A:2198 B:1348 C:1060 D:303 | A:2837 B:1423 C:1180 D:383 | A:2575 B:2215 C:1016 D:453 | A:913 B:720 C:1917 | |||
Emission Concentration(mg/m3) | ＜10 | ＜10 | ＜10 | ＜10 | |||
TODC-4L-5.5KW | TODC-6L-7.5KW | TODC-8L-11KW | TODC-2M-3KW |
