Promotional POF PVC PE film Heat shrink wrapping packing machine tunnel
- Category: Packaging Machines >>>
- Supplier: E-Pack Technology Co. Ltd.
Share on (1600566622328):
Product Overview
Description
Products Description

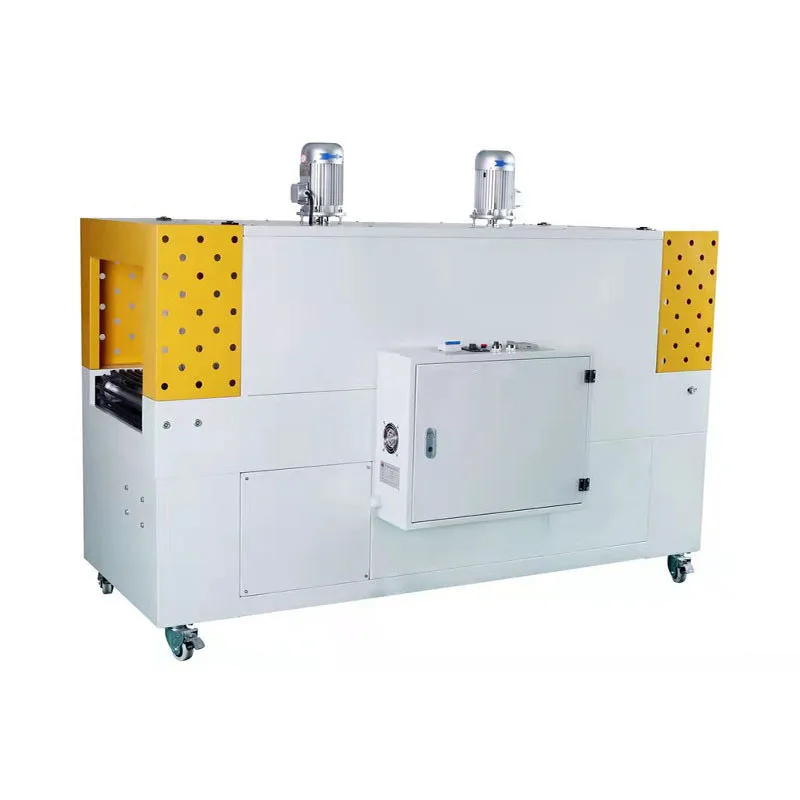

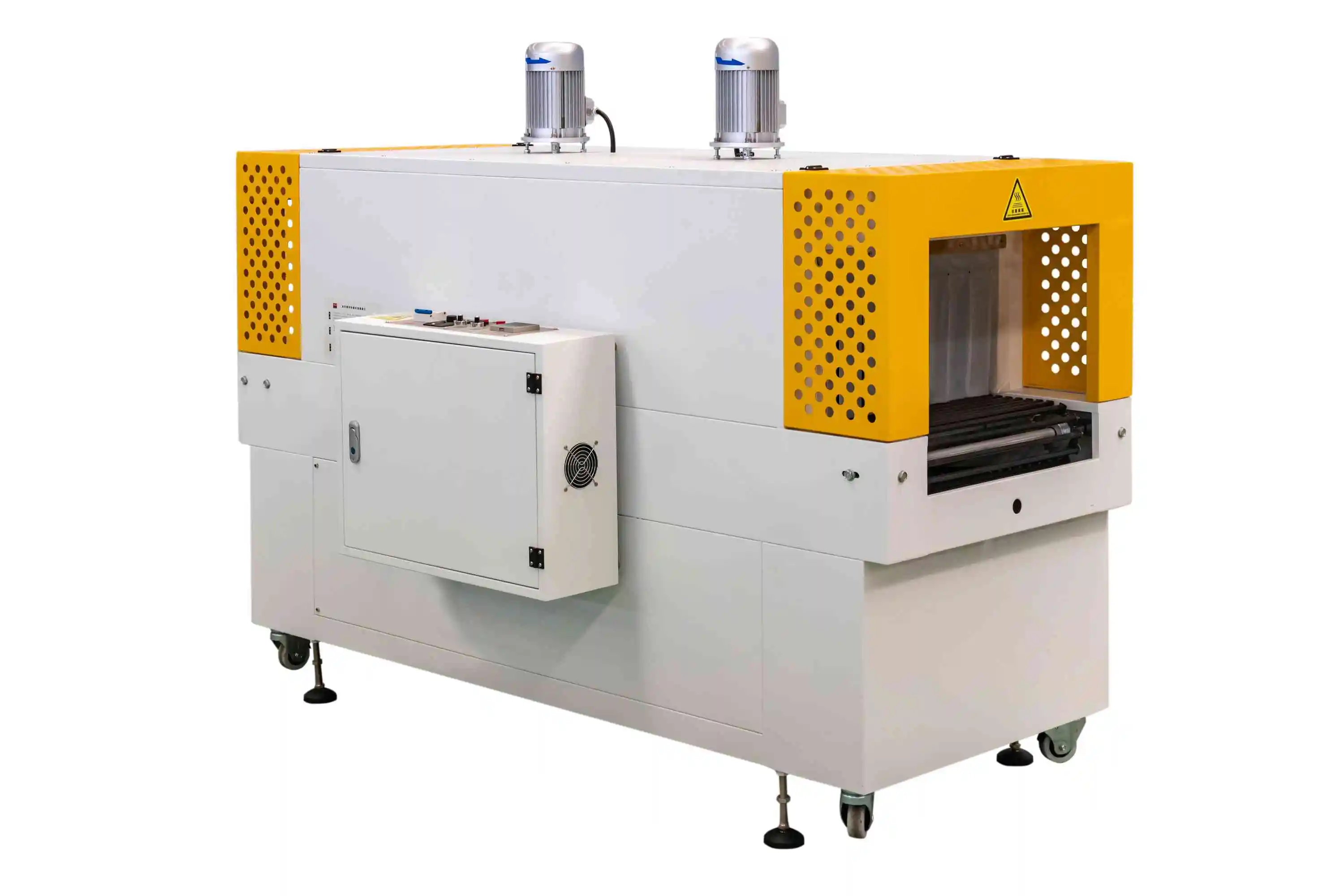

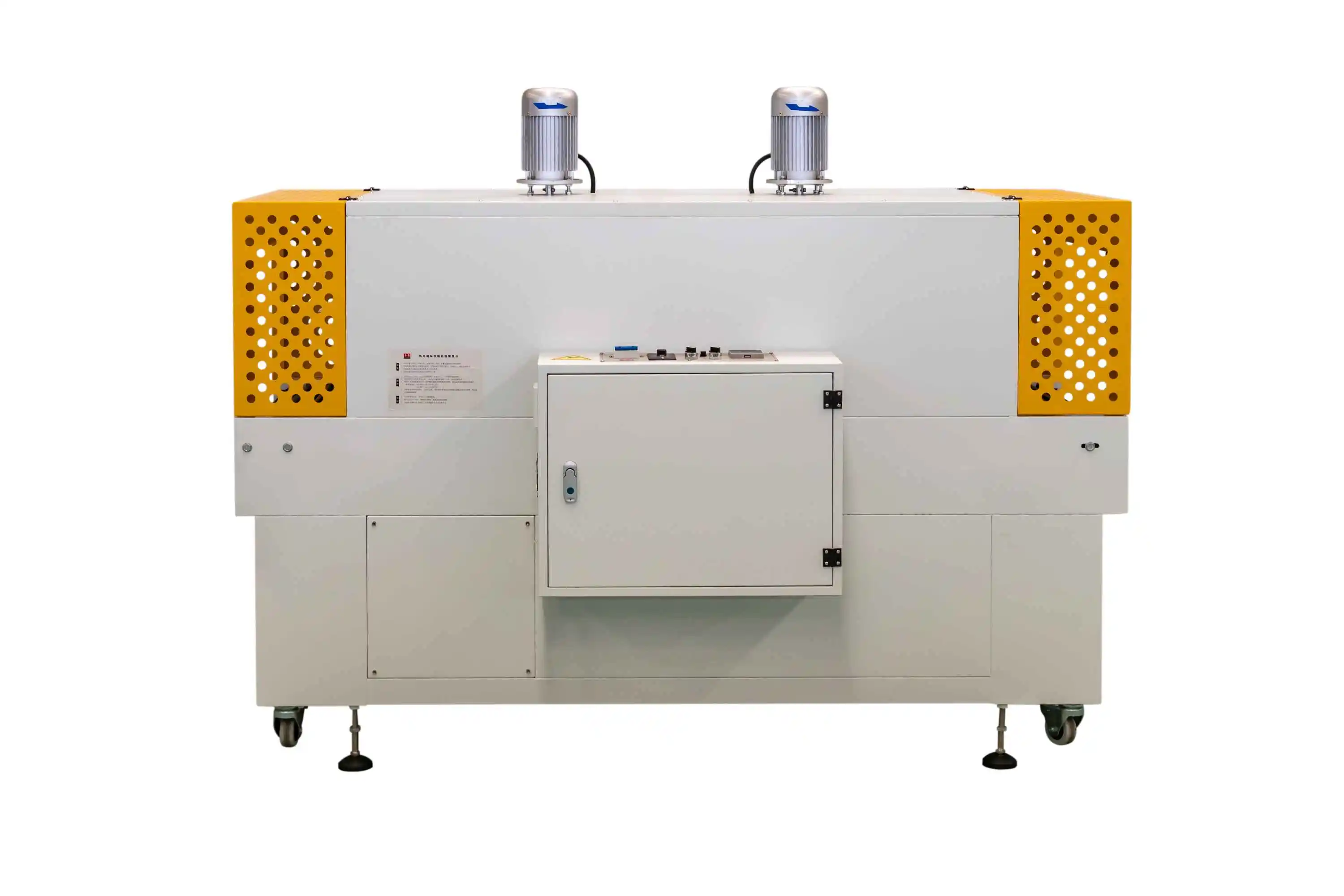

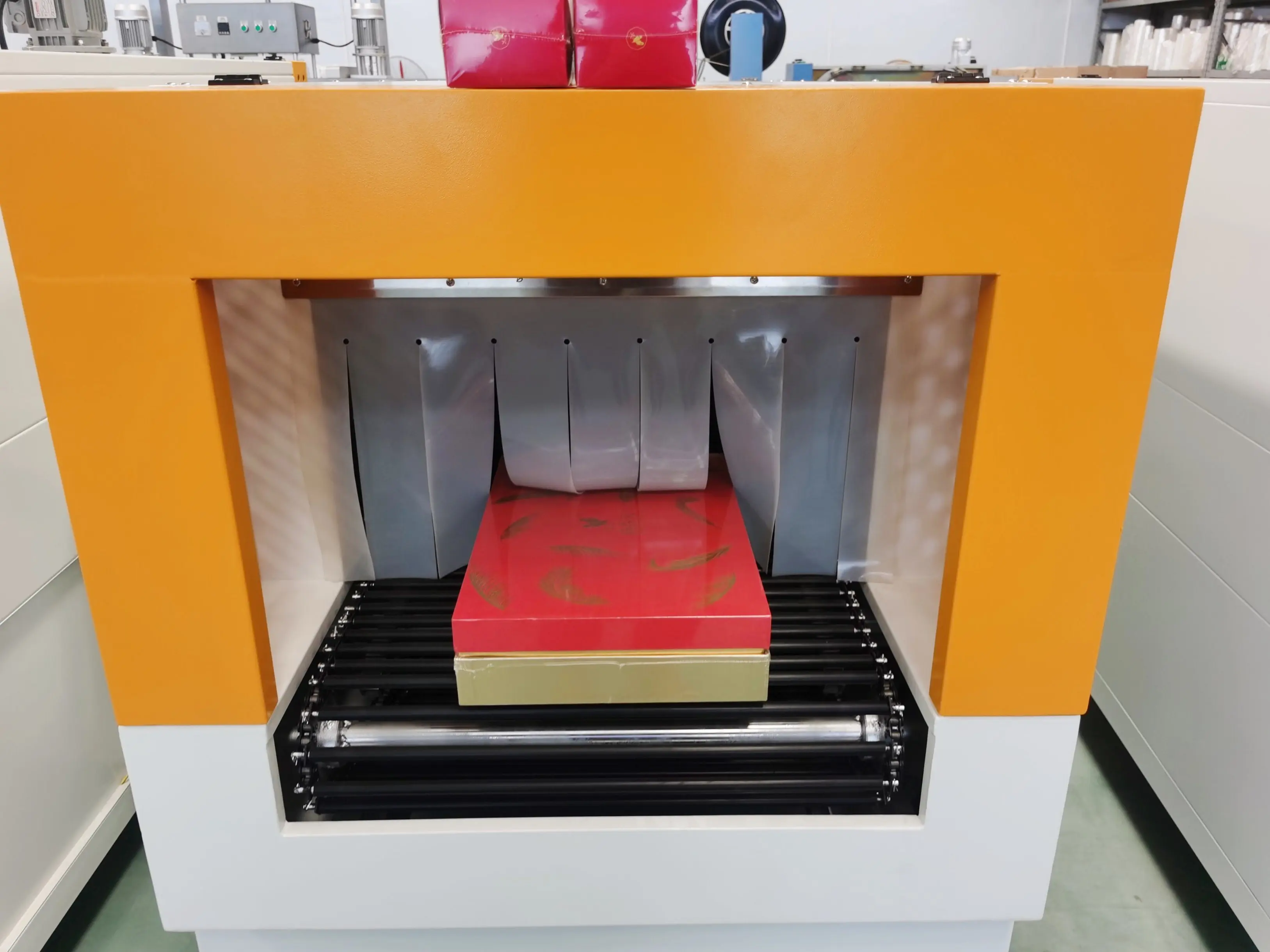

Automatic Heat Shrink tunnel Packing Machine
Heat Sealing Shrink Film Wrapping Air Convection Shrink Tunnel adopting advanced international technology is an economic shrink wrap machine with constant temperature, high efficiency, easy to operate, high-performance cost ratio.
This shrink wrapper is suitable for products grouped and packed together as well as the pallet products. It's wildly used in books, toys, foods, gift box, hardware, electric, etc.
This shrink wrapper is suitable for products grouped and packed together as well as the pallet products. It's wildly used in books, toys, foods, gift box, hardware, electric, etc.
Specification
Model | EPH-5530 |
Chamber Size, L x W x H | 1,500 x 550 x 300 mm (48'' x 18'' x 10'') |
Accept Package, W x H | Max. 450 x 250, mm (18" x 10") |
Chamber Temperature | Max. 200 oC (392 oF) |
Conveyor Speed | Max. 10 m (33') per minute |
Electrical | 380 v, 50 hz, 3 ph |
Power Consumption | 20 kw |

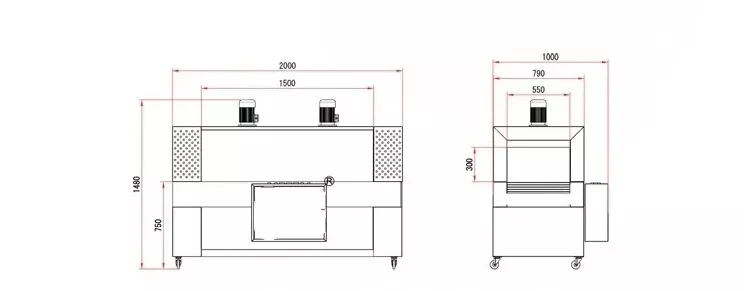

Machine Dimension, L x W x H | 2,000 x 790 x 1,500, mm (63" x 30" x 57") |
Weight | 200kg |
We offer customized model in accordance with users' specific demand. OEM and ODM orders are acceptable.
Features & Advantages
* Ideal contraction solution to box, case, carton, bottle and jar;
* Accepts packages up to 450 mm (17.7”) x 250 mm (9.8”);
* PP, POF & PVC shrink film compatible; * Finned heating elements delivers quick & even heat source;
* 20 mm asbestos insulation engineered as a double insulatedchamber to reduce heat loss;
* Heavy duty welded structural tube steel construction& superior quality components provides years of operation;

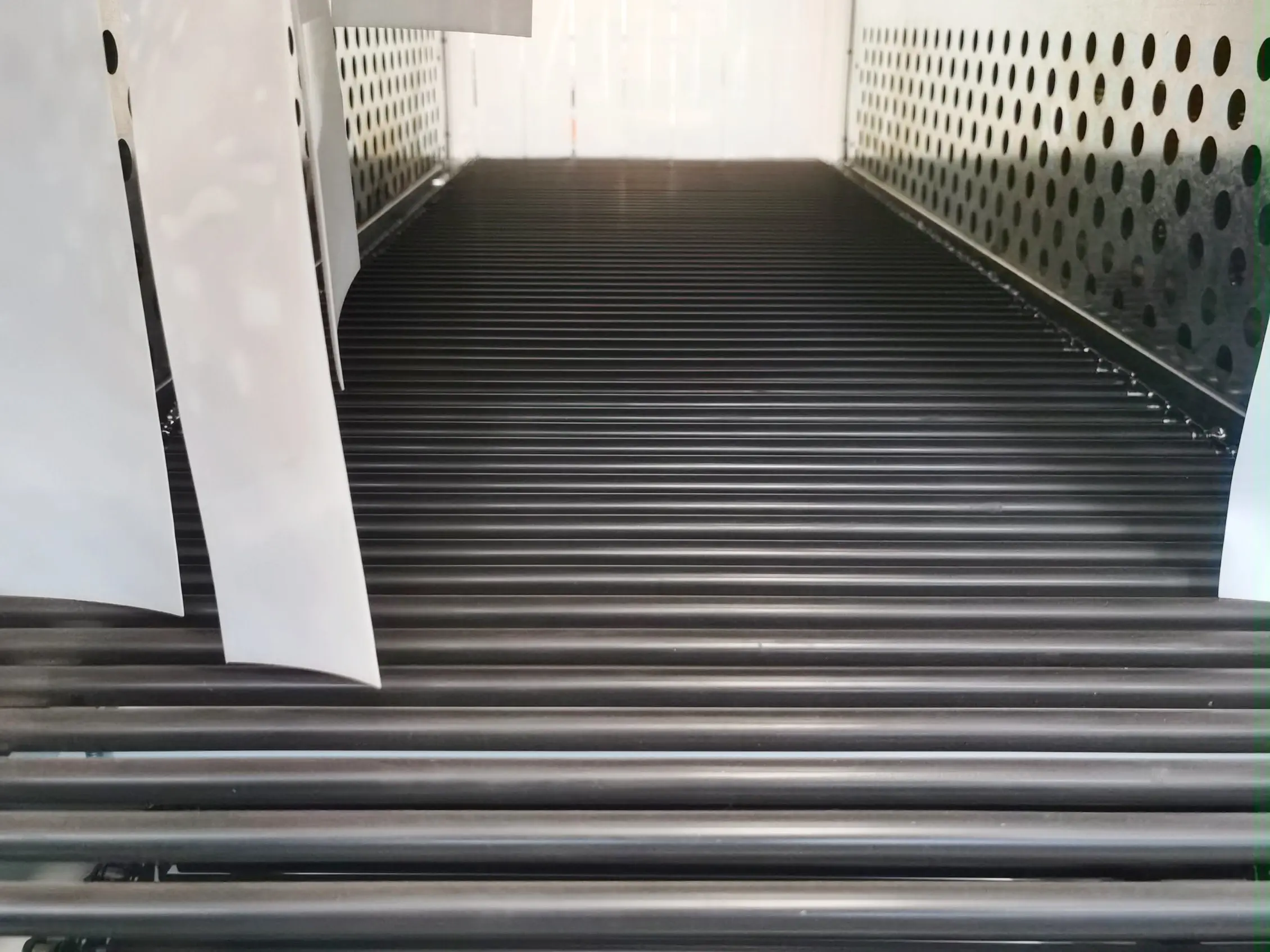

* Speed variable stainless steel mesh conveyor allows hot air to reach shrink film on packages from bottom and leaves no heat mark;
* Quality coating supports and protects the machines even work in harsh environment;
* Lock casters for easy re-location;
* Work alone or easy integration with production line;
* Custom model available on demand.
* Accepts packages up to 450 mm (17.7”) x 250 mm (9.8”);
* PP, POF & PVC shrink film compatible; * Finned heating elements delivers quick & even heat source;
* 20 mm asbestos insulation engineered as a double insulatedchamber to reduce heat loss;
* Heavy duty welded structural tube steel construction& superior quality components provides years of operation;
* Speed variable stainless steel mesh conveyor allows hot air to reach shrink film on packages from bottom and leaves no heat mark;
* Quality coating supports and protects the machines even work in harsh environment;
* Lock casters for easy re-location;
* Work alone or easy integration with production line;
* Custom model available on demand.

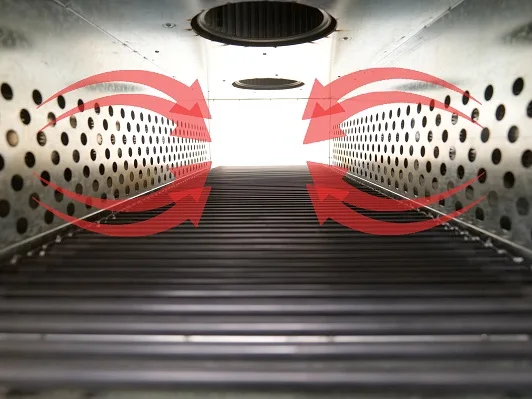

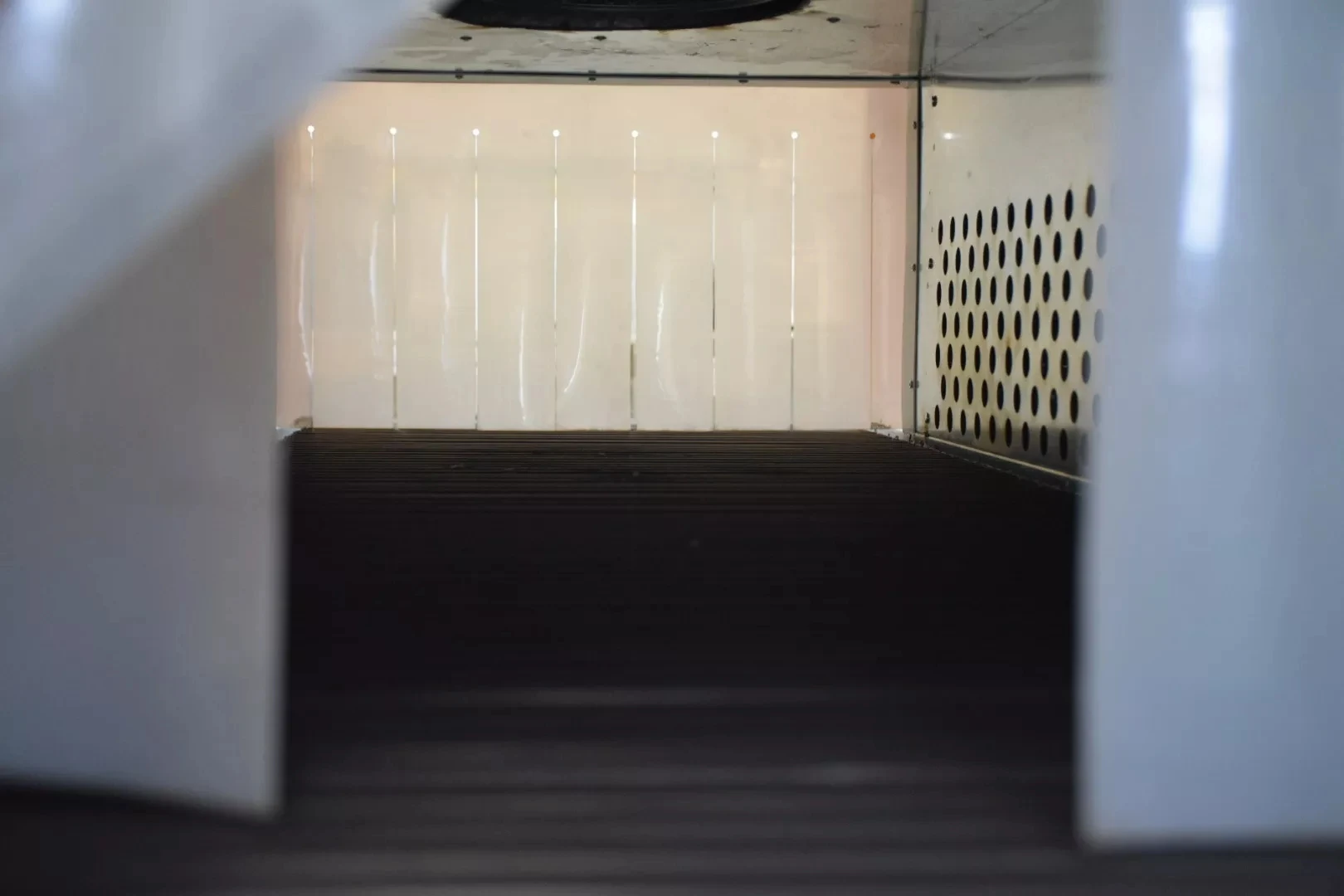

Even heat distribution & hot aircirulcation inside chamber;
30% power consumption saving.
Best shrink effect by eliminating
burn-outs and wrinkles on shrink
film.
Very easy to use;
No special training requried and low Maintenance.
Accept any product in size;
Max. width 450 mm (17.7")
Max. height 250 mm (9.8")

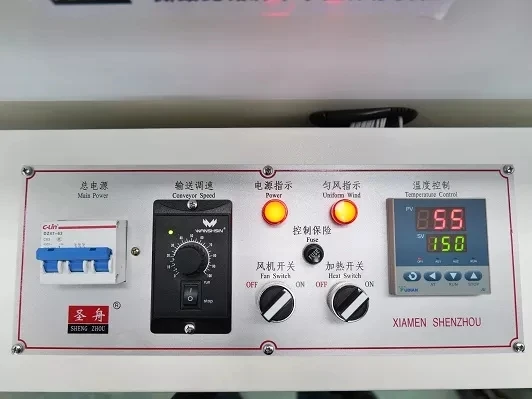

Variable speed control, up to 10
meters per minute (32.8 fpm).
OTHERS
Bare heaters out, flammable and explosive, very dangerous.
OURS
Separate heating chamber; Hot air circulation, high safety.
OTHERS
The heating device is a quartz tube.Flammable, and explosive, easy to break.
OURS

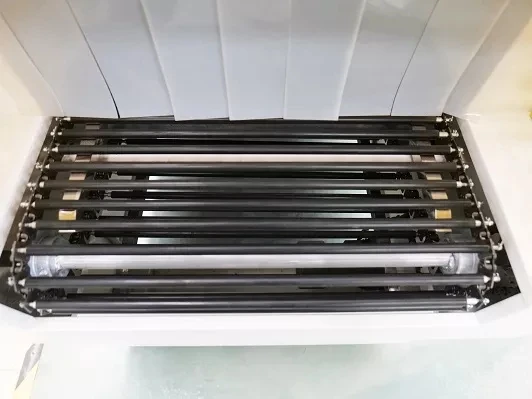

Stainless steel heating tube, hanging liner.Very durable.
Samples

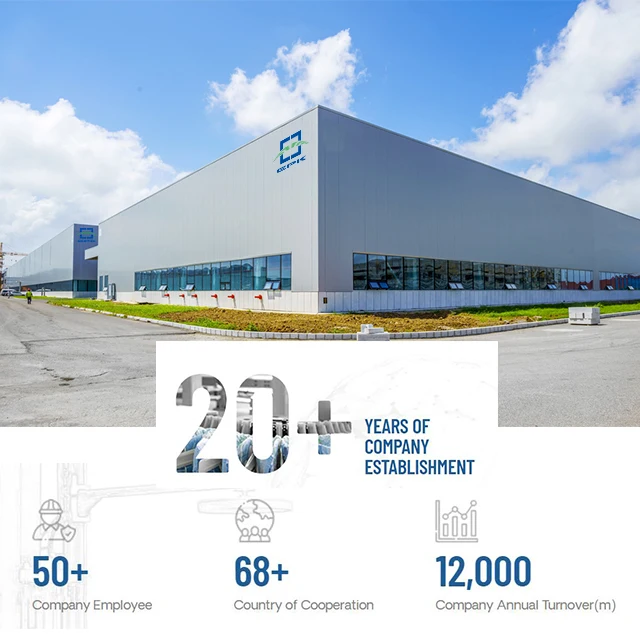

Company Profile
E-pack Technology Co., Ltd. is an exporting company working with manufacturers to produce bespoke machinery and meet the packing needs of various customers around the world. It was deriving from a packaging machinery factory with a history of more than twenty years.
The key partner of E-pack, Mr. Joe Xie, is the founder of this machinery factory. His father used to work as an engineer in a big state-owned plant. Joe originally worked as an artist. He finally devoted himself into machinery industry, partly due to the gene inheriting from his father.
Joe is a talent mechanical designer. His machines are environmentally friendly, energy-saving and full of humanistic care. He continually innovates to stay ahead of the general industry trend to pack almost all merchandise and do this in an efficient and cost effective way.
Our business was established to manufacture shrink packing machines and has exploded from there. Nowadays, we can supply labeling machines,steam & air convection shrink packing machines, horizontal & vertical packing machines, sealing machines, strapping machines, wrapping equipment,conveyors, etc. We have a great team with quite a few experienced engineers and packaging solution specialists.
We are experienced in supplying products domestically and abroad such as the United States, Australia, United Kingdom and various European countries to name a few. Soon, we will bring in top quality packing machinery and advanced packaging solutions from other countries for the huge and growing Chinese market.
E-pack means easy packing. Our goal is to make packaging easier and efficient. We are reliable, innovative, and collaborative!
The key partner of E-pack, Mr. Joe Xie, is the founder of this machinery factory. His father used to work as an engineer in a big state-owned plant. Joe originally worked as an artist. He finally devoted himself into machinery industry, partly due to the gene inheriting from his father.
Joe is a talent mechanical designer. His machines are environmentally friendly, energy-saving and full of humanistic care. He continually innovates to stay ahead of the general industry trend to pack almost all merchandise and do this in an efficient and cost effective way.
Our business was established to manufacture shrink packing machines and has exploded from there. Nowadays, we can supply labeling machines,steam & air convection shrink packing machines, horizontal & vertical packing machines, sealing machines, strapping machines, wrapping equipment,conveyors, etc. We have a great team with quite a few experienced engineers and packaging solution specialists.
We are experienced in supplying products domestically and abroad such as the United States, Australia, United Kingdom and various European countries to name a few. Soon, we will bring in top quality packing machinery and advanced packaging solutions from other countries for the huge and growing Chinese market.
E-pack means easy packing. Our goal is to make packaging easier and efficient. We are reliable, innovative, and collaborative!
Our Core Values
* Creating an environment where employees, customers and vendors work together to achieve common goals of profitability and exceeding stakeholder expectations.
* Continuous improvement, keeps creating, and focuses on providing professional services in the area of goods packaging.
* Embracing Speed and Excellence providing on-time delivery of high quality products and services that exceed the expectations of internal and external customers
* Creating an environment where employees, customers and vendors work together to achieve common goals of profitability and exceeding stakeholder expectations.
* Continuous improvement, keeps creating, and focuses on providing professional services in the area of goods packaging.
* Embracing Speed and Excellence providing on-time delivery of high quality products and services that exceed the expectations of internal and external customers
Happy Customers
FAQ
1. What warranty do you offer? Do you have replacement parts?
We warrants all E-PACK™ packaging machines to be free from defects in material or workmanship for a period of one year(12months) from date of shipment.We have replacement parts for every machine we offer. Feel free to contact us and we will ship the required parts within 24 business hours. All our machines come with a 12 months manufacturer warranty unless otherwise stated.
In this case the return costs of replacement parts are shared, i.e. you pay for the item to be shipped back to us and we pay for it to be shipped back to you. Beyond this 12-month period, repair and shipment costs are paid by the customer.
2. What information do I need to provide for a quote?
If a quick, high-level budgetary quote is all you need, we are happy to provide you with the base machine rate. However, the more information you provide us about your particular application, the more accurately we can quote you. It also enables us to identify potential challenges and discuss how we can overcome them.
3. What type of payments do you accept?
We accept Credit Card, Debit Card, Western Union, E-checking, Wire Transfer and Letter of Credit. Contact us for more options if your payment method is not listed.
4. How do you deliver my machine to my place?
We will arrange international shipment and pay shipping freight at our expense, if you place a CIF or CFR order. Bill of Lading in original hard copy will be couriered to your office together with Commercial Invoice & Packing List, within 7 working days from vessel sailing date or flight departure date. What you need to do is to appoint a customs broker for importation declaration and inland transportation to your plant.
Our factory locates in Xiamen city which is main seaport of China. It takes only 30 minutes’ drive from our factory to Xiamen Port from where we ship E-PACK™ packaging machines on weekly basis to any main seaports worldwide.
Through Xiamen International Airport (XMN), in 45 minutes’ drive, we deliver some small size & light weight machines or consumable packaging materials by air freight in case of urgent demand.
5. I am not quite sure which machine is right for my project and packaging method?
No worries! Tell us more about your application and we will help you choose the right model and options. The more detail
information on products and desired package method you give, the better we understand your need and the faster we offer a solution.
Send us your samples, e.g. bottles & sleeve label in case of bottle sleeve wrapping application, and we will test a Steam Shrink Tunnel with the materials we receive. Videos and photos will be sent back immediately by e-mail so that you know exactly how our machine operates and how good shrink quality is, before making final decision.
On your request, we are more than happy to send back physical samples for your evaluation by international courier after the testing.We will refund your courier expense when you place the order.
6. Why do you need samples for a firm quote? What if I don't have any?
Samples allow us to help you avoid unforeseen challenges, determine the need for special options or recommend a different machine model better suited for your application. In nearly 65% of all projects, sample reviews prevent costly mistakes, inferior performance and extended lead times.
In addition, before delivery, we will test your machine again with your samples in order to verify and assure the machine built to 100% satisfaction.Although we would like to review samples testing before we provide a firm quote, we understand that this is not always possible. In that case, we will provide a quote based on the information and drawings you provided.
We warrants all E-PACK™ packaging machines to be free from defects in material or workmanship for a period of one year(12months) from date of shipment.We have replacement parts for every machine we offer. Feel free to contact us and we will ship the required parts within 24 business hours. All our machines come with a 12 months manufacturer warranty unless otherwise stated.
In this case the return costs of replacement parts are shared, i.e. you pay for the item to be shipped back to us and we pay for it to be shipped back to you. Beyond this 12-month period, repair and shipment costs are paid by the customer.
2. What information do I need to provide for a quote?
If a quick, high-level budgetary quote is all you need, we are happy to provide you with the base machine rate. However, the more information you provide us about your particular application, the more accurately we can quote you. It also enables us to identify potential challenges and discuss how we can overcome them.
3. What type of payments do you accept?
We accept Credit Card, Debit Card, Western Union, E-checking, Wire Transfer and Letter of Credit. Contact us for more options if your payment method is not listed.
4. How do you deliver my machine to my place?
We will arrange international shipment and pay shipping freight at our expense, if you place a CIF or CFR order. Bill of Lading in original hard copy will be couriered to your office together with Commercial Invoice & Packing List, within 7 working days from vessel sailing date or flight departure date. What you need to do is to appoint a customs broker for importation declaration and inland transportation to your plant.
Our factory locates in Xiamen city which is main seaport of China. It takes only 30 minutes’ drive from our factory to Xiamen Port from where we ship E-PACK™ packaging machines on weekly basis to any main seaports worldwide.
Through Xiamen International Airport (XMN), in 45 minutes’ drive, we deliver some small size & light weight machines or consumable packaging materials by air freight in case of urgent demand.
5. I am not quite sure which machine is right for my project and packaging method?
No worries! Tell us more about your application and we will help you choose the right model and options. The more detail
information on products and desired package method you give, the better we understand your need and the faster we offer a solution.
Send us your samples, e.g. bottles & sleeve label in case of bottle sleeve wrapping application, and we will test a Steam Shrink Tunnel with the materials we receive. Videos and photos will be sent back immediately by e-mail so that you know exactly how our machine operates and how good shrink quality is, before making final decision.
On your request, we are more than happy to send back physical samples for your evaluation by international courier after the testing.We will refund your courier expense when you place the order.
6. Why do you need samples for a firm quote? What if I don't have any?
Samples allow us to help you avoid unforeseen challenges, determine the need for special options or recommend a different machine model better suited for your application. In nearly 65% of all projects, sample reviews prevent costly mistakes, inferior performance and extended lead times.
In addition, before delivery, we will test your machine again with your samples in order to verify and assure the machine built to 100% satisfaction.Although we would like to review samples testing before we provide a firm quote, we understand that this is not always possible. In that case, we will provide a quote based on the information and drawings you provided.
