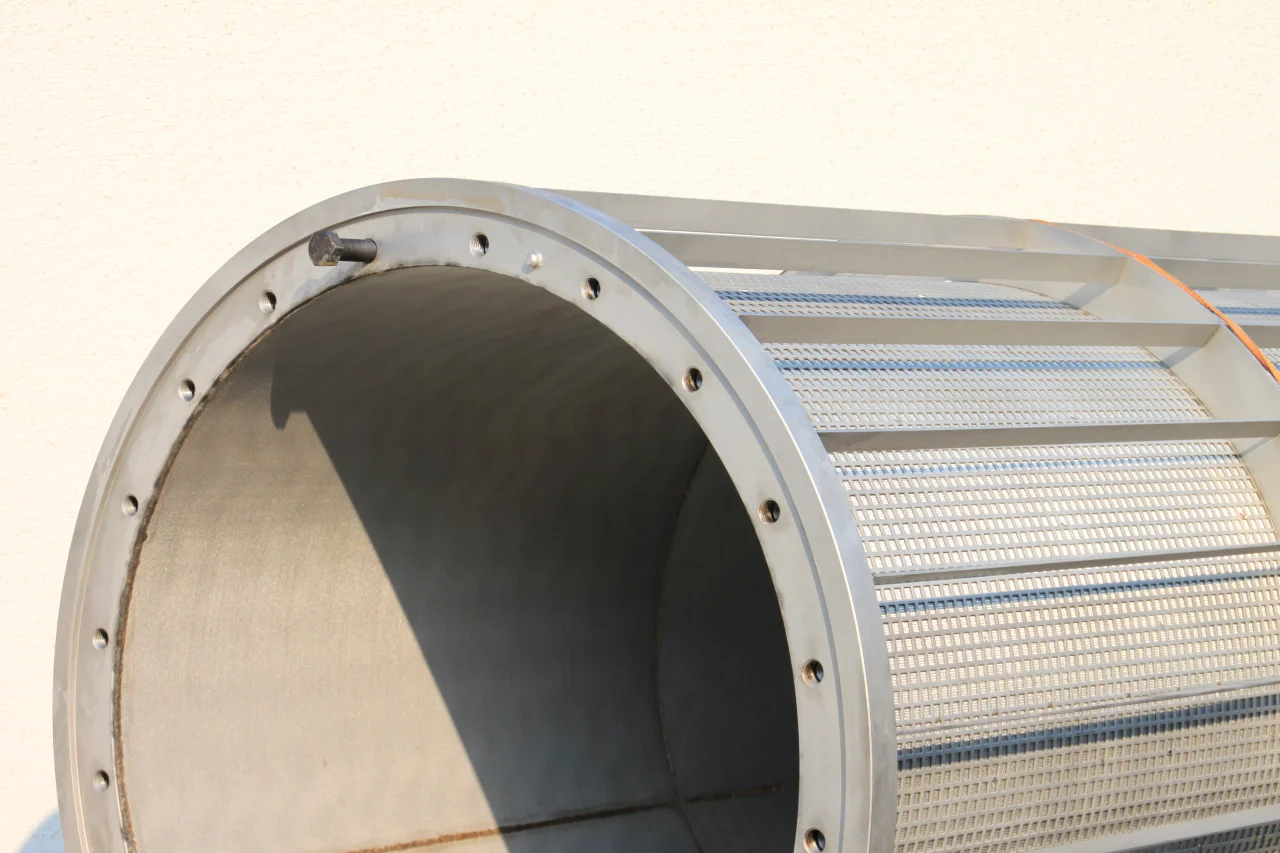

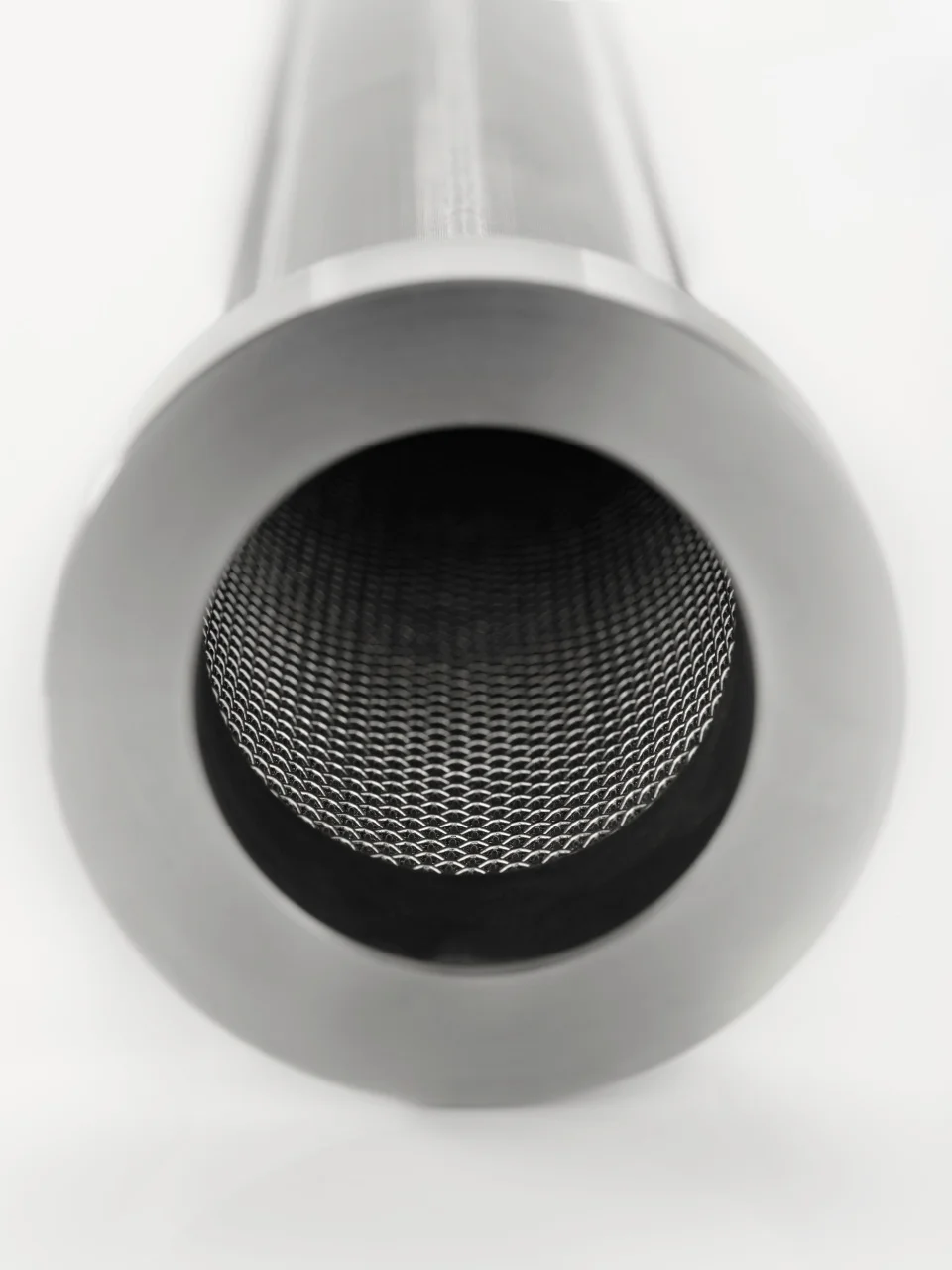

Factory directly supply high quality stainless steel mesh sand filter cartridge pool

FILTER CARTRIDGES

Low and high viscosity applications

Stainless Steel：304 304L 316 316L

with flange/without flange，Smooth/pleated cartridges

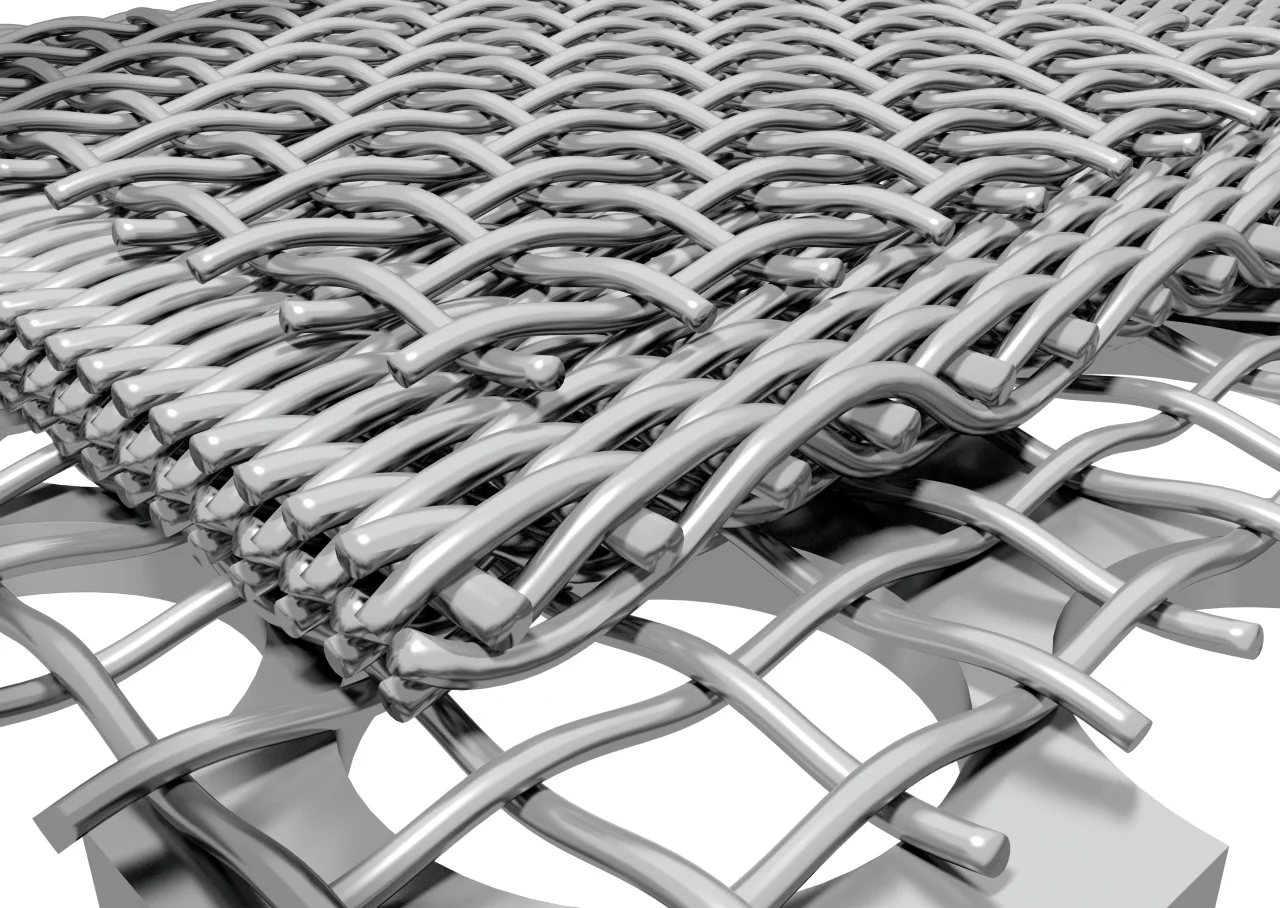

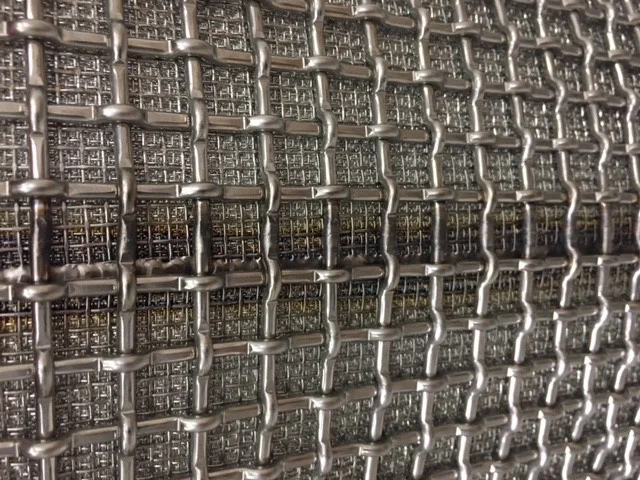

5-heddle atlas weave, Sintered wire mesh, Plain dutch weave, Reversed dutch twilled weave, Dutch twilled weave, Reversed optimized
dutch weave, Optimized dutch weave, Reversed plain dutch weave, Porometric weave, Square Weave, Volumetric weave

Ballast water filtration, Crude oil filtration, Beverage filtration, Hot gas filtration, Coolant filtration, Vegetable oil
filtration, Polymer filtration, Process water filtration, Sugar filtration

Filter Finess：＞5μm

high-grade，DIN 9044 Germany

China / Germany

10 mm to 500 mm

Metal mesh-based filter cartridges are produced in a wide range of variants regarding their mechanical dimension, compressive
strength and retention rate.

The optimum filtration mesh is selected on the basis of the respective process requirements. Mechanical dimensions and compressive
strengths are defined on the basis of existing filter systems. Filter cartridges can also be produced as backwashable elements.
Filtration meshes and cartridge designs are optimally matched to one another, particularly for OEM applications. Mesh production
and the following manufacturing steps can be set up as a homogeneous production chain.

For solid-liquid filtration and gas filtration
Low and high viscosity applications

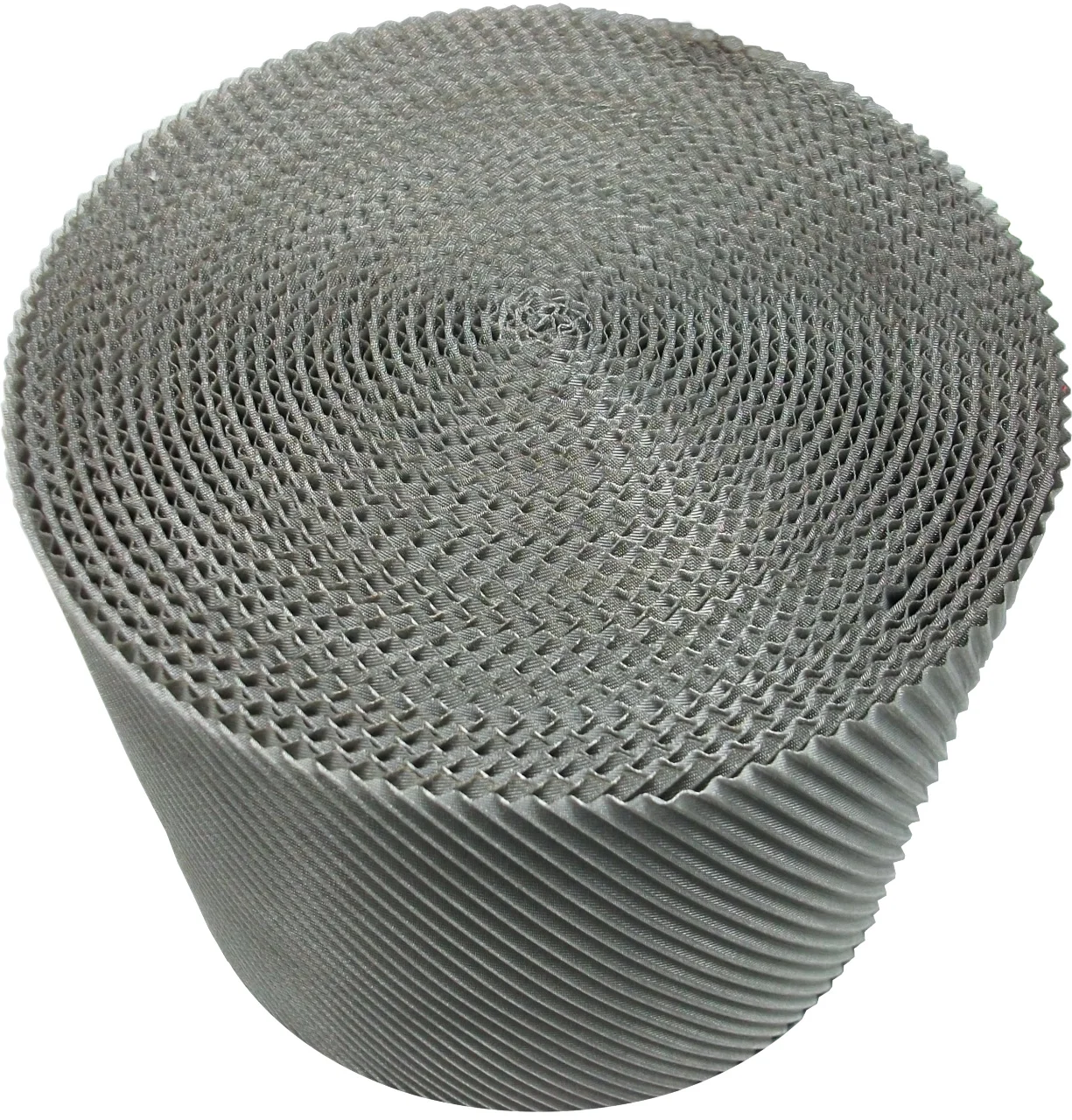

Smooth and pleated cartridges
Self-supporting Sintered wire mesh cartridges or based on a support construction
