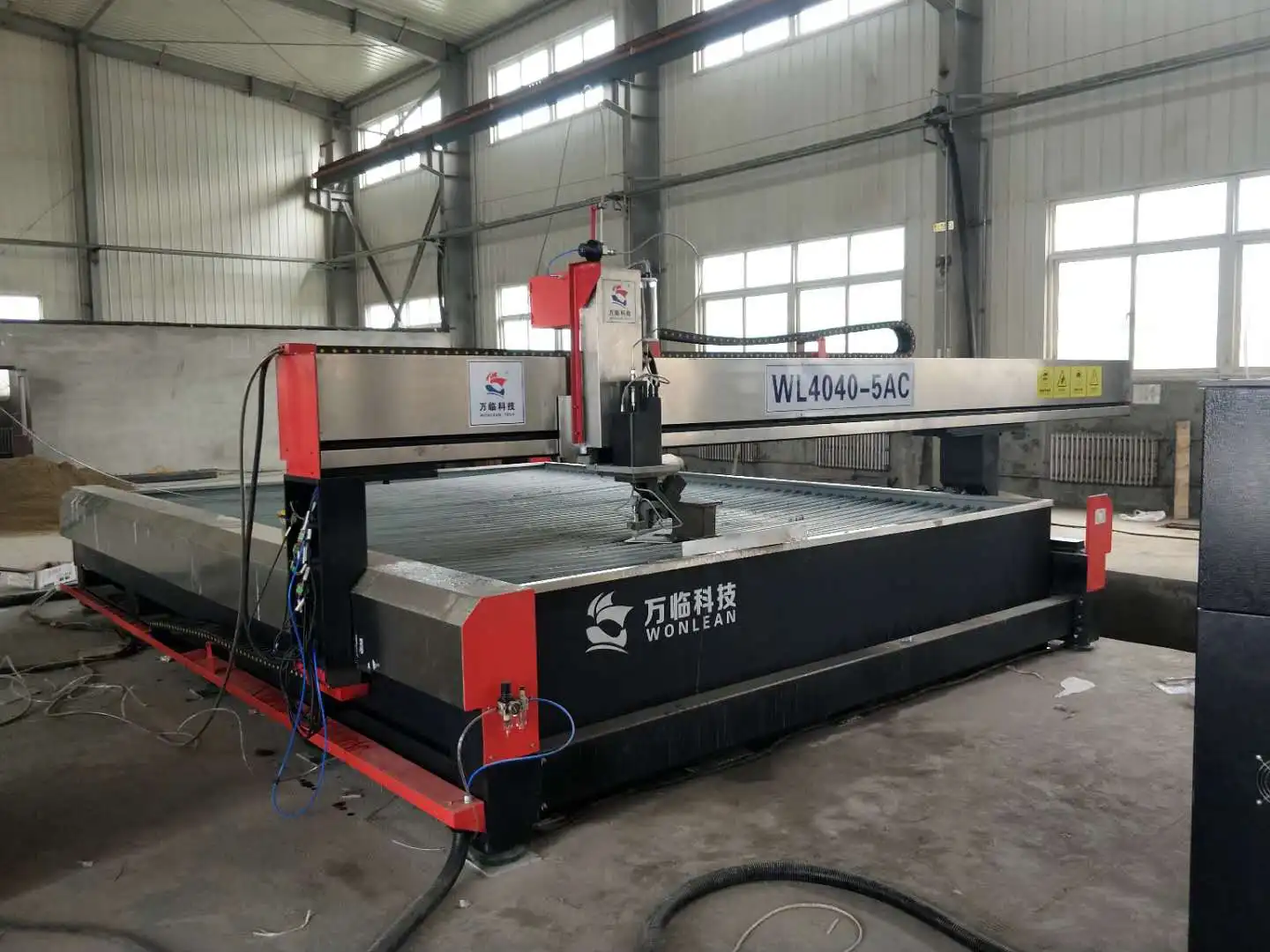

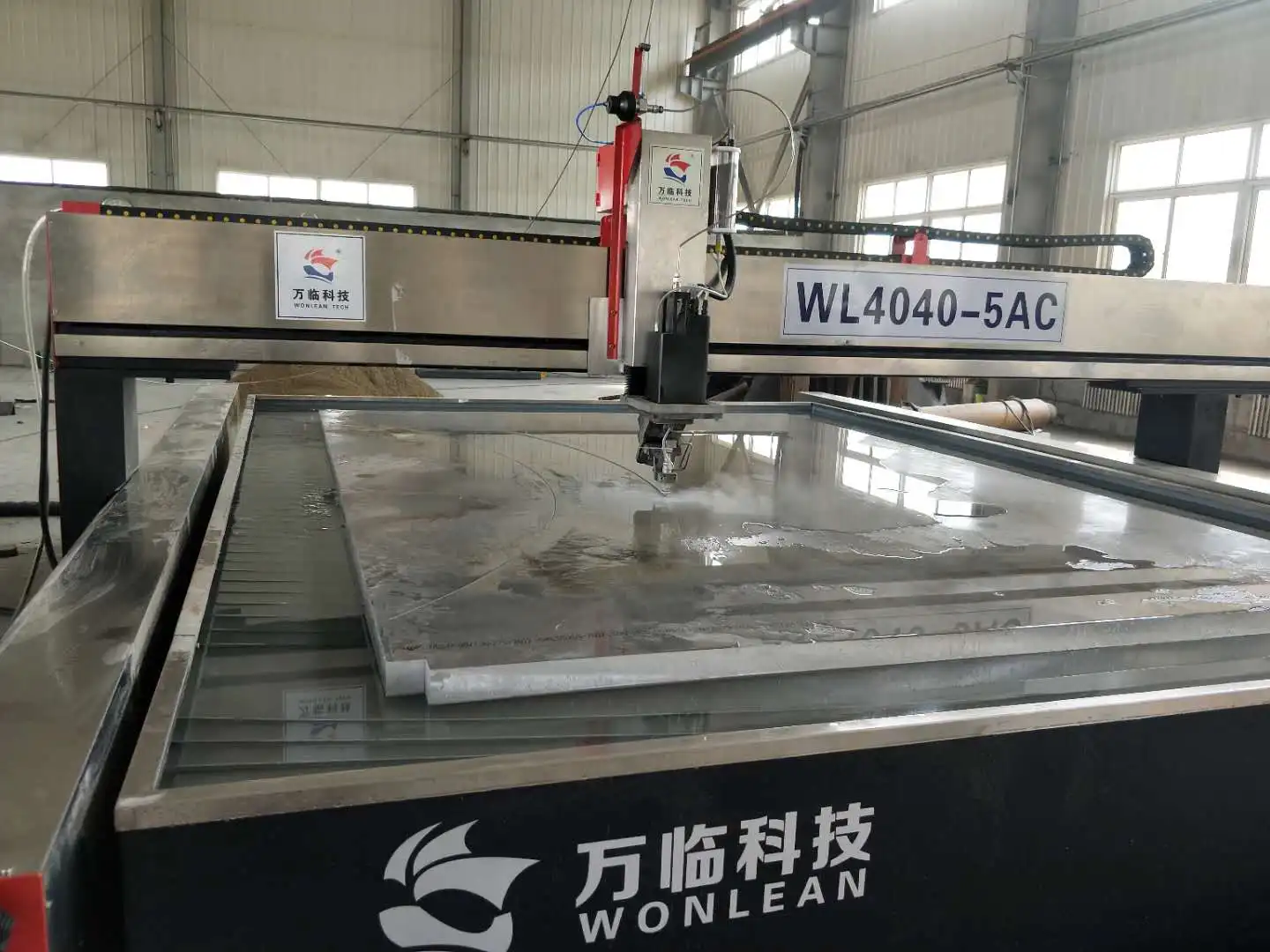

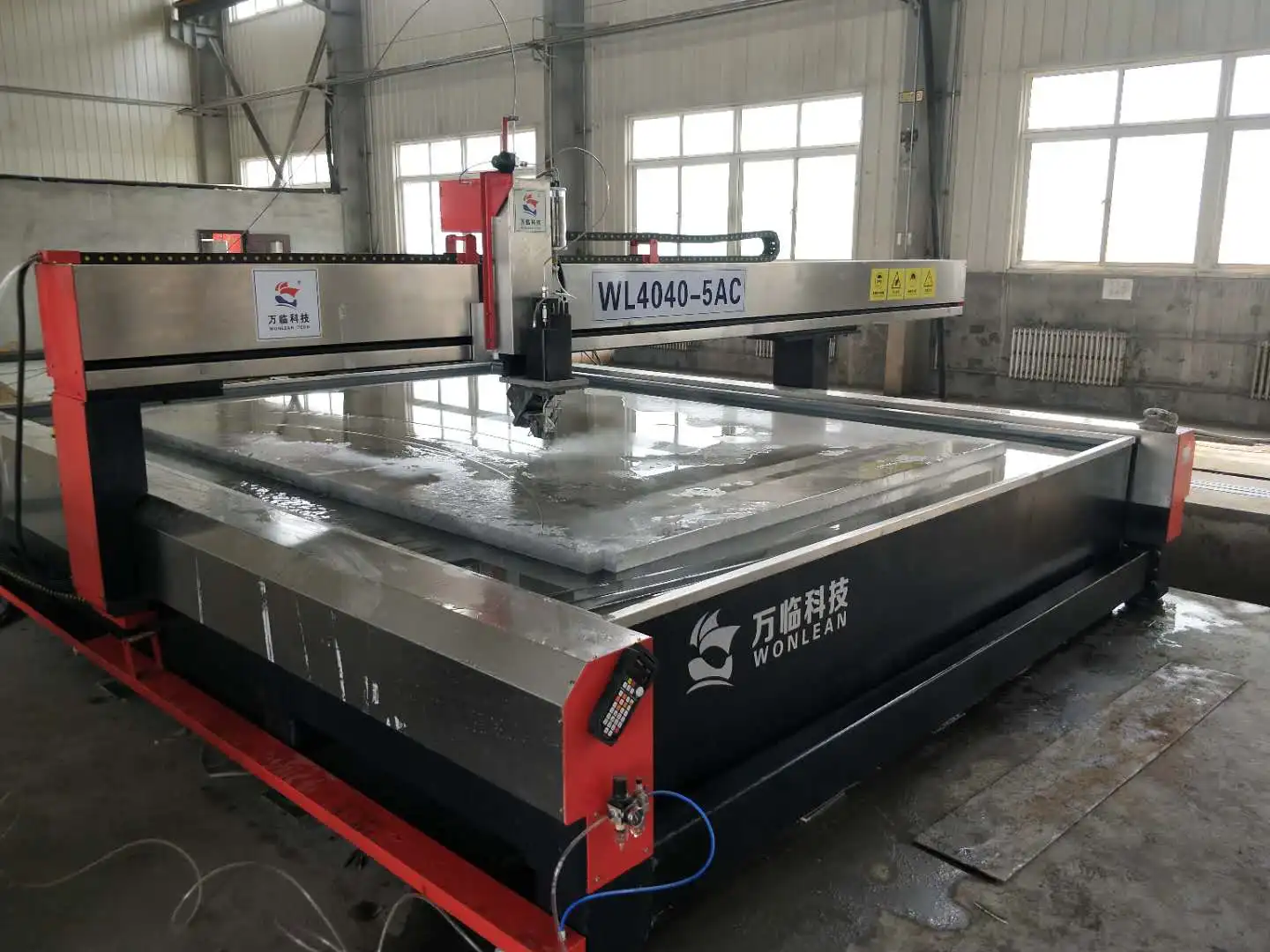

5 axis automatic water jet cutting machine for big slab tile
- Category: Stone Machinery >>>
- Supplier: Liaoning Wanlin Technology Co. Ltd.
Share on (1600566753463):
Product Overview
Description
Waterjet Cutting Machine for glass, metal, stone and rubber, plastic, etc.
Product Description
15 Years Experience
CNC WATERJET
CUTTING MACHINE
✔Support non-standard customization
✔Provide free sample trial cutting service
15 years of practice creates classic

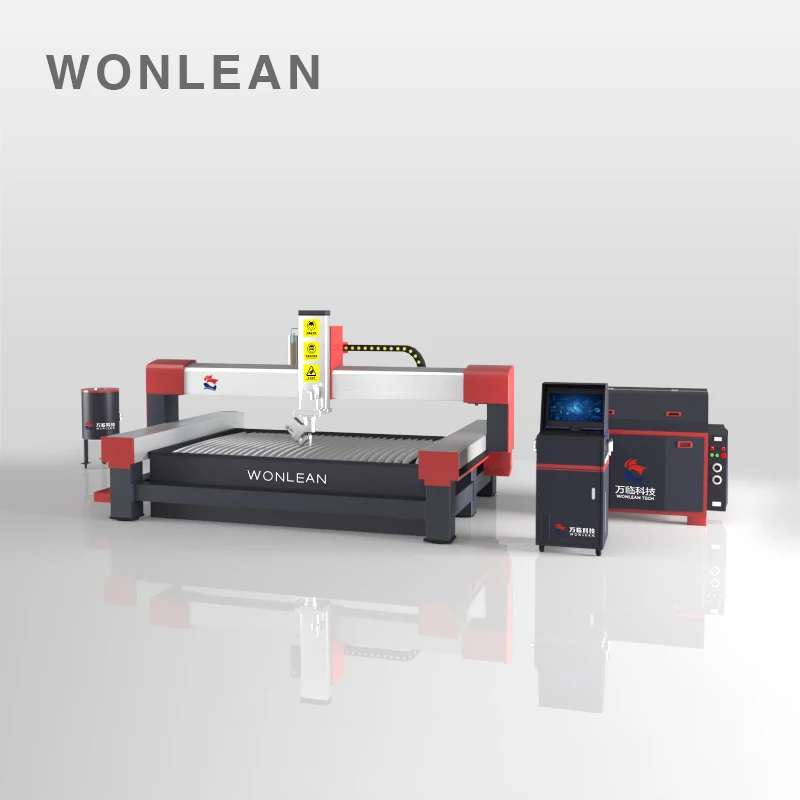

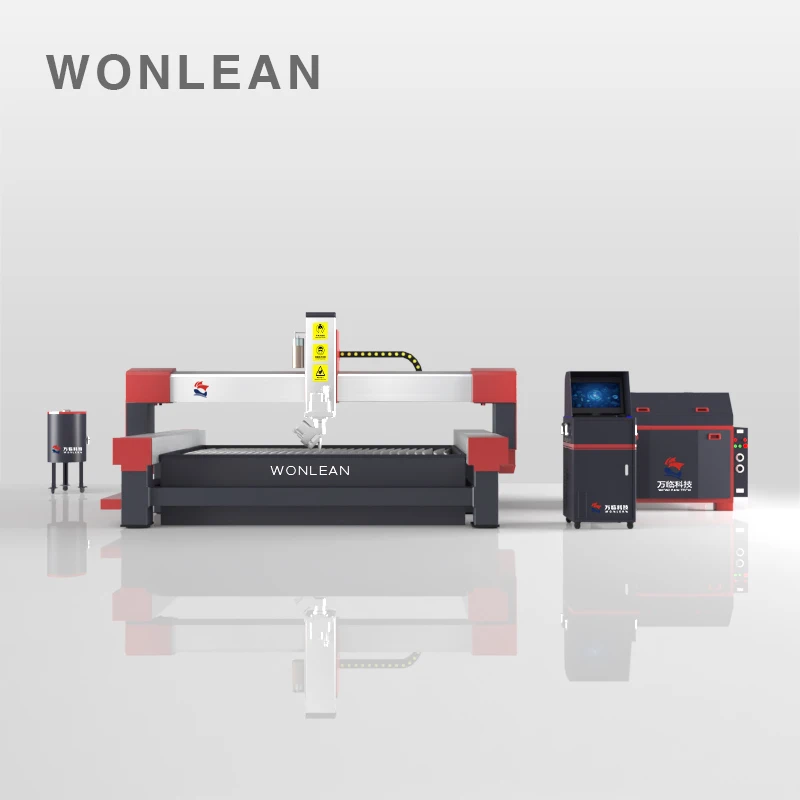

WONLEAN new generation water jet cutting machine
✔All cast iron bed ✔Oil-immersed structure
✔Automatic variable pump ✔Fully intelligent system

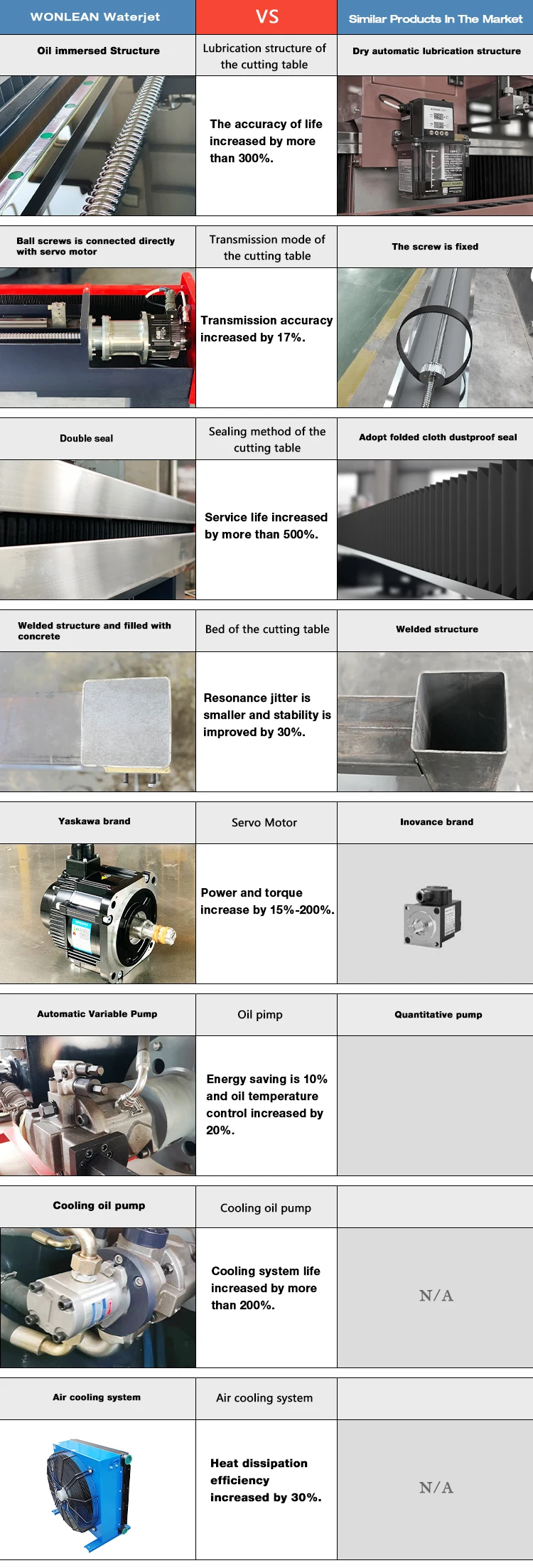

Oil-immersed structure
The guide screw is completely immersed in the oil tank, which can fully lubricate and prevent the wear of the transmission system from the splashing of abrasive and water. And it has high cutting accuracy, but also greatly improves the service life of the equipment, and solves the serious accuracy attenuation problem of water jet cutter in the past, and the cutting is accurate at any time
Concrete casting bed
After finite element analysis, the bed is welded in one body by making full use of the optimum stress point and supporting structure. After the aging treatment, concrete is poured into the bed body, which has strong stability and excellent shock absorption, greatly reduces the stress of the machine bed and maintains the long-term guarantee of accuracy
Split structure
There is no connection point between the bed and the water tank of the cutting table, and it adopts a fully split structure, which avoids the associated deformation of the bed due to the deformation of the water tank after long-term use, and ensures the accuracy and service life of the bed
Stainless steel body
The X,Y,Z axis adopts double sealing design, with external high-quality stainless steel brushed shell and high-quality dust-proof folding cloth, which can provide effective hard protection and full sealing for the equipment, and is the most effective sealing form of waterjet cutter at present
Direct connection transmission system
The high-power servo motor is directly connected with the large-diameter guide screw. Compared with the traditional synchronous pulley belt connection, it has less transmission loss, higher precision, better stability. High accuracy without the slightest error
Intelligent variable pressurization system
Equipped with a variable oil pump and an intelligent variable high pressure system composed of four imported valve bodies, which can intelligently adjust the amount of oil according to the pressure requirements and has high cutting efficiency, better oil temperature control and more energy-saving, so that each pressurization is just right
Intelligent 3D cutting
It can achieve fixed and variable angle 3D cutting within 75 degrees. The cutting head mechanism is made of aluminum alloy, with light weight, high strength and small load. The offset of the cutting position under the reaction of 380Mpa high pressure water is
less than 0.01 mm, and the cutting accuracy is extremely high
less than 0.01 mm, and the cutting accuracy is extremely high
Tilting compensation system
Through the dynamic compensation of the intelligent five axis software and two Japanese Yaskawa servo motors, the "V"shaped incision of the waterjet is accurately compensated to make the cutting incision vertical up and down or achieve bevel cutting
within 8 degrees
Wireless remote control handle everything under control
More flexible and convenient for tool setting Control equipment operation at any time Display feed values in real time
Magnetic design for easy access
Magnetic design for easy access
Intelligent identification and one-touch processing
Identify CAD E-drawings, automatically generate cutting path and access parameters, reduce manual coding and repeated operations, simple operation, improve production capacity
The main components adopt internationally renowned brands
World-leading quality accomplishes the WONLEAN classic
High pressure system specifications | ||||||
Model | WL30018Z | WL38030Z | WL42037Z | |||
Max. Pressure | 300Mpa | 380Mpa | 420Mpa | |||
Continuous working pressure | 260Mpa | 340Mpa | 380Mpa | |||
Power | 18KW | 30KW | 37KW | |||
Maximum water flow | 3.7L/min | 3.7L/min | 3.7L/min | |||
Maximum nozzle diameter | 0.33mm | 0.33mm | 0.33mm | |||
Working power supply | 380V/50HZ | |||||
Technical parameters of gantry cutting platform | ||||||||||||
Model | WL2015BA | WL2030BA | WL3020BA | WL2040BA | WL2060BA | WL3060BA | ||||||
X axis | 2000mm | 2000mm | 3000mm | 2000mm | 2000mm | 3000mm | ||||||
Y axis | 1500mm | 3000mm | 2000mm | 4000mm | 6000mm | 6000mm | ||||||
Z axis | 150mm | 150mm | 150mm | 150mm | 150mm | 150mm | ||||||
Running speed | 9000mm/min | |||||||||||
Cutting accuracy | ±0.1mm | |||||||||||
control precision | ±0.01mm | |||||||||||
Repeat accuracy | ±0.05mm | |||||||||||
Why Choose Us
Company Profile
ABOUT US
Liaoning Wonlean Technology Co., Ltd. is a high-tech enterprise specializing in the development and application of ultra-high pressure water jet technology. Our products have won all praise from our customers by advanced technology and reliable performance. In the production line of Wonlean, we have a variety of advanced mechanical processing equipment and more than 100 people with rich experience in professional production team. Wonlean Technology will be your side of the water cutting experts and we will provide you with professional waterjet cutting solutions.
Service
Packing and Delivery
Delivery Time | 30days |
Payment Term | T/T,30% in advance ,70% before shipment(negotiable) |
Packaging details | Normal packaging is container. We can also according to the special requirements of customers for packaging |
port | Dalian |
Validity | 45 days from the date we offered validity |
FAQ
Q: What is the advantage of water jet cutting machine?
A :Cold processing, no heat reaction zone. no deformation; strong cutting ability, pure water jet can cut soft materials, abrasive waterjet can cut hard materials; can cut flammable and explosive objects; cutting precision is high, edge is neat no secondary processing is required. Waterjet also has the title of universal cutting machine.
Q: How to choose the cutting table?
A:You need to offer the size of the materials you want to process or the size of the cutting table.
Q:How to solve the incision problem of water cutting?
A:It is not a vertical cutting for a waterjet cutter. This is due to the physical characteristics of waterjet. If it is required precise vertical angle cutting, we will provide you with a five-axis dynamic cutting system.
Q:Is the equipment easy to operate?
A:Wonlean intelligent waterjet cutting machine is easy to operate. You could upload the electronic images file of DXF format to the operating system via USB or network. The system will automatically program, and only need to set a few simple parameters, it can automatically complete the cutting operation.
We Recommend
New Arrivals
New products from manufacturers at wholesale prices
