Product Overview

Description



Product Description


GBD-L Fall Drop Impact Tester to test the impact resistance of the plastic film
This instrument tests the impact resistance of the plastic film. It covers the determination of the energy that causes the polyethylene film to fail under specified conditions. It is suitable for testing materials of thickness less than 1mm such as plastic films, sheets and steel plate coating. It is to measure the energy (in terms of mass) when materials such as plastic film and sheet sample are damaging under the falling dart impact at a given height. It can be applied to scientific research, production enterprises, research institutes and quality inspection institutions.

Standard
ASTM D1709, JIS K7124




Specification


Technical Specifications
Item
Technical parameters
Measuring range
Method A:50~2000g，Method B:300~2000g
Accuracy
1g
Weight of dart head
50-2000g,5g/weight increase，weight error≤0.5%
Dimension of dart head
Method A:Φ38±1mm，Method B:Φ50±1mm
Measurements of weights
5g，15g，30g，45g，80g，90g (8 pieces for each)
Dimension of weights
Method A:Φ30mm，Method B:Φ45mm
Dimension of sample
180×180mm
Gas source
compressed air，0.6~0.8MPa
Gas source port
Φ8mm gas tube
Instrument size
550×380×2300mm
Weight
70Kg
Power supply
AC 220V, 50Hz

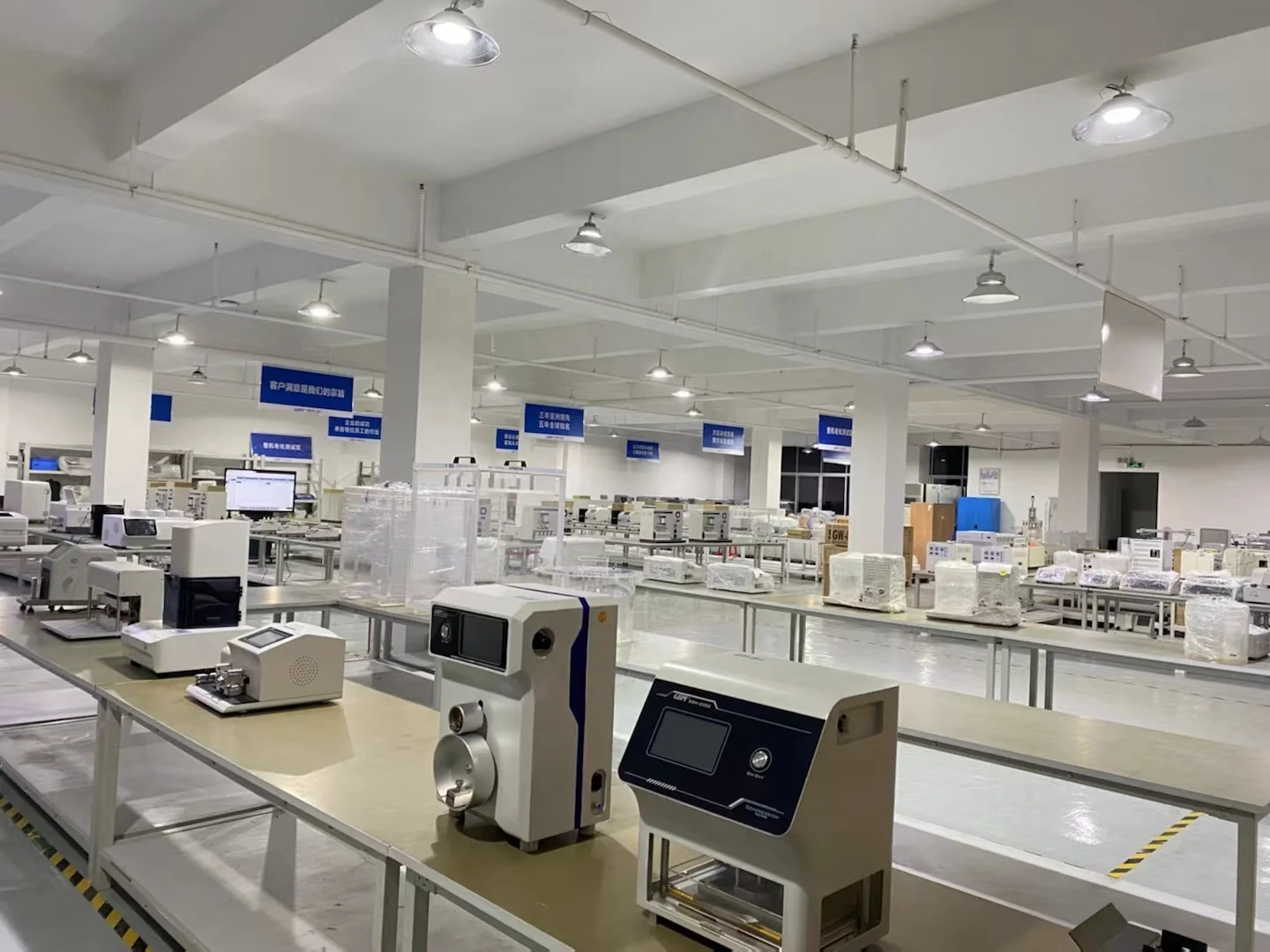

Company Profile








We GBPI is a professional manufacturer focused on developing
and producing packaging material test instruments. Founded in 2002, the company has received IOS9001 certification and recognized as high-tech enterprise and software enterprise by national authority. We hold numerous technology patents and software certificates from the national authority, and gained awards for technological progress.


Certifications




Our Customers

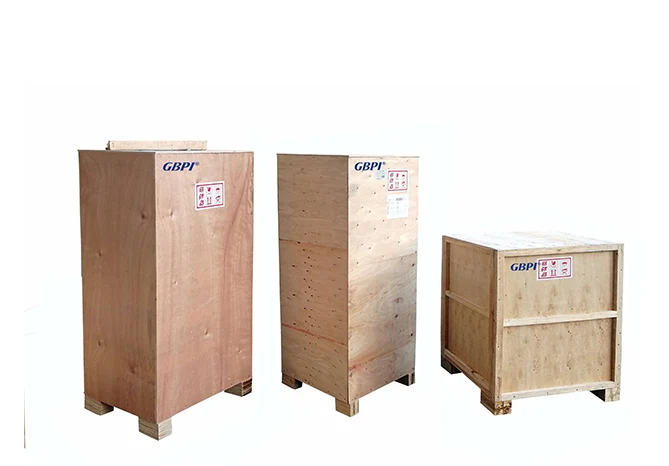

Packing & Delivery




To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
