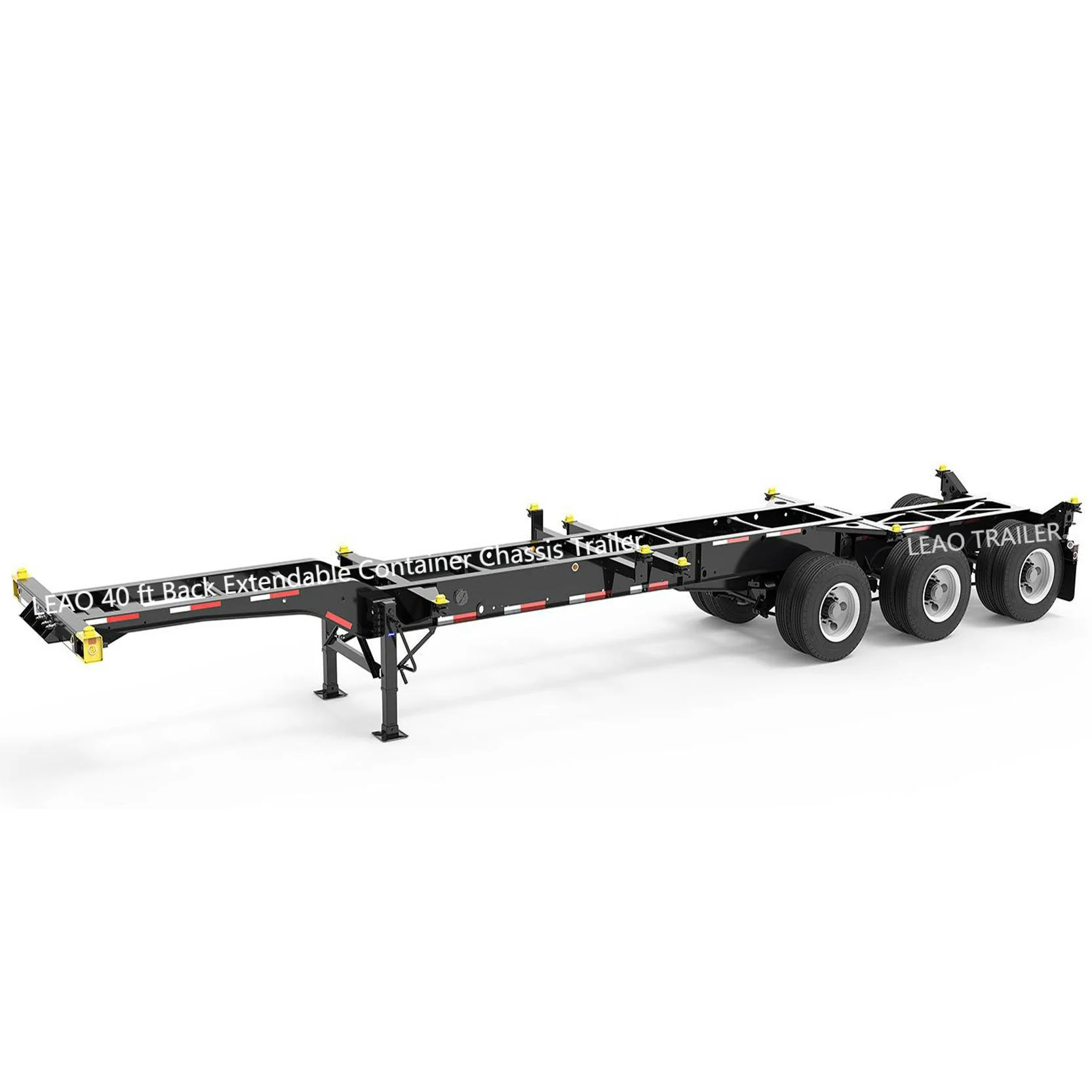

2022 The Most Popular Low Chassis Container 20/40 ft Combo Tandem container chassis Extendable Intermodal Chassis Trailer
- Category: Truck Trailers >>>
- Supplier: Liangshan LEAO Machinery CO. Ltd
Share on (1600567824936):
Product Overview
Description
LOOK AT HERE FIRST
Liangshan LEAO Machinery factory has nearly 15 years of production experience in the trailer industry in China. You can believe that our professional technology and manufacturing experience can help your transportation be safer and more efficient. We can also provide high quality products and competitive prices. Please contact me if you necessary.
Liangshan LEAO Machinery factory has nearly 15 years of production experience in the trailer industry in China. You can believe that our professional technology and manufacturing experience can help your transportation be safer and more efficient. We can also provide high quality products and competitive prices. Please contact me if you necessary.

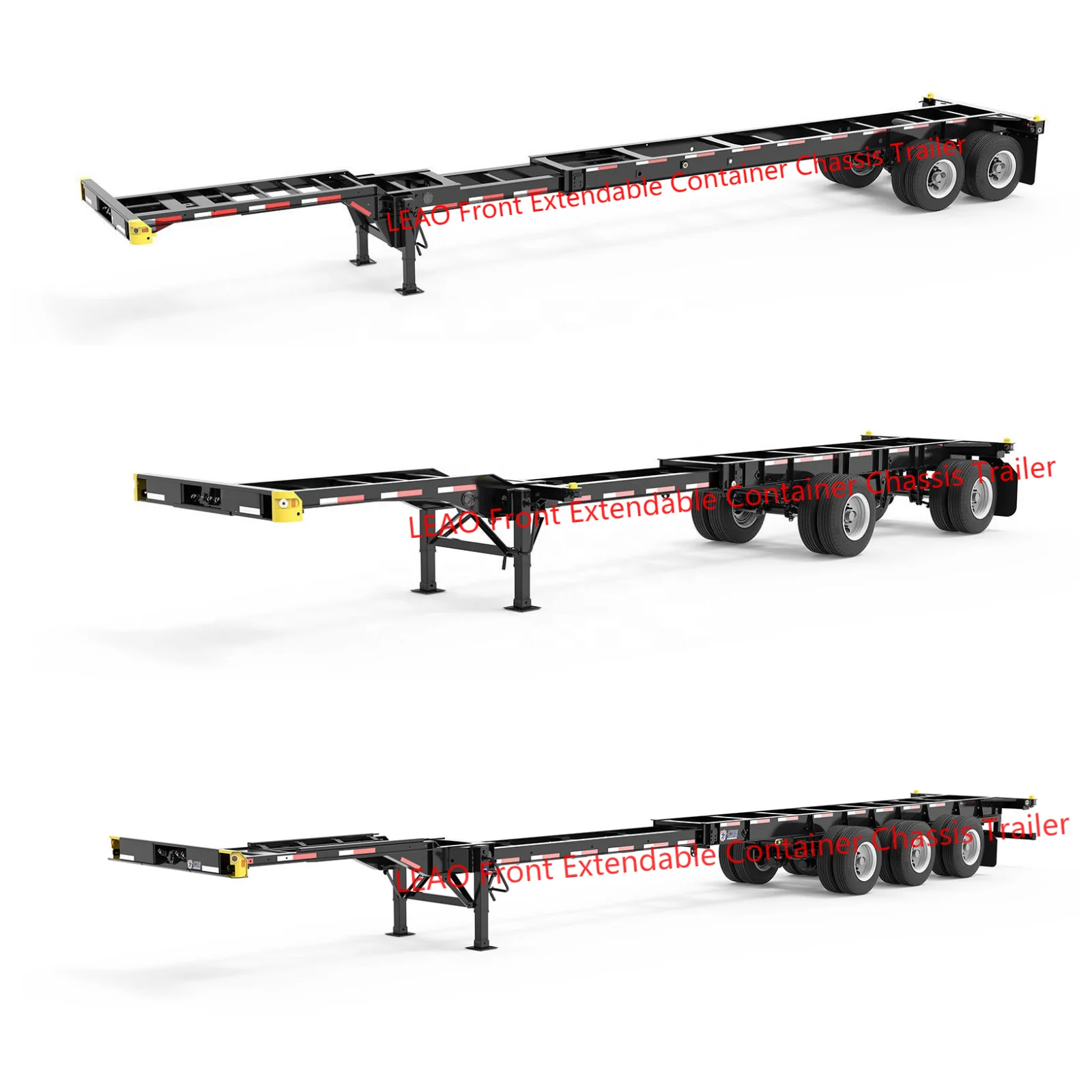

LEAO Intermodal Container Chassis Multi Function Skeletal Trailer

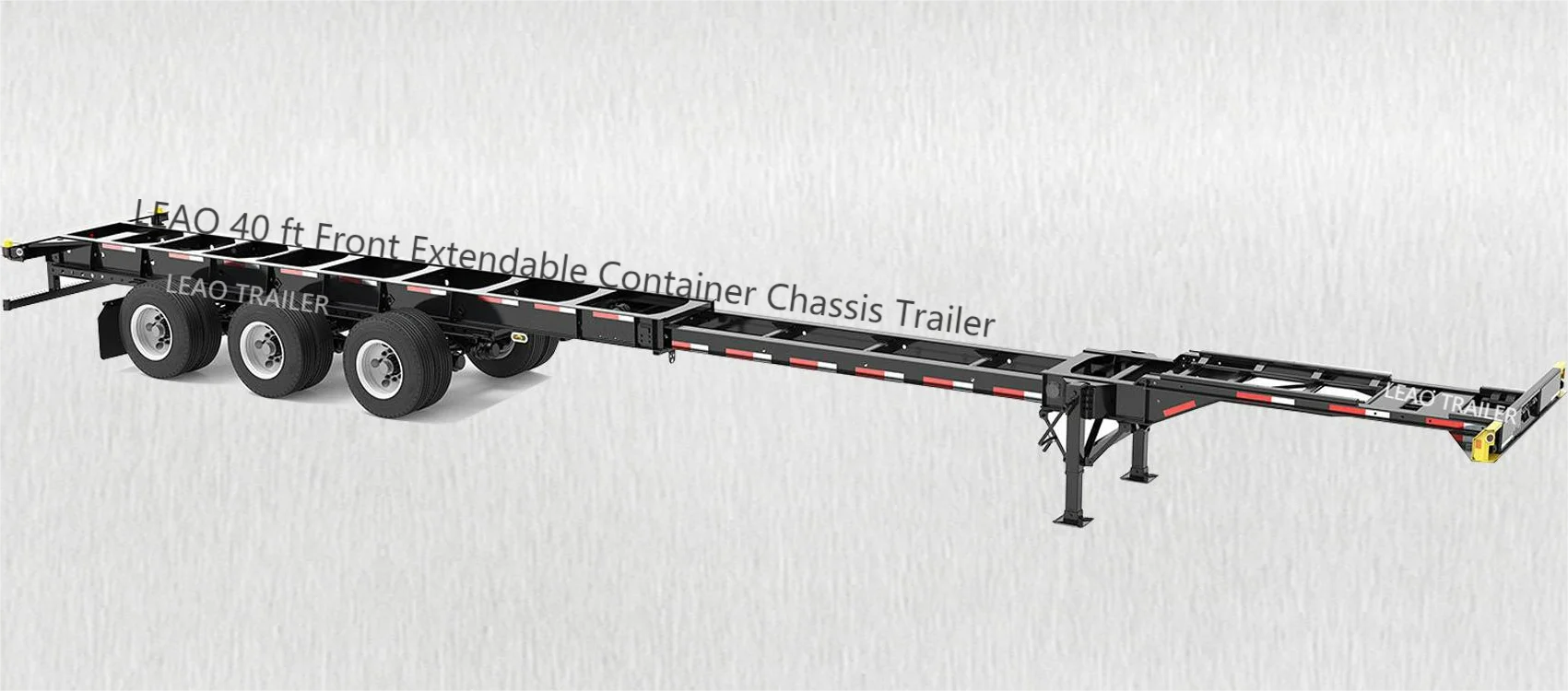

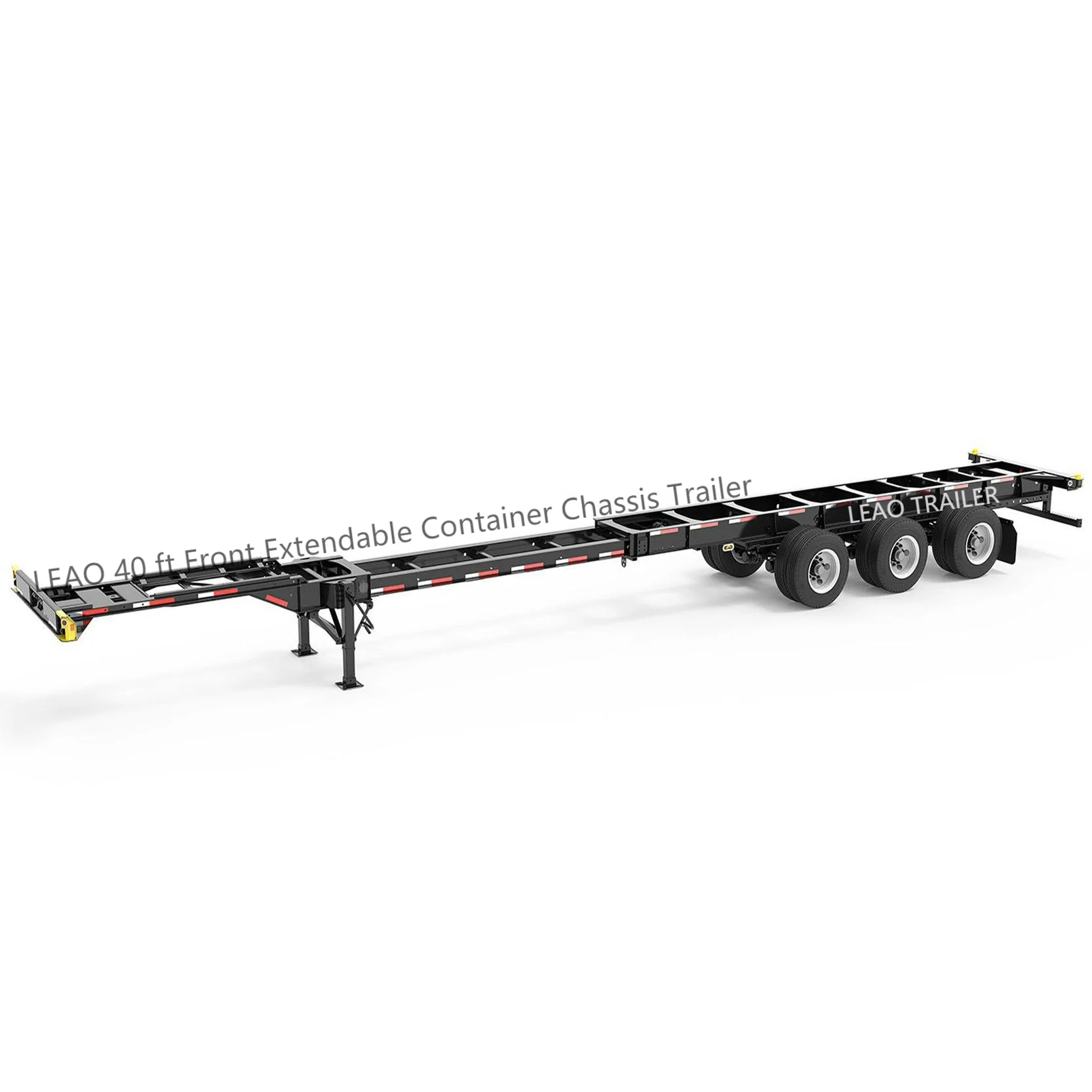

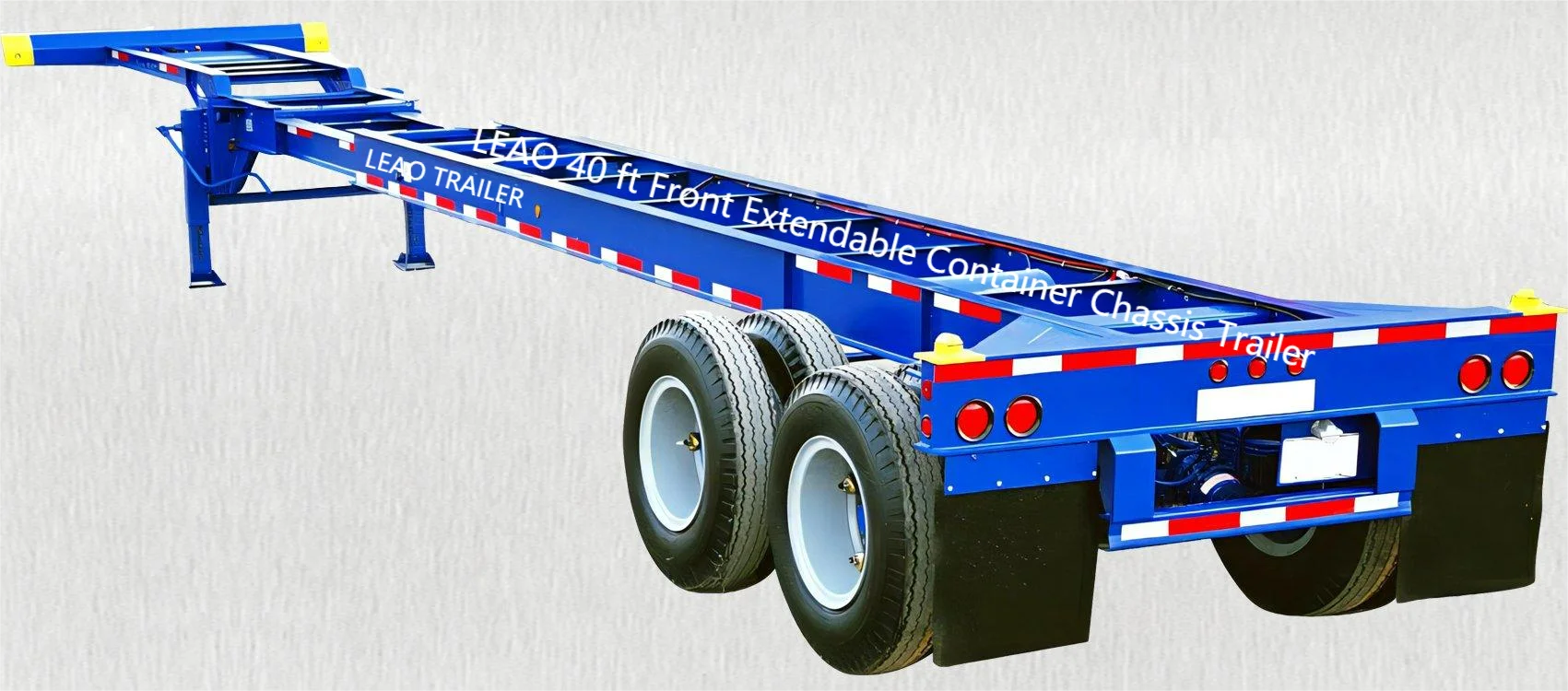

Front Extension(20ft to 40ft 45ft)
The front extension Optional can be pneumatically extended to the required container position.

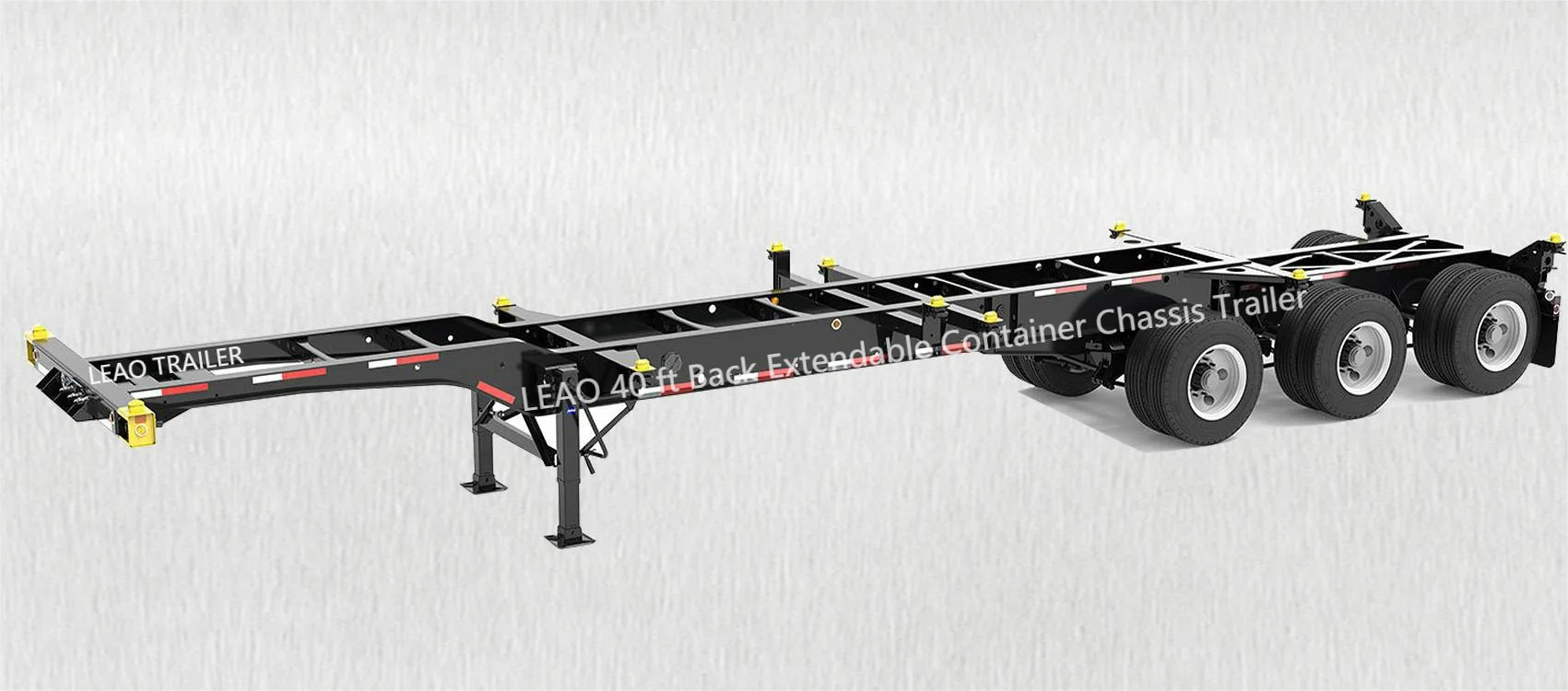

The rear extension Optional can be pneumatically extended to the required container position.
Product Paramenters
LEAO Intermodal Container Chassis Multi Function Skeletal Trailer
1. When using a container chassis trailer to transfer the goods, it can be directly loaded in the consignor's warehouse and transported to the consignee's warehouse for unloading. When changing vehicles and ships midway, there is no need to remove the cargo from the container and reload it.
2. It can be quickly loaded and unloaded, and can be directly and conveniently converted from one mode of transportation to another.
1. When using a container chassis trailer to transfer the goods, it can be directly loaded in the consignor's warehouse and transported to the consignee's warehouse for unloading. When changing vehicles and ships midway, there is no need to remove the cargo from the container and reload it.
2. It can be quickly loaded and unloaded, and can be directly and conveniently converted from one mode of transportation to another.

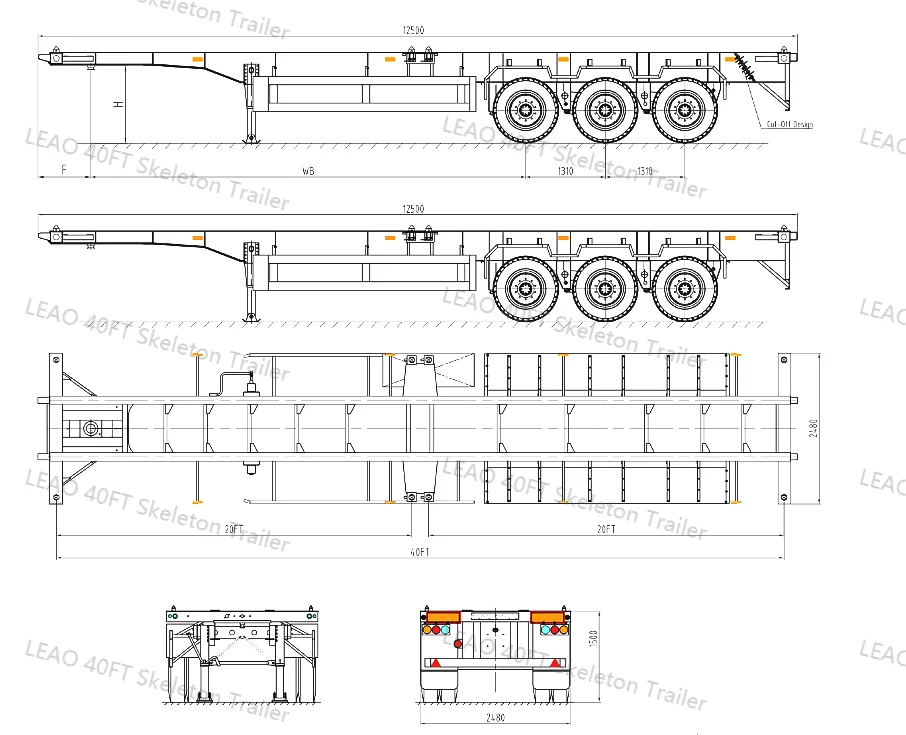

Specification | ||
1. Dimension | Type A: 9500 x 2438 x 1258 mm (Extended: 12471 x 2438 x 1258 mm) Type B: 9540 x 2438 x 1258 mm (Extended: 12392 x 2438 x 1258 mm) | |
2. The chassis with a slider, can be extended approximately 2970/2850 mm by pneumatic lock pin | ||
3. Multiple loading models | Loaded 20' or 40' container or two empty 20' container | |
Standard Configuration | ||
1. Axle | 11 ton, diameter 127 mm, 2/3 units | |
2. Suspension | Mechanical/Air suspension | |
3. King pin | 2", welding type | |
4. Landing gear | 28 ton, two speeds | |
5. Tire | 255/70R22.5, 16 PR, 8/12 units | |
6. Rim | 8.25-22.5, 8/12 units | |
7. Braking system | Chinese local brand | |
8. Electrical system | Chinese local brand, 7-way split pin receptacle plug, LED light | |
9. ABS | None | |
10. Painting | Polyurethane, colour supplied by customer | |
11. Mudguard | Chinese local brand | |
Optional Configurations | ||
1. Air suspension | Firestone or Goodyear | |
2. Lift axle system | Lift axle system | |
3. ABS system Wabco | ABS system Wabco or Chinese brand | |
The size, color and logo can be customized. If you need more details, please contact me. We will supply the best service and price.
Product Display
1.The most versatile 20ft plus combination chassis. The main frame retracts/extends into three different positions for loading, unloading and transporting one 20ft, one 40ft or one 45ft standard or high cube ISO container. All sizes slide to the rear for loading/unloading. The position achieved by the telescoping action of the main frame behind the landing gear and locking pins ensures positive engagement. Overall lengths are: 29' 7", 40' 6" and 45' 6".
2.The three-axle version of the skeleton chassis, with the same telescopic frame, increases the loadable tonnage. Closed location for 20ft container handling and road transport. The chassis is in the extended position when handling a 40-foot container. Overall lengths are: 29' 7" and 40' 6". Positive engagement is ensured by the sliding movement through the telescoping action of the main frame behind the landing gear and locking pins.
3.Some standard components of LEAO trailer include 12R22.5 tires on 10-hole disc axle, air suspension, anti-lock braking system (ABS) and two-speed landing gears.
4.Robot welding, perfect welding job for every chassis.Our chassis will last longer and move more loads.
Details Images

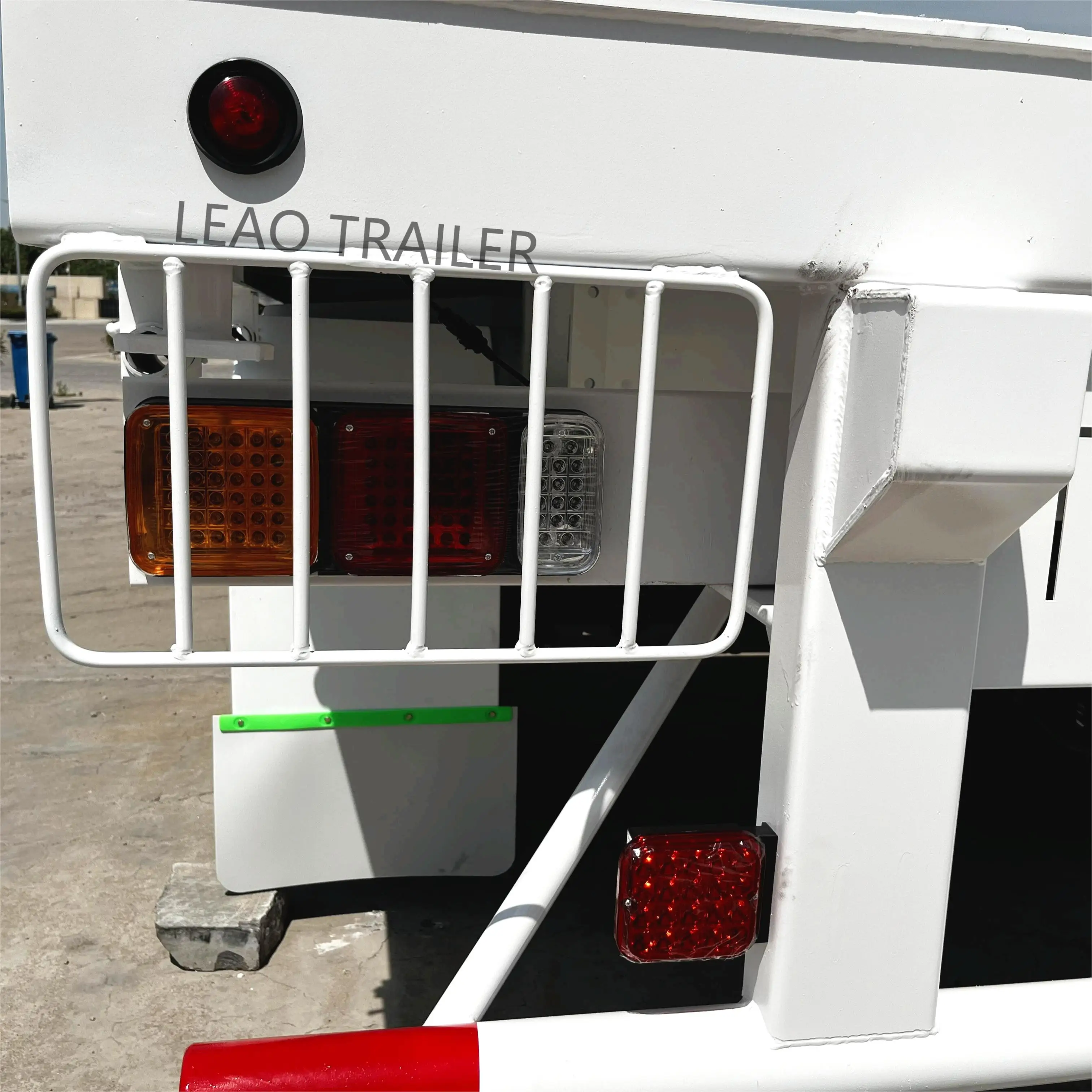

Equipped with LED moisture-proof lamps to prevent short circuits and ensure the safety of vehicles transportation at night.

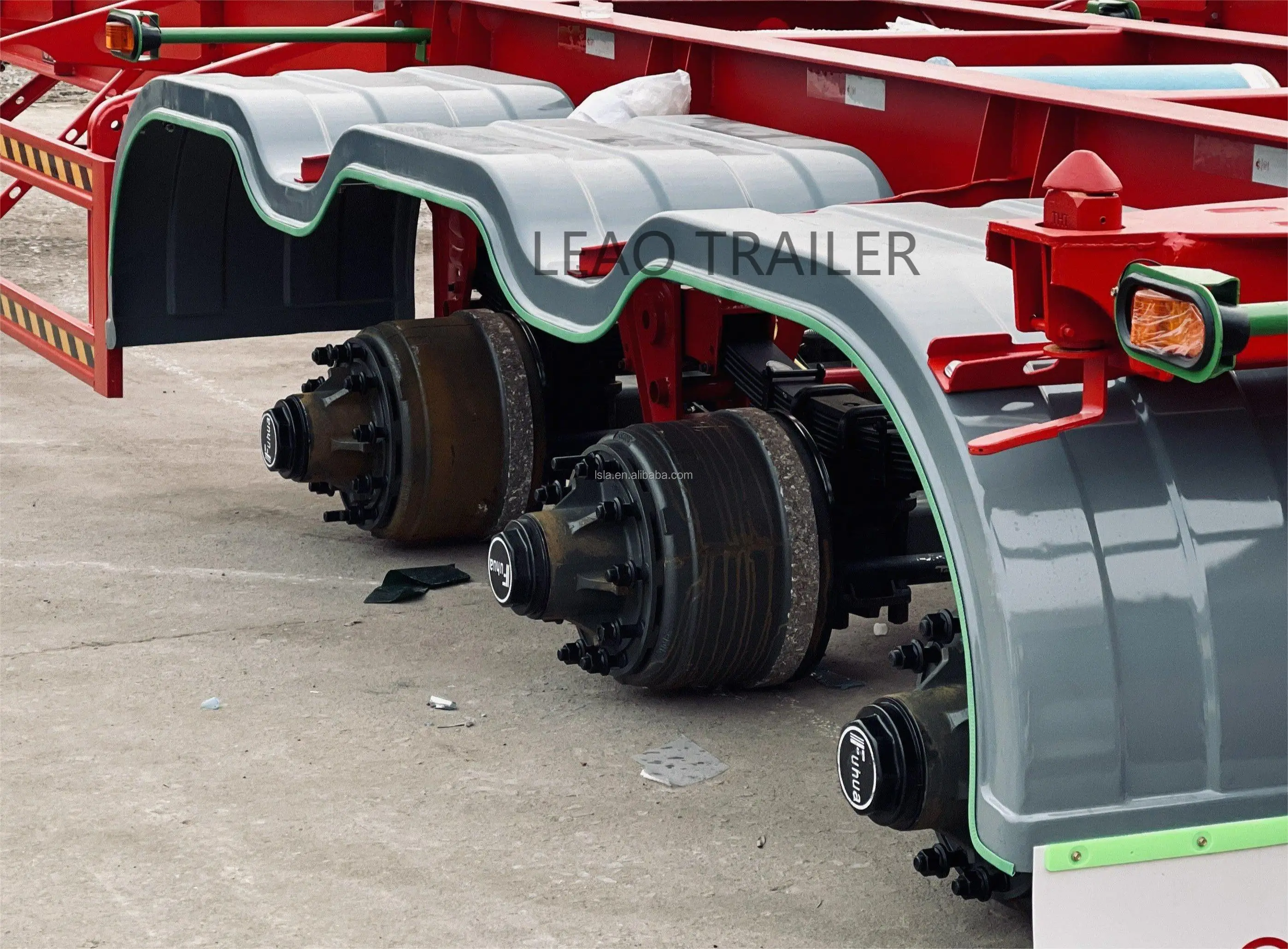

LEAO AXLE
BPW/FUWA/LEAO Axle Optional.
Integrated Advanced Low-Alloy Axle Beam,Whole Axle Beam No Welding process.Strong Carrying Capacity and high bending Strength.Axle maintenance-free could reach 3 Year/400,000 kilometers.
Integrated Advanced Low-Alloy Axle Beam,Whole Axle Beam No Welding process.Strong Carrying Capacity and high bending Strength.Axle maintenance-free could reach 3 Year/400,000 kilometers.
ISO-16949

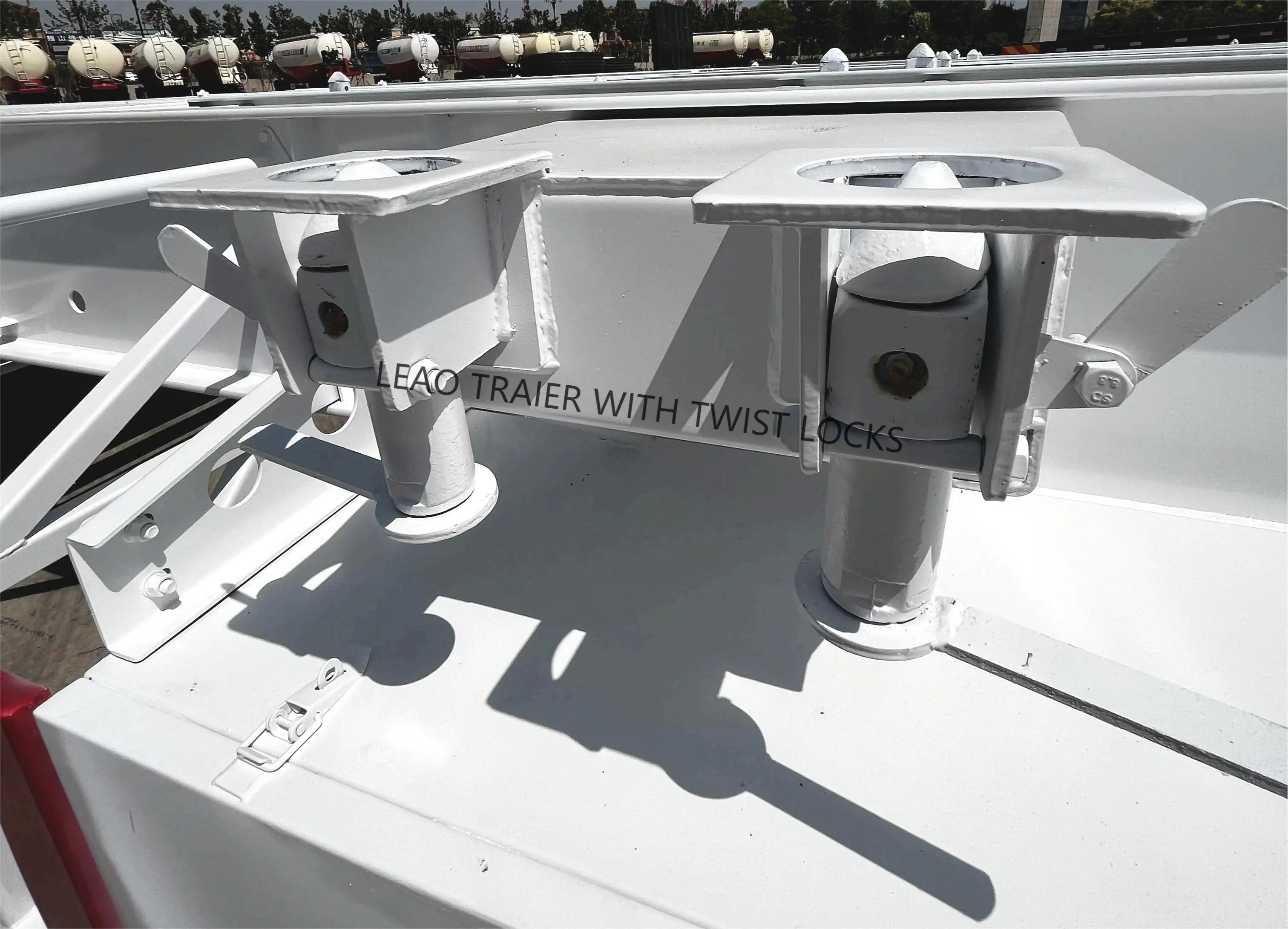

Fixed type and lift type with protective switch to prevent misoperation.
Unique design Firm and Durable Twist lock to ensure container stability and easy container disassembly
Fixed type and lift type with protective switch to prevent misoperation.
Unique design Firm and Durable Twist lock to ensure container stability and easy container disassembly
break system
Suspension: Germany Type or America Type Mechanical and Air bag suspension can be choose.

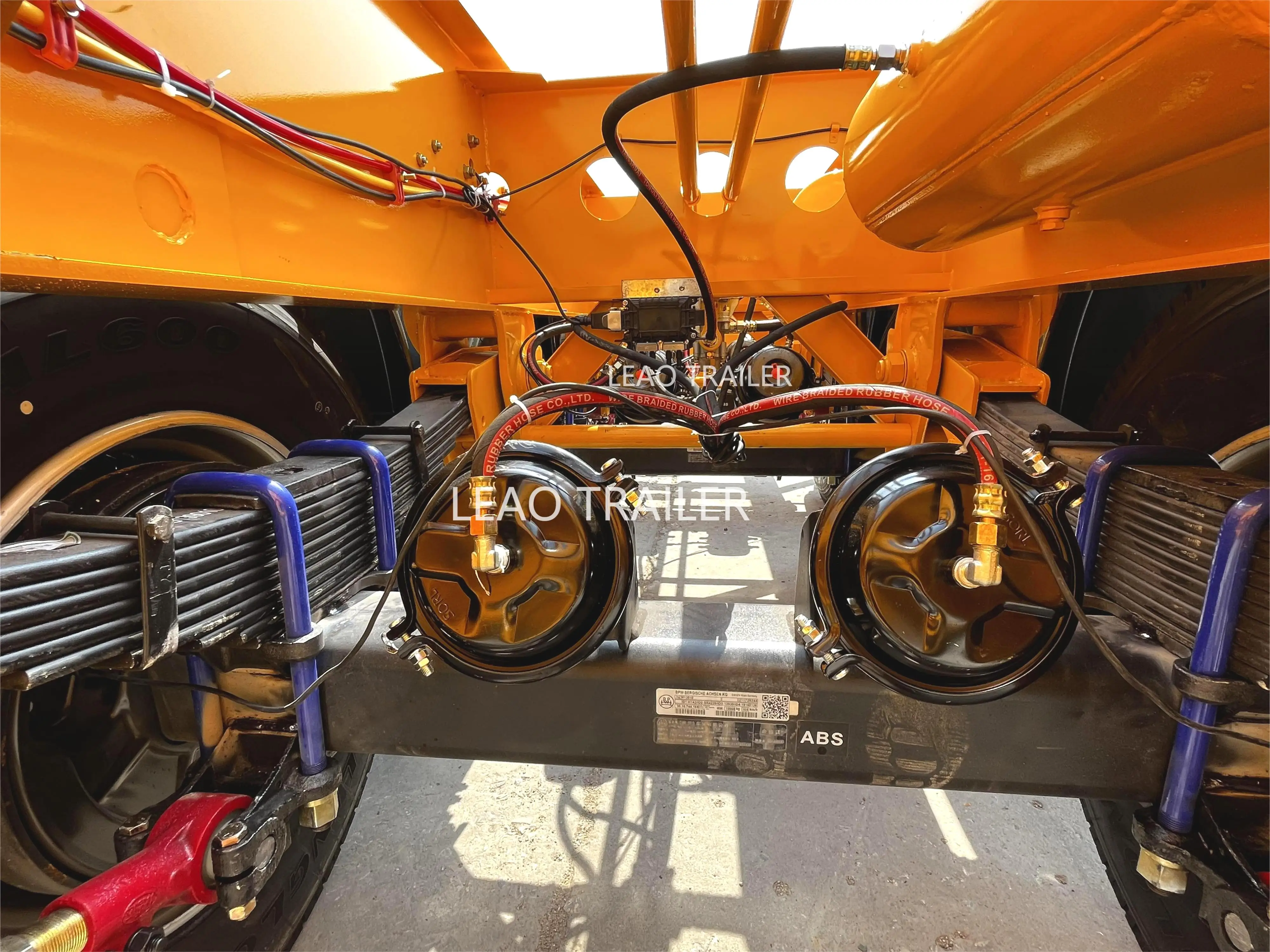

Brake system: T30/30 Spring brake chamber. WABCO valve,ABS/EBS system optional. dual line brake pipe.
Brake system: T30/30 Spring brake chamber. WABCO valve,ABS/EBS system optional. dual line brake pipe.

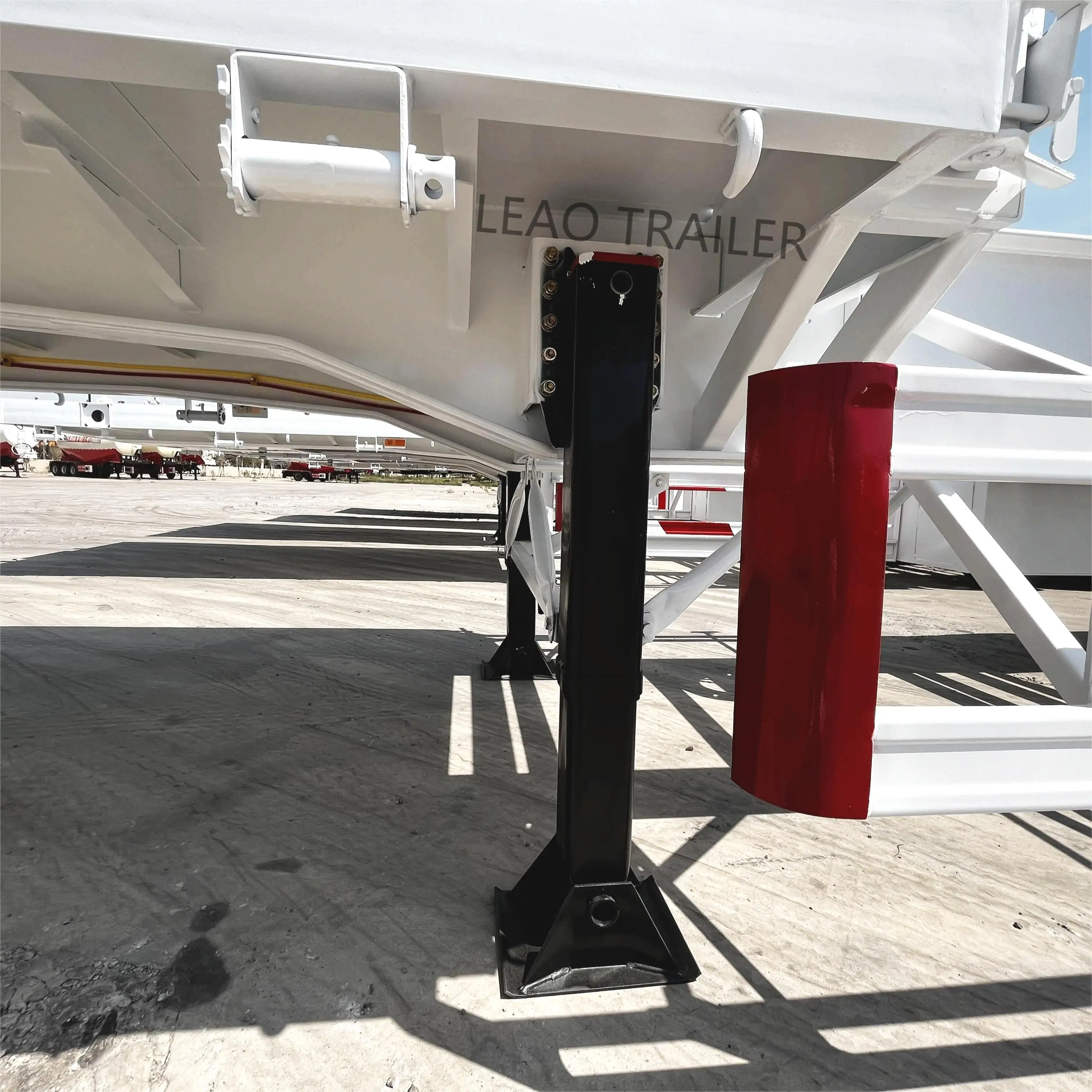

The warranty period of Chinese brand/JOST landing gear is more than 5 years. The gearbox uses low temperature premlum chassis oil and is rated for service from -30°C to 120°C.

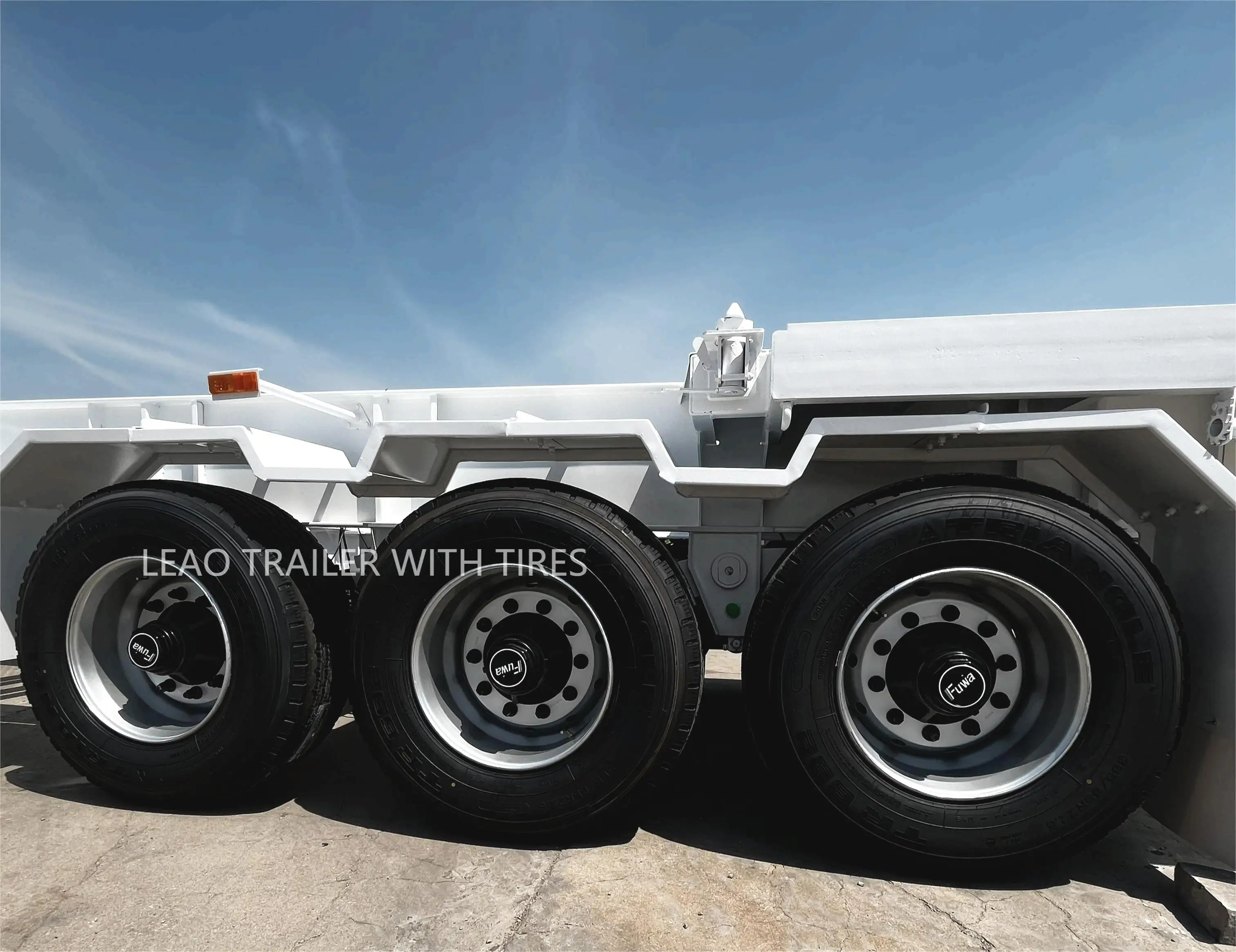

Double Coin /LingLong/Michelin/Triangle/Bridgestone and other famous brand for choice.Better Performance in wear resistance.
Product Application

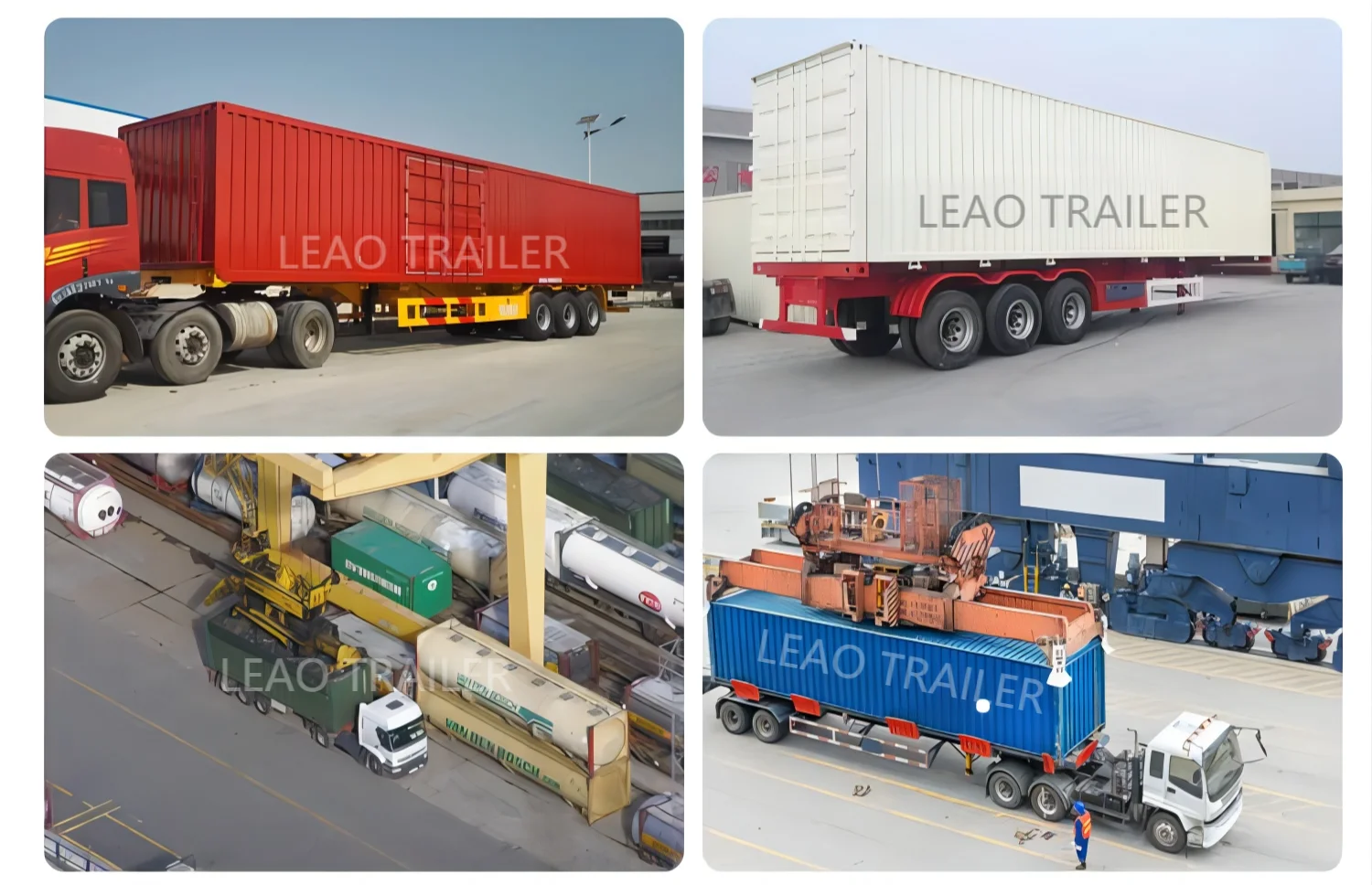

Widely used in container logistics, port freight transfer stations, railway container handling stations, warehouses, military logistics, customs and other container distribution center.

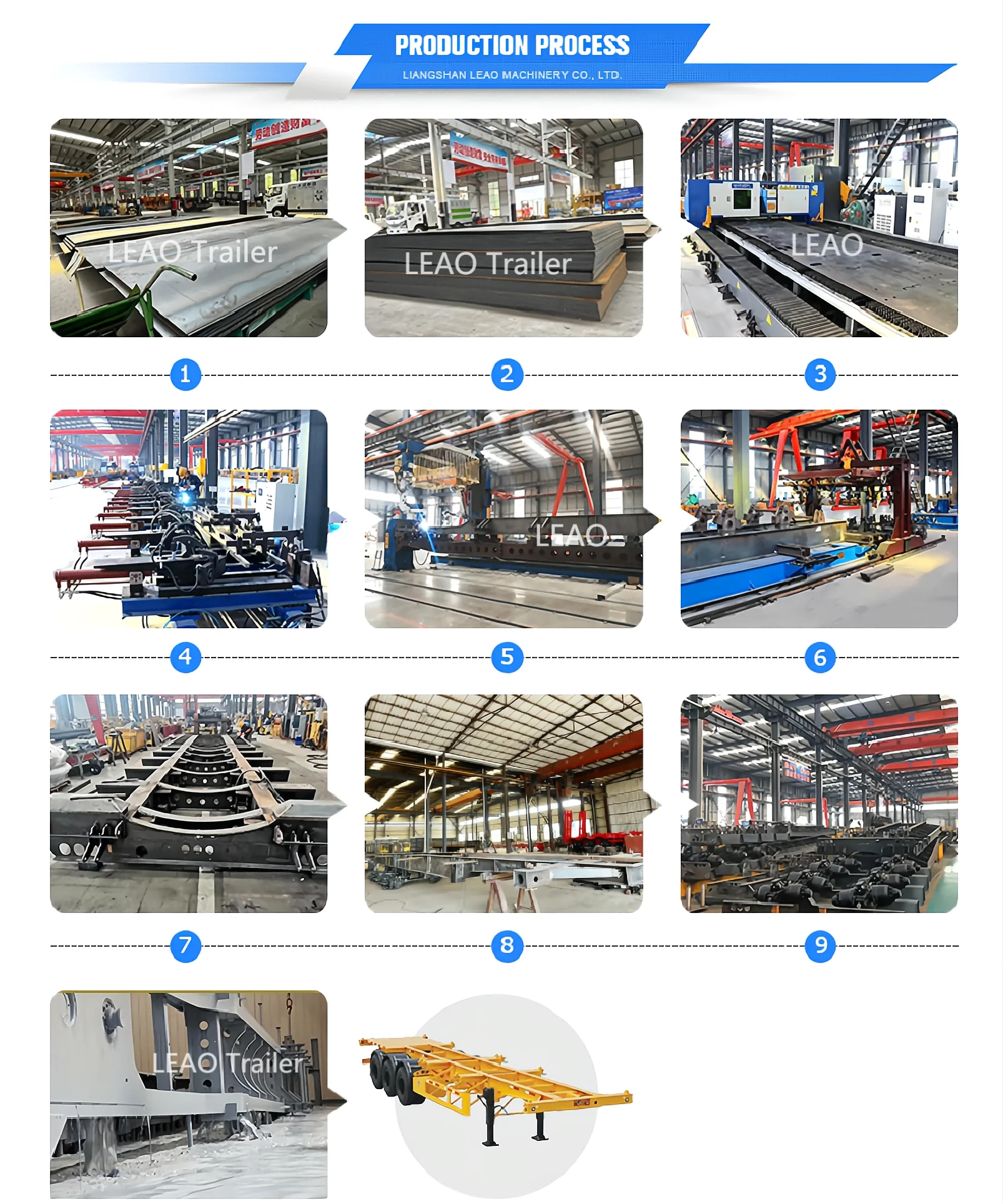

Production Process
Packaging & Shipping
Company Information

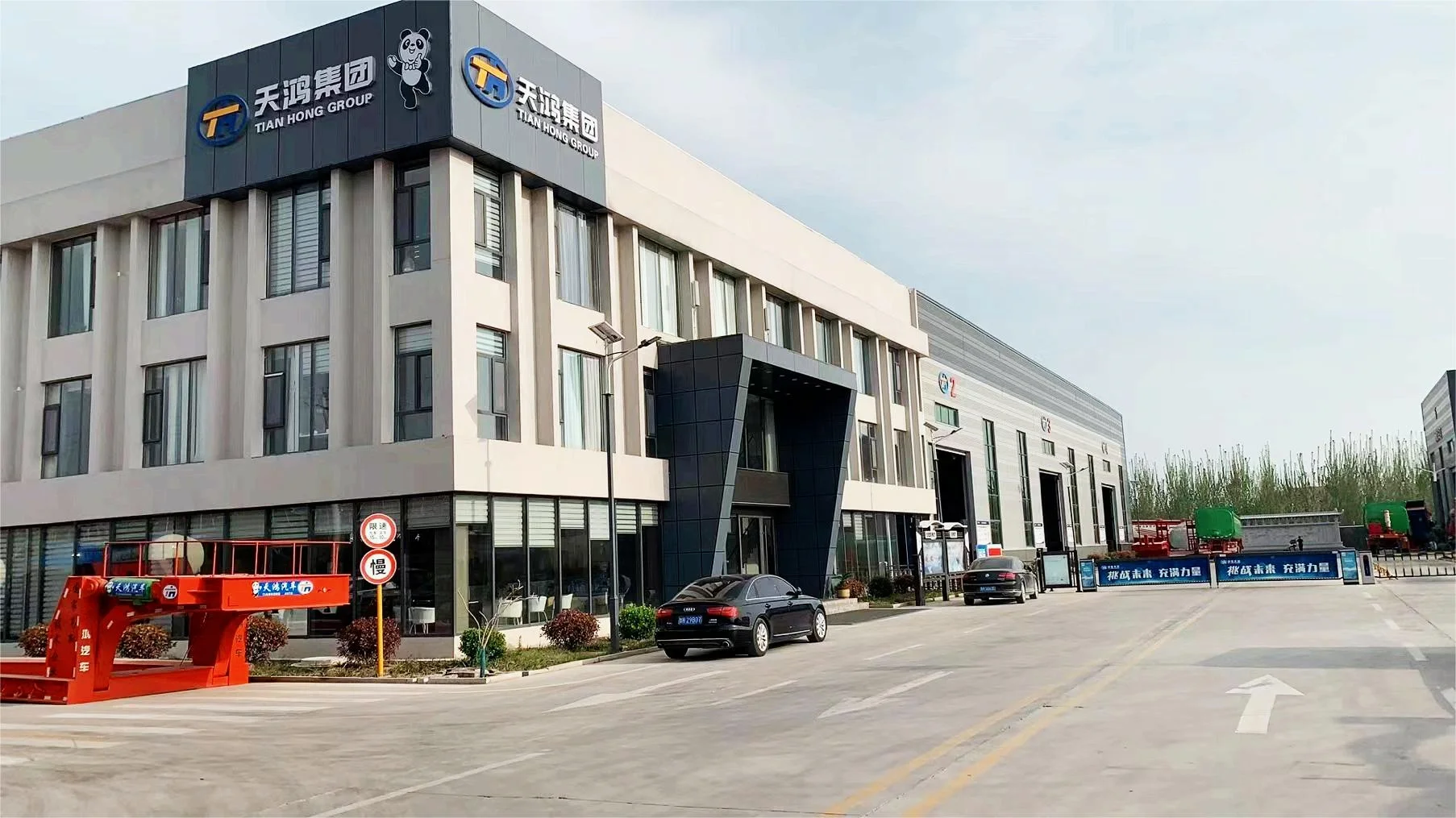

Liangshan LEAO Machinery Co., Ltd. is the foreign trade sales branch of Shandong Tianhong Automobile Group, mainly responsible for the overseas market of Tianhong Group. The head office is an enterprise integrating automobile manufacturing, design, trade, parts production and sales, and has 15 years of experience in the production of semi-trailers and trailer parts axles, suspension,landing gear. The company is located in Liangshan County, China's special vehicle production base, and has passed IS09001-2000 certification and 3C certification.

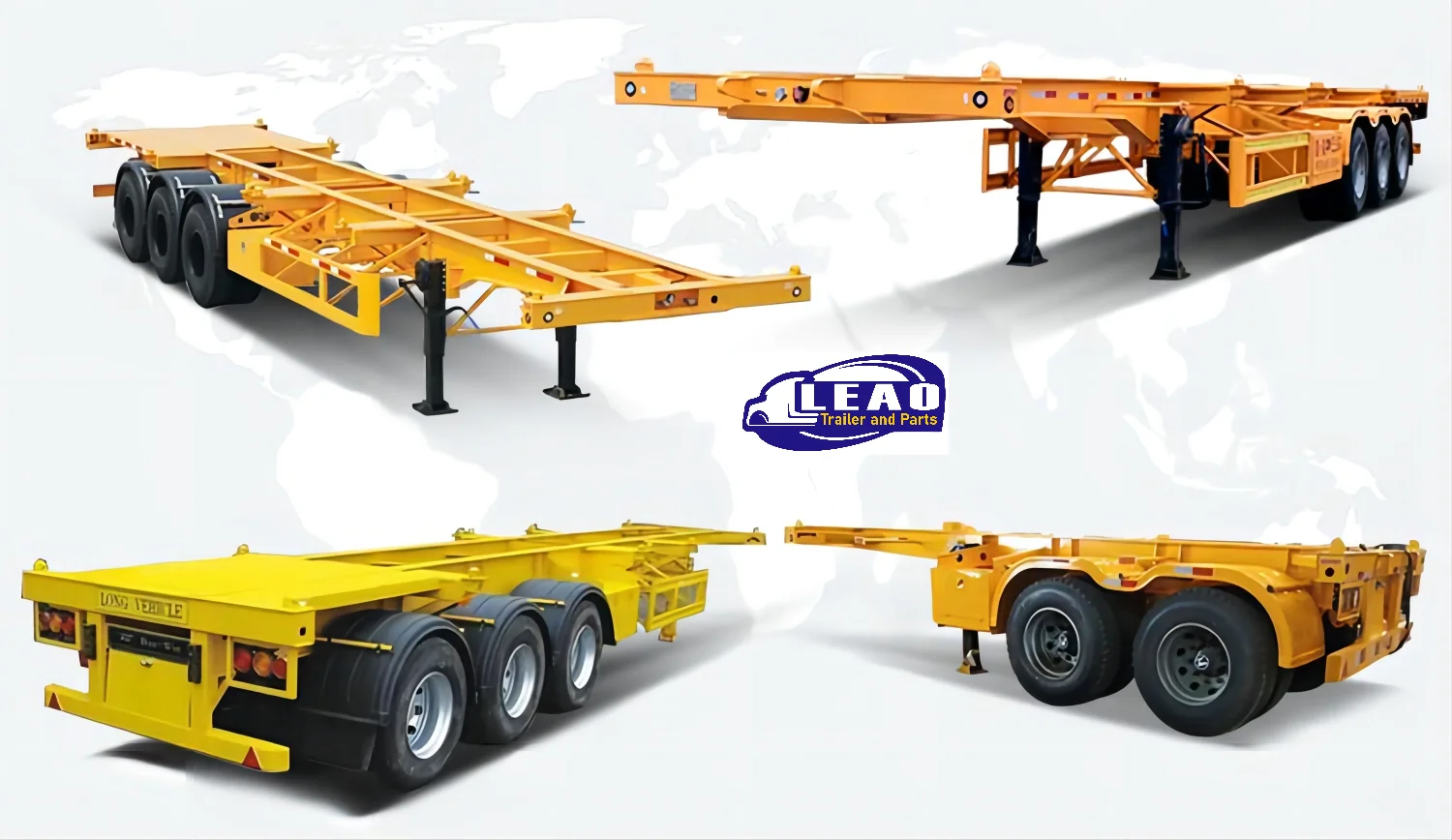

LEAO's main container chassis trailers, lowbed trailers, cargo transport trailers, dump truck trailers, fuel tanker trailers, car transport trailers, animal transport fence trailers and axle spare parts sell well in Australia, Singapore, Japan, Sudan and other Middle East, Southeast Asia , Africa and more than 30 countries.
The company has first-class CNC production equipment, mainly including CNC cutting machine, gantry automatic welding machine, large bending machine, shearing machine, vehicle pass-through shot blasting machine, automatic paint spraying room and isolation production and testing equipment. There are several professional engineers and more than 100 skilled workers. First-class technology, strict management, excellent team, make due contributions to the global transportation industry!
Beautiful Liangshan, honest LEAO, Tianhong Group wholeheartedly welcomes domestic and foreign customers to visit and guide.
