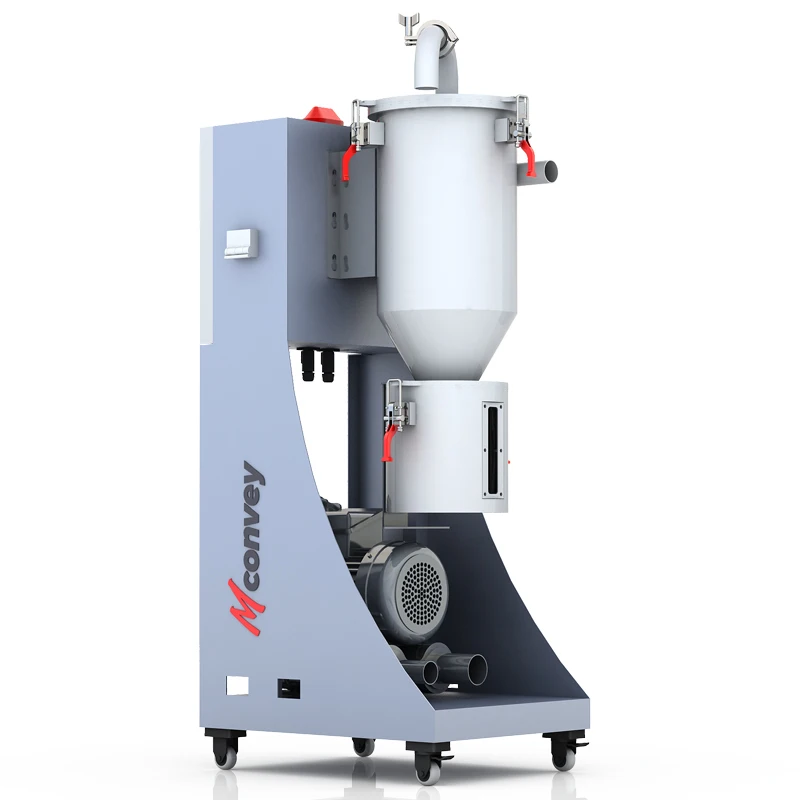

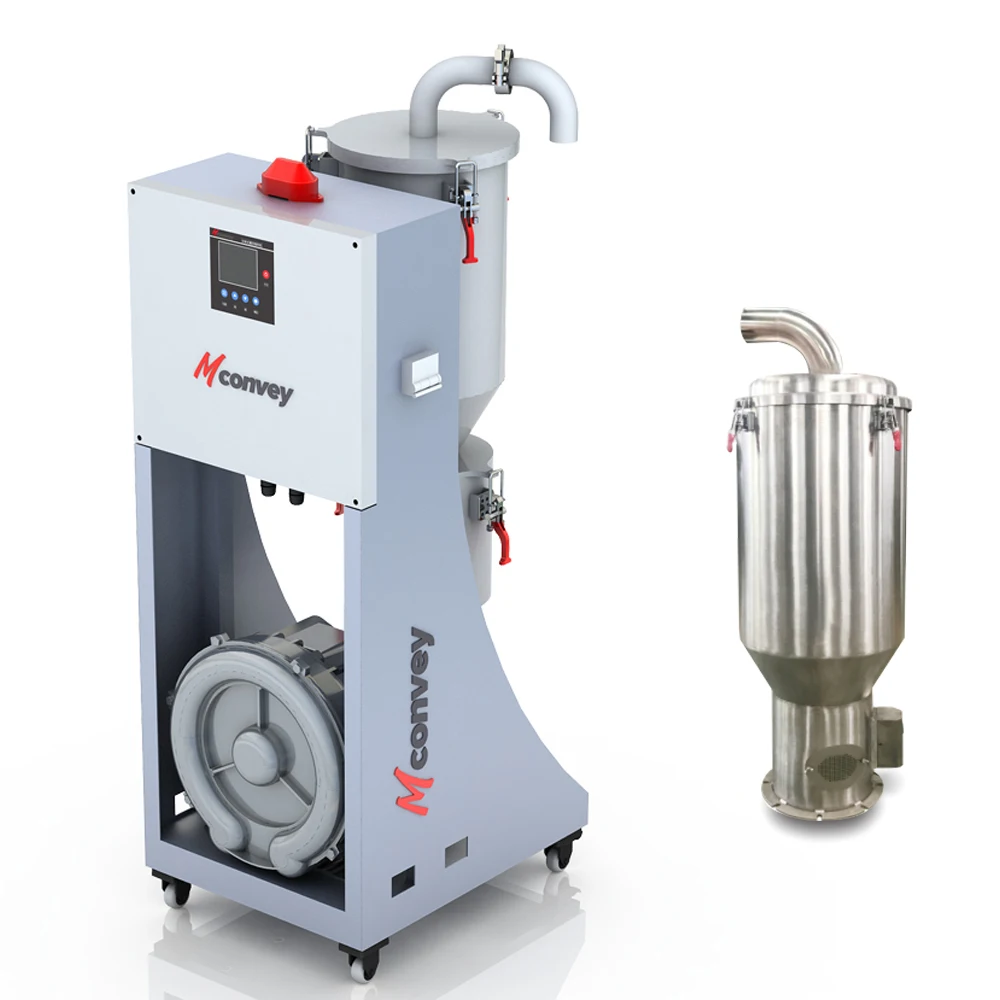

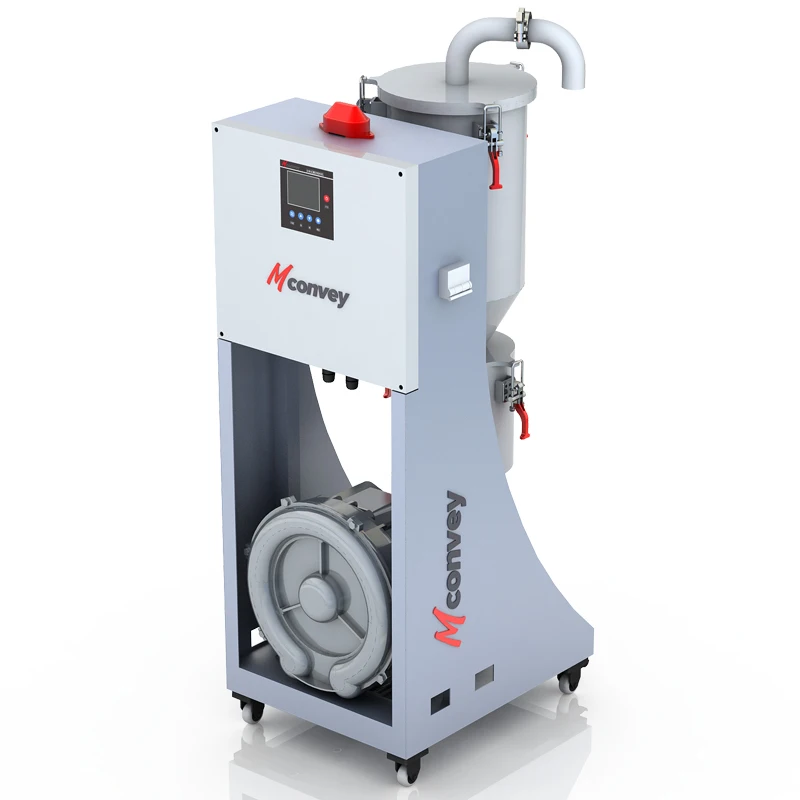

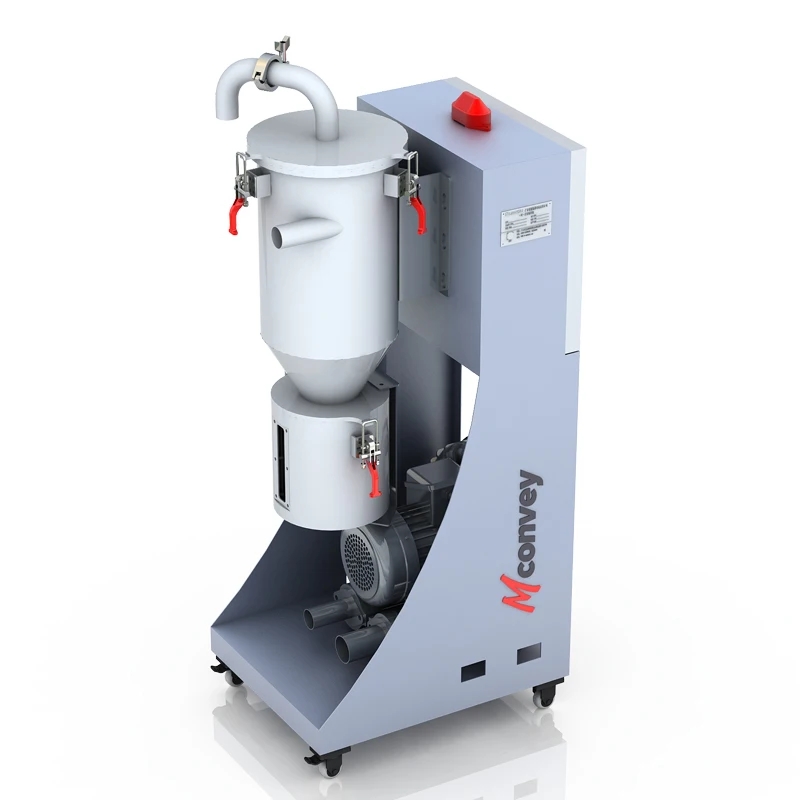

Pneumatic automatic plastic loader vacuum loader resin feeder hopper auto loader transport machine
- Category: Plastic Raw Material Machinery >>>
- Supplier: Guangdong Liansu Machinery Manufacturing Co. Ltd.
Share on (1600567960815):
Product Overview
Description
Features:
* With a lower suction design, it has a cyclone baffle and separate dust bucket under the filter, which can effectively reduce the load of the filter;
* Separate dust bucket for easy dust removal;
* With the electrical control function of the two-ingredient proportional valve, it can be directly equipped with a two-ingredient proportional valve;
* The hopper loaders above 5HP are equipped with a vacuum breaking valve, which can effectively increase the suction capacity;
* The main machine is equipped with fault and motor overload indicator lights, which can give an alarm quickly;
* The central operation panel can be used to centrally set the suction parameters of each station;
* The main machine is equipped with a suction overtime and fan overload alarm device.
* Separate dust bucket for easy dust removal;
* With the electrical control function of the two-ingredient proportional valve, it can be directly equipped with a two-ingredient proportional valve;
* The hopper loaders above 5HP are equipped with a vacuum breaking valve, which can effectively increase the suction capacity;
* The main machine is equipped with fault and motor overload indicator lights, which can give an alarm quickly;
* The central operation panel can be used to centrally set the suction parameters of each station;
* The main machine is equipped with a suction overtime and fan overload alarm device.
Scope of application:
* Providing high-pressure vacuum (negative pressure) power, it is mainly used in the central feeding system or single-machine feeding applications. The start of the fan in the central feeding system can be connected to and controlled by the centralized control station;
* It can be used together with different types of hopper loaders based on customer needs to meet the feeding and conveying of granules and powder;
* The suction mode of the feeding system can be equipped with a hopper loader to form a feeding loop.
* It can be used together with different types of hopper loaders based on customer needs to meet the feeding and conveying of granules and powder;
* The suction mode of the feeding system can be equipped with a hopper loader to form a feeding loop.
Schematic diagram:
Specification table:
Model | High pressure fan power (KW) | Conveying capacity (kg/h) | Hopper capacity (L) | Air suction port diameter (mm) | Material suction port diameter (mm) | Voltage | ||||||
LSAL-2HP-UG | 1.5 | 500 | 12 | 38 | 38 | 3¢, 400V, 50Hz | ||||||
LSAL-5HP-UG | 3.75 | 1000 | 25 | 50.8 | 50.8 | 3¢, 400V, 50Hz | ||||||
LSAL-10HP-UG | 7.5 | 1600 | 50 | 63 | 63 | 3¢, 400V, 50Hz | ||||||
LSAL-5HP-UG-2 | 3.75 | 1000 | 25 | 50.8 | 50.8 | 3¢, 400V, 50Hz | ||||||
LSAL-10HP-UG-2 | 7.5 | 1600 | 50 | 63 | 63 | 3¢, 400V, 50Hz | ||||||
LSAL-5HP-UG-4 | 3.75 | 1000 | 25 | 50.8 | 50.8 | 3¢, 400V, 50Hz | ||||||
LSAL-10HP-UG-4 | 7.5 | 1600 | 50 | 63 | 63 | 3¢, 400V, 50Hz | ||||||
Conveying capacity reference: horizontal - 4 meters, vertical - 4 meters, raw material - ABS granules; bulk density - 0.65kg/L | ||||||||||||

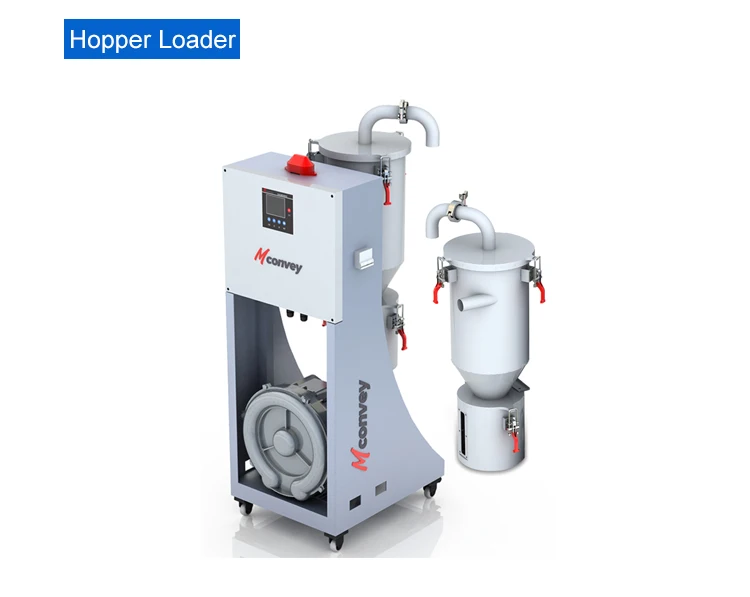

Product Display
