Product Overview
Description

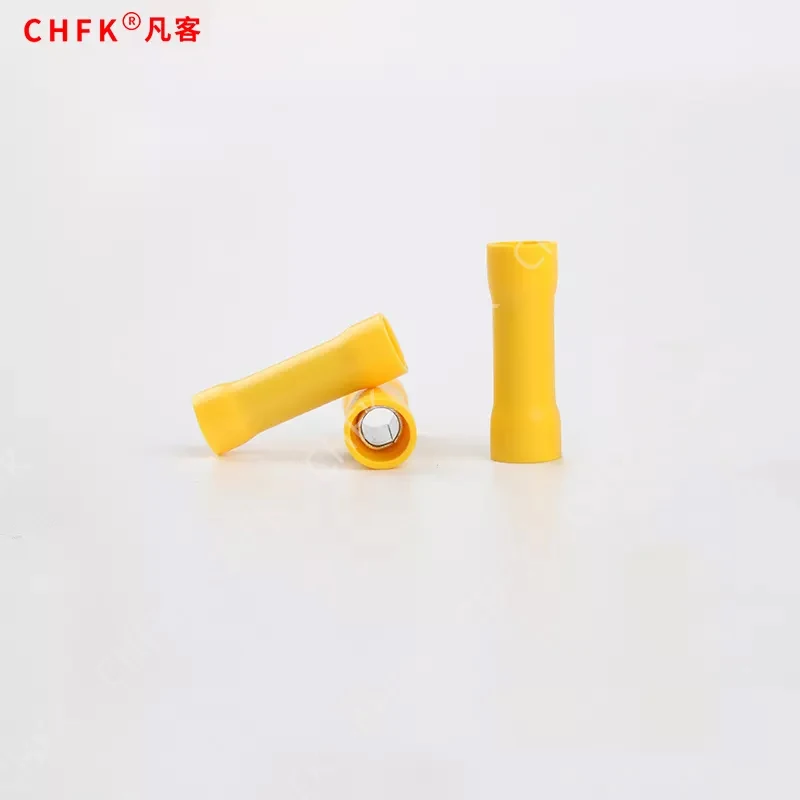

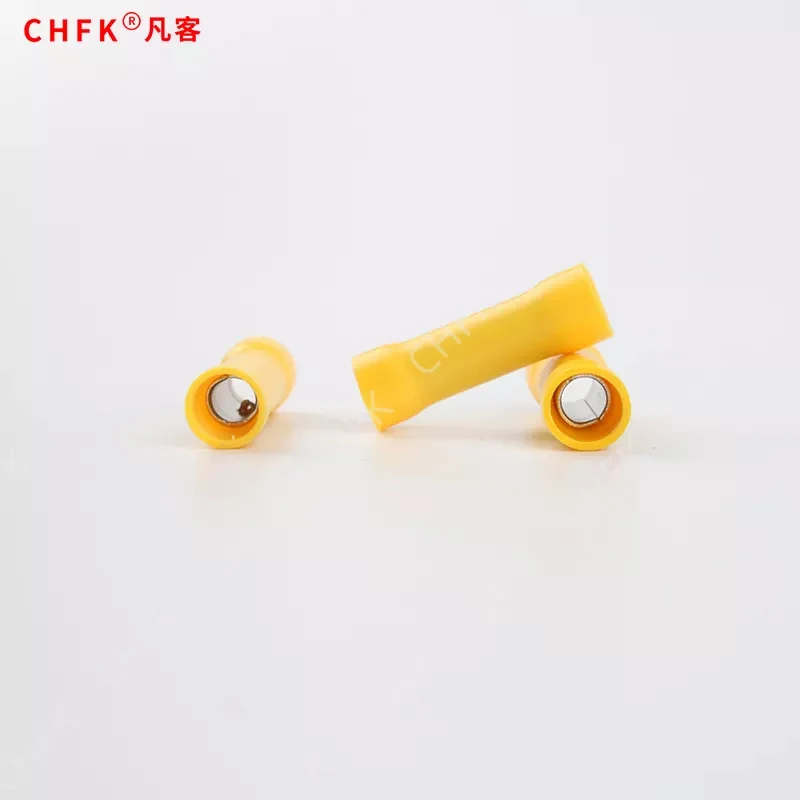

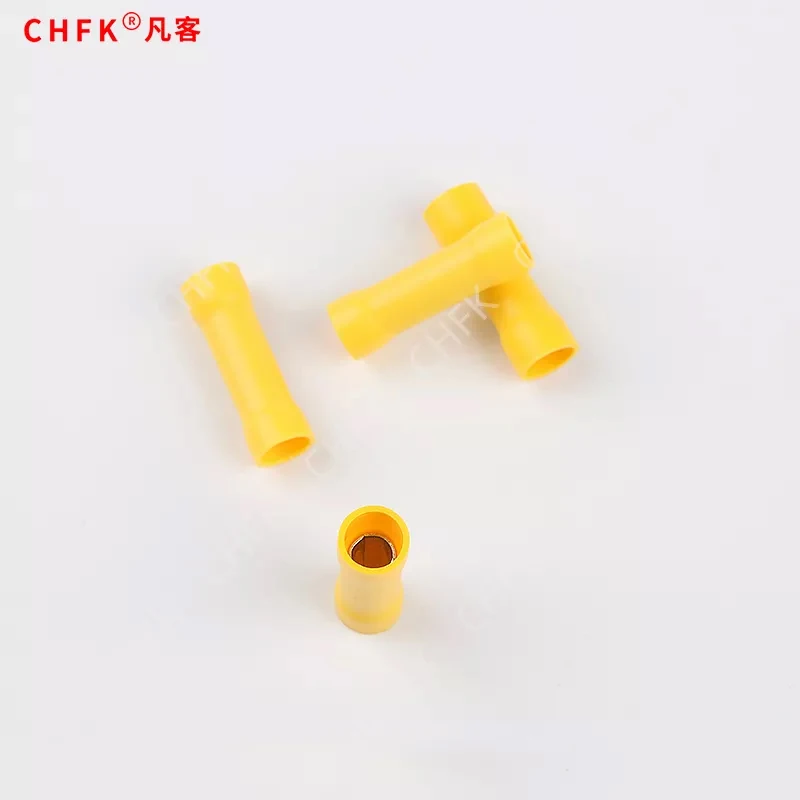

BV series electric waterproof insulated brass wire connectors crimp terminals
Banner
Product Description

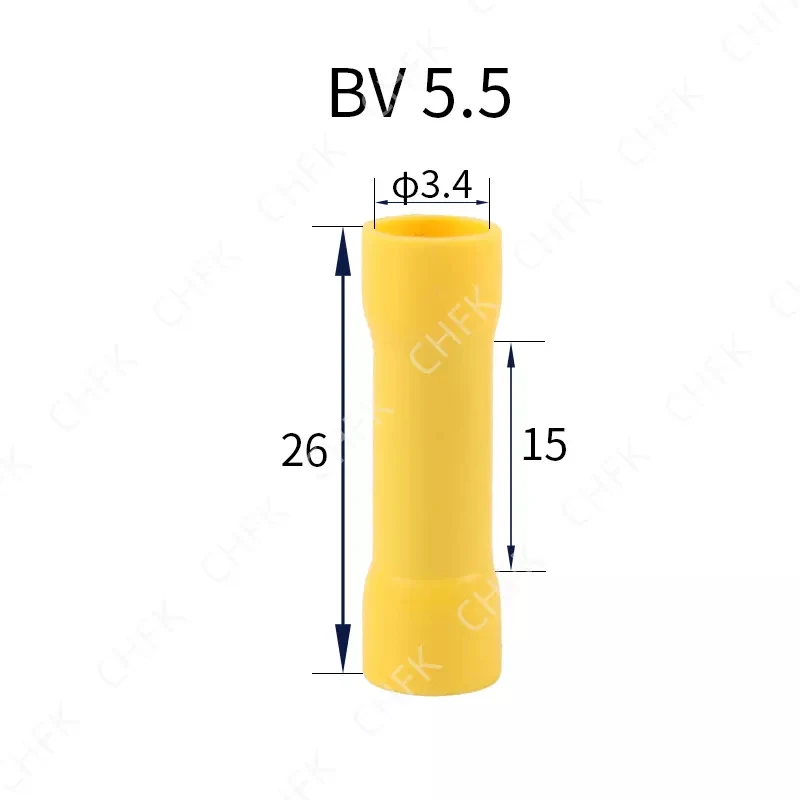

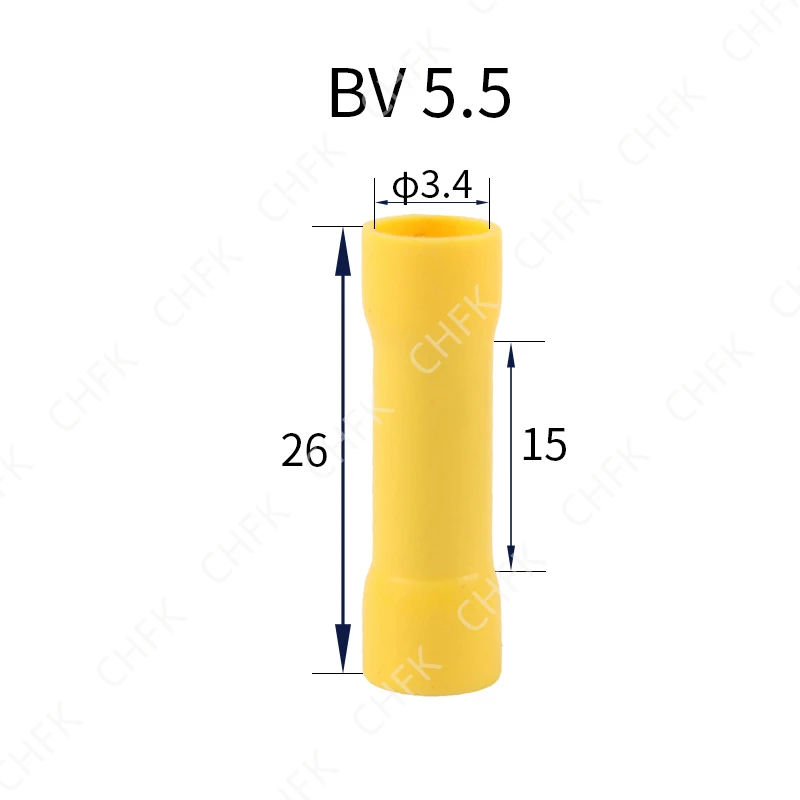

| BV Insulated connector | |||||||
| Model | Section of lead | Dimension (mm) | MAX current | Colour | |||
| A.W.G | mm2 | B(mm) | d(mm) | L(mm) | |||
| BV0.75 | 22-18 | 0.5-1.0 | 15 | 1.7 | 25.5 | 19A | Red |
| BV1.25 | 22-16 | 0.75-1.5 | 15 | 1.9 | 26 | 19A | Red |
| BV2 | 16-14 | 1.5-2.5 | 15 | 2.3 | 26 | 27A | Blue |
| BV3.5 | 14-12 | 2.5-4 | 15 | 3 | 26 | 37A | Black |
| BV5.5 | 12-10 | 4-6 | 15 | 3.4 | 26 | 48A | Yellow |
| BV8 | #8 | 6-10 | 21 | 4.5 | 35 | 62A | Red |
| BV14 | #6 | 10-16 | 26 | 5.8 | 42 | 88A | Blue |
| BV22 | #4 | 16-25 | 29 | 7.7 | 50 | 115A | Yellow |
Hot Product
Company Information
Certifications
Exhibition
Shipping&FAQ
Q1: Could I Put My Own Logo On It?
A1: yes, our company support OEM and ODM One-stop service customized.
Q2: MOQ
A2: No MOQ for standard packing
Q3: How about Shipping?
A3: Express ,FOB,CIF,DDP are available . We wil choose best shipping for you.
Q4: What's your terms of payment?
A4:T/T, L/C, Paypal
