Shantui SD13 Radiator Assembly 10Y 03B 01000
- Category: >>>
- Supplier: Xuzhou Focus Industry Group Co. Ltd.
Share on (1600569603858):
Product Overview
Description

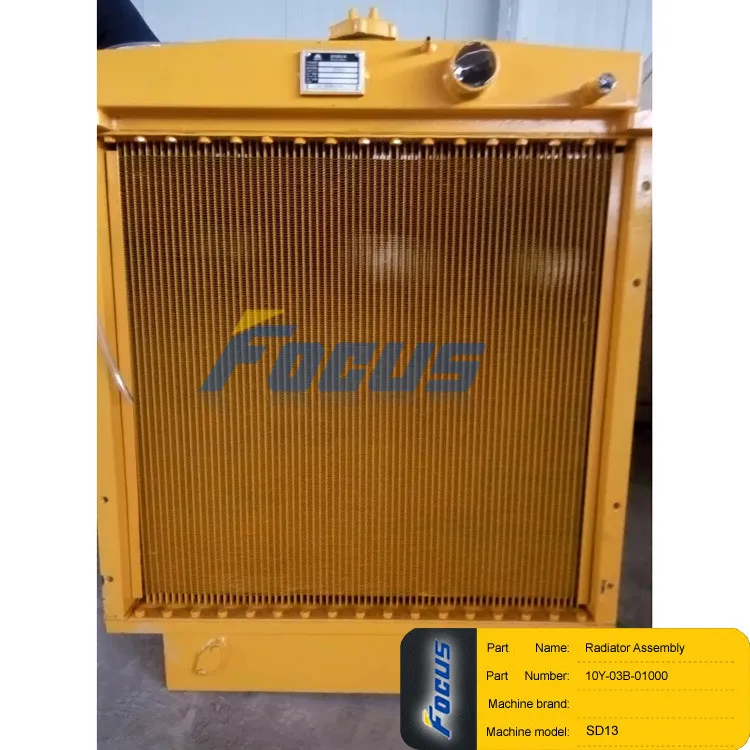

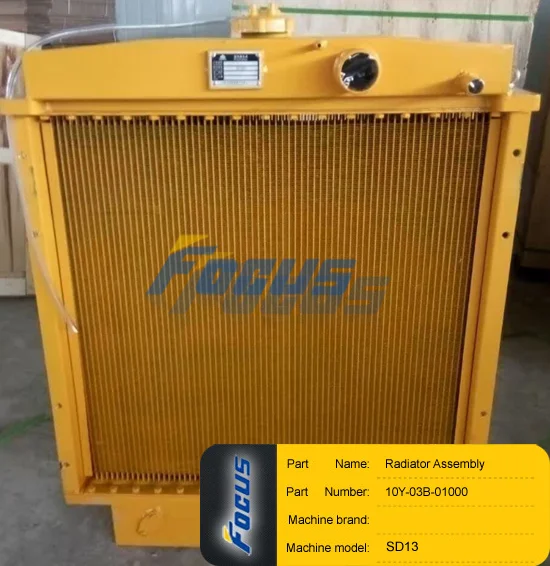

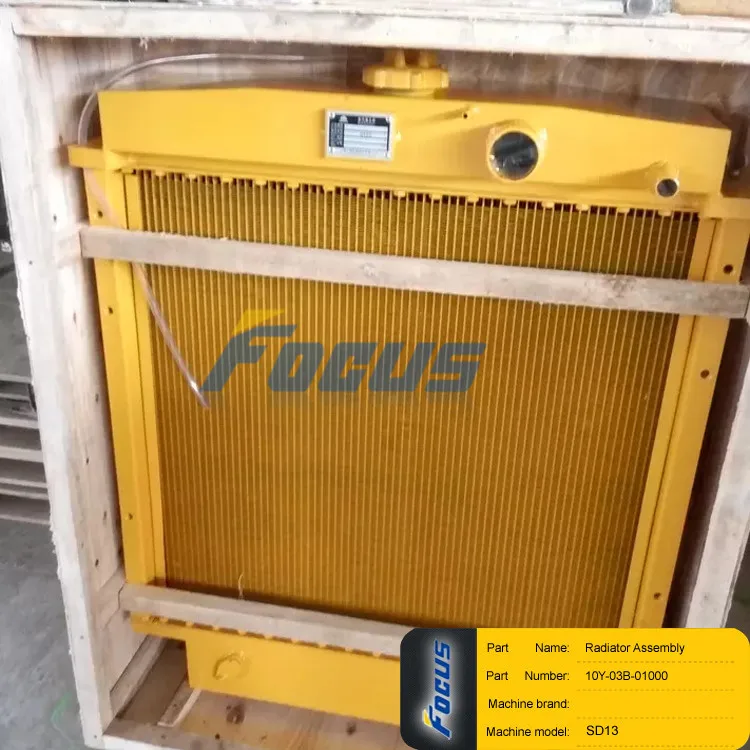

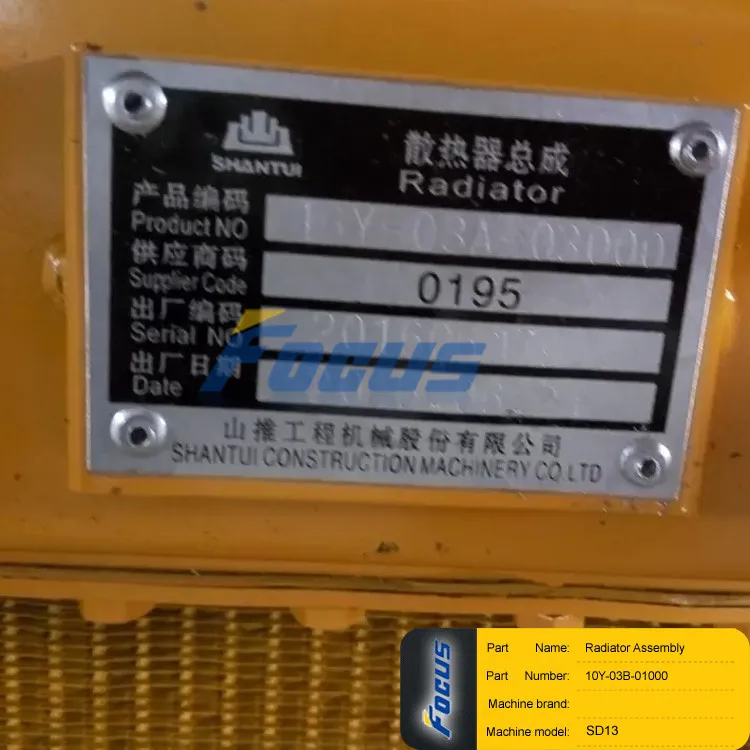

Shantui SD13 Radiator Assembly 10Y-03B-01000
Brand: SHANTUI SD13
Part Name: Radiator Assembly
Part Number: 10Y-03B-01000
Machine Model: SD13
Hotline:0086-18052293627 (whatsapp & wechat)

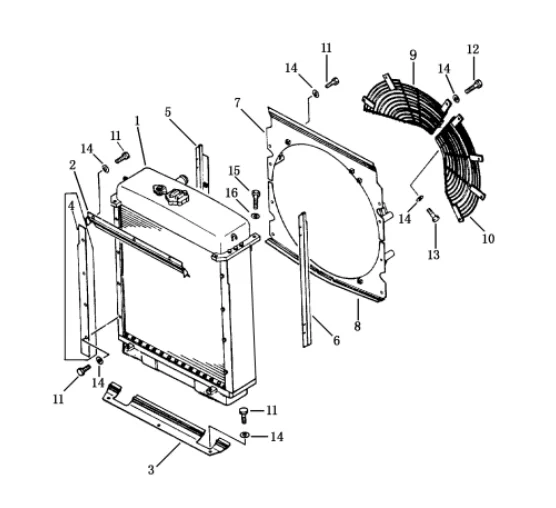

| RADIATOR ASS’ Y AND COVER | |||
| No. | Part No. | Description | Q’ty |
| 1 | 10Y-03B-01000 | radiator ass’y | 1 |
| 2 | 10Y-03-02000 | plate(upper) | 1 |
| 3 | 10Y-03-06000 | plate (lower) | 1 |
| 4 | 10Y-03-00004 | plate R.H | 1 |
| 10Y-03-00005 | plate L.H | 1 | |
| 5 | 10Y-03-09000 | plate R.H | 1 |
| 6 | 10Y-03-08000 | plate L.H | 1 |
| 7 | 10T-03B-04000 | wind hood(upper) | 1 |
| 8 | 10Y-03B-07000 | wind hood (lower) | 1 |
| 9 | 10Y-03B-05000 | net | 1 |
| 10 | 10Y-03B-06000 | net | 1 |
| 11 | 01010-31025 | bolt | 26 |
| 12 | 01011-31010 | bolt | 6 |
| 13 | 01010-31030 | bolt | 1 |
| 14 | 01643-31032 | washer | 33 |
| 15 | 01010-31245 | bolt | 4 |
| 16 | 01643-31232 | washer | 4 |
