Product Overview

Description

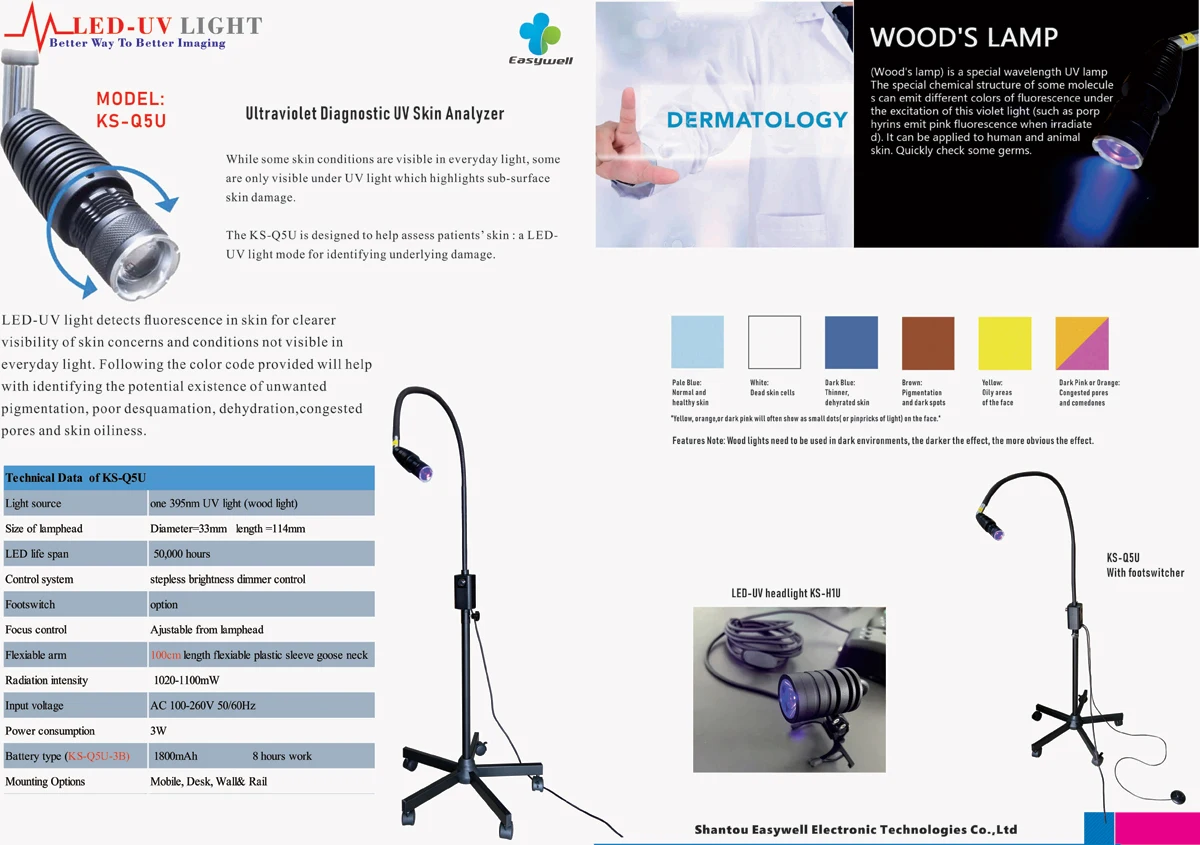

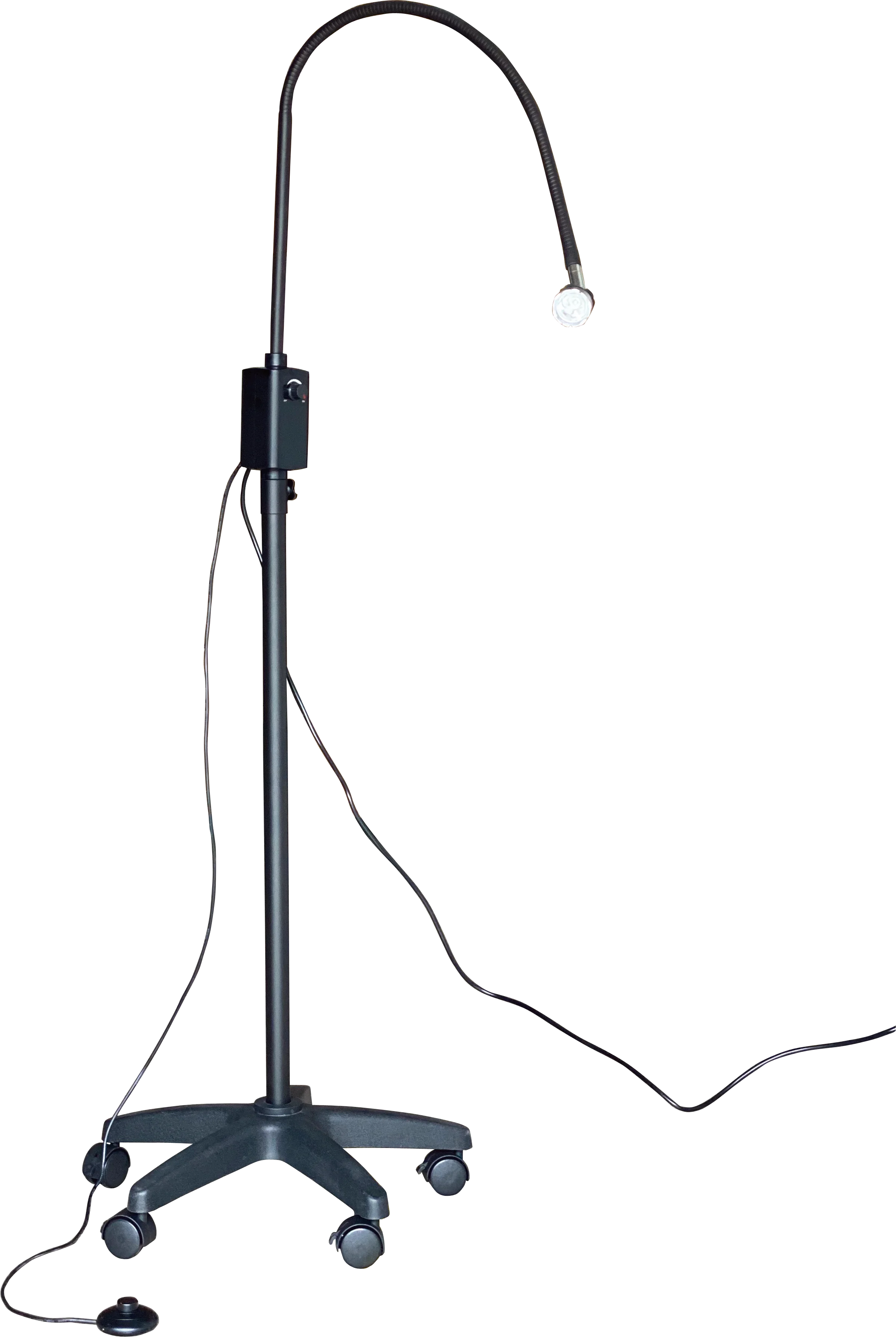

LED UV Lamp KS-Q5U

Hair Extension / Nail Beauty /  Skin Diagnosis

UV Wavelength : 365nm (wood lamp)/ 395nm
Specially for Skin diagnosis/ cosmetics/ makeup/ beauty/ hairdressing/ ect

Control type : Dimmer control with footswitch

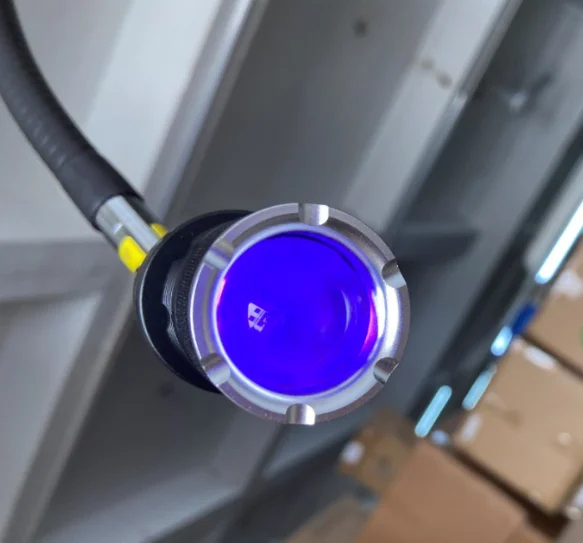

Lighting focus : Adjusted Focused UV Light
Mobile type (Detachable 5 branches base with 5 brakes)/  Option: ABS 5 branches base

Footswitch can control the UV light on and off by your foot to FREE YOUR HANDS during operation



Widely used in Beauty Salon/ Manicure/ Dermatology / Skin management


Features Note: Wood lights need to be used in dark environments, the darker the effect, the more obvious the effect.

While some skin conditions are visible in everyday light, some are only visible under UV light which highlights sub-surface skin damage.

The KS-Q5U is designed to help assess patients' skin : a LED-UV light mode for identifying underlying damage.

LED-UV light detects fluorescence in skin for clearer visibility of skin concerns and conditions not visible in everyday light. Following the color code provided will help with identifying the potential existence of unwanted pigmentation, poor desquamation, dehydration,congested pores and skin oiliness.

Technical Data  of KS-Q5U
Light source	one 395nm UV light (wood light)

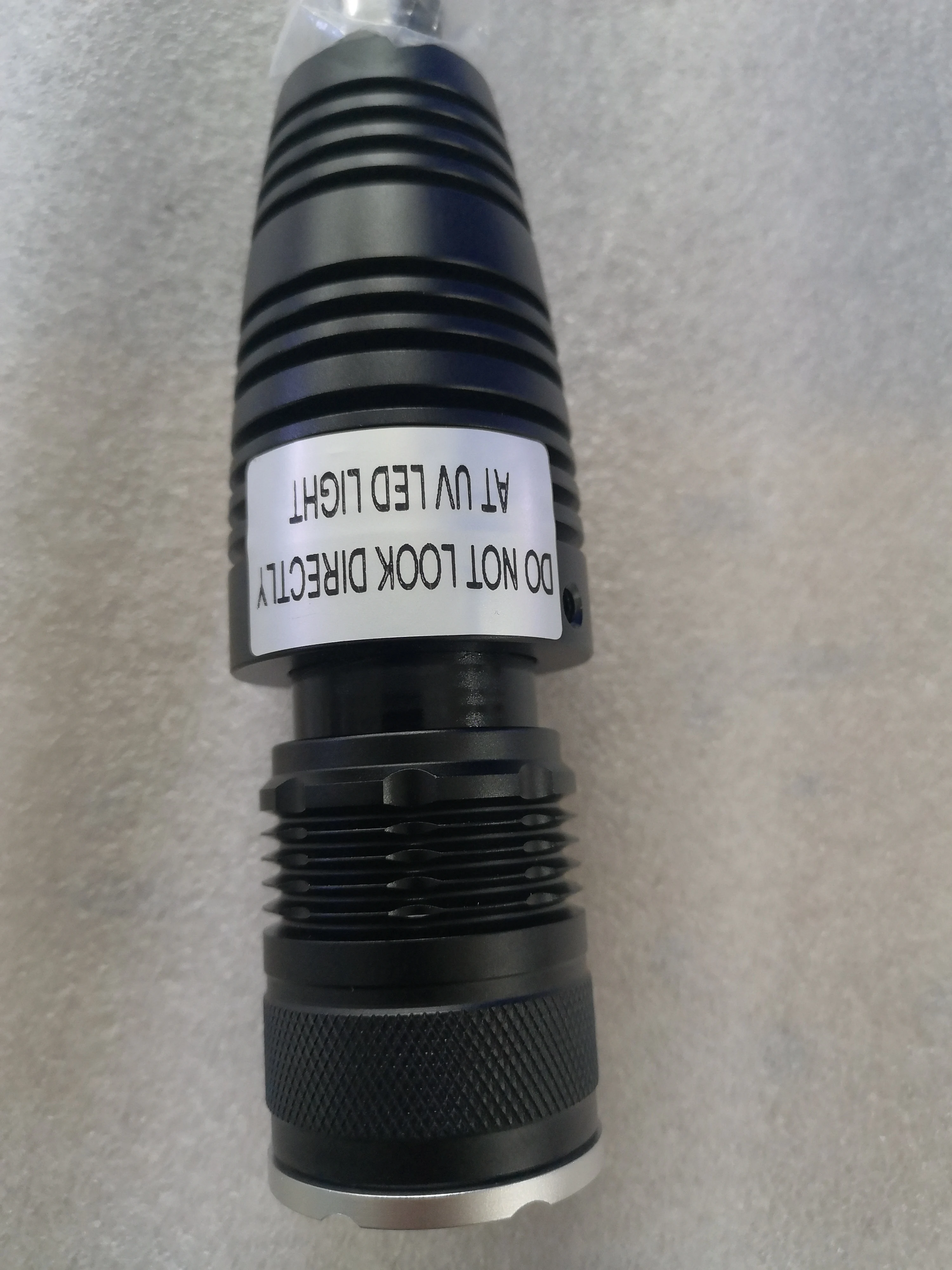

Size of lamphead	Diameter=33mm   length =114mm
LED life span	50,000 hours
Control system	stepless brightness dimmer control
Footswitch	option
Focus control	Ajustable from lamphead
Flexiable arm	100cm length flexiable plastic sleeve goose neck
Radiation intensity	1020-1100mW
Input voltage	AC 100-260V 50/60Hz
Power consumption	3W
Battery type (KS-Q5U-3B)	1800mAh                  8 hours work
Mounting Options	Mobile, Desk, Wall& Rail



Optional: Foot swticher /KSQ5U-3D(Digitallight-touch)/KS-Q5U-3S(Non-touch)/KS-Q5U-3B(battery)  /Wall mounted /Table Clamp/ Rail-Clamp

Operation

* After cleansing skin, cover client's eyes with cotton.
* Secure cover shade to wood lamp.
* Completely cover client's face with cover shade. The wood lamp should be parallel to client`s face with distance of 15-20cm.
* Identify different skin characteristics by appearances of different colors under the ultraviolet ray

Pale Blue: Normal and healthy skin
White: Dead skin cells
Dark Blue: Thinner,dehyrated skin
Brown: Pigmentation and dark spots
Yellow: Oily areas of the face
Dark Pink or Orange:  Congested pores and comedones

Yellow, orange,or dark pink will often show as small dots( or pinpricks of light) on the face.

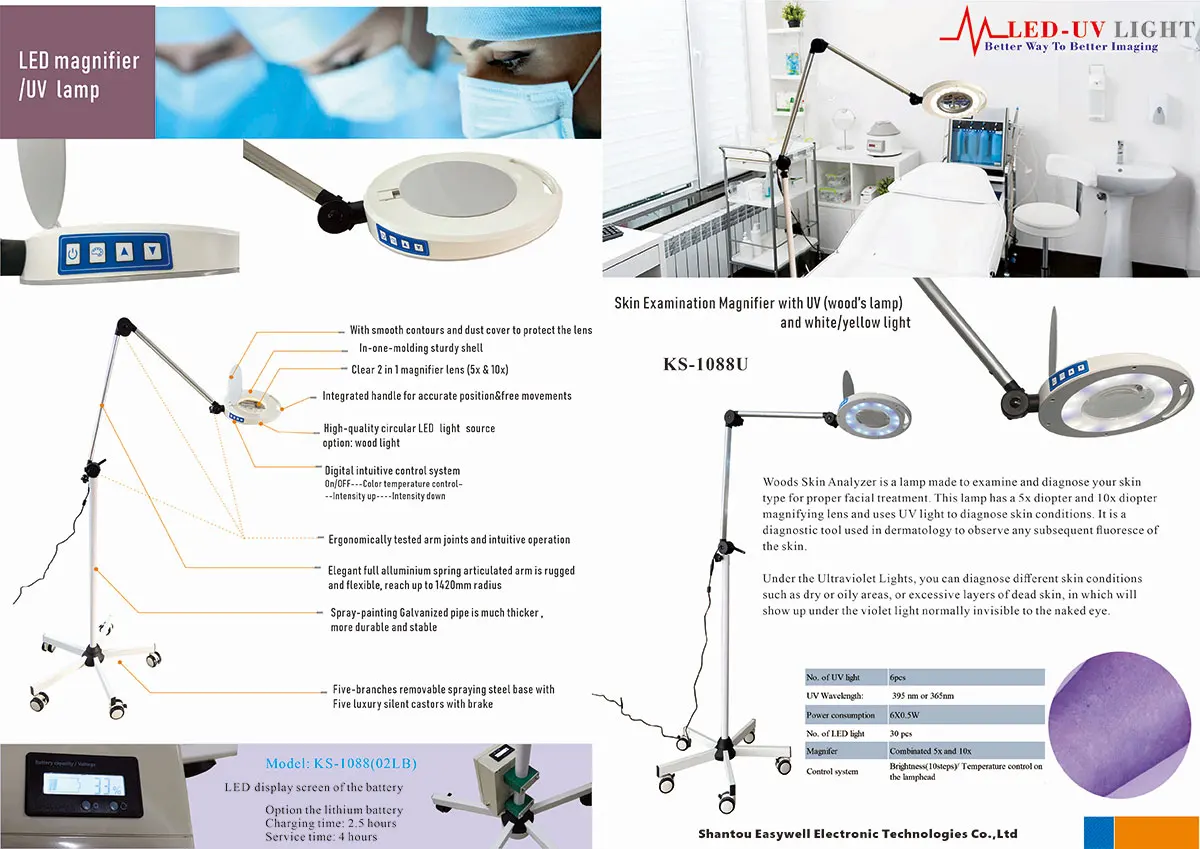

OTHER POPULAR LAMPS FOR DIAGNOSIS & THERAPY
