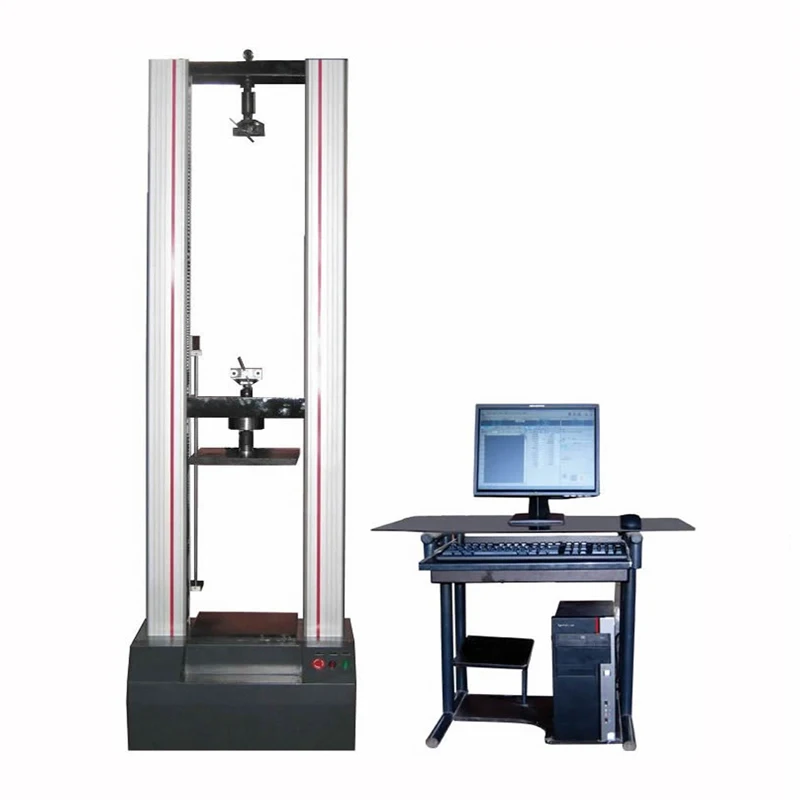

WDW 50KN computer controlled ring stiffness tensile strength compressive strength testing machine
WDW-50KN computer controlled ring stiffness tensile strength compressive strength testing machine
WDW-50KN computer controlled ring stiffness tensile strength compressive strength testing machine
WDW-50KN computer controlled ring stiffness tensile strength compressive strength testing machine
WDW-50KN computer controlled ring stiffness tensile strength compressive strength testing machine
WDW-50KN computer controlled ring stiffness tensile strength compressive strength testing machine
WDW-50KN computer controlled ring stiffness tensile strength compressive strength testing machine

WDW 50KN computer controlled ring stiffness tensile strength compressive strength testing machine

Share on (1600570928229):


Price:$4,500.00 - $4,900.00

Quantity:


Product Overview

Description

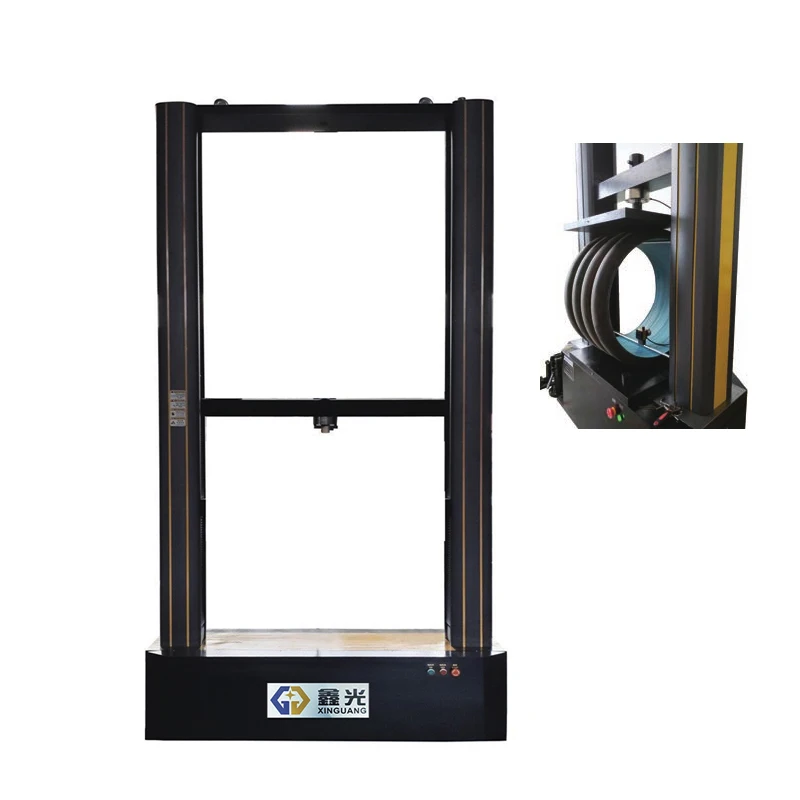

Microcomputer controlled ring stiffness testing machine
The testing machine uses AC servo motor as the power source, adopts advanced chip integration technology, professional design of data acquisition and amplification and control system, realizes the full digital adjustment of control and display in the process of amplification of test force and deformation and A / D conversion. This machine can test and analyze the mechanical properties of various metals, nonmetal and composite materials. It is widely used in aerospace, petrochemical, machinery manufacturing, wire, cable, textile, fiber, plastic, rubber, ceramics, food, pharmaceutical packaging, aluminum plastic pipe, plastic doors and windows, geotextile, film, wood, paper, metal materials and manufacturing industry. According to GB, JIS. ASTM, DIN, ISO and other standards can automatically calculate the maximum test force value, breaking force value, yield strength, upper and lower yield strength, tensile strength, compressive strength, elongation at break, tensile modulus, bending modulus of elasticity, shear test data.strength testing machine





It adopts a desktop double-space structure, pulls up and presses down, and the crossbeam can be steplessly adjusted in speed. The test space can be changed after the column, screw and cover are replaced. The transmission system is composed of a special servo-controlled reducer, an arc synchronous toothed belt, and a screw pair. It runs smoothly, with high efficiency and low noise. No pollution.strength testing machine






Maximum test force
50kN
Test force measurement range
2%~100% (1KN-50KN)
Relative error of test force indication
±1% of indicated value
Displacement resolution
0.01mm
Stretching space
650mm (customizable)
Displacement speed control range
0.01~200mm/min
Compressed space
0~650mm
Column distance
480mm
Power supply power
220V, 50Hz
