nice mobile phone repair machine wds 580
- Category: >>>
- Supplier: Shenzhen Wisdomshow Technology Co. Ltd.
Share on (1600572452176):
Product Overview
Description
Factory Supplier for BGA rework station
1.Adopted with Linear slider, so all the three axles (X, Y, and Z) can do fine tuning and quick orientation with perfect positioning accuracy and speedily maneuverability. BGA rework station Hot air Infrared

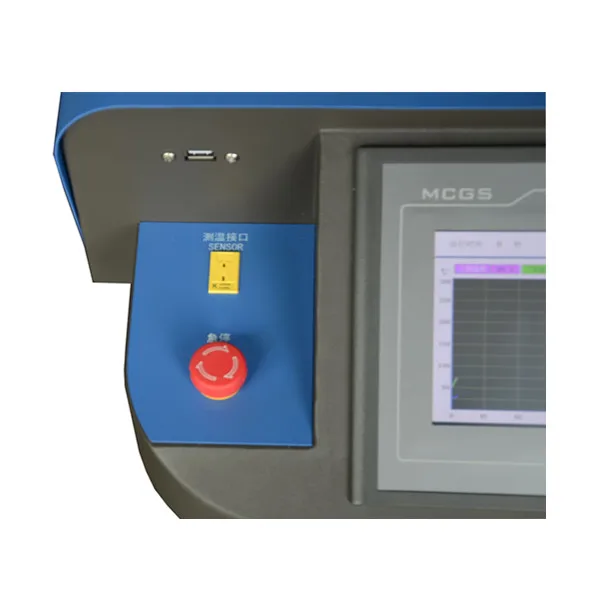

2.Equipped with touch panel interface and PLC controlling to ensure it work stably and reliably. And
it can storage multiple temperature profiling data of users. With password protection and modification function while power on. The temperature profiles will be displayed on the touch screen.

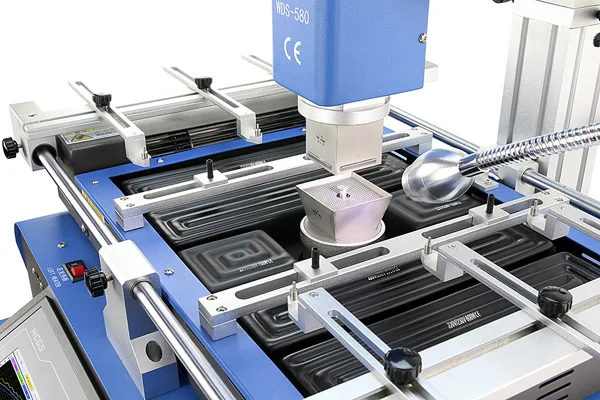

4.The hot air nozzle can be rotated in 360 degree, the IR heater in the bottom can heat up the PCB board uniformly. BGA rework station Hot air Infrared
5.High accuracy K-type thermocouple closed-loop controlling.It can test temperature accurately
through external temperature measurement interface, PCB board positioned by closed

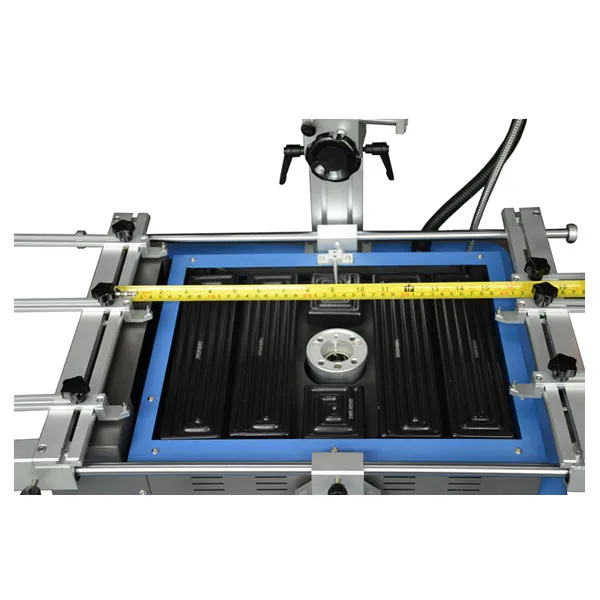

V-shape slot. The flexible and convenient universal jigs can prevent any damage or PCB
deformation as well as it is suitable for all size of BGA package.
6.Large power fan to cool down the PCB quickly. The built-in vacuum pump and external
vacuum nozzle is able to take BGA chips out easily.
7.Having alarm prompt function after welding is done, specially added early warning function for
convenient operation.
8.It has Passed CE certificate. It is equipped with emergency stop switch and protection equipment
to power off automatically when abnormal accident happened. Under this situation that
temperature is out of control,circuit can automatically cut off the power with double over
temperature protection function. BGA rework station Hot air Infrared
What is the technology parameters?
Total Power | 4800W |
Upper Heating Power | 800W |
Lower Heating Power | Second zone:1200W, Third zone: IR 2700W |
Power Supply | AC 220V±10% 50/60HZ |
Overall Dimension | L500*W590*H650mm |
Locating Mode | V-shape card slot, PCB holder can be adjustable by X and Y axes with universal jigs. |
Temperature Controlling | K-type thermocouple closed loop control, independent temperature control, precision up to ±3 degree |
PCB Size | Max 470*370mm, Min 10*10mm |
Electrical Material | High sensitive temperature control module, Delta PLC, Touch Screen made-in Taiwan
|
Weight of machine | 40KG |
What's the Wisdomshow advantages?
1.Professional factory manufacturing bga rework station,best production capability,best quality
control,best service.
2.Approved CE,Offer most competitive price.
3.100% QC inspection before shipment.
4.Speedy and high quality customer service and after-sale service possible.
5.Deliver goods to customer all over the world with speed and precision.
6. Powerful teams,meet your requirement and provide the life-time service for u.
Packaging & Shipping
What's our packing and shipping?
1.Packing:standard bga rework station wooden box package;
2.Shipping:we can ship to you by DHL,Fedex,TNT,UPS,or by air freight and sea freight.(if you have agent in shenzhen,China,it will be better,we can ship it to your friend here according to your requirement)
*** Normally,it takes about 3 working days to USA and 4 days to European countries ,and more than 3 days for slow expresses. We can ship as your request and help to find the most cost-efficient and fast way.
Once upon delivery, We will send your tracking Number immediately.***
Our Services
What’s our services for you ?
1.Your inquiry will be replied in 24 hours , 7 days/week ;
2.Technology Support :life-time maintenance; If you have time ,welcome to our company ,we will arrange engineers to show you the operation; Life-time free training to make sure you master the operating of this machine;
3. 24 hours technical support by email or calling.
4.Demo operation video of the machine are available.
How to use?(Don't worry )
1.We will provide u with the CD of User Manual and to see how to use.
2.About the temperature setting,pls refer to the Setting Of The Temperature Parameters
Manual Here and to see how to set temperature .
Gift for you,and more surprise are waitting for you !
Company Information
Shenzhen Wisdomshow Technology Co., Ltd, More than 10 year’s professional manufacturer of BGA rework station.Motorola,Lenovo,Nvidia,Panasonic,Haier,Samsung,Philips are our partners,repair laptop,desktop computer,ps3,xbox,motherboard repair success rate is up to 99%.Also,good quality BGA reballing accessories like BGA reballing station.BGA solder ball,BGA stencils and laptop repair accessories are provided.
FAQ
Q1:What’s our payment terms?
A1:1.T/T :30% deposit, Balance before shipment;2.Western Union;3.Paypal;4.Escrow.
Q2:What’s our delivery time?
A2:within 2 days after the payment.
Q3:What’s about training and warranty?
A3:Life-time free training of operation and maintenance.
Warranty:3 years warranty for you,life-time services. the 1st year is free, only spare parts charged after the 1st year.
Training and warranty can be from the overseas local office or Shenzhen Wisdomshow office directly.
Buyer Feedback
Some of customer's Voice:
1.Hi mate, your high performence machine is so competitive in my country,this
let me make much profit , my customers are really like it . cooperate with you
is so wonderful ! thank you ! ---------Richard---Turkey
2.i have received my products , your packing is do discreet and perfect , it really
amazed me .i will order more from you as soon as possible . thanks a lot. -----------Robet--Australia
3.i have cooperated with you for many times , your product quality is so great ,
that is why i still buy the products from you . thank you . ------------- Corentin ---Brazil
