Factory Price 40m3/h Diesel concrete delivery pump Portable Trailer Mounted concrete conveying pump for sale in UAE

Product Overview

Description

Factory Price 40m3/h Diesel concrete delivery pump Portable Trailer Mounted concrete conveying pump for sale in UAE



CONTACT: SARA  MOBILE/WECHAT/WHATSAPP:86-15866001919

Choose MINLE as partner,let us make every effort to support your custruction works!

 Product Description

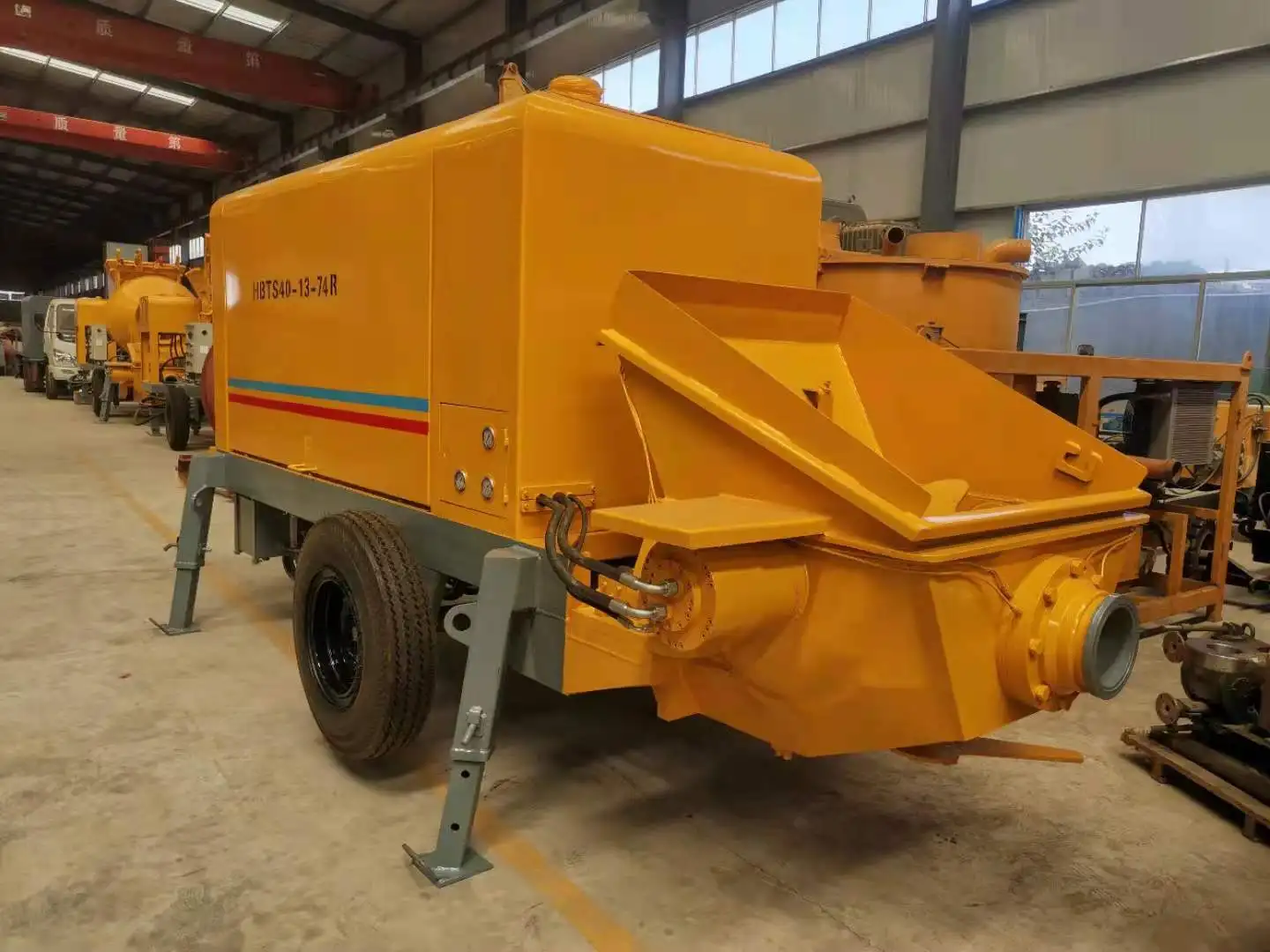

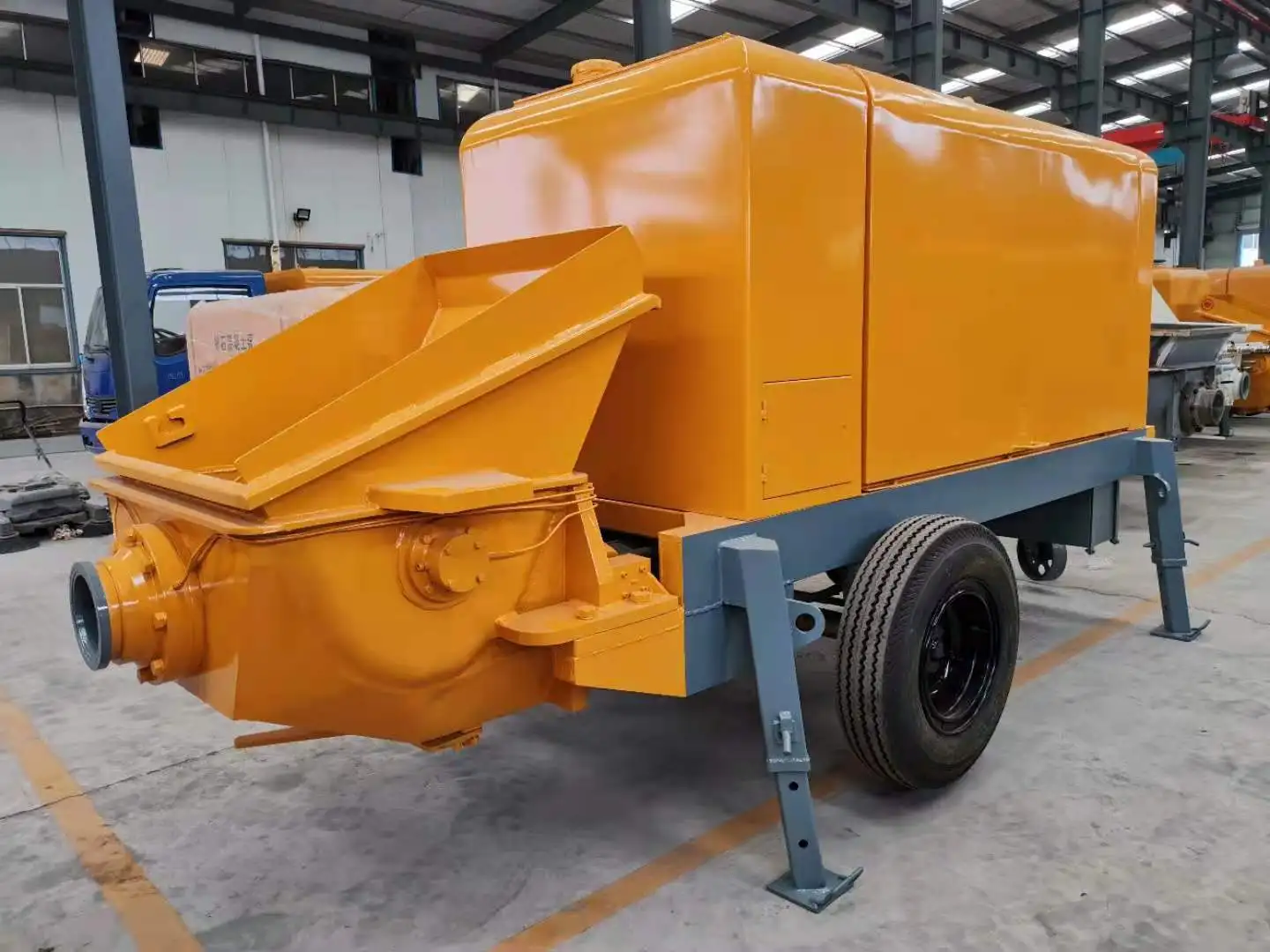

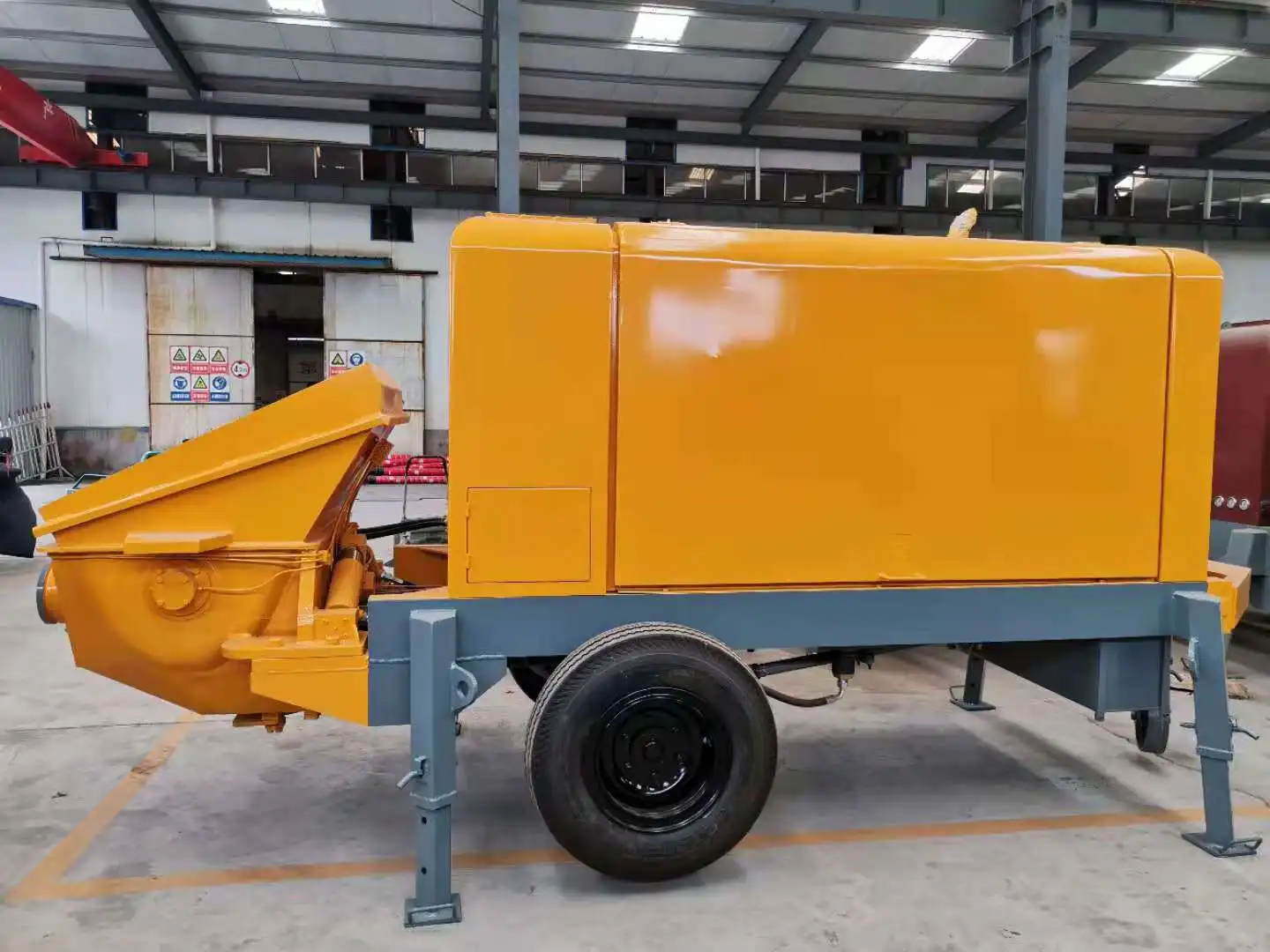

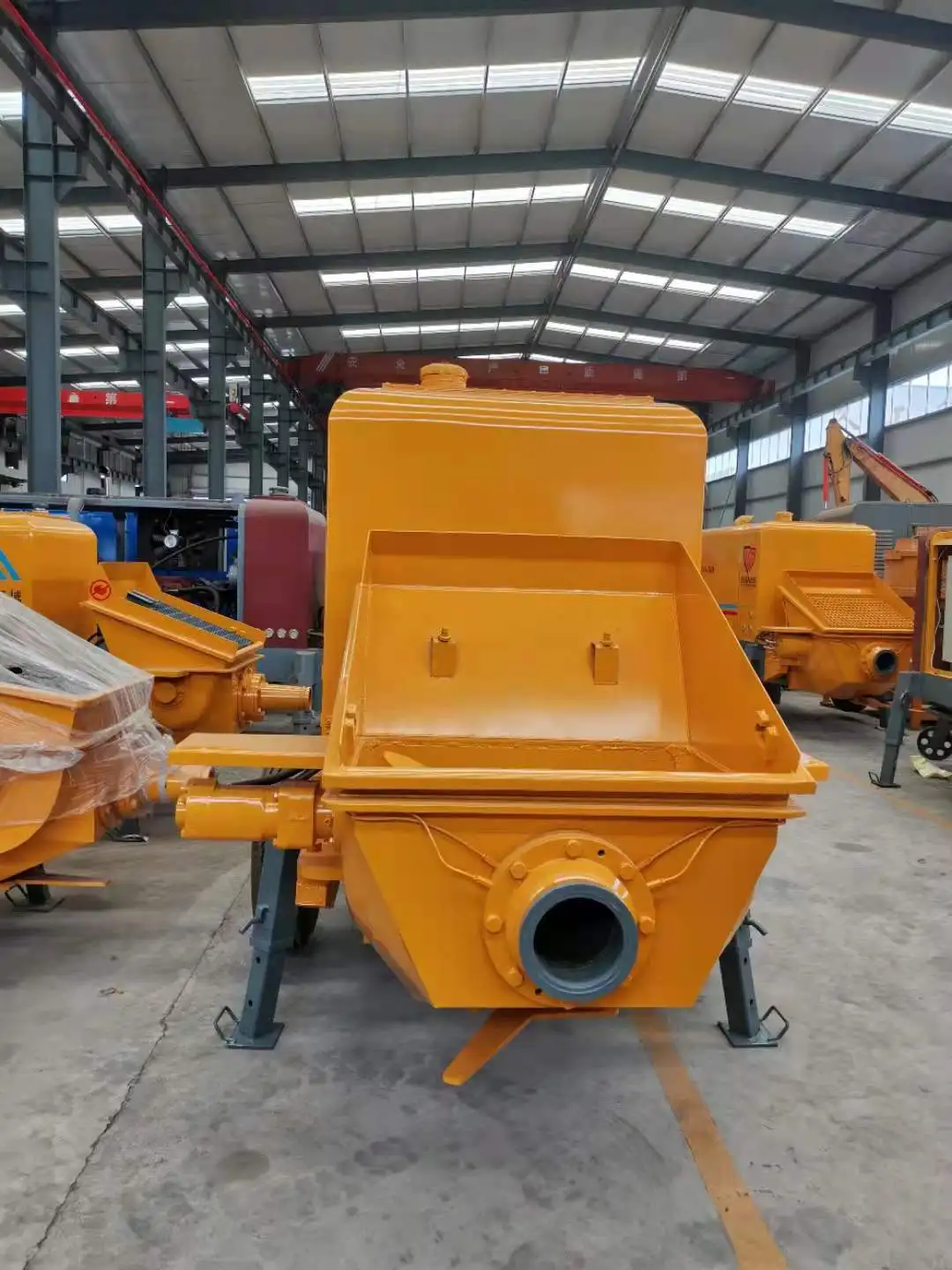

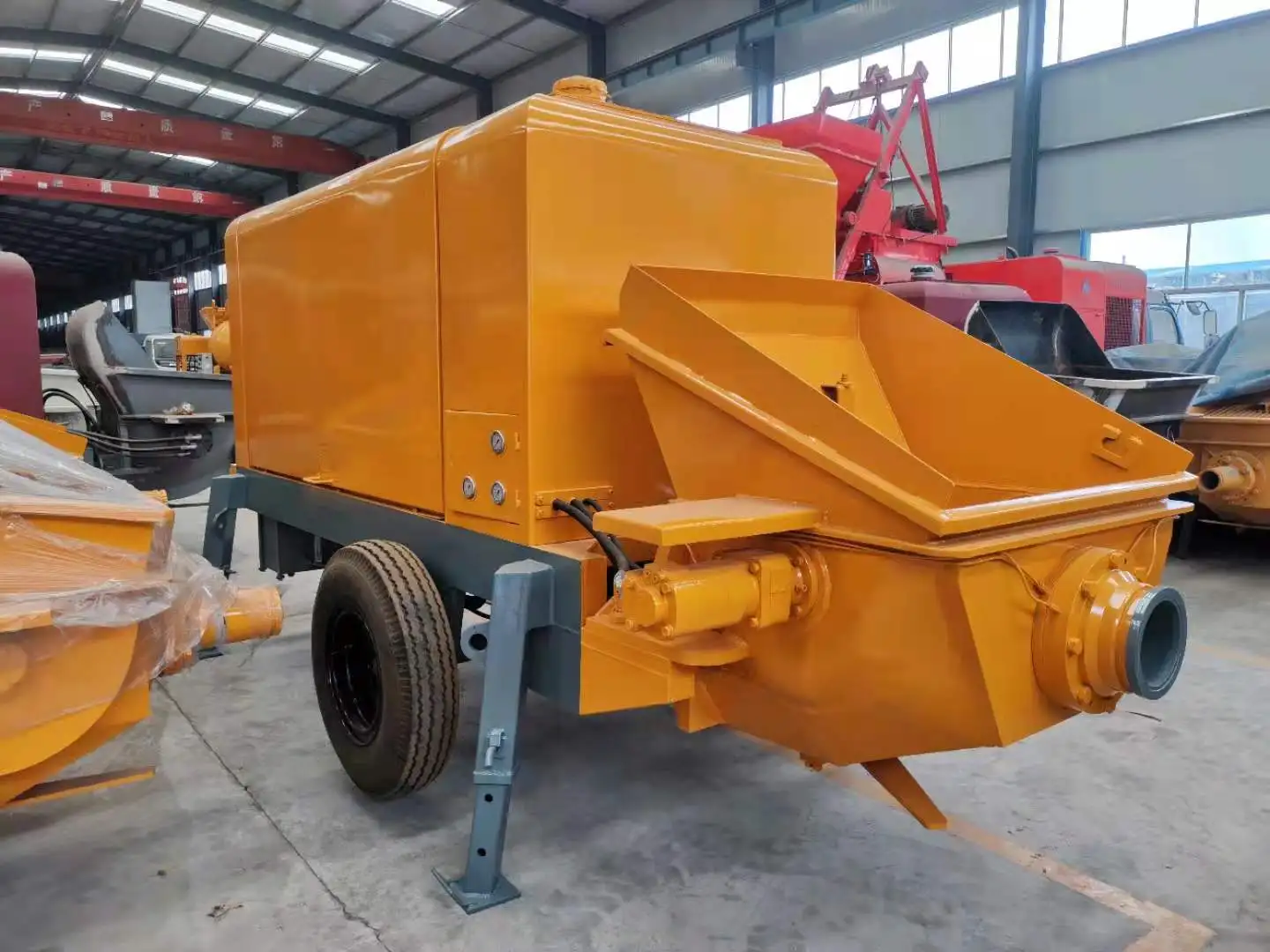

Diesel concrete delivery pump, also called trailer mounted concrete pump or  concrete trailer pump, is the kind of concrete pump mounted on the moveable trailer to to convey concrete to hard to access flexibly. MINLE brand new generation concrete pump trailer is specially designed and engineered with latest differential pressure induction control technology to keep reliability, simplify and efficiency. .

1.Power system of concrete pump for sale in uae

Hydraulic oil pump: Germany Rexroth or Japan Kawasaki are adjusted.
Diesel power: Germany Deutz, Weichai, Cummins, Dachai Deutz, Volvo, Perkins are adjusted.

2.Electronic control system of concrete pump for sale in uae

Japan Mitsubishi Programmable Logic Controller (PLC) electronic control system.

Main electric elements are imported original Schneider, Siemens, OMRON, LG etc.

The control mode: manual operation and wireless remote control

3.Hydraulic system of concrete pump for sale in uae

The unique open hydraulic system and hydraulic cushion technology contribute to the smaller

 exchange impact and less heat of the system.

4.Pumping system concrete pump for sale in uae

Pumping displacement variable adjustment: Change the pumping displacement according to

the construction to meet the requirement of the condition. Reducing design of the hopper

could release the reducing pressure of the concrete into the delivery pipe maximally,

 and prolong the service life of the S pipe outlet.

5.Lubrication System concrete pump for sale in uae

The patented central automatic lubrication system comes with a piston grease-pump,

 features high pressure and reliability, which can realize automatic lubrication of piston.

The filters at the outlet and the inlet of oil ports as double protections guarantee the system reliability.

6.Cooling System concrete pump for sale in uae

Compulsory air cooled heat exchanger keeps the temperature of the hydraulic oil below 60 degre,

that ensures the whole hydraulic system works at normal status.



concrete pump for sale in uae specification





Item concrete pumps	HBTS40—13—74R
Max Theoretical Concrete Output   (m³/h)	40
Max Concrete outlet Pressure (Mpa)	13
Concrete slump (mm)	120—230
Aggregate Size (mm)	gravel≤40
Power (KW)	Diesel motor 74
Speed (r/min)	2300
Conveying Cylinder Diameter (mm)	Ø 100/1000
Concrete Cylinder Diameter (mm)	Ø 180/1000
Fuel Tank Capacity (L)	250
Hopper Capacity (m³)	0.35
Filling Height (mm)	1250
Maximum Theoretical Conveying Distance (vertical Height/Horizontal Distance) (m)	150/700
Pipe Cleaning Mode	Washing
Overall Dimension (mm)	5000×2100×2200
Total Weight (kg)	4500



 More pics





WELCOME ENQUIRY











Customer visit and the case aboard



FAQ

Are you manufacturer or trading company?

Yes, we are professional manufacturer of concrete pumps.



What is your payment term?
We can receive T/T, L/C, Western Union and trade assurance.



What is your main product?
concrete pumping machine /Concrete mixer pump/ Concrete mixer pump Truck /Truck mounted line pump /Concrete Boom Tuck/Wet shotcrete machine and other construction machines



What is the delivery time?
Most of the order will within 15 days, sometimes depend on your quantity and our present products plan.



How about your Warranty and after sale service?
Normally is about 12 months after leaving factory, but that can be negotiated based on our cooperation.

OEM or ODM is available?
Yes, we can produce with your logo and requirements.
