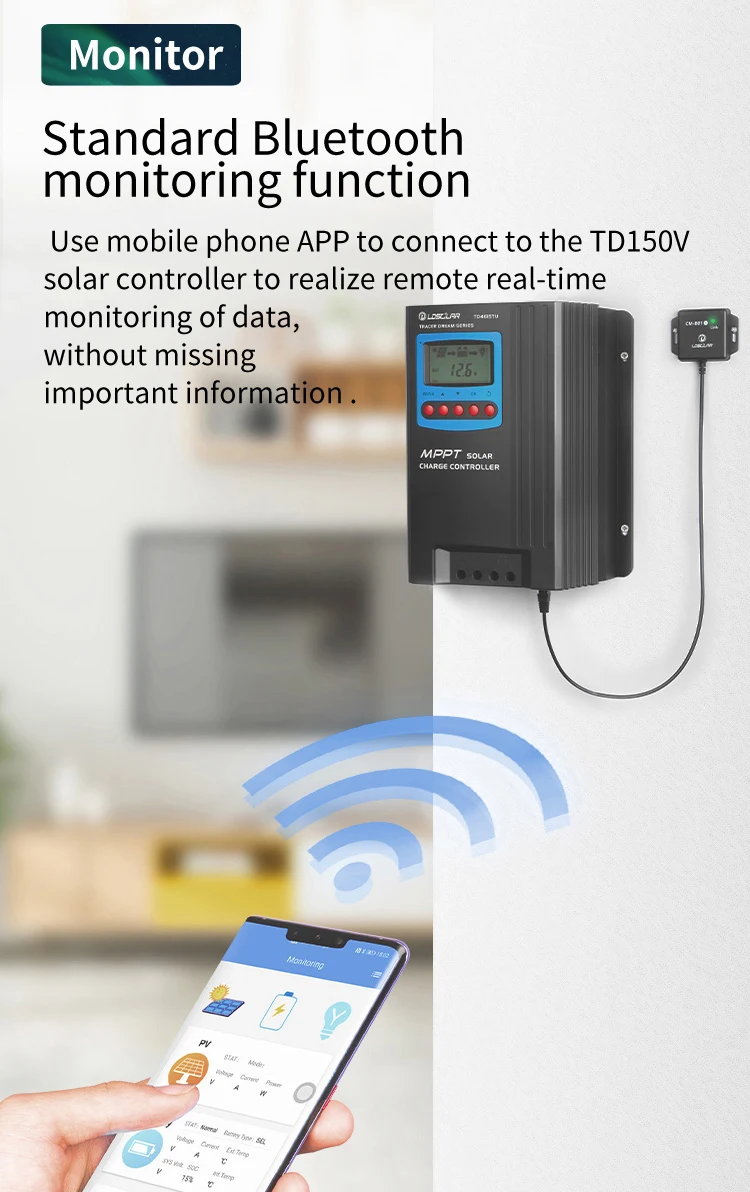

LDSOLAR tracer mppt APP monitor 60amp 12V 24V 48V MPPT Solar Charge Controller with Bluetooth Wifi
- Category: Renewable Energy >>>
- Supplier: Wuhan Welead New Energy Co. Ltd.
Share on (1600575393885):
Product Overview
Description
Products Description

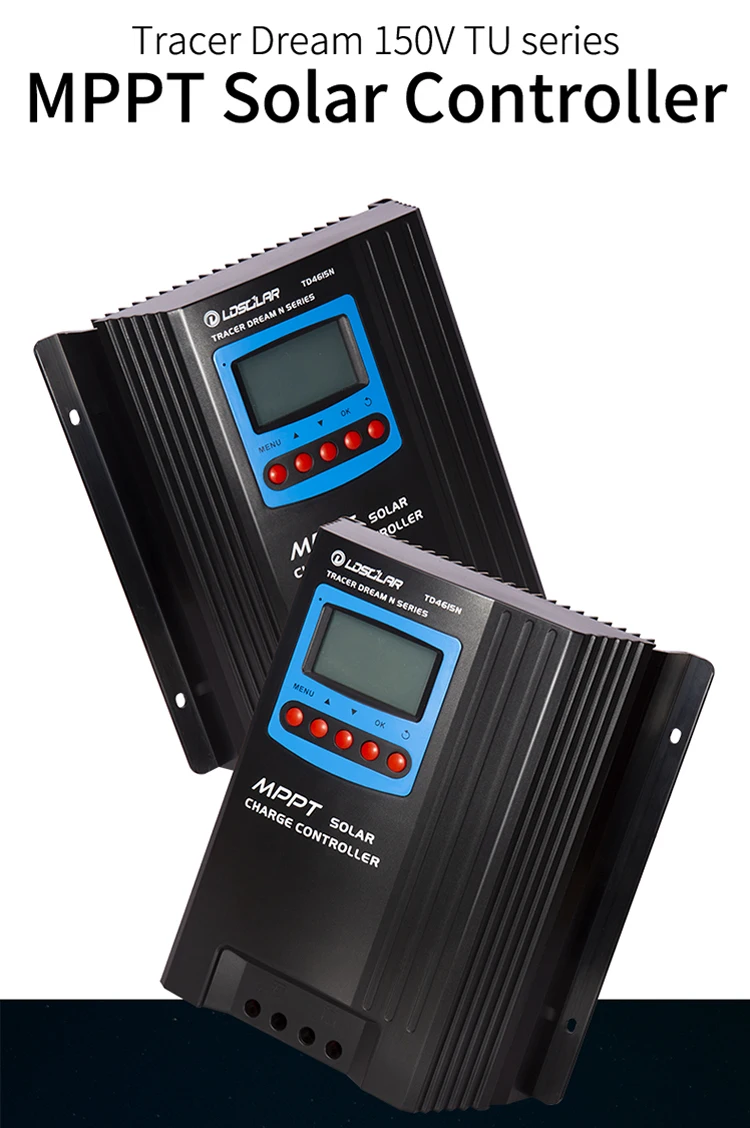

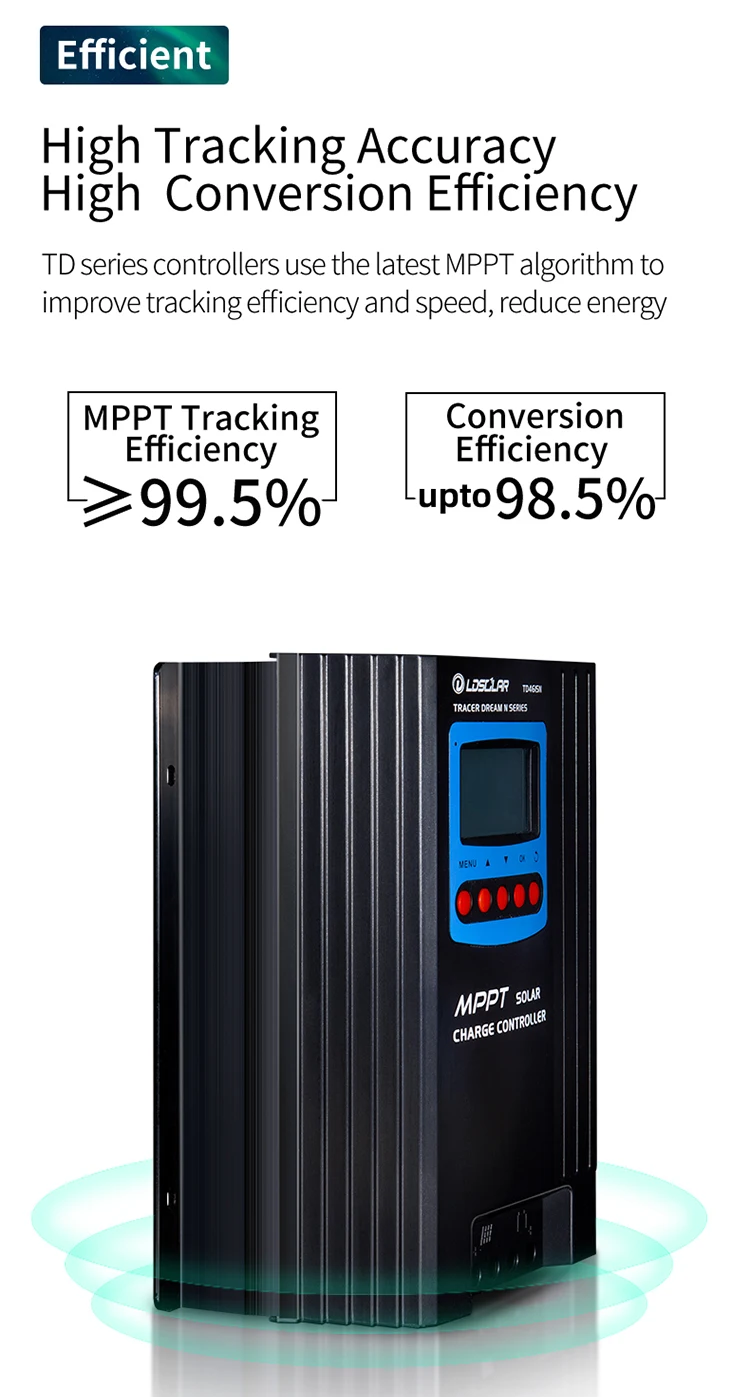

Tracer Dream 150V TU Series adopts MPPT technology. Max. 150V solar input, 12V/24V/48V auto work. It's also ran by 32 bits CPU, so stability and speed can be guaranteed. Based on the synchronous rectifier technology, the transfer efficiency of circuit can be increased up to 98.5% and the Pmax tracking accuracy up to 99.5%.So our MPPT can trace the accurate Pmax in the shortest time(10~20s), even when the sunlight changes rapidly. It can perfectly handle extreme weather or weak sunlight. It adopted by common negative design and it can start from solar, Widely used in solar station and big solar home system.
Product Paramenters
Model | TD4515TU | TD4615TU | |||
System Voltage | 12V/24V/48V DC auto | ||||
Working voltage range | 8-68V | ||||
Max.PV open circuit voltage | 150V（Min.working temperature）140V（25℃） | ||||
MPP voltage range | （Battery voltage+2V）~125V | ||||
Self-consumption | <2W | ||||
Rated charge current | 50A | 60A | 40A | ||
Rated discharge current | / | / | |||
Max.PV input power | 650W/12V 1300W/24V 2600W/48V | 800W/12V 1600W/24V 3200W/48V | 520W/12V 1040W/24V | ||
Grounding | Common negative | ||||
Battery type | Sealed(Default)/Gel/Flood/Lithium | ||||
LVD※* | 11.0V ADJ 9V...12V ; x2/24V ; x4/48V | ||||
LVR※* | 12.6V ADJ 11V...13.5V ；x2/24V ; x4/48V | ||||
Float Voltage※* | 13.8V ADJ 13V... 15V ; x2/24V ; M/48V | ||||
Boost Voltage※* | 14.4V ADJ 13V...17V ；x2/24 ; x4/48V | ||||
battery voltage less than 12.6v auto boost 2hours | |||||
Battery Over Voltage Protection | 16.5V ; x2/24V ; x4/48V | ||||
USB Output | / | ||||
Temperature Consumption# | For 12Vsystem:-24mV /°C ; x2/24V ; x4/48V | ||||
RS485 interface | √ | ||||
Relative humidity | ≤95%, N.C. | ||||
WorkingTemperature | -20°C~+50°C(Product can work continuously at full load) | ||||
LCD temperature range | -20°C~+70°C | ||||
Waterproof grade | IP32 | ||||
Mounting hole size | Φ5mm | ||||
Terminals | 25mm²/4AWG | 25mm²/4AWG | 25mm²/4AWG | ||
Weight | 3.9Kg | 4.5Kg | 1.7Kg | ||

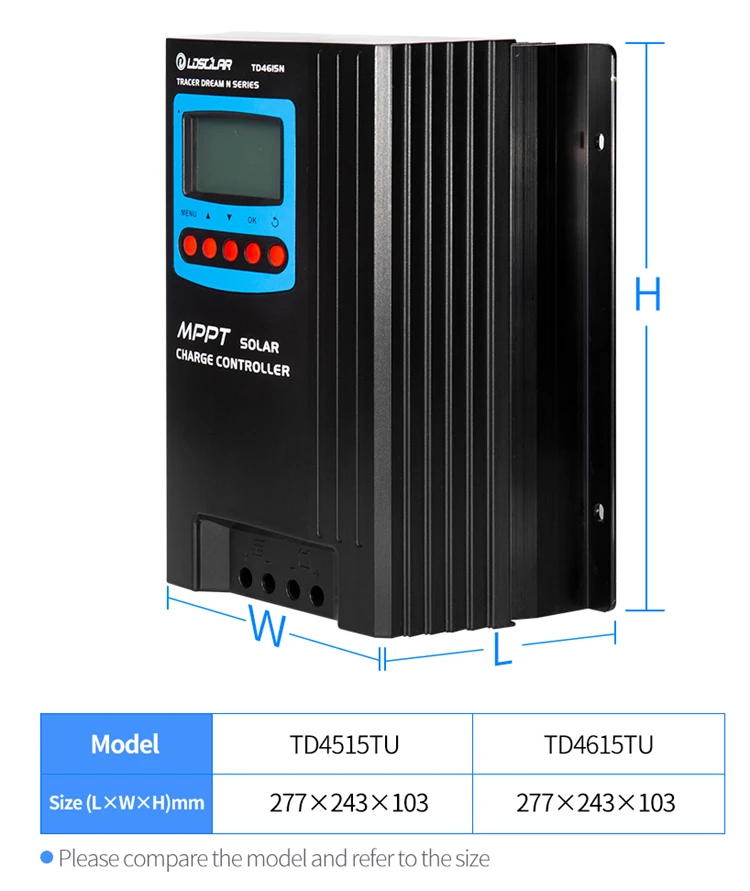

Overall dimension(mm) | 277*243*103mm | 277*243*103mm | |||

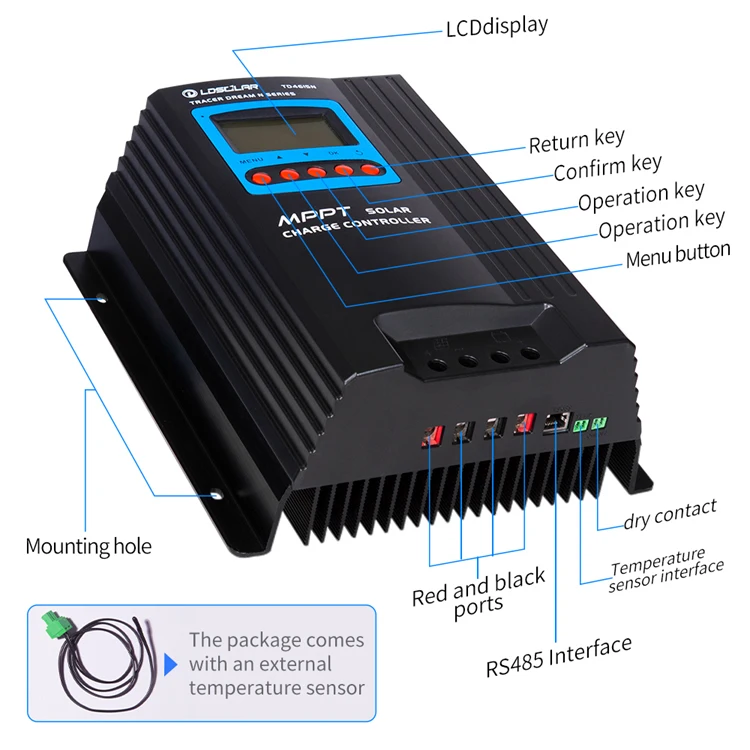

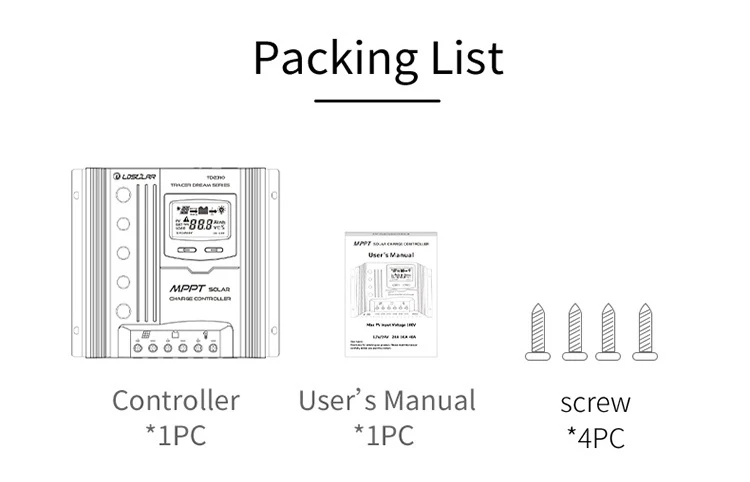

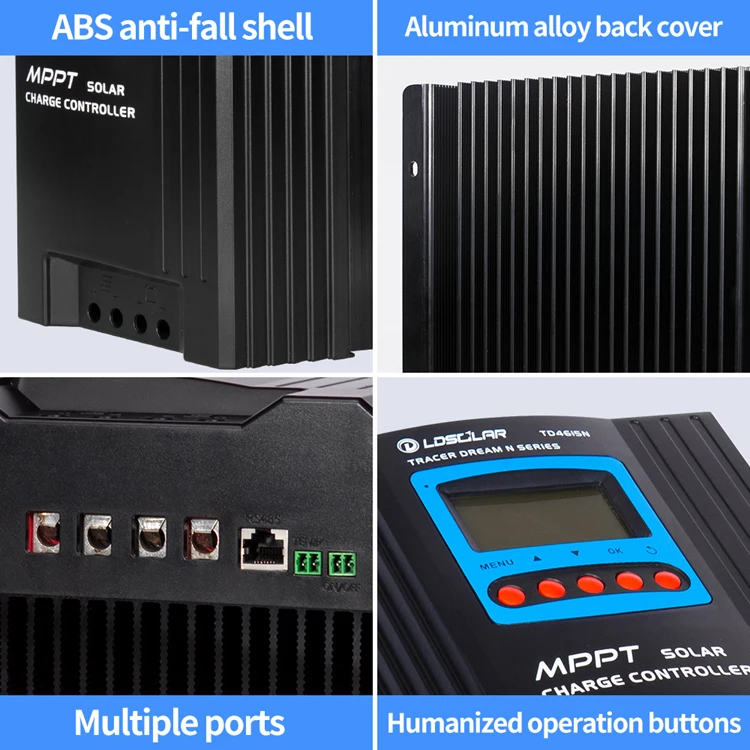

Details Image And Packing list
Application
Company Profile
Certifications
Delivery And Warranty
