ALIBABA.COM AKP-201 Cross Working Table FROM CHINA
US $5.00-$20.00
Factory Cheap Price Hass Cnc Machining Milling Center Use 5th Axis Cnc Rotary Table SCT Tilting Universal Dividing Head
- Category: Table >>>
- Supplier: Dongguan Mihong Mechanical Hardware Co. Ltd.
Share on (1600577738009):
Product Overview
Description
Product Overview

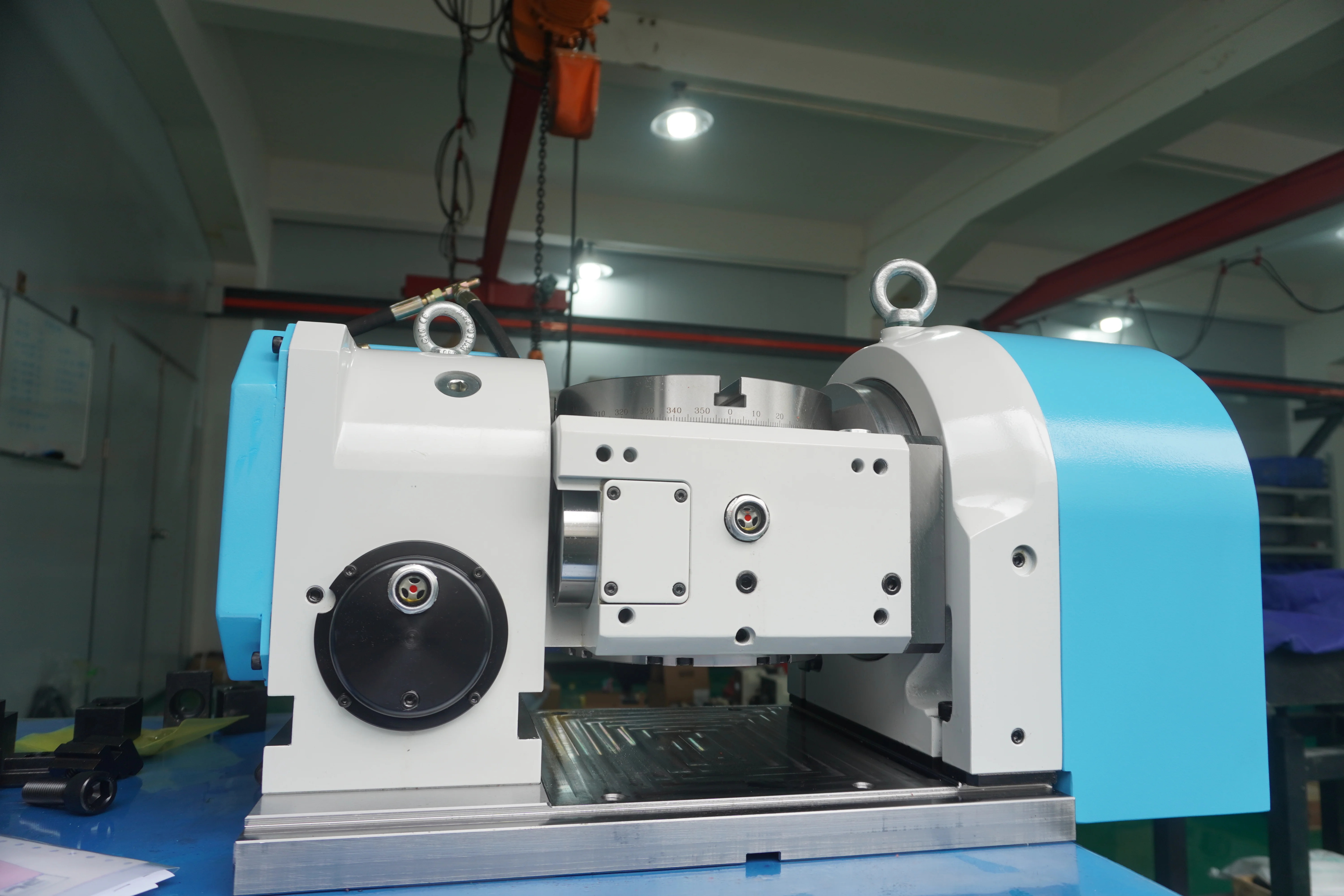

Factory Cheap Price Hass Cnc Machining Milling Center Use 5th Axis Cnc
Rotary Table SCT Tilting Universal Dividing Head
This 5th axis cnc rotary table use dual lead worm & gear to make sure the stability accuracy .
FEATURES AT A GLANCE
COMPACT DIMENSIONS
EXTENDING UNDERCARRIAGE
SAFETY FRAME
SEASY MAINTENANCE
VERSATILITY
EXTENDING UNDERCARRIAGE
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
Model | MABD-130 |
Disc diameter | 130mm |
Rotate spindle center hole | 40h7 |
Rotate spindle through center hole | ∅35 |
Rotate disc height on 0 degree | 215mm |
Rotate disc height on 90 degree | 233mm |
Rotate disc center height on 90 degree | 135mm |
Guide key width | 14h7 |
Locking force | 5 kg/cm² |
Axis | tilting axis / rotate axis |
Equal division | 0.001 degree |
Gear ratio | tilting axis:1/60 rotate axis:1/120 |
PRODUCT CONFIGURATION
CHANGCHAI high power engine
Imported EATON control valve
Japan Shimadzu hydraulic motor
SALES AND SERVICE NETWORK
Successful Project
For Hass Cnc
For Fanuc Cnc
For Brother cnc
SIMILAR PRODUCTS
FAQ
Q1: How long does the delivery time for the cnc rotary table ?
A1:We have 4th axis cnc rotary table in stock ,the 5th axis rotary table need
more than 7 days.
Q2:Which system suit for the cnc rotary table ?
A2: Fanuc ,Mitsubishi,siemens,Haas, GSK,Syntec etc .
A1:We have 4th axis cnc rotary table in stock ,the 5th axis rotary table need
more than 7 days.
Q2:Which system suit for the cnc rotary table ?
A2: Fanuc ,Mitsubishi,siemens,Haas, GSK,Syntec etc .
