Full automatic plastic bottle soda sparkling water beverage carbonated soft drink filling machine production line
- Category: >>>
- Supplier: Zhangjiagang Sky Machine Co. Ltd.
Share on (1600578201600):
Product Overview
Description
Glass Bottle Alcohol Beer Filling Machine Vodka Whisky Sparkling Wine Bottling Making Production Line

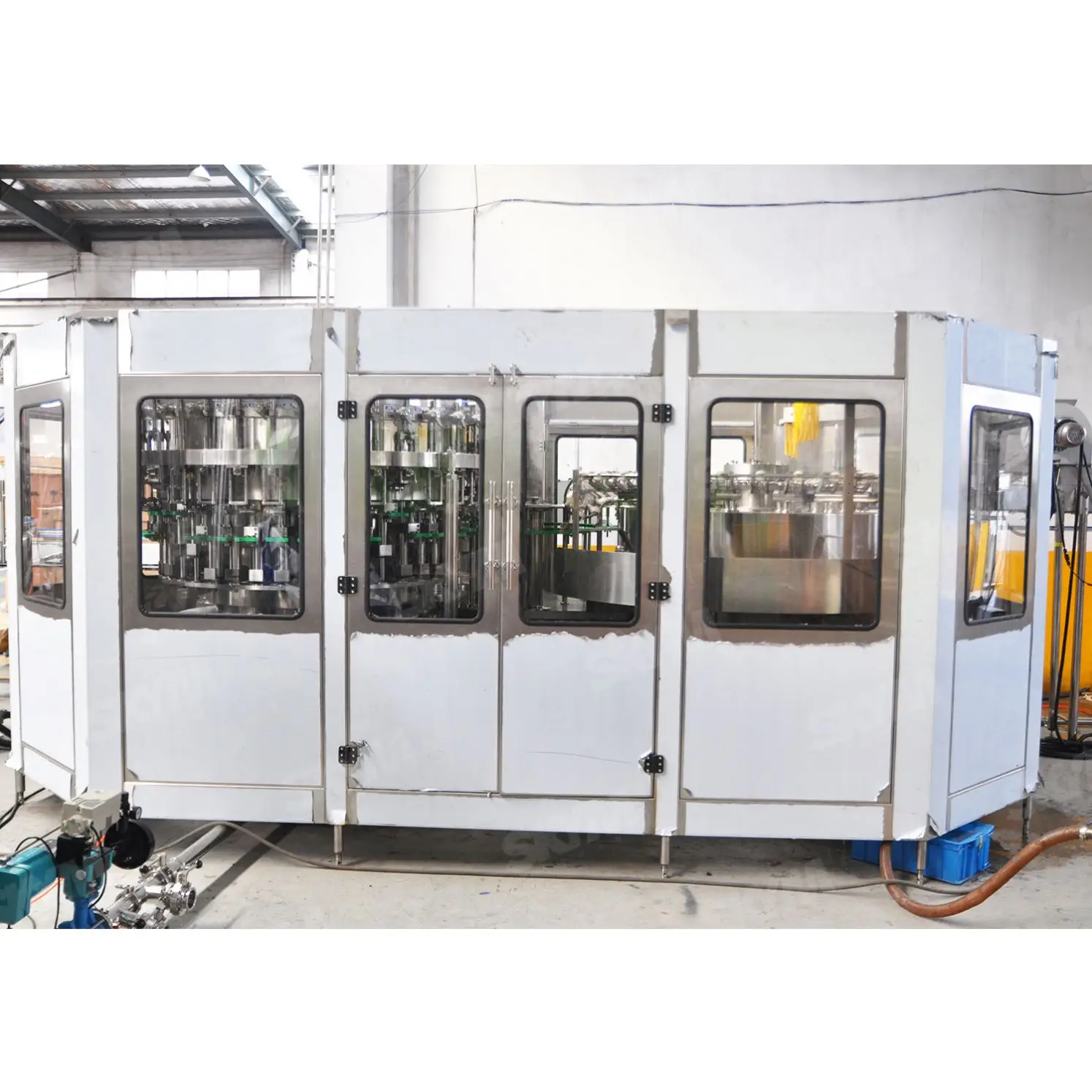

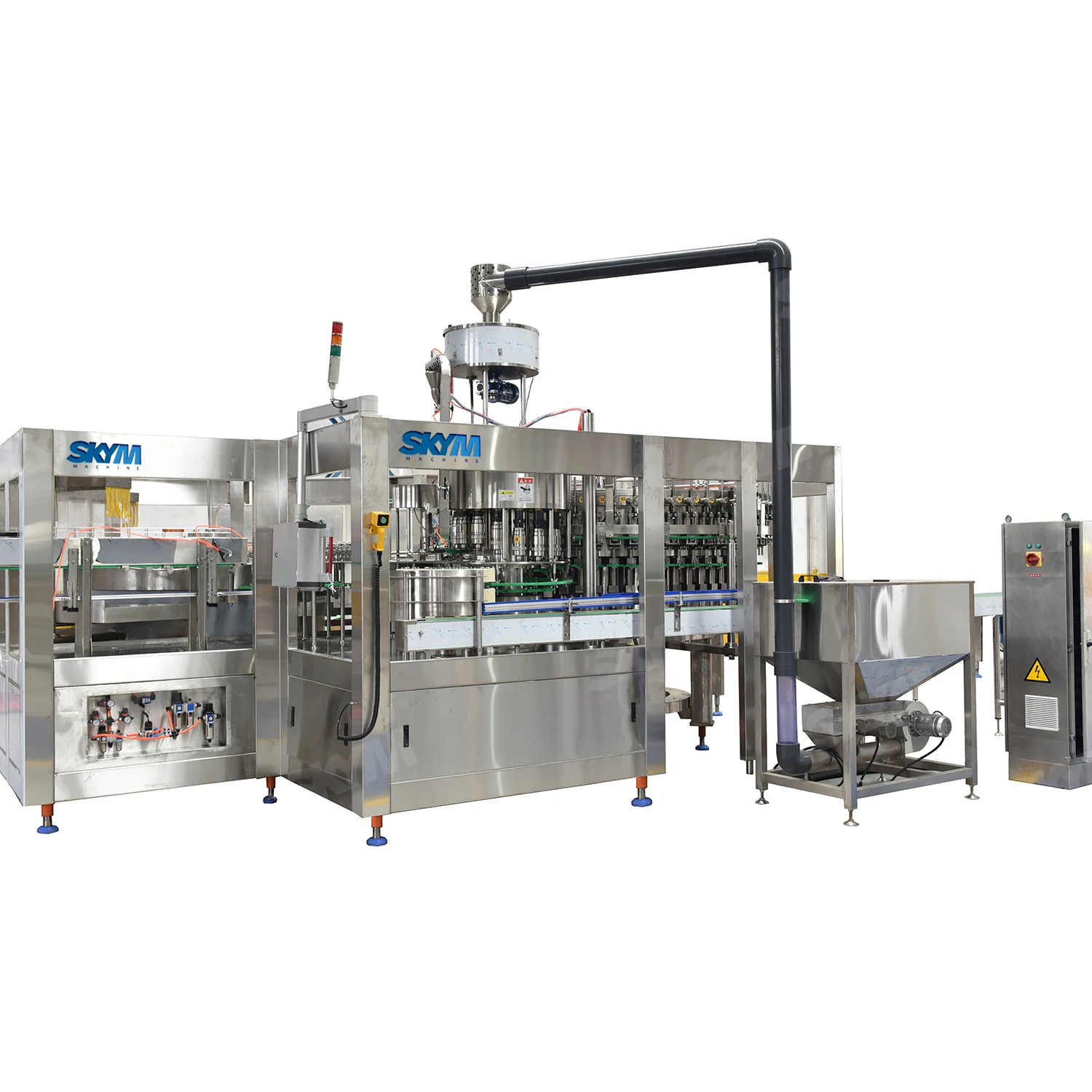

DCGF-series rinsing, filling, Capping 3-in-1 monobloc machine introduced by foreign advanced gas-filling technique is a high performance fully automatic liquid packaging equipment. Machine for carbonated beverage packaging machine has the following characteristics: filling tank, filling valves and other components in direct contact with the material are high-quality stainless steel or non-toxic materials, in line with food hygiene requirements: use of resistant seals hot rubber to meet the high-temperature sterilization process of user requirements: PCL programmable controller used to realize from the bottle into the machine to the packaging of finished using the automatic control of frequency control, easy to transfer the user to adjust prepared to meet the different process on the capacity requirements; using isobaric filling principle and popular spring-loaded valves, ensuring the quality of the beverage, using an advanced magnetic clutch adjustment screw cap torque device to ensure the quality of the blocks.

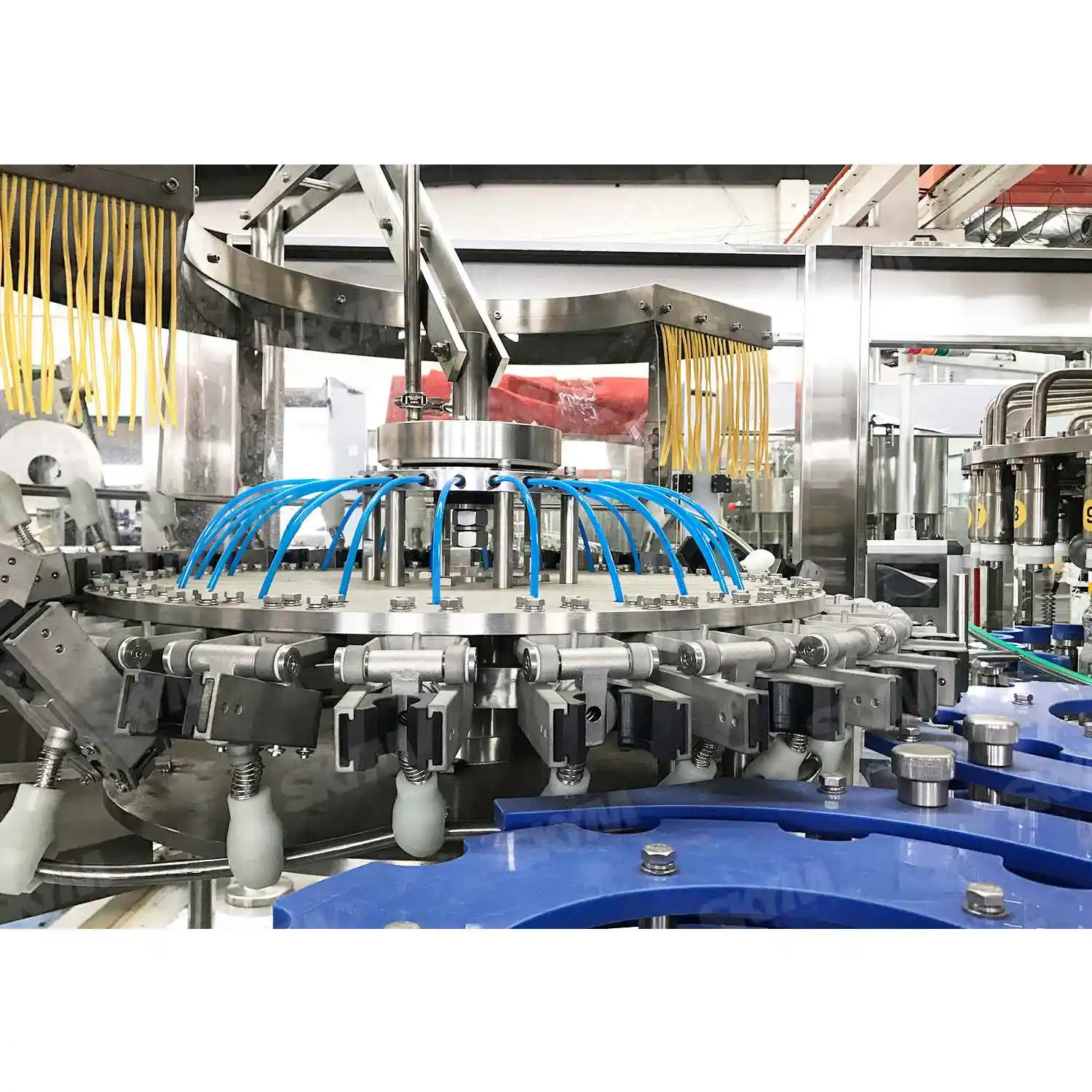

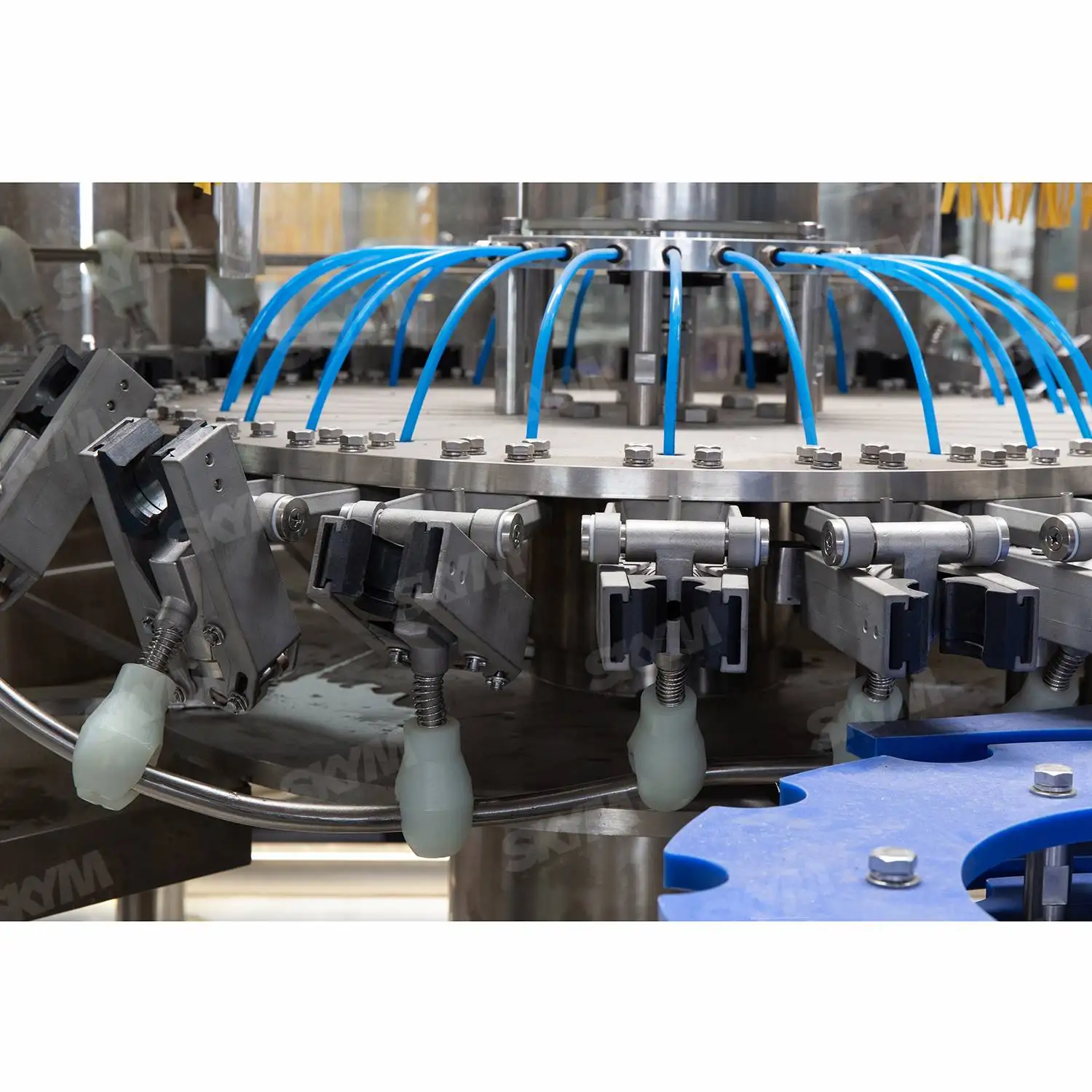

Rinser

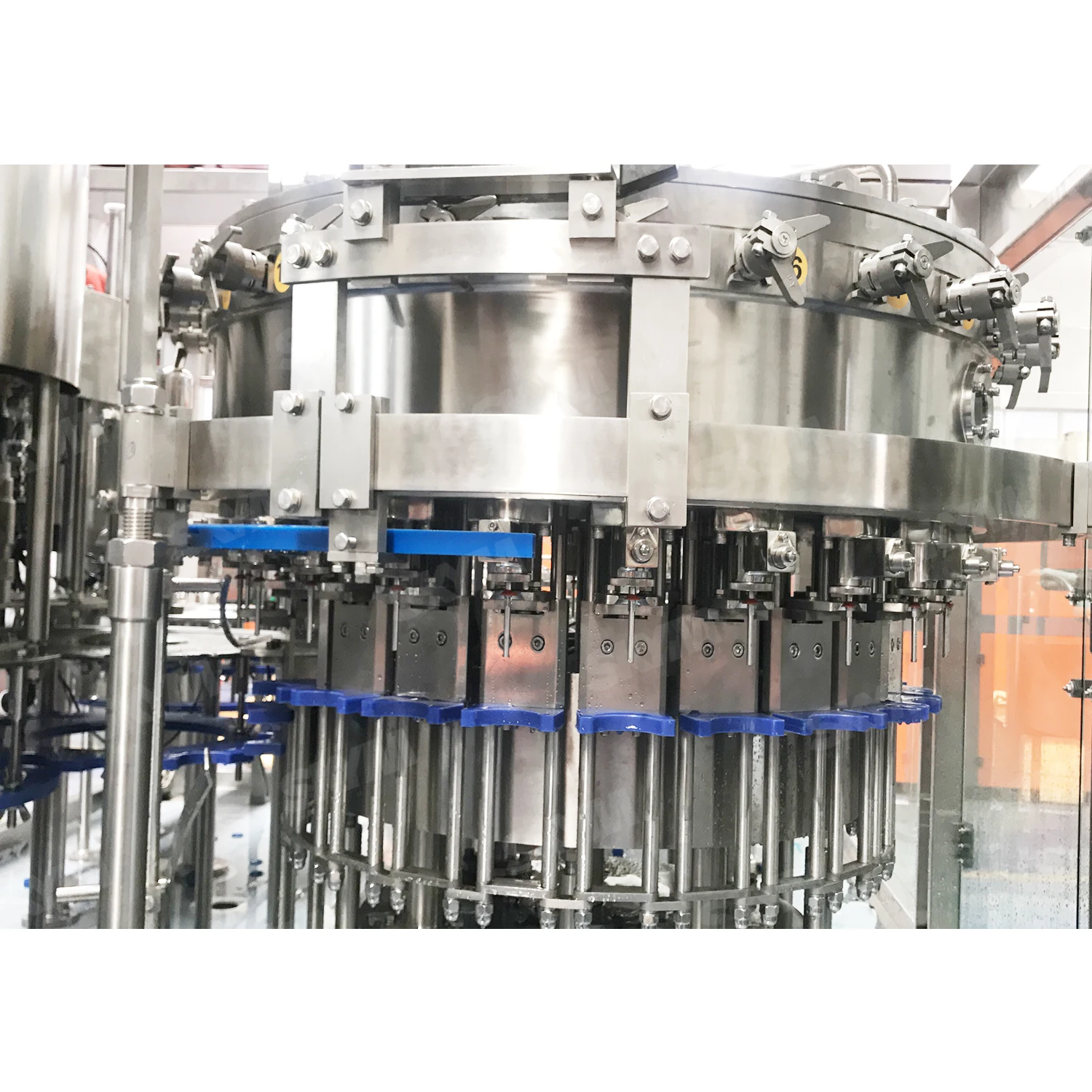

Filler

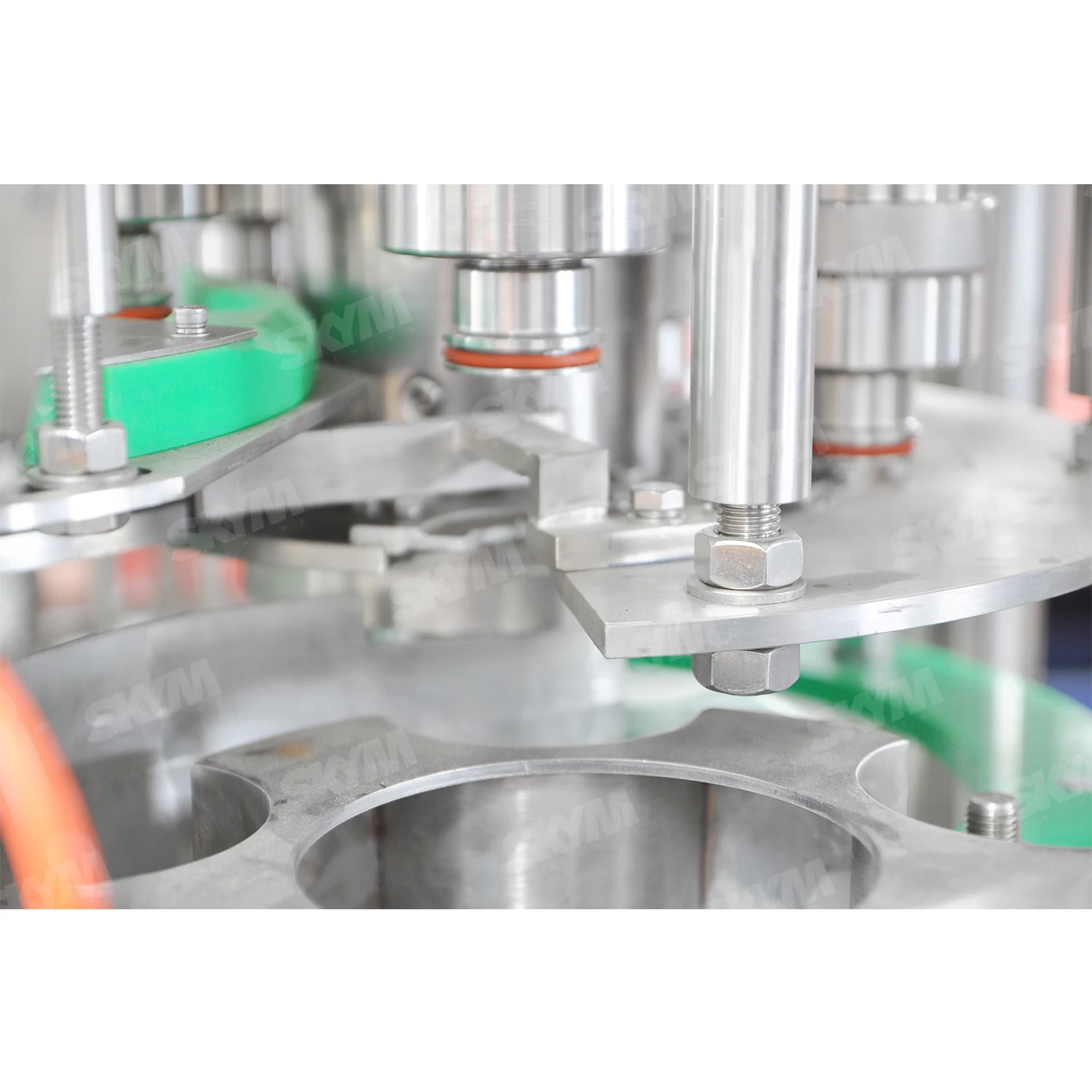

Capper
Product Paramenters
Model | DCGF 14-12-5 | DCGF 16-16-5 | DCGF 24-24-8 | DCGF32-32-10 | DCGF40-40-12 | DCGF50-50-15 | DCGF60-60-15 | ||||||
Bottle specifications(mm) | 200ml To 2000ml | ||||||||||||
Capacity (350ml/bottle/hour) | 2000-3000 | 3000-4000 | 6000-8000 | 8000-10000 | 12000-15000 | 15000-18000 | 18000-25000 | ||||||
Power supply(kw) | 2.42 | 3.12 | 3.92 | 3.92 | 5.87 | 7.87 | 11.37 | ||||||
Overall dimension(L*W*H)MM | 2360×1770×2700 | 2760×2060×2700 | 2800×2230×2700 | 3550×2650×2700 | 4700×3320×2700 | 5900×4150×2700 | 6700×5160×2700 | ||||||
Weight (KG) | 2800 | 3650 | 4800 | 6000 | 7500 | 9800 | 11500 | ||||||
Click Related Products
PET bottle making machine
Automatic blowing machine adopts our most advanced blowing technologies. This machine is a fully automatic,high intelligent,stable
and reliable blowing machine,with simple structure,and low energy consumption. It is very popular and well used in food
,beverages,cosmetics,pharmaceutical industry.
and reliable blowing machine,with simple structure,and low energy consumption. It is very popular and well used in food
,beverages,cosmetics,pharmaceutical industry.
Automatic PVC shrink labeling machine
Application: PVC / PET / OPS label sleeve
* Stainless steel Main Machine Frame / Famous electrical components (SIEMENS PLC controller ,Inverter ,Mitsubishi Motor )
* Stainless steel Main Machine Frame / Famous electrical components (SIEMENS PLC controller ,Inverter ,Mitsubishi Motor )

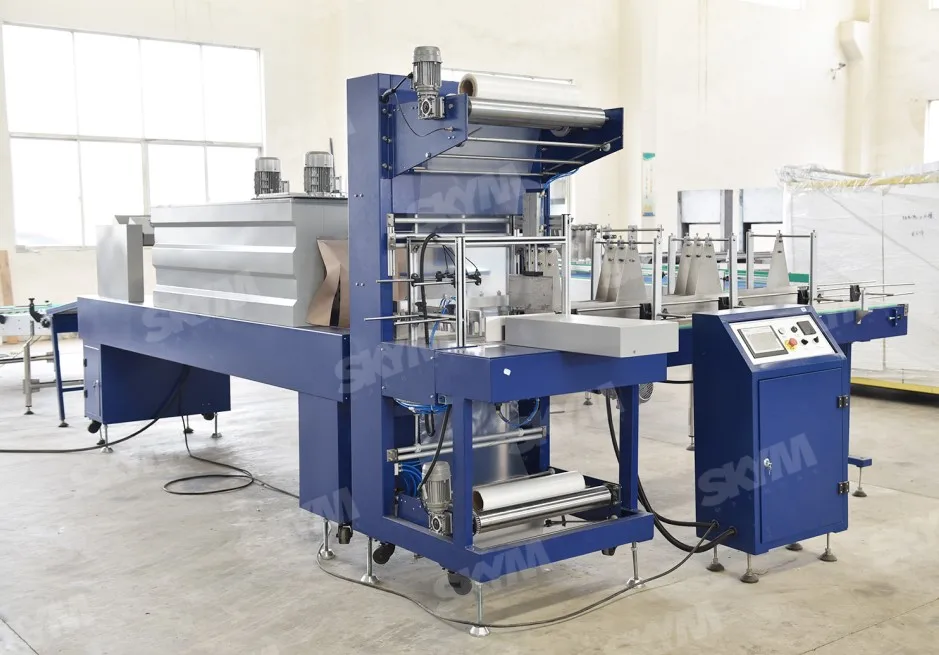

Automatic PE film shrink wrapping machine
