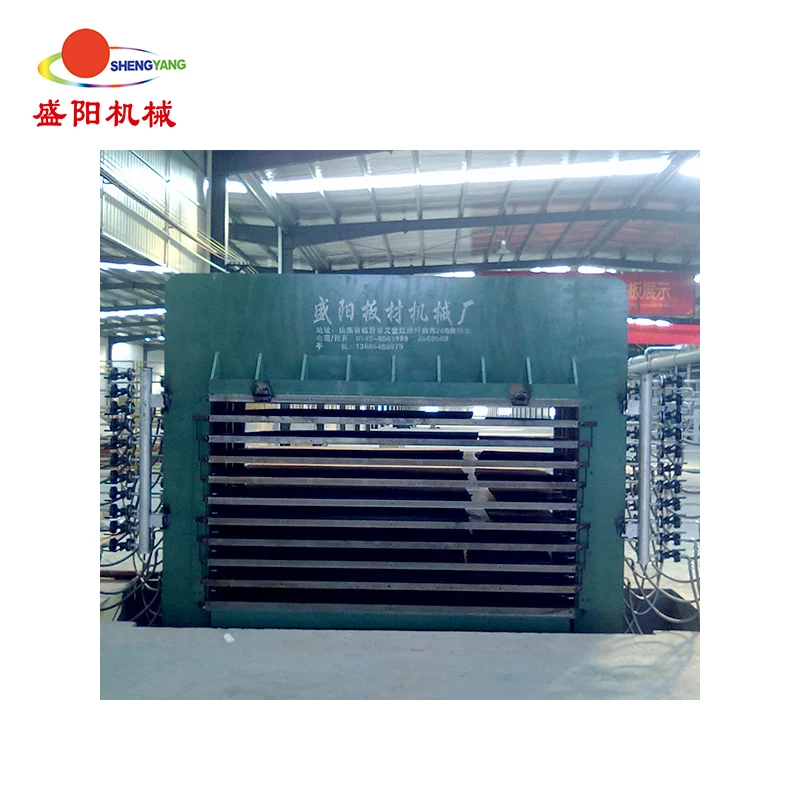

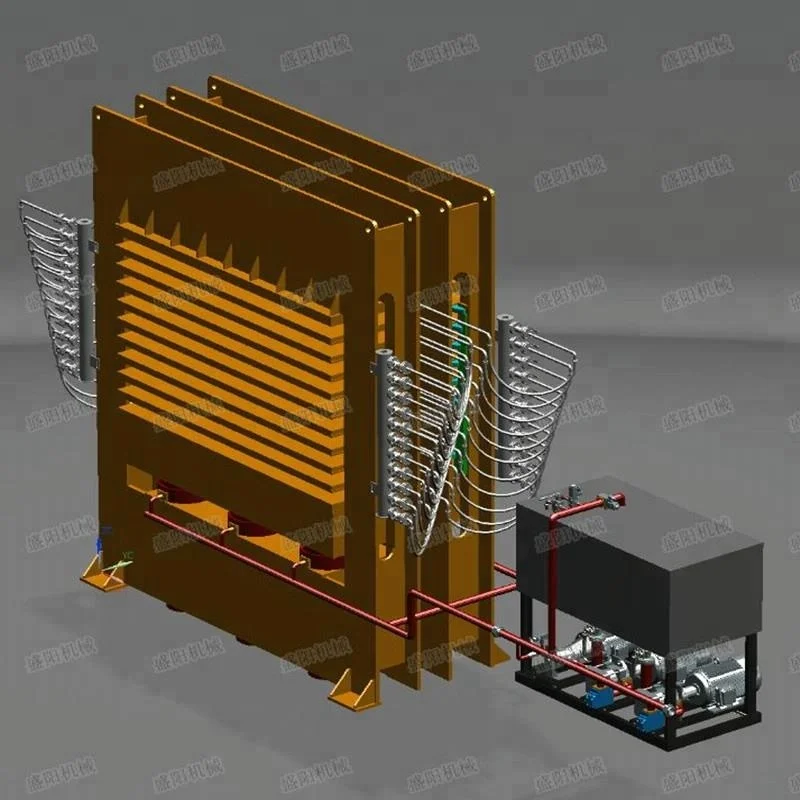

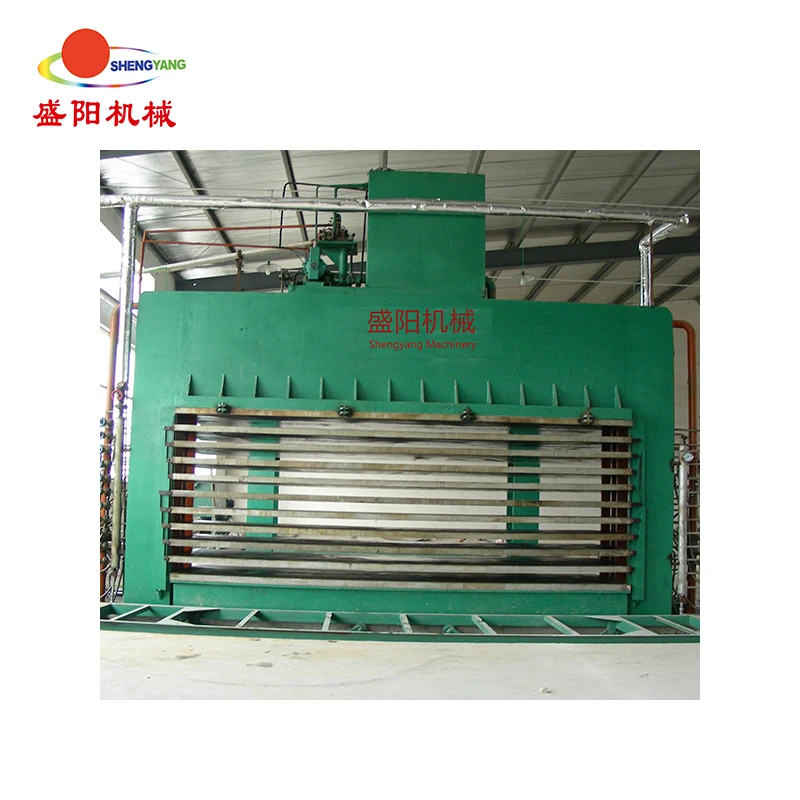

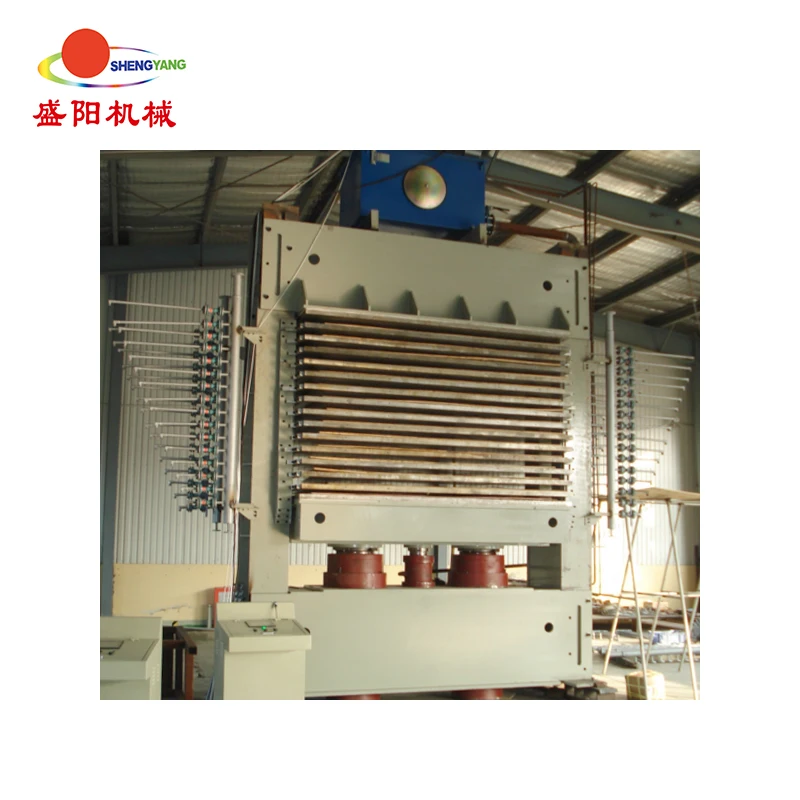

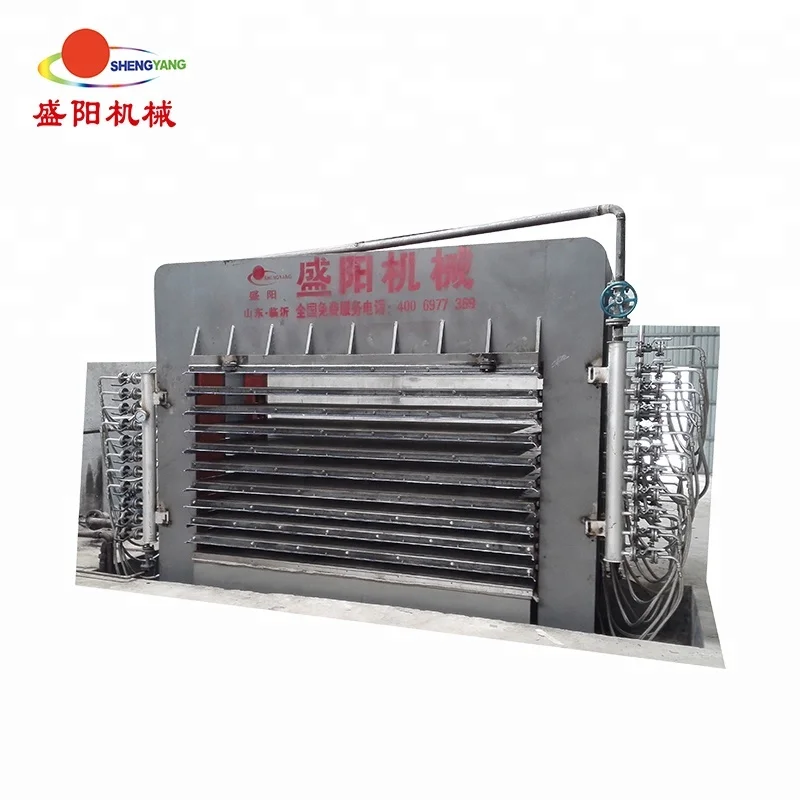

Горячая Распродажа 600T 15 слой гидравлической фанеры горячий пресс делая машину
- Category: Woodworking Machinery >>>
- Supplier: Linyi Shengyang Wood-Based Panel Machinery Factory
Share on (1600580489160):
Product Overview
Description
Product Description
Parameters for example film faced plywood hot press
| Equipment name | Hot press |
| Nominal pressure | 4000KN |
| Board input direction | horizontal |
| Layer number | 15 |
| Layer spacing(the distance between 2 layers) | 70mm |
| Hot plate number | 16 |
| Hot plate dimension | 1370×2700×52mm |
| Piston cylinder number | 2 |
| Piston cylinder diameter | Φ320mm |
| Piston cylinder stroke | 1050mm |
| Proof pressure | ≤25 Mpa |
| No-load closing time | About 29S |
| Low pressure pump flow | 355L/min |
| Allowable pressure | ≤5 Mpa |
| Low pressure pump power | 11KW |
| High pressure pump flow | About 35 L/min |
| High pressure pump power | 7.5 KW |
| Unit slab pressure | 12.3 Kgf/cm2 |
| Slab(board) size | 1280×2560mm |
| Equipment quantity | 33,000 Kg |
| Equipment dimension | 3590×1370×4200mm |
| Control mode | Automatic pumping station |
| The thickness of the upper and lower beams | 1000,900mm |
| Steel plate thickness of the beam | 35,20,12mm |
| Movable beam thickness | 400mm |
| Steel plate thickness of the movable beams | 30,20mm |
Advantages of our products:
1.Strict controlling management of raw materials, the main frame is welded by standard steel plate.
2.Using domestic and international premium accessories and valve blocks of famous brand, greatly reducing the failure rate.
3.Reasonable structure, convenient operation, beautiful appearance, never cut corners to ensure product quality.
4. High degree autonomy, accessories machinery requiring most can be machined independently through our own production, achieve excellence
5.Timely service, product quality assured.
