High speed 3 axis wood bamboo toothbrush making moulding machine

Product Overview

Description

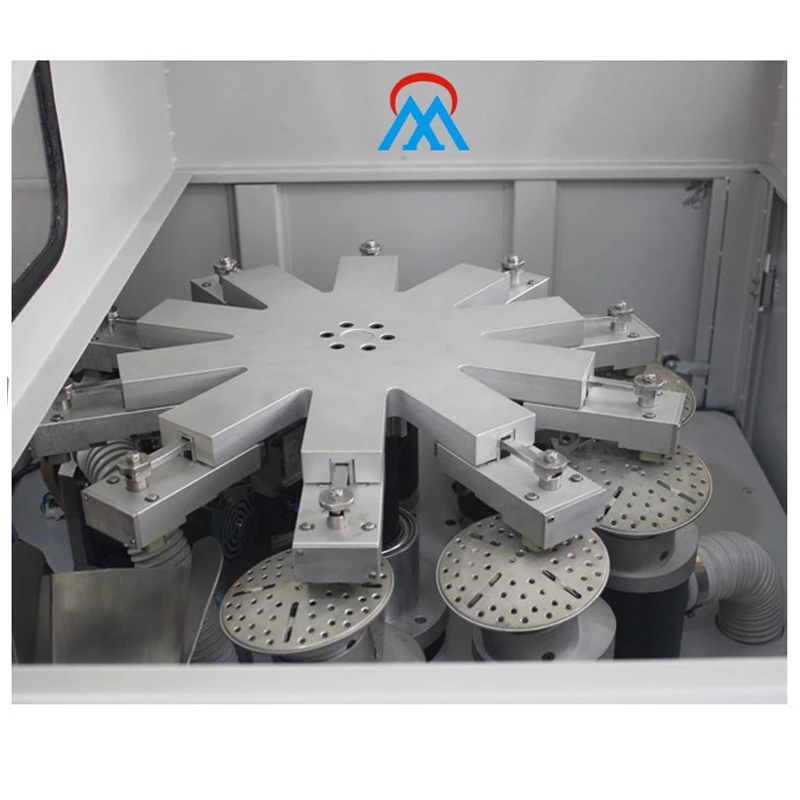

Fully automatic tooth brush machine



Description:
Model	MX-3ATB001
NO. of axis	3axis
Qty of heads	tufting
Application	Flat toothbrush.
brush types	bush base with holes
Brush base materials	Plastic
Filament materials	PP,PET, Nylon, fiber etc.
The mold fixture size	30*15mm
Diameter of hole	1~1.2mm
The length of filament(outside the hole)	8~14mm
Colors of Brush Filaments	1color or 2 color (3 color for choose)
Parameter:
tufting Speed	10 holes/sec.
Power voltage, frequence	220/380v , 50/60HZ  (customer choose)
Main motor power	0.55kw
Air Source Input	0.4~0.5Mpa
Equipment size	1100*1200*1300mm
Weight	650kg
