Wholesale 10 / 11 Gen LGA1200 PCIE 4.0 B560 SATA DDR4 B560 ATX Industrial PC Motherboard
- Category: Motherboards >>>
- Supplier: Shenzhen Geshem Technology Co. Limited
Share on (1600586454571):
Product Overview
Description
Details Images
Product Paramenters
Hardware Specifications: | ||
Processor | Supports 10th/11th generation i3/i5/i7/i9 /Pentium®/Celeron®/Xeon™ W-12xxx in Intel® LGA1200 package | |
Chipset | Intel® B560 | |
Memory | Provides 4 SATA ports, one M.2 port | |
RAM | Provides 4 DDR4 U-DIMM memory slots, MAX 128GB | |
Watchdog | 255 levels, programmable sec/min, support timeout interrupt or system reset | |
Power Supply | Adopt ATX power supply, support S0, S1, S4, S5 | |
I/O Ports | ||
Display Interface | 1×VGA, 1×HD, 1×DP | |
6×COM, expandable to 10 RS232, among which COM1/COM2 supports RS-232/RS422/RS485 mode selection 8×USB2.0 ports, 6×USB3.0 ports are provided on the rear panel 1×PS/2 keyboard/mouse interface 1×8 digital I/O interface 1×LPT interface | ||
Expansion Bus | Provide PCIe x16*1; PCIe x4*4 (10th generation CPU, one less PCIe x4); PCI*2 | |
Audio | Adopt HDA standard, support rear panel Mic-in, Line-in, Line-out | |
LAN | Provide 2×10/100/1000Mbps network interface | |
LCD / TP Environmental Specifications | ||
Operating temp. | -10℃～60℃; 5%～95% (non-condensing state) | |
Storage temp. | -20℃～80℃, 5%～95% (non-condensing state) | |

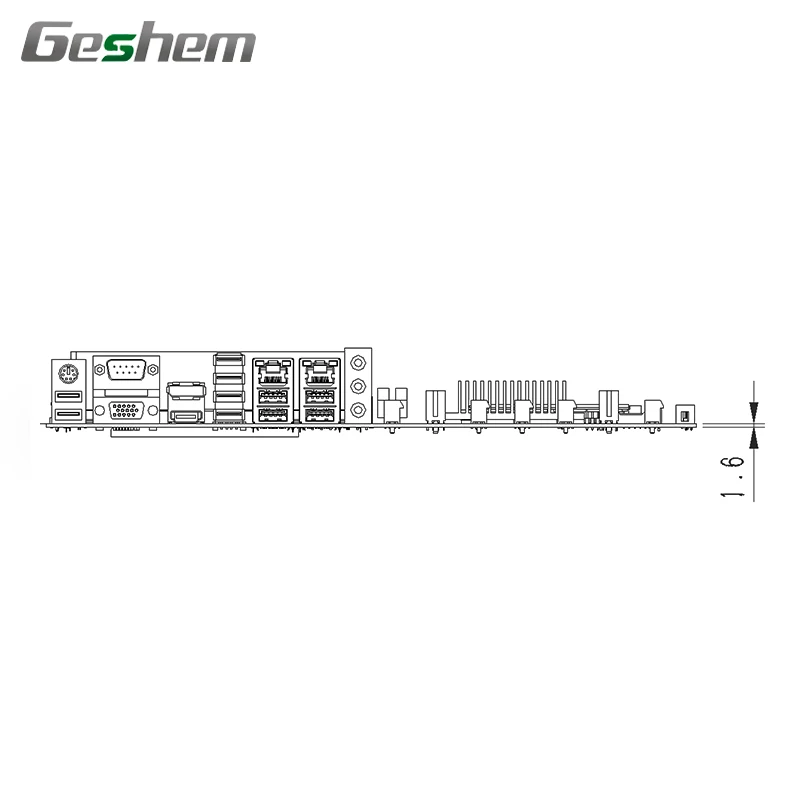

Mechanical | ||

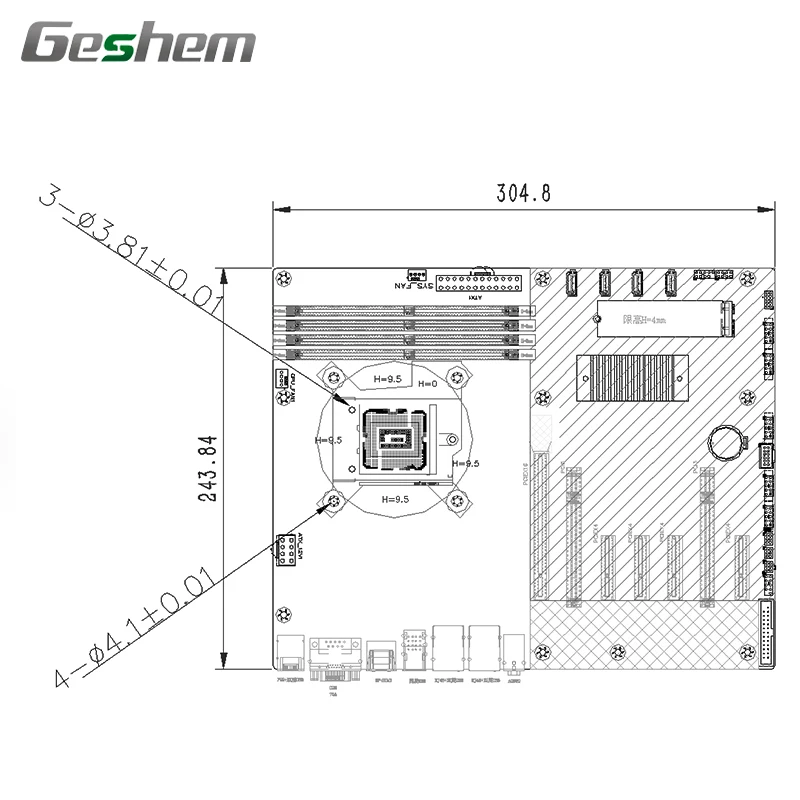

Dimensions | 305mm*244mm | |
Ordering Infomation | ||
ATX Structure Board/Intel® B560 Chipset/10th/11th Generation i3/i5/i7/i9/Pentium®/Celeron®/Xeon™ W-12xxx /4×DDR4 DIMM memory slots supporting Intel® LGA1200 package, total Support 128GB memory/1 VGA/1 HD/1 DP/2×1000Mbps network interface/provide 4 SATA interfaces, one M.2 interface/6×COM, can be expanded to 10 RS232, of which COM1/COM2 support RS-232/RS422/RS485 mode selection/8×USB2.0 ports, the rear panel provides 6×USB3.0 ports/1×PS/2 keyboard/mouse ports/1×8 digital I/O ports/1×LPT Interface/Provide PCIe x16*1, PCIe x4*4 (10th generation CPU, one less PCIe x4), PCI *2/standard ATX power supply | ||
OS & Software Support | ||
Standard OS | Ubuntu15.1 Red Hat® Enterprise Linux® 32 , 64 Win7 SP1 , 8.1 , 10 WES 7 | |
