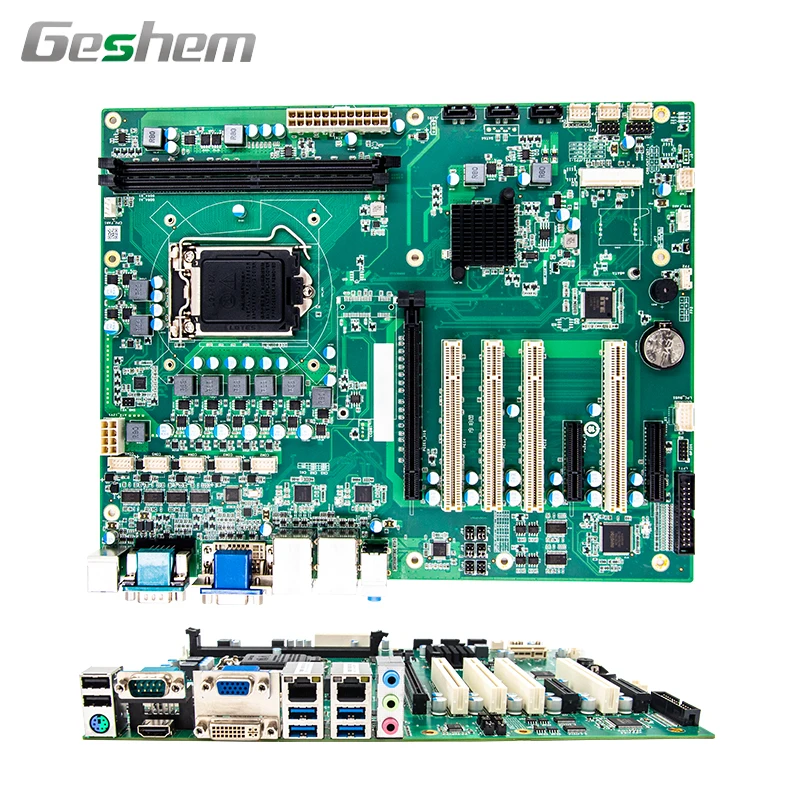

High Performance ATX H110 DDR4 32GB LGA 1151 Socket 2133/2400MHz 2 DIMM Support 6/7/8/9 I3 I5 I7 Motherboards
High Performance ATX H110 DDR4 32GB LGA 1151 Socket 2133/2400MHz 2 DIMM Support 6/7/8/9 I3 I5 I7 Motherboards
High Performance ATX H110 DDR4 32GB LGA 1151 Socket 2133/2400MHz 2 DIMM Support 6/7/8/9 I3 I5 I7 Motherboards
High Performance ATX H110 DDR4 32GB LGA 1151 Socket 2133/2400MHz 2 DIMM Support 6/7/8/9 I3 I5 I7 Motherboards
High Performance ATX H110 DDR4 32GB LGA 1151 Socket 2133/2400MHz 2 DIMM Support 6/7/8/9 I3 I5 I7 Motherboards
High Performance ATX H110 DDR4 32GB LGA 1151 Socket 2133/2400MHz 2 DIMM Support 6/7/8/9 I3 I5 I7 Motherboards

High Performance ATX H110 DDR4 32GB LGA 1151 Socket 2133/2400MHz 2 DIMM Support 6/7/8/9 I3 I5 I7 Motherboards

Share on (1600586971608):


Price:

Quantity:


Product Overview

Description







Details Images






Product Paramenters


Hardware Specifications:
Processor
Support Intel® LGA1151 Gen6/7 i3/i5/i7 CPU, support Pentium®/Celeron® CPU
Chipset
Intel® H110
Memory
Provide 4 x SATA interface (support SATA3.0 standard, default support 3), 1 x mSATA/Mini-PCIe interface (optional)
RAM
Provide 2× 288PIN DDR4 2133/2400MHz DIMM memory slots, single 16GB, maximum support 32GB
Watchdog
255 levels, programmable sec/min, support timeout interrupt or system reset
Power Supply
Adopt ATX power supply, support S0, S1, S4, S5


I/O Ports
Display Interface
1×DVI, 1×VGA, 1×HD, 1×internal display expansion interface (optional), support independent dual display output; VGA supports maximum resolution 1920×1200@60HZ, 32bit color depth

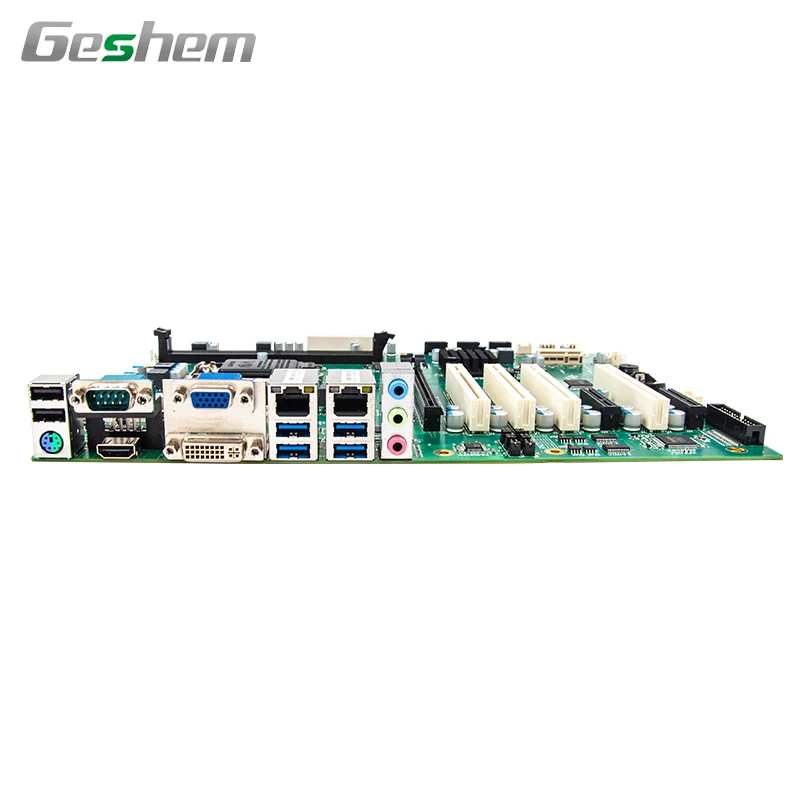

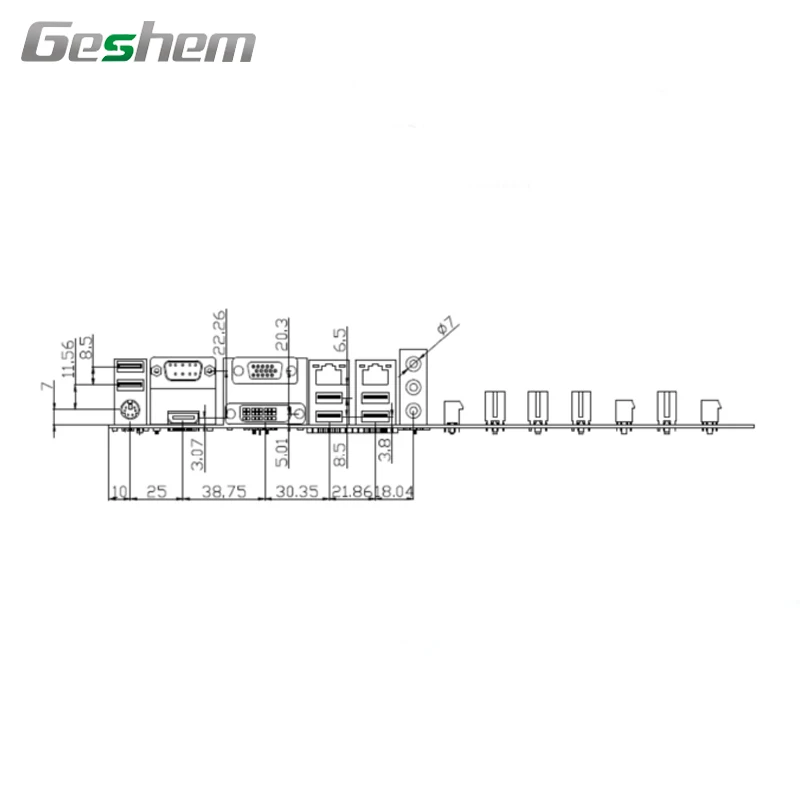

I/O Ports
6×COM, expandable to 10 RS232, among which COM1/COM2 supports RS-232/RS422/RS485 mode selection 6×USB2.0 ports, 4×USB3.0 ports are provided on the rear panel 1×PS/2 keyboard/mouse interface 1×8 digital I/O interface 1×LPT interface
Expansion Bus
Provide 1×PCIe x16 slot, support PCIe3.0 specification; 2×PCIe x4 slot (PCIe x1 signal), support PCIe2.0 specification; 4×32-bit PCI slot, support PCI Rev2.3 standard
Audio
Adopt HDA standard, support rear panel Mic-in, Line-in, Line-out
LAN
Provide 2×10/100/1000Mbps network interface


LCD / TP Environmental Specifications
Operating temp.
-10℃～60℃; 5%～95% (non-condensing state)
Storage temp.
-20℃～80℃, 5%～95% (non-condensing state)


Mechanical

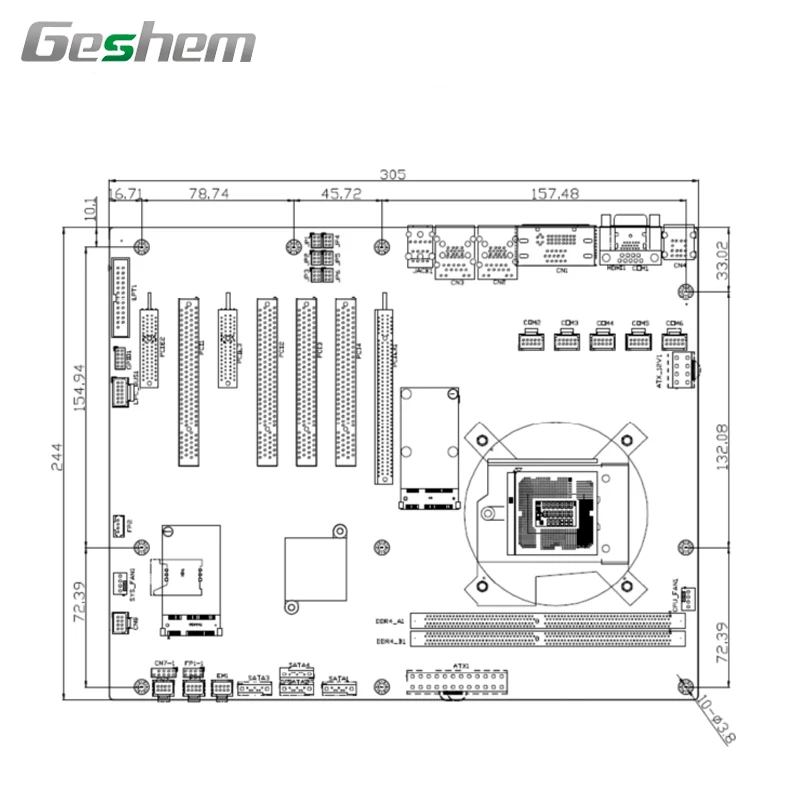

Dimensions
305mm*244mm


Ordering Infomation


ATX-GSH110K
ATX structure single board/Intel® H110 chipset/support Gen6/7 i3/i5/i7 CPU, support Pentium® /Celeron® /2×DDR4 DIMM memory slot, total support 32GB memory/VGA/HD/DVI/3×SATA /1×mSATA/2×Gigabit LAN/6×USB2.0, 4×USB3.0/6×COM port/1×parallel port/2×PS/2/HD Audio/1×8 bit GPIO/4×standard PCI slot/2×PCIe x1/1×PCIe x16/standard ATX power supply


OS & Software Support
Standard OS
Ubuntu15.1 Red Hat® Enterprise Linux® 32, 64 Win7 SP1, 8.1, 10 WES 7
